UC home fibre idrop 900 I-VH OS2 Dca 500N LSZH white G657A2
UC home fibre idrop 900 I-VH OS2 4E (1x4) Dca 500N LSZH white G657A2
Item number:
FTTH-IDROP900-4-D
EAN no.:
4049759312725
Product information for UC home fibre idrop 900 I-VH OS2 4E (1x4) Dca 500N LSZH white G657A2

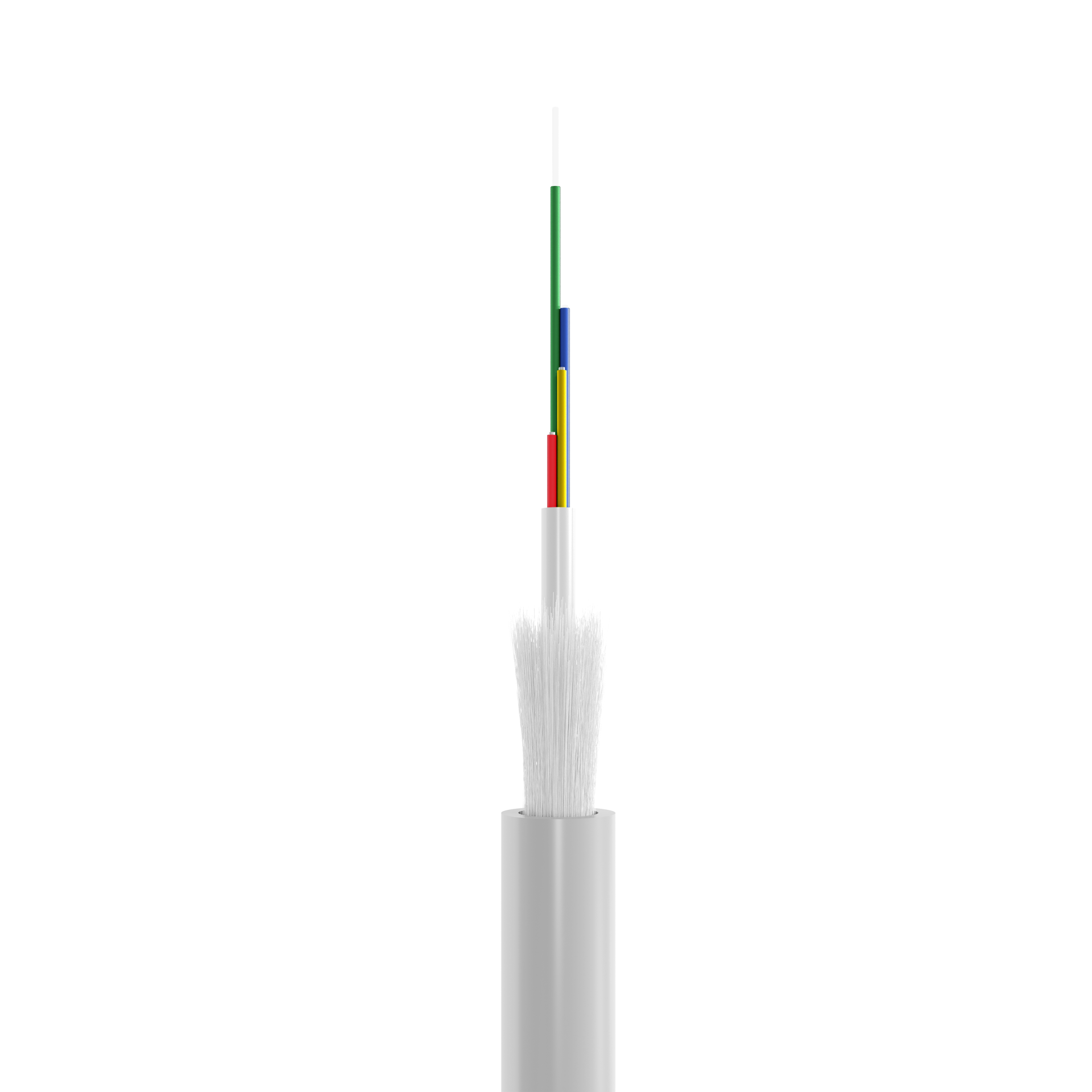

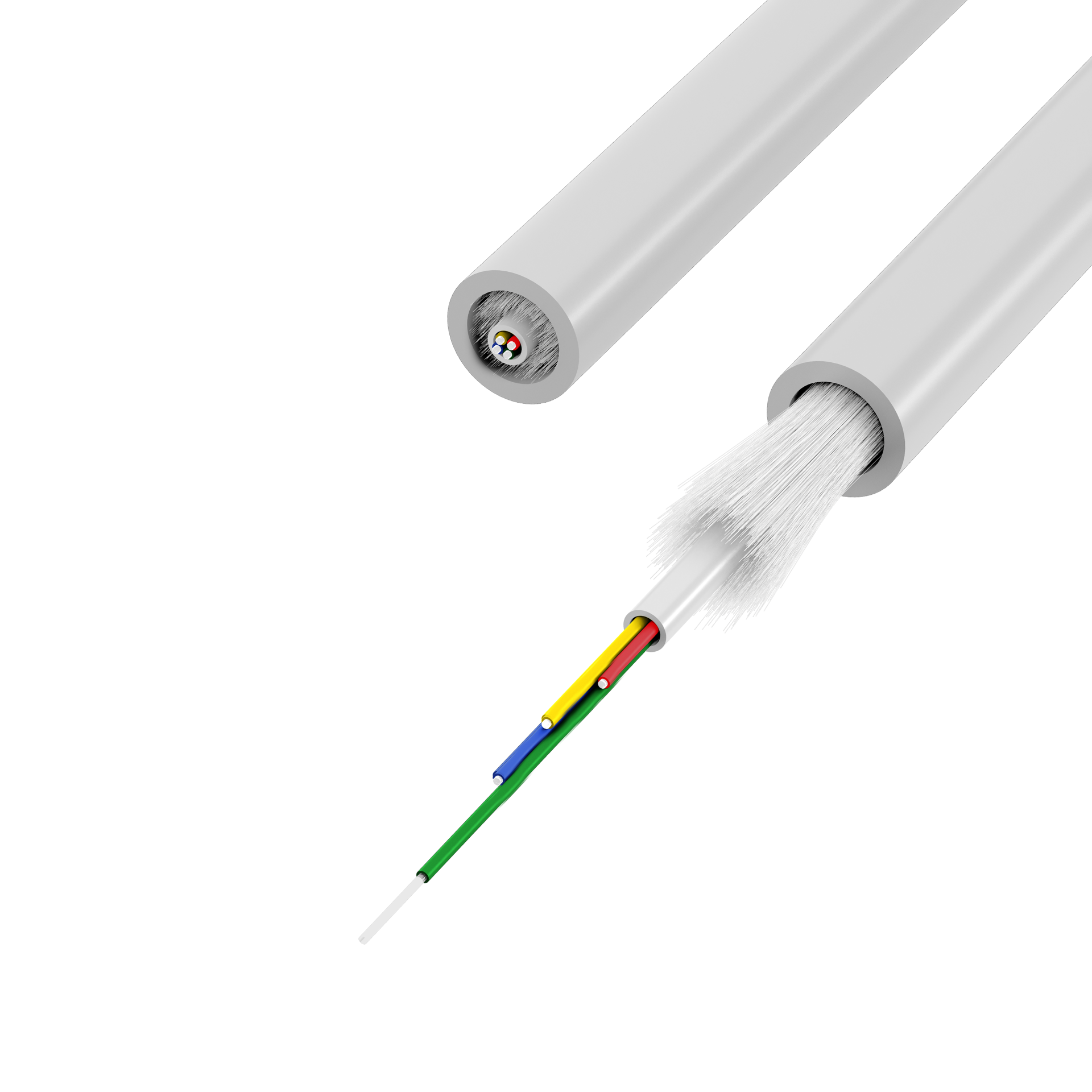

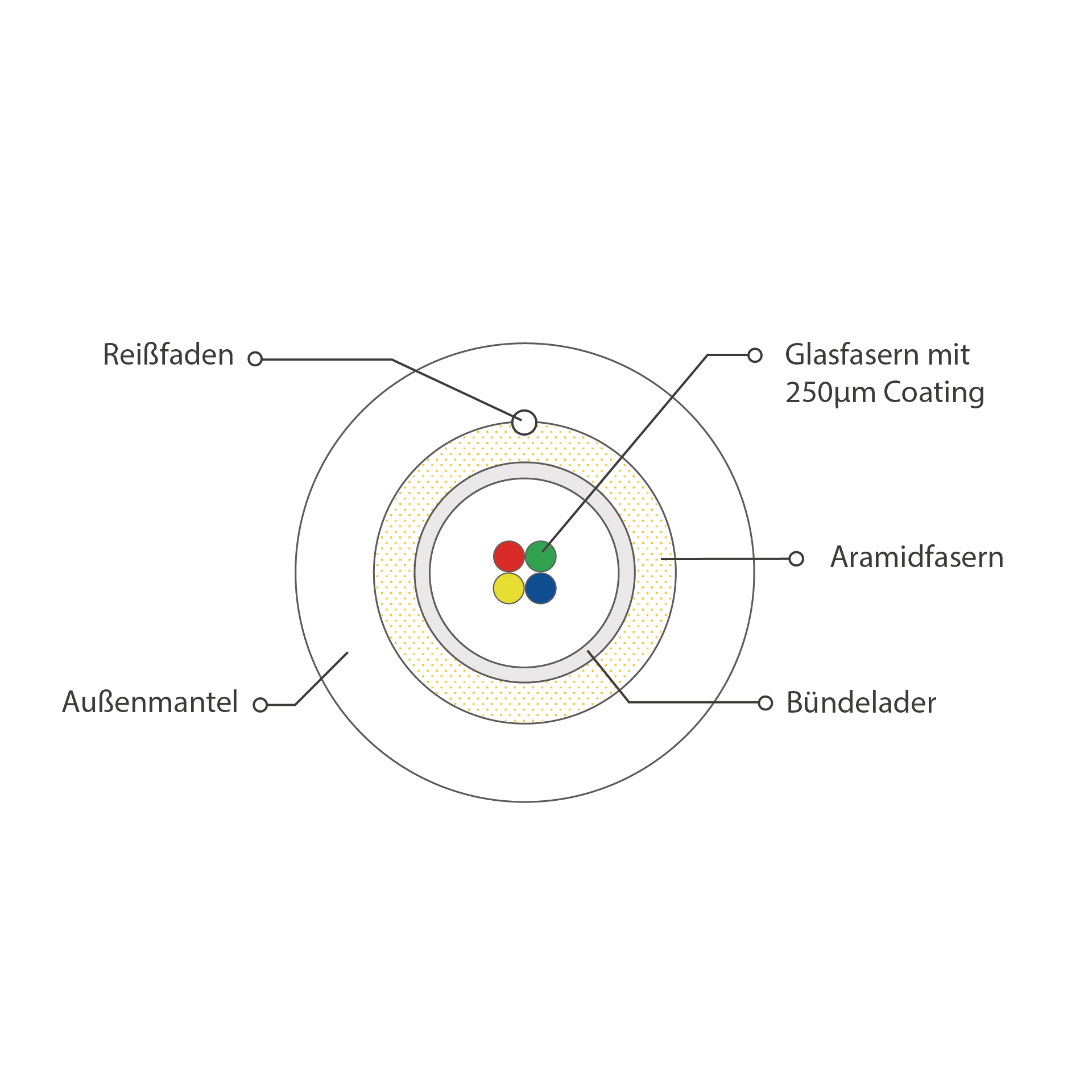

The UC Home FTTH indoor cable is equipped with 2 or 4 BendBrightXS fibers and is specifically designed for optical subscriber access. It offers robust performance and high safety through the use of aramid fibers for reinforcement and a FireRes® jacket for excellent flame retardancy.
Properties:
• Fibers: Optionally 2 or 4 BendBrightXS fibers
• Reinforcement: Aramid fibers for increased stability and protection
• Jacket: FireRes® jacket for outstanding flame retardancy
• Fire behavior class (according to EN 13501-6): Dca – High flame retardancy
• Smoke development class (according to EN 13501-6): s2 – Low smoke development
• Euroclass flaming droplets (according to EN 13501-6): d2 – Low flaming droplets
• Euroclass acidity (according to EN 13501-6): a1 – No acid formation
This cable is ideal for use in demanding indoor installations where high safety and performance requirements must be met.
Properties:
• Fibers: Optionally 2 or 4 BendBrightXS fibers
• Reinforcement: Aramid fibers for increased stability and protection
• Jacket: FireRes® jacket for outstanding flame retardancy
• Fire behavior class (according to EN 13501-6): Dca – High flame retardancy
• Smoke development class (according to EN 13501-6): s2 – Low smoke development
• Euroclass flaming droplets (according to EN 13501-6): d2 – Low flaming droplets
• Euroclass acidity (according to EN 13501-6): a1 – No acid formation
This cable is ideal for use in demanding indoor installations where high safety and performance requirements must be met.
Technical properties
| (Halogenfree): | Yes |
|---|---|
| Application: | Inside |
| Armouring: | False |
| Blow in: | False |
| Colour outer sheath: | white |
| Fibre category: | OS2 |
| Fibre type: | Single mode |
| Flame-retardant: | True |
| Jacket Material: | LSZH |
| Low smoke: | Yes |
| Radial water blocking: | True |
| Temperature Range (Installation): | -10 – 50 °C |
| Temperature Range (Operation): | -10 – 50 °C |
| Temperature Range (Storage): | -10 – 50 °C |
| UV resistance: | False |
| With rodent protection: | False |
Variants
| Item no. | Name | CPR-Class | Cable Ø | Category | Number of fibres | Tensile force max. | Aufbau | Außendurchmesser ca. | Brandlast | VDE-Bezeichnung | Gewicht | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FTTH-IDROP900-4-D | UC home fibre idrop 900 I-VH OS2 4E (1x4) Dca 500N LSZH white G657A2 | Dca | 4.5 mm | OS2 | 4 | 5000 N | 04E ( 4 x 1 ) Singlemode G.657.A2 | 4,5 mm | 370 MJ/km | I-VH | 21,5 kg/km | |
| FTTH-IDROP900-4-D-B | UC home fibre idrop 900 I-VH OS2 4E (1x4) Dca 500N LSZH white G657A2 250m Box | Dca | 4.5 mm | OS2 | 4 | 5000 N | 04E ( 4 x 1 ) Singlemode G.657.A2 | 4,5 mm | 370 MJ/km | I-VH | 21,5 kg/km |
