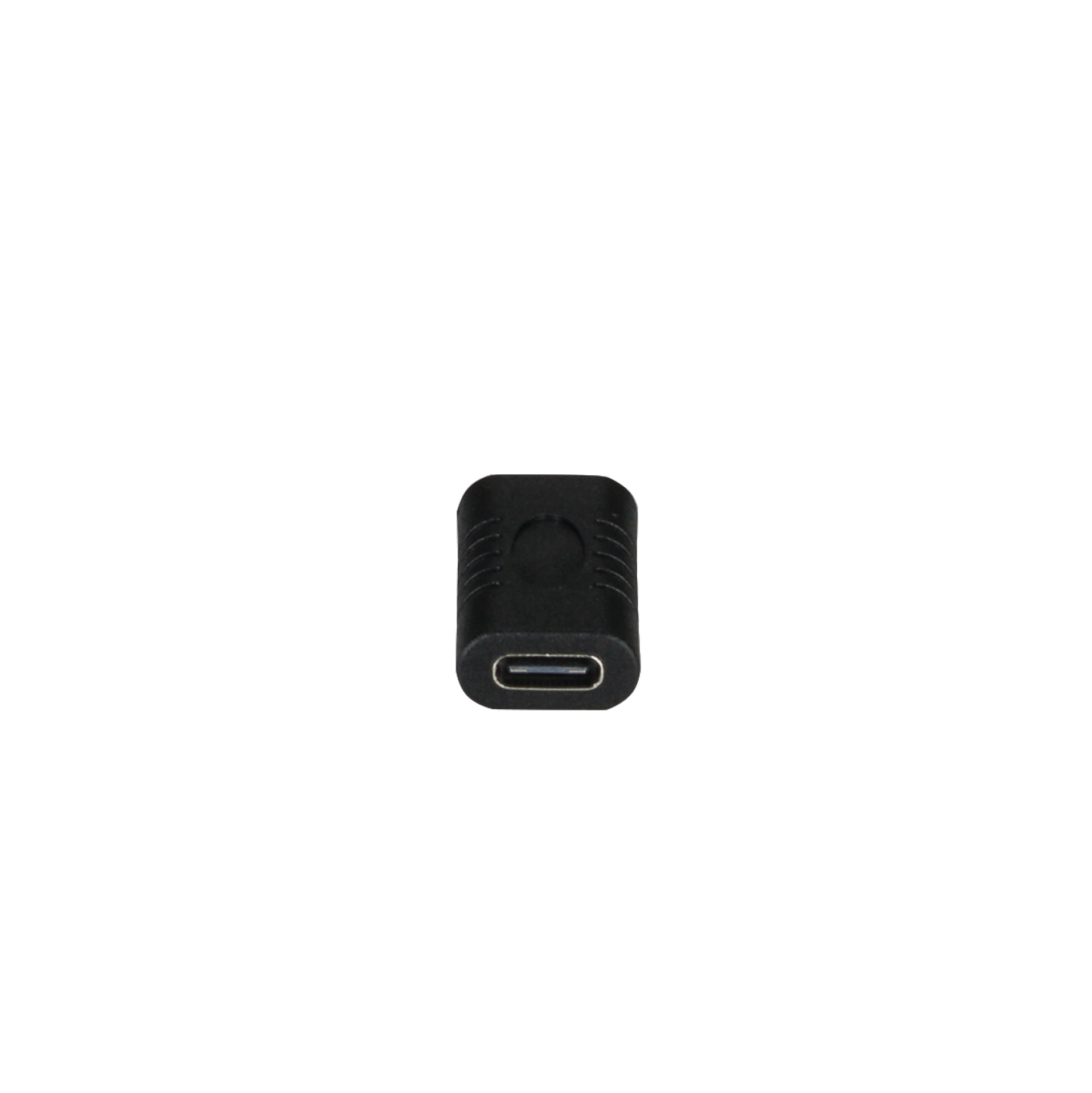

USB 3.2 Type-C Female - Female Adapter
USB 3.2 Type-C Adapter, Type-C female - Type-C female, black
Item number:
EBUSBC-C-FF
EAN no.:
4049759272043
Product information for USB 3.2 Type-C Adapter, Type-C female - Type-C female, black
Typ-C auf Typ-C Adapter zum Adaptieren an Typ-C Kabel
max. 5Gbit/s Datengeschwindigkeit
max. 5Gbit/s Datengeschwindigkeit
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | True |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Jack |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | silver-plated |
| DSC: | False |
| Dust cover: | false |
| Enhanced Color: | Deep Color |
| Fast Charging technologie: | PD 3.0 |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | BC |
| Max. mating cycles: | 10000 |
| Model: | Adapter |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 24 |
| Number of shieldings: | triple |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 12.2*6.6*28mm |
| Plug dimensions Side 2: | 12.8*5.74*30mm |
| Power Delivery: | 100 W |
| Scope of delivery: | 1xUSB Cable |
| Shielded: | True |
| Speed: | 5 Gbit/s |
| Storage Temperature: | -20 – 70 °C |
| Supported audio formats: | compressed Audio format (Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos) |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | USB Type-C |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 1 |
| Version: | USB 3.2 Gen 2 |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Safety instructions
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
