USB C cabel set 100W PD 3.0 5A E-Mark Chip 0,5m+1m+2m
USB-C set 100W PD 3.0 5A E-Marker Chip 0.5m+1m+2m grey gold contacts textile
Item number:
USB-CC-00007
Product information for USB-C set 100W PD 3.0 5A E-Marker Chip 0.5m+1m+2m grey gold contacts textile

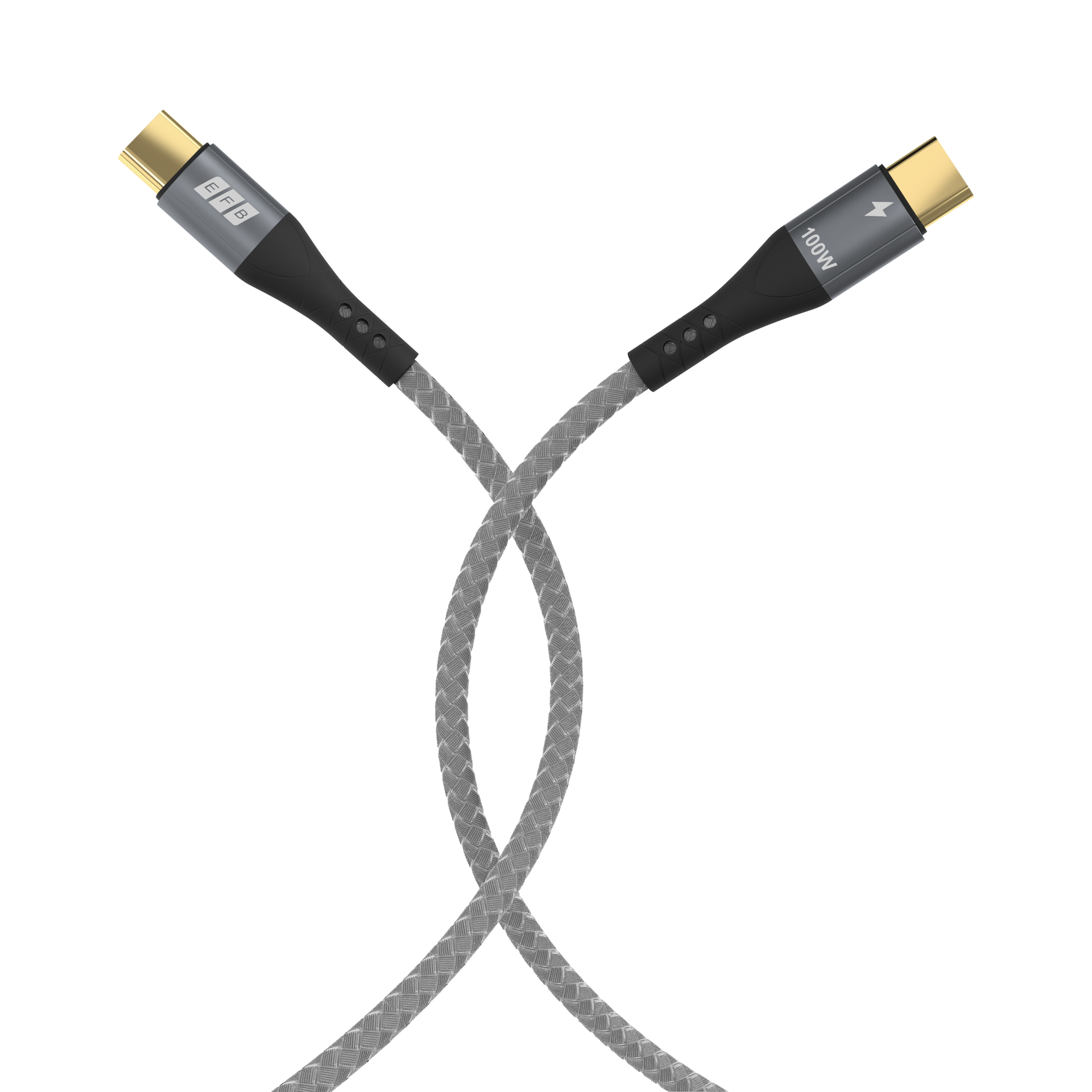

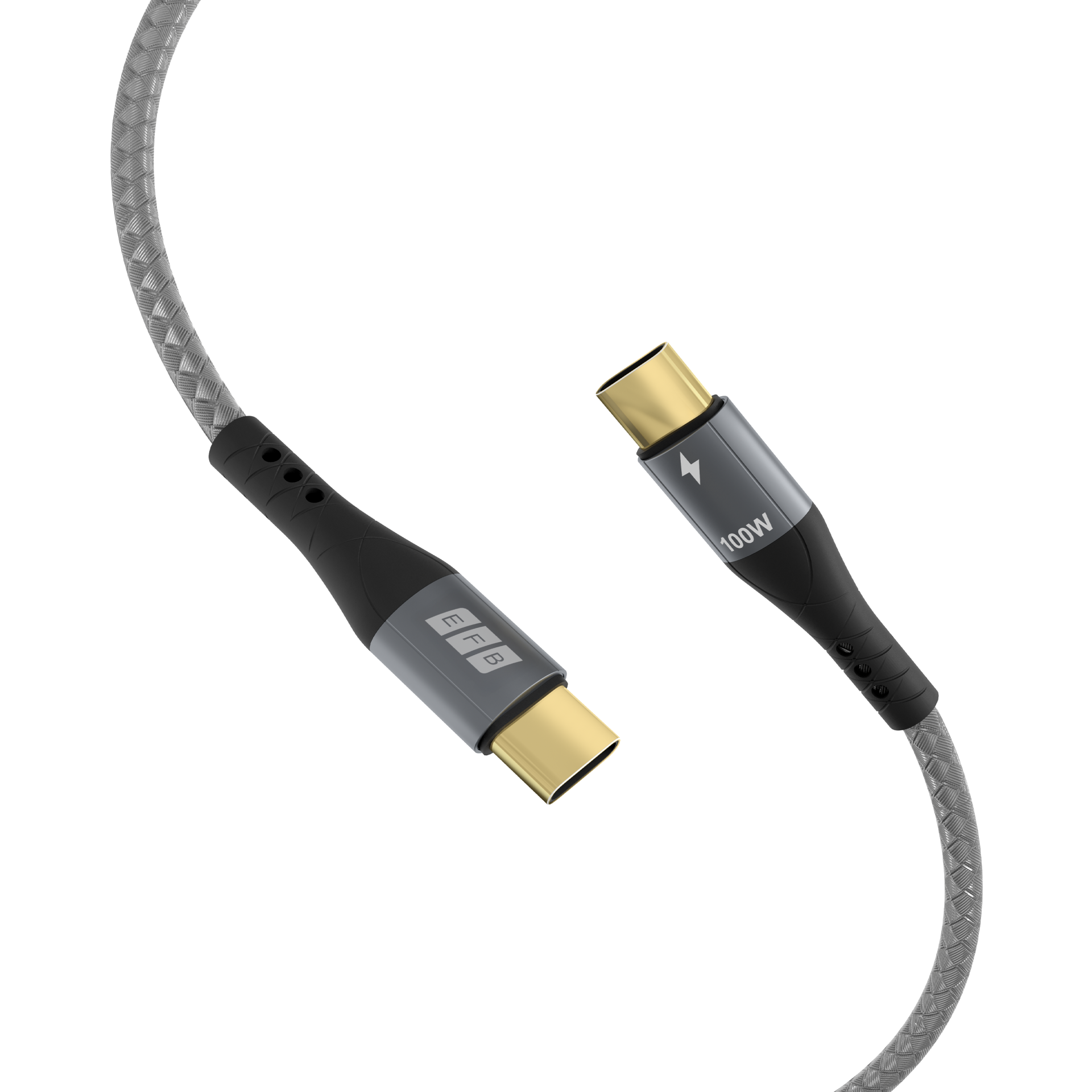

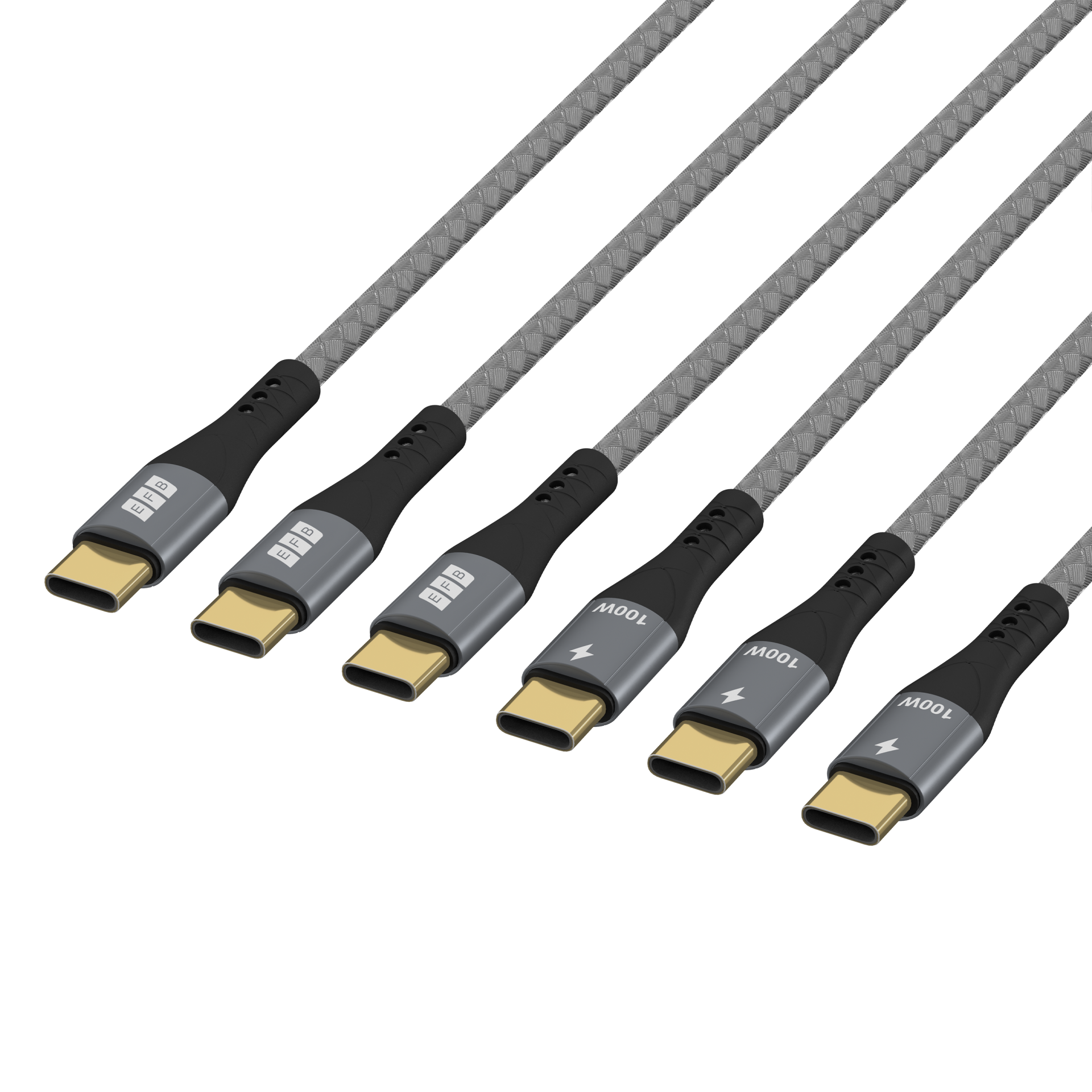

USB Type-C to USB Type-C Charging Cable Set – 100W, E-Marker, Textile Braid, 1 x 0.5m / 1m / 2m
High-performance USB Type-C to USB Type-C cable set, in 3 different lengths designed for industrial, designed for industrial, IT, and retail environments. Built for up to 100W charging power, durability, and eco-conscious packaging – ideal for resellers, integrators, and business customers.
Product Features:
• 3 x USB Type-C to USB Type-C cable for fast, reliable charging
• Supports up to 100W Power Delivery (PD) via integrated E-Marker chipset
• 480 Mbps data transfer speed - for photos, videos, and more
• Included in the set: 1 x 0.5 m, 1 x 1 m, 1 x 2 m
• Gold-plated USB Type-C connectors with aluminum housing
• Durable textile-braided jacket in space-grey – flexible and wear-resistant
• Printed charging bolt symbol on the connector for function identification (not an LED)
• Plastic-free individual packaging – shipping-ready without overpack
• No plastic accessories: paper twist-tie with metal wire, no dust caps
• Use Cases:
Ideal for workplace infrastructure, mobile device accessories, corporate IT rollouts, public charging points, and OEM bundling. Compatible with USB-C laptops, smartphones, tablets, and more.
High-performance USB Type-C to USB Type-C cable set, in 3 different lengths designed for industrial, designed for industrial, IT, and retail environments. Built for up to 100W charging power, durability, and eco-conscious packaging – ideal for resellers, integrators, and business customers.
Product Features:
• 3 x USB Type-C to USB Type-C cable for fast, reliable charging
• Supports up to 100W Power Delivery (PD) via integrated E-Marker chipset
• 480 Mbps data transfer speed - for photos, videos, and more
• Included in the set: 1 x 0.5 m, 1 x 1 m, 1 x 2 m
• Gold-plated USB Type-C connectors with aluminum housing
• Durable textile-braided jacket in space-grey – flexible and wear-resistant
• Printed charging bolt symbol on the connector for function identification (not an LED)
• Plastic-free individual packaging – shipping-ready without overpack
• No plastic accessories: paper twist-tie with metal wire, no dust caps
• Use Cases:
Ideal for workplace infrastructure, mobile device accessories, corporate IT rollouts, public charging points, and OEM bundling. Compatible with USB-C laptops, smartphones, tablets, and more.
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | False |
| Cable set: | True |
| Cable type (passive/active/optical): | passive |
| Chip: | True |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | false |
| Fast Charging technologie: | PD 2.0 |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | Aluminium |
| Material Inner Conductor: | BC |
| Material jacket: | PVC+Textile |
| Max. mating cycles: | 10000 |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 24 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 8.25*2.35*14.5mm |
| Plug dimensions Side 2: | 8.25*2.35*14.5mm |
| Power Delivery: | 100 W |
| Scope of delivery: | 3xUSB Cable |
| Shielded: | True |
| Speed: | 480 Mbit/s |
| Storage Temperature: | -20 – 70 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | USB Type-C |
| Type of packaging: | paper box |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 1x(0.5m+1m+2m) |
| Version: | USB 2.0 High-Speed |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Safety instructions
Warning: Danger of tripping! If installed incorrectly, there is a risk of tripping.
