USB 3.0 RJ45 10/100/1000 Adapter
Prices only visible for logged in users

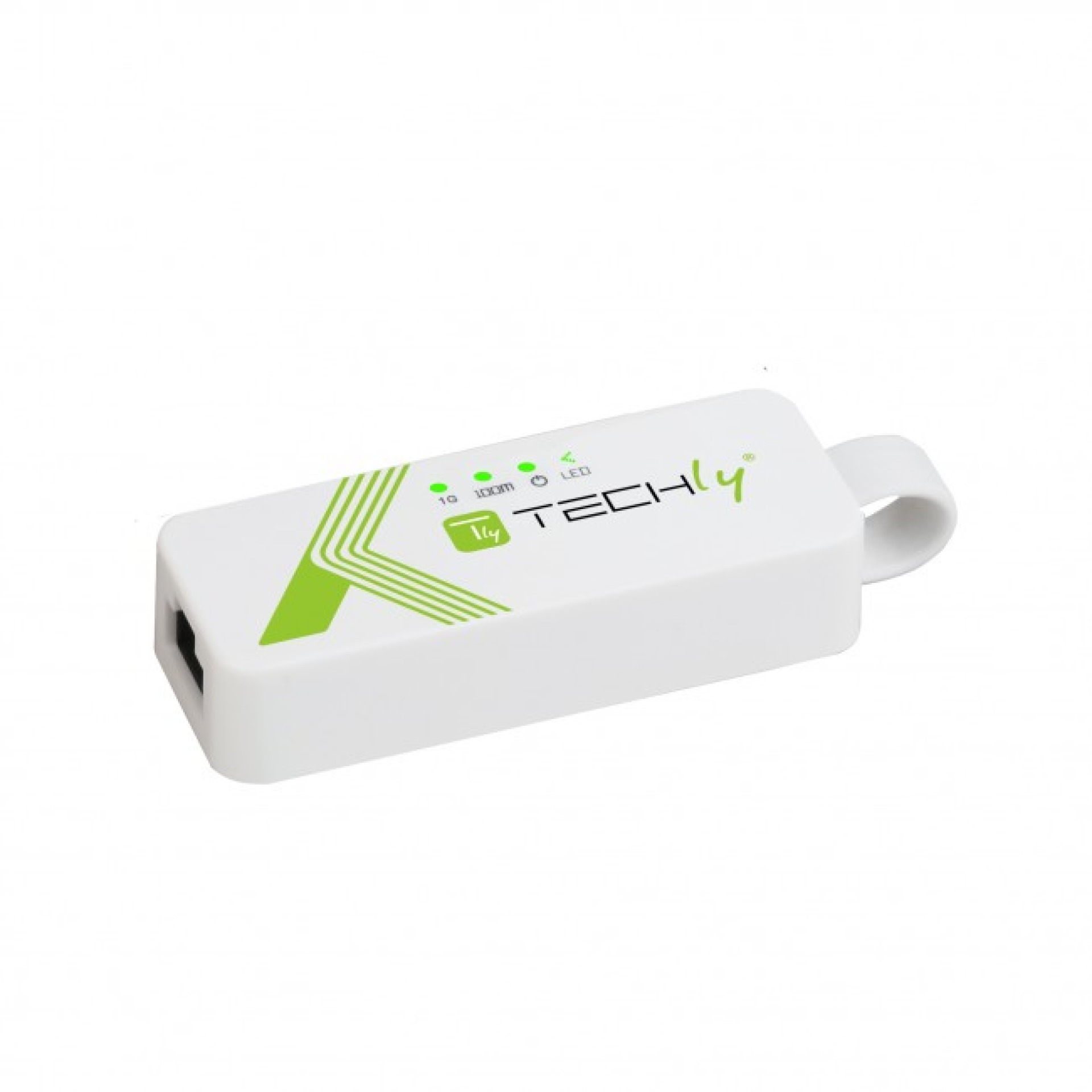

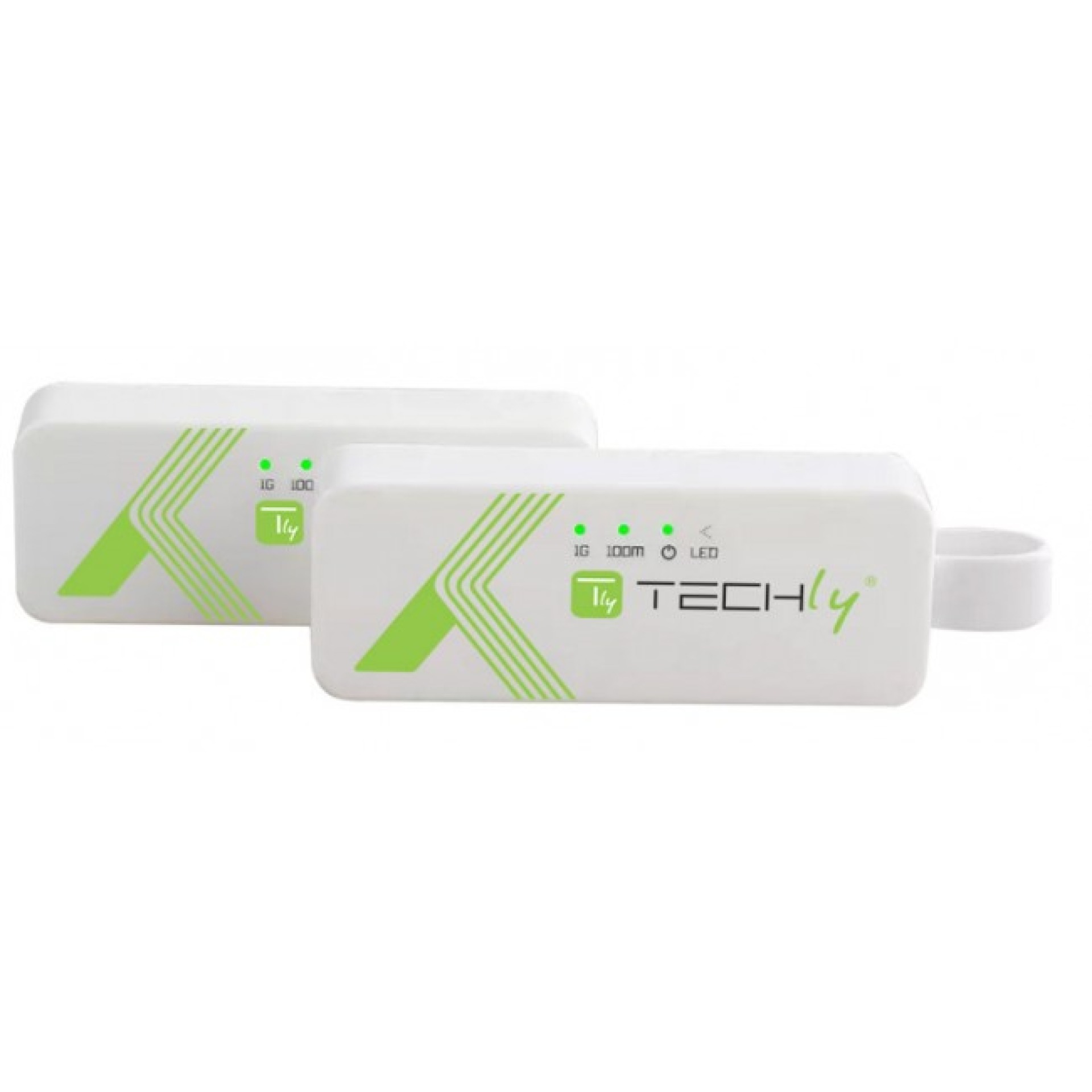

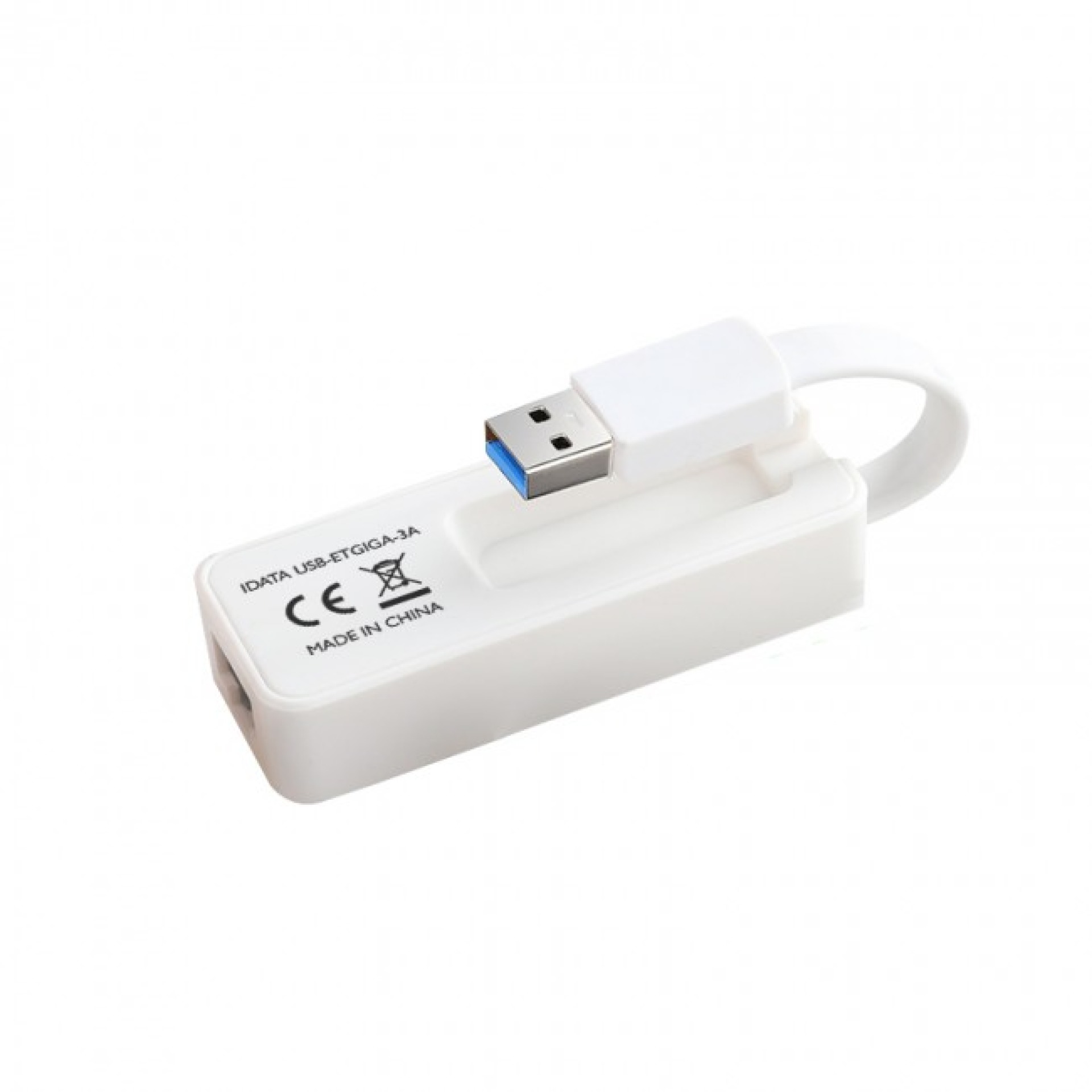

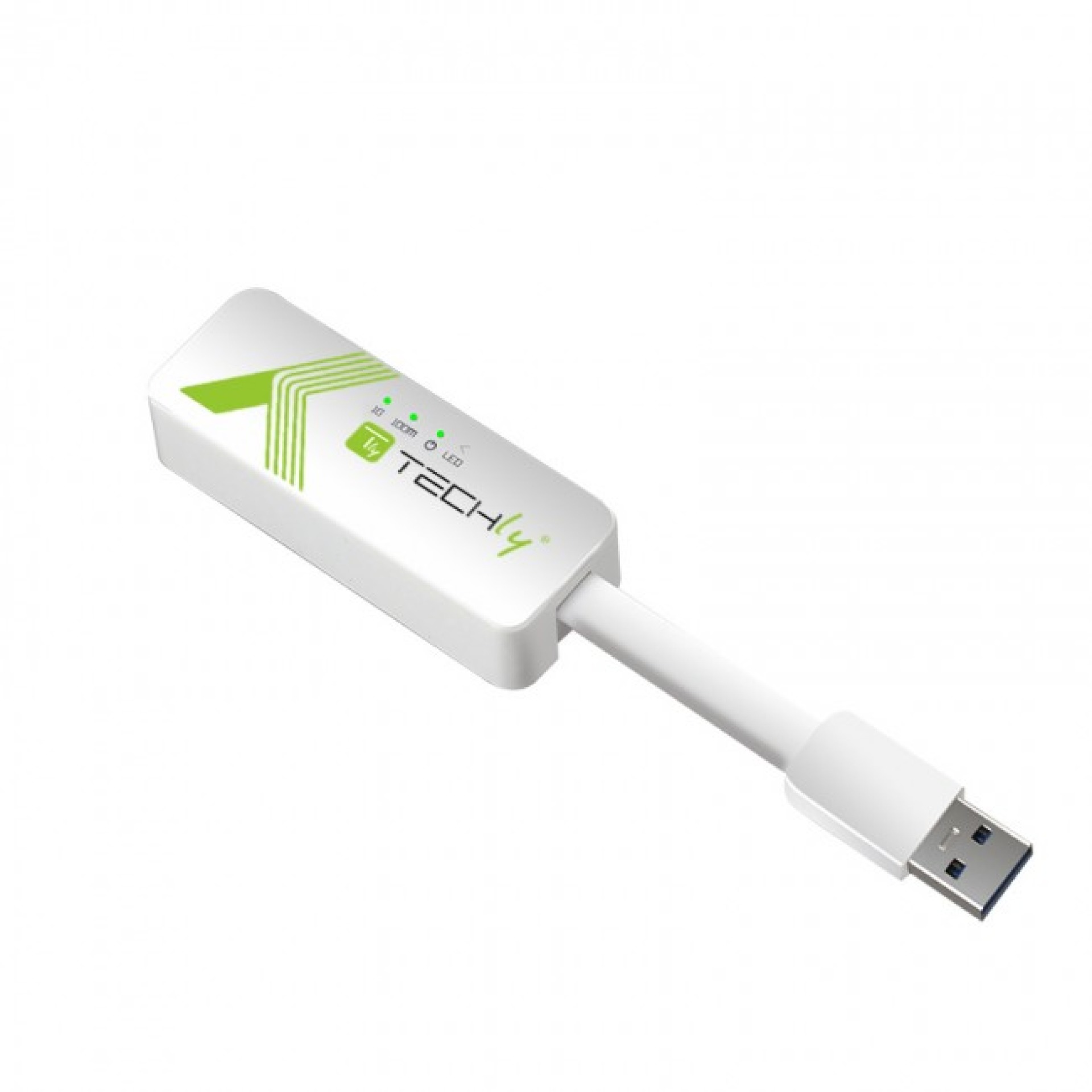

USB3.0 Converter USB A - RJ45 Gigabit white
Item number:
IDATA-USB-ETGIGA-3A
EAN no.:
8051128109740
Product information for USB3.0 Converter USB A - RJ45 Gigabit white

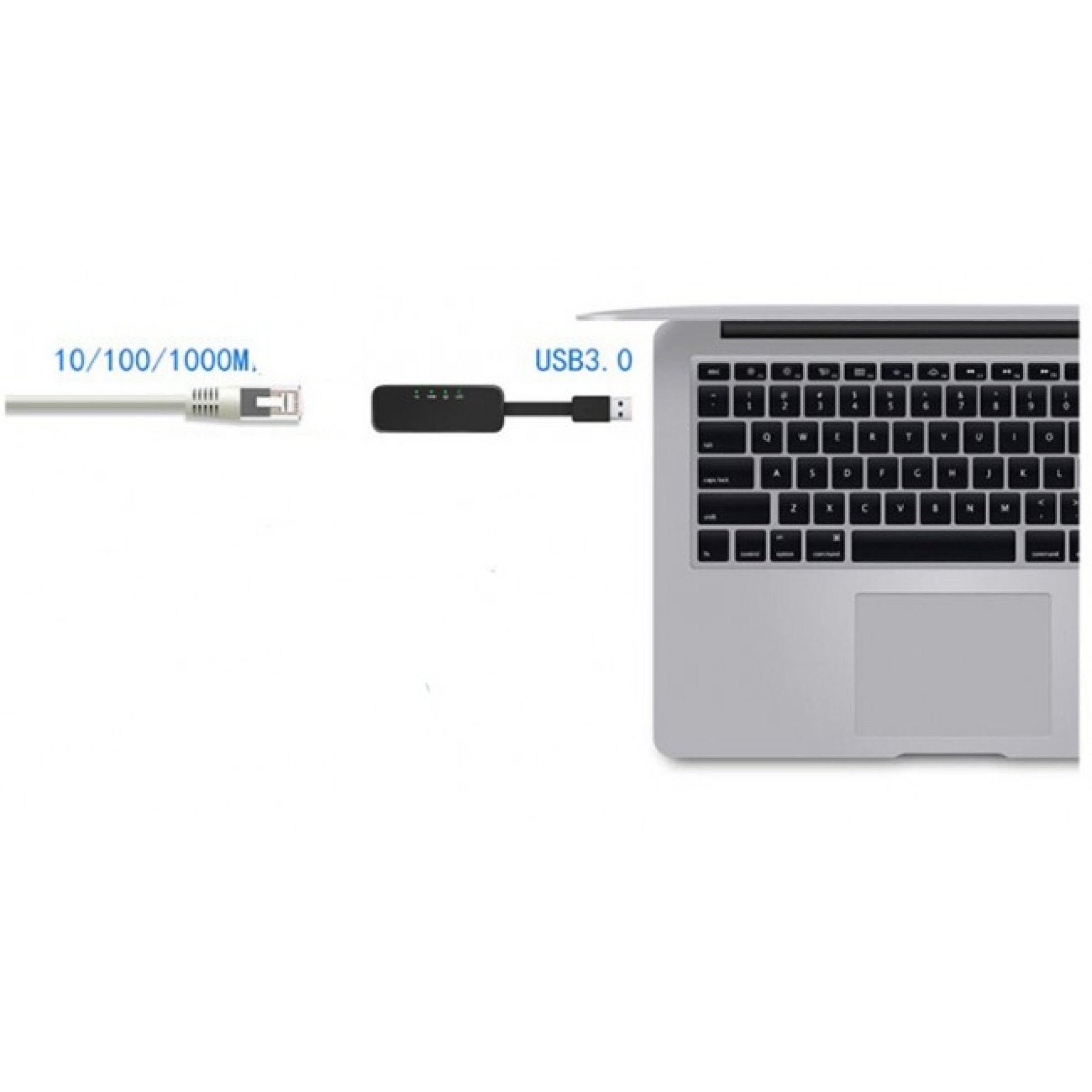

• Adds a Gigabit network connection to a notebook via a USB Type-A port
• USB 3.0 technology allows data transfer up to 5 Gbps
• Replaces a failed internal RJ45 Gigabit Ethernet port on a laptop
• Connections: 1 x USB Type-A male on the cable, 1 x RJ45
• Windows compatible
• Powered by USB bus
• Cable length: 73 mm
Technical specifications
• Standard: IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.1P, IEEE 802.1Q VLAN IEEE 802.3az - 2010
• Network: 10Base-T, cat.3 or higher UTP, 10Base-Tx, cat.5 UTP
• Network speed: 10/100/1000 Mbps
• Interface: USB 3.0
• Chipset: Realtek RTL8153B
• LED: 100M&1G Link/ACT, Power
• White color
Size
• Length: 72 mm
• Width: 27 mm
• Height: 16.5 mm
Environmental characteristics
• Operating temperature: 0 - 55 °C
• Operating humidity (non-condensing): 10% -90%
• Storage temperature: -20 - 80 °C
• Relative humidity: 5% -90%
Package contents
• USB Lan converter adapter
• User Manual
• USB 3.0 technology allows data transfer up to 5 Gbps
• Replaces a failed internal RJ45 Gigabit Ethernet port on a laptop
• Connections: 1 x USB Type-A male on the cable, 1 x RJ45
• Windows compatible
• Powered by USB bus
• Cable length: 73 mm
Technical specifications
• Standard: IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.1P, IEEE 802.1Q VLAN IEEE 802.3az - 2010
• Network: 10Base-T, cat.3 or higher UTP, 10Base-Tx, cat.5 UTP
• Network speed: 10/100/1000 Mbps
• Interface: USB 3.0
• Chipset: Realtek RTL8153B
• LED: 100M&1G Link/ACT, Power
• White color
Size
• Length: 72 mm
• Width: 27 mm
• Height: 16.5 mm
Environmental characteristics
• Operating temperature: 0 - 55 °C
• Operating humidity (non-condensing): 10% -90%
• Storage temperature: -20 - 80 °C
• Relative humidity: 5% -90%
Package contents
• USB Lan converter adapter
• User Manual
Technical properties
| Bi-directional: | True |
|---|---|
| Connection type primary side: | USB |
| Connection type secondary side: | other |
| Galvanic separation: | ohne |
| Over current protection: | False |
| Service primary side: | USB |
| Service secondary side: | other |
| Transmission rate: | 5000 kBps |
