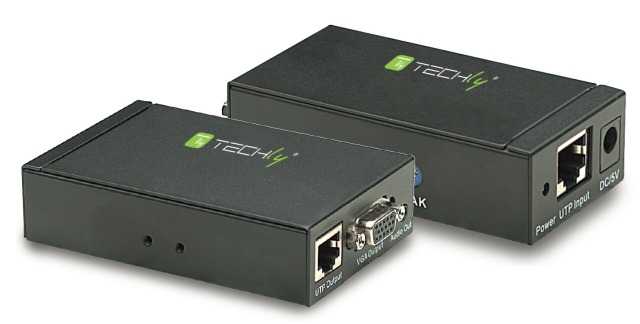

VGA- and Audio-Extender Set over Cat. 5/5e/6 (300m)
VGA- and Audio-Extender Set over Cat. 5/5e/6 (300m)
Item number:
IDATA-EX-DL344
EAN no.:
8057685301122
Product information for VGA- and Audio-Extender Set over Cat. 5/5e/6 (300m)
• Allows you to extend VGA and audio signals using Cat5 / 5e / 6 for transmission distances
• It provides the most cost-effective way of one single source to another monitor
• Supports VGA resolution up to 1920 x 1200
• Provides a clear signal with gain settings and peak
• Easy to install - no software required
Specifications
• Extends the transmission range of up to 300 m
• Supports resolutions up to 1920 x 1200 and VGA, SVGA, Multisync
• Manual adjustment of the gain and peak (receiver)
• Includes 2x power supply 5 V DC / 2 A
Connections (receiver)
• 1x HD15 Female (output)
• 1x RJ45 female (input)
• 1x 3.5 mm stereo jacks (audio out)
• 1x 5 V DC power jack
Connections (transmitter)
• 1x HD15 Female (output)
• 1x HD15 female (input)
• 2x 3.5 mm stereo ports (input / output)
• 1x RJ-45 (exit)
• (1) 5 V DC power connector
Video Signal
• Signal Type: VGA
• Voltage Input: 0.5 Vp-p / 2.0 V pp (minimum / maximum)
• Impedance I / O: 75 Ohm
Resolution and operating distance
• 640 x 480 300 m
• 800 x 600 300 m
• 1024 x 768 200m
• 1280 x 720 200m
• 1280 x 768 200m
• 1280 x 960 200m
• 1280 x 1024 200 m
• 1600 x 900 100m
• 1600 x 1200 100 m
• 1920 x 1080 100 m
• 1920 x 1200 10 m
Physical Information
• Dimensions, receiver: 81.5 x 43 x 23 mm
• Weight, receiver: 108 g
• Size, Transmitter: 100 x 65 x 25 mm
• Weight, Transmitter: 208 g
• Housing: Metal
Package Contents
• VGA UTP Amplifier Splitter 1x1
• Receiver Module
• Power Supply DC 5V 2A x 2
• User manual
• Color: Black
• It provides the most cost-effective way of one single source to another monitor
• Supports VGA resolution up to 1920 x 1200
• Provides a clear signal with gain settings and peak
• Easy to install - no software required
Specifications
• Extends the transmission range of up to 300 m
• Supports resolutions up to 1920 x 1200 and VGA, SVGA, Multisync
• Manual adjustment of the gain and peak (receiver)
• Includes 2x power supply 5 V DC / 2 A
Connections (receiver)
• 1x HD15 Female (output)
• 1x RJ45 female (input)
• 1x 3.5 mm stereo jacks (audio out)
• 1x 5 V DC power jack
Connections (transmitter)
• 1x HD15 Female (output)
• 1x HD15 female (input)
• 2x 3.5 mm stereo ports (input / output)
• 1x RJ-45 (exit)
• (1) 5 V DC power connector
Video Signal
• Signal Type: VGA
• Voltage Input: 0.5 Vp-p / 2.0 V pp (minimum / maximum)
• Impedance I / O: 75 Ohm
Resolution and operating distance
• 640 x 480 300 m
• 800 x 600 300 m
• 1024 x 768 200m
• 1280 x 720 200m
• 1280 x 768 200m
• 1280 x 960 200m
• 1280 x 1024 200 m
• 1600 x 900 100m
• 1600 x 1200 100 m
• 1920 x 1080 100 m
• 1920 x 1200 10 m
Physical Information
• Dimensions, receiver: 81.5 x 43 x 23 mm
• Weight, receiver: 108 g
• Size, Transmitter: 100 x 65 x 25 mm
• Weight, Transmitter: 208 g
• Housing: Metal
Package Contents
• VGA UTP Amplifier Splitter 1x1
• Receiver Module
• Power Supply DC 5V 2A x 2
• User manual
• Color: Black
Technical properties
| Max. resolution: | 1920 × 1200 |
|---|---|
| Suitable for 19 inch mounting: | False |
| Video Inputs: | SVGA/VGA |
| Video interface: | SVGA/VGA |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
