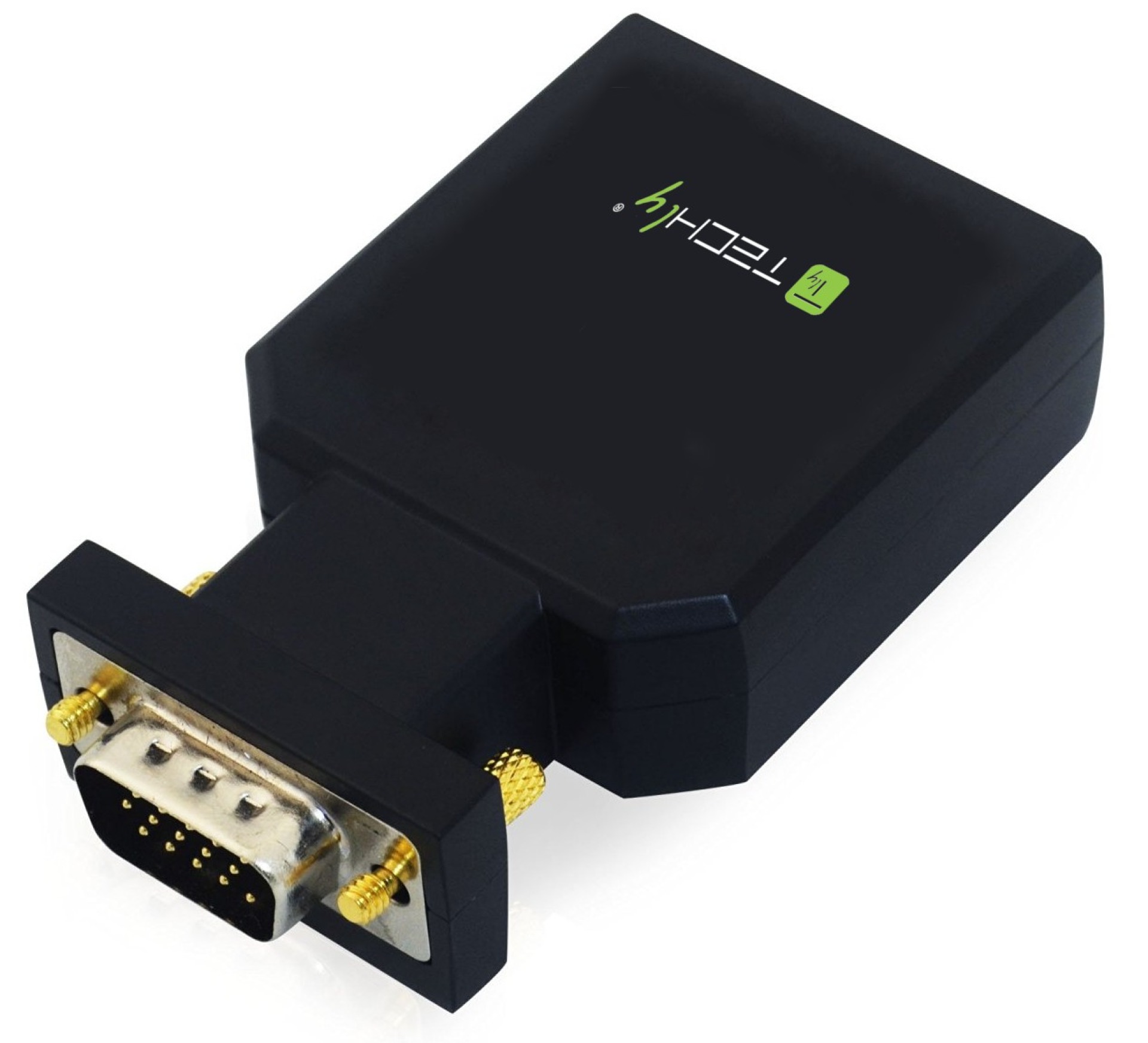

VGA/Audio to HDMI Mini Konverter
VGA/Audio to HDMI Mini Konverter
Item number:
IDATA-VGA-HDMINI
EAN no.:
8054529026517
Product information for VGA/Audio to HDMI Mini Konverter

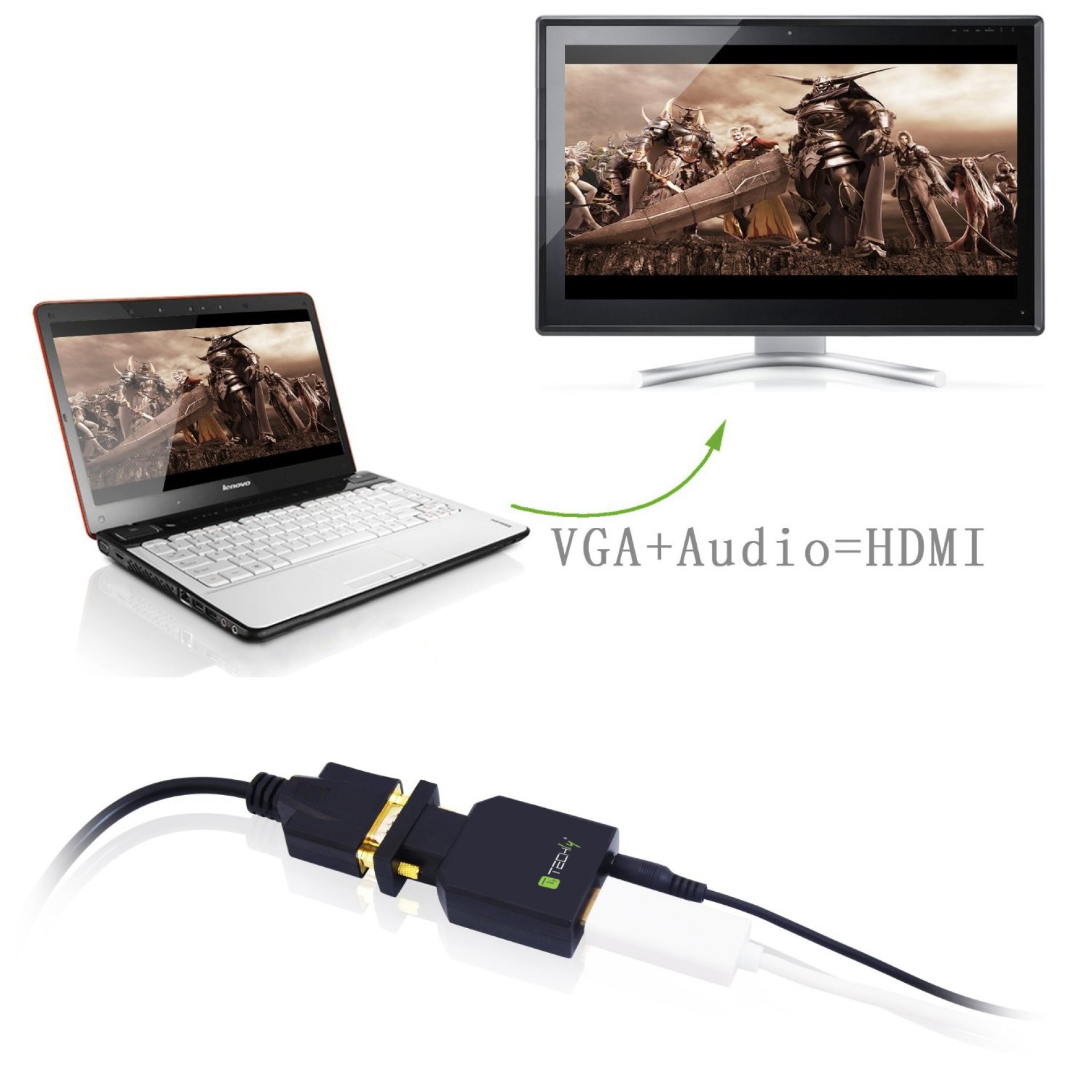

IDATA VGA-HDMINI allows you to connect a notebook / PC with VGA output directly to an HD TV, LCD or projector with HDMI digital input.
It's enough to insert the adapter into the VGA port on your computer and connect an HDMI cable to the output, by connecting the other end to the TV. It supports and also converts the audio signal through the audio input 3.5mm jack, which allows you to connect headphones, speakers or a HiFi system.
Is powered by VGA input and therefore does not need any power supply / external transformer. However, the package includes a Micro USB charging cable through which the converter can also be powered by the PC's network.
Features

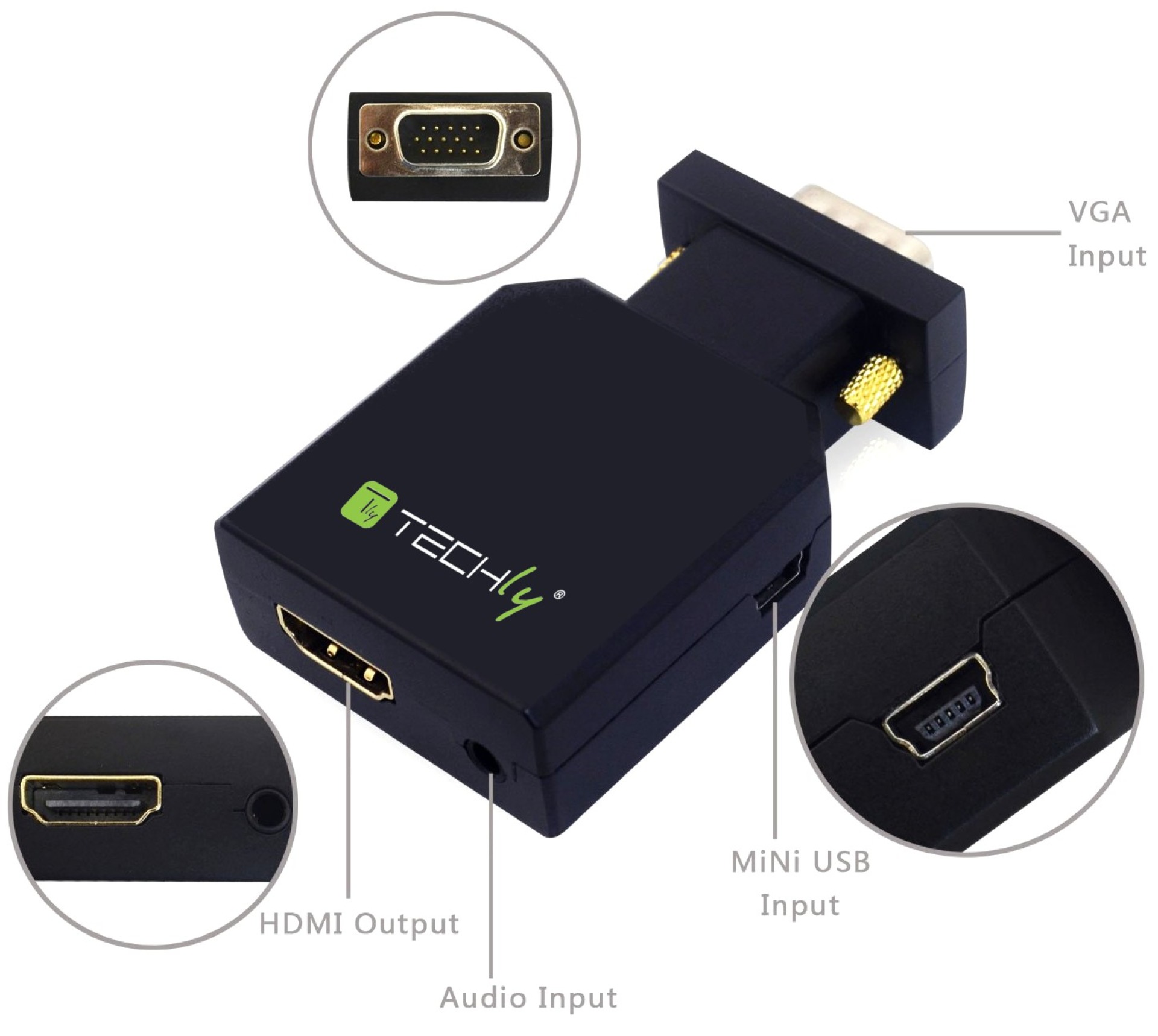

• Converter VGA and audio to HDMI
• Revenue: 1x VGA female; Audio 1x 3.5 "female
• Output: 1x HDMI female

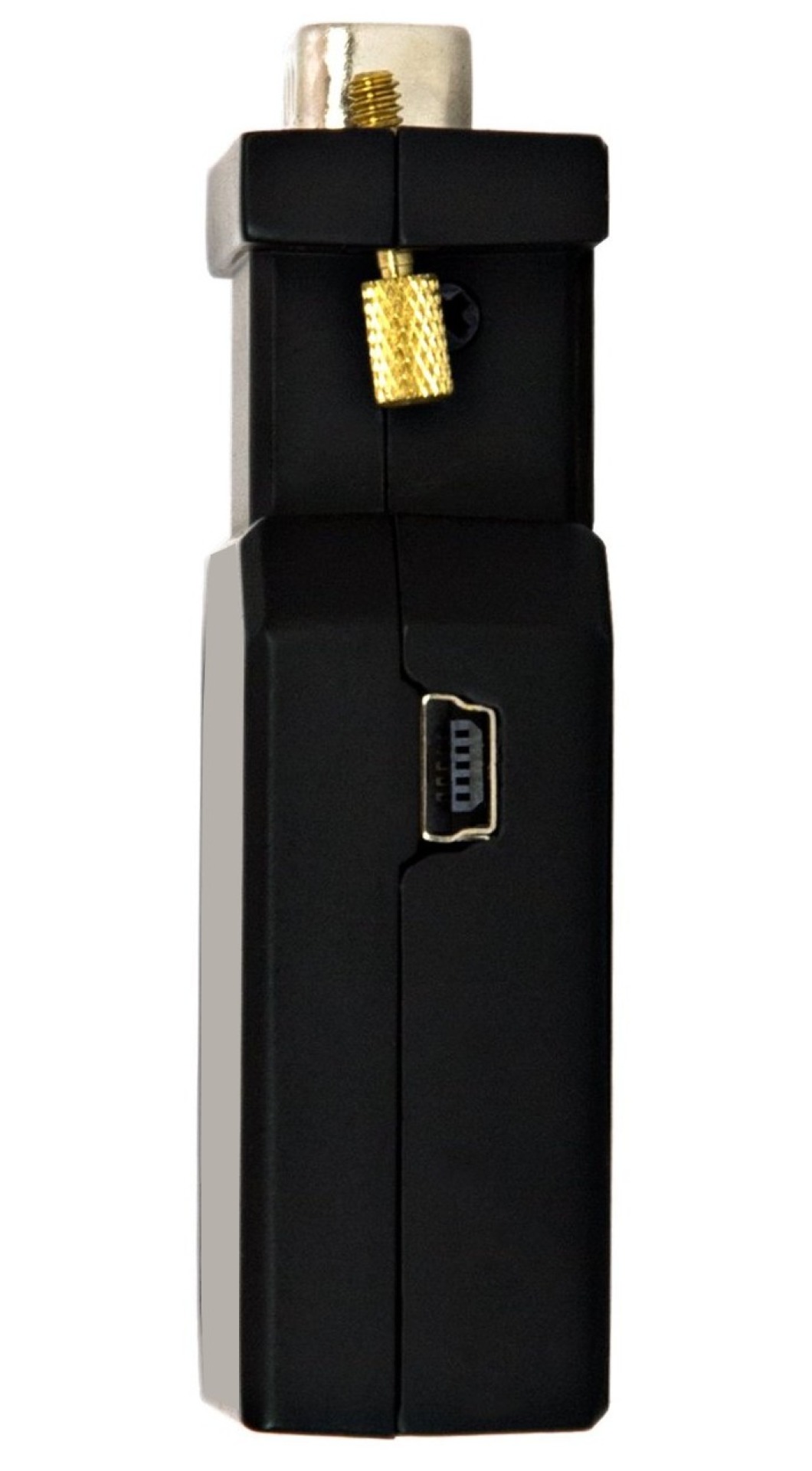

• It has Micro USB port charging
• Gold-plated connectors
• Quick and easy plug and play installation
• Detects and adjusts the required resolution
• HDMI Output: HDMI 1.3
• Input Signal: RGB: 0.7 Vp-p 75 ohms
• Power consumption: 0.5W maximum
• With power indicator LED
Supported resolutions
640 × 480 @ 60/72/75 / 85Hz, 720x400 @ 70Hz,
800 × 600 @ 60/72/75 / 85Hz, 1024x768 @ 60/70/75 / 85Hz,
1152 × 864 @ 75Hz 1280x720 @ 60Hz,
1280 × 768 @ 60/75 / 85Hz, 1280x800 @ 60/75 / 85Hz,
1280 × 960 @ 60Hz, 1280x1024 @ 60 / 75Hz,
1360 × 768 @ 60Hz, 1400x1050 @ 60Hz,
1440 × 900 @ 60Hz, 1600x1200 @ 60Hz,
1680 × 1050 @ 60Hz, 1920x1080 @ 60Hz,
1920 × 1200_RB @ 60Hz, 1920x1200 @ 60Hz
Environmental features
• Operating Temperature: 0-70 °C
• Operating Humidity: 10% - 85% RH (non-condensing)
• Storage temperature: -10 - 80 °C
• Storage humidity: 5% - 90% RH (non-condensing)
Dimensions
• Length: 72 mm
• Width: 41 mm
• Height: 18 mm
Certifications
• EC
• FCC
Package Contents
• 1x VGA + Audio to HDMI Converter
• 1x Micro USB Cable
• 1x VGA Cable
• 1x Audio cable
• 1x User Manual
It's enough to insert the adapter into the VGA port on your computer and connect an HDMI cable to the output, by connecting the other end to the TV. It supports and also converts the audio signal through the audio input 3.5mm jack, which allows you to connect headphones, speakers or a HiFi system.
Is powered by VGA input and therefore does not need any power supply / external transformer. However, the package includes a Micro USB charging cable through which the converter can also be powered by the PC's network.
Features
• Converter VGA and audio to HDMI
• Revenue: 1x VGA female; Audio 1x 3.5 "female
• Output: 1x HDMI female
• It has Micro USB port charging
• Gold-plated connectors
• Quick and easy plug and play installation
• Detects and adjusts the required resolution
• HDMI Output: HDMI 1.3
• Input Signal: RGB: 0.7 Vp-p 75 ohms
• Power consumption: 0.5W maximum
• With power indicator LED
Supported resolutions
640 × 480 @ 60/72/75 / 85Hz, 720x400 @ 70Hz,
800 × 600 @ 60/72/75 / 85Hz, 1024x768 @ 60/70/75 / 85Hz,
1152 × 864 @ 75Hz 1280x720 @ 60Hz,
1280 × 768 @ 60/75 / 85Hz, 1280x800 @ 60/75 / 85Hz,
1280 × 960 @ 60Hz, 1280x1024 @ 60 / 75Hz,
1360 × 768 @ 60Hz, 1400x1050 @ 60Hz,
1440 × 900 @ 60Hz, 1600x1200 @ 60Hz,
1680 × 1050 @ 60Hz, 1920x1080 @ 60Hz,
1920 × 1200_RB @ 60Hz, 1920x1200 @ 60Hz
Environmental features
• Operating Temperature: 0-70 °C
• Operating Humidity: 10% - 85% RH (non-condensing)
• Storage temperature: -10 - 80 °C
• Storage humidity: 5% - 90% RH (non-condensing)
Dimensions
• Length: 72 mm
• Width: 41 mm
• Height: 18 mm
Certifications
• EC
• FCC
Package Contents
• 1x VGA + Audio to HDMI Converter
• 1x Micro USB Cable
• 1x VGA Cable
• 1x Audio cable
• 1x User Manual
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
