Video Grabber 1080P HDMI
Video Grabber 1080P HDMI
Item number:
I-USB-VIDEO-1080TY
EAN no.:
8059018361919
Product information for Video Grabber 1080P HDMI

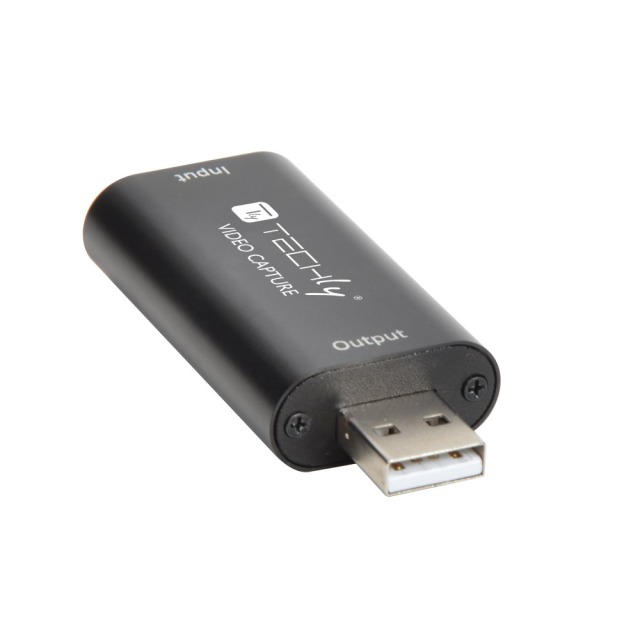

I-USB-VIDEO-1080TY is a video capture card capable of simultaneously capturing HDMI audio and video and transmitting them to a computer or smartphone, via USB port, for preview and archiving. It is suitable for high definition live video capture and online recording.
It supports maximum input resolution of 4K 60Hz and maximum output resolution of 1920 × 1080 @ 60Hz.
Thanks to its compact size it is very convenient to take with you everywhere.
Features
Supports maximum input resolution of 3840 × 2160 @ 60Hz
Supports maximum output resolution of 1920x1080 @ 60Hz
Supports Deep Color 8/10 / 12bit
Supports standard AWG26 HDMI cables: maximum length 15 meters, (1080P resolution and below)
Supports most of the capture software, such as VLC, OBS, Amcap, etc.
Supports Windows and Android
Compliant with USB Video and UVC standard
Compliant with USB Audio UAC standard
Requires no external power supply
Compact and portable
Technical specifications
HDMI resolution Maximum supported input 3840 × 2160 @ 60Hz
Supported video format Deep Color 8/10/12 bit
Video output format YUV, JPEG
Video output resolution The maximum output can be 1920 × 1080 @ 60Hz
Supported audio format L-PCM
Input cable length ≤15m, Standard HDMI cable AWG26
Maximum working current 0.4A / 5VDC
Operating temperature From -10 to + 55 °C)
Connections
Input: HDMI female
Output: USB A male

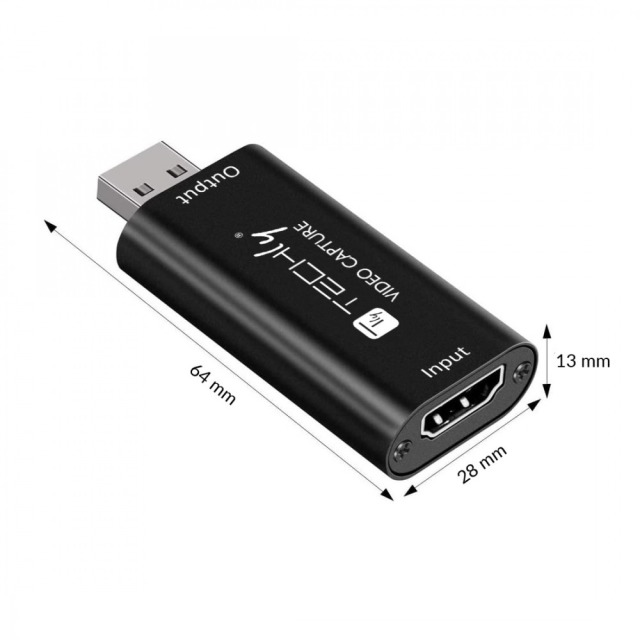

Dimensions
Length: 64 mm
Depth: 28 mm
Height: 13 mm
Weight: 21.4 g
Certifications
CE
WEEE
Package Contents
I-USB-VIDEO-1080TY video capture card
User Manual
It supports maximum input resolution of 4K 60Hz and maximum output resolution of 1920 × 1080 @ 60Hz.
Thanks to its compact size it is very convenient to take with you everywhere.
Features
Supports maximum input resolution of 3840 × 2160 @ 60Hz
Supports maximum output resolution of 1920x1080 @ 60Hz
Supports Deep Color 8/10 / 12bit
Supports standard AWG26 HDMI cables: maximum length 15 meters, (1080P resolution and below)
Supports most of the capture software, such as VLC, OBS, Amcap, etc.
Supports Windows and Android
Compliant with USB Video and UVC standard
Compliant with USB Audio UAC standard
Requires no external power supply
Compact and portable
Technical specifications
HDMI resolution Maximum supported input 3840 × 2160 @ 60Hz
Supported video format Deep Color 8/10/12 bit
Video output format YUV, JPEG
Video output resolution The maximum output can be 1920 × 1080 @ 60Hz
Supported audio format L-PCM
Input cable length ≤15m, Standard HDMI cable AWG26
Maximum working current 0.4A / 5VDC
Operating temperature From -10 to + 55 °C)
Connections
Input: HDMI female
Output: USB A male
Dimensions
Length: 64 mm
Depth: 28 mm
Height: 13 mm
Weight: 21.4 g
Certifications
CE
WEEE
Package Contents
I-USB-VIDEO-1080TY video capture card
User Manual
Technical properties
| Suitable for 19 inch mounting: | False |
|---|---|
| Video norm: | Colour PAL |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
