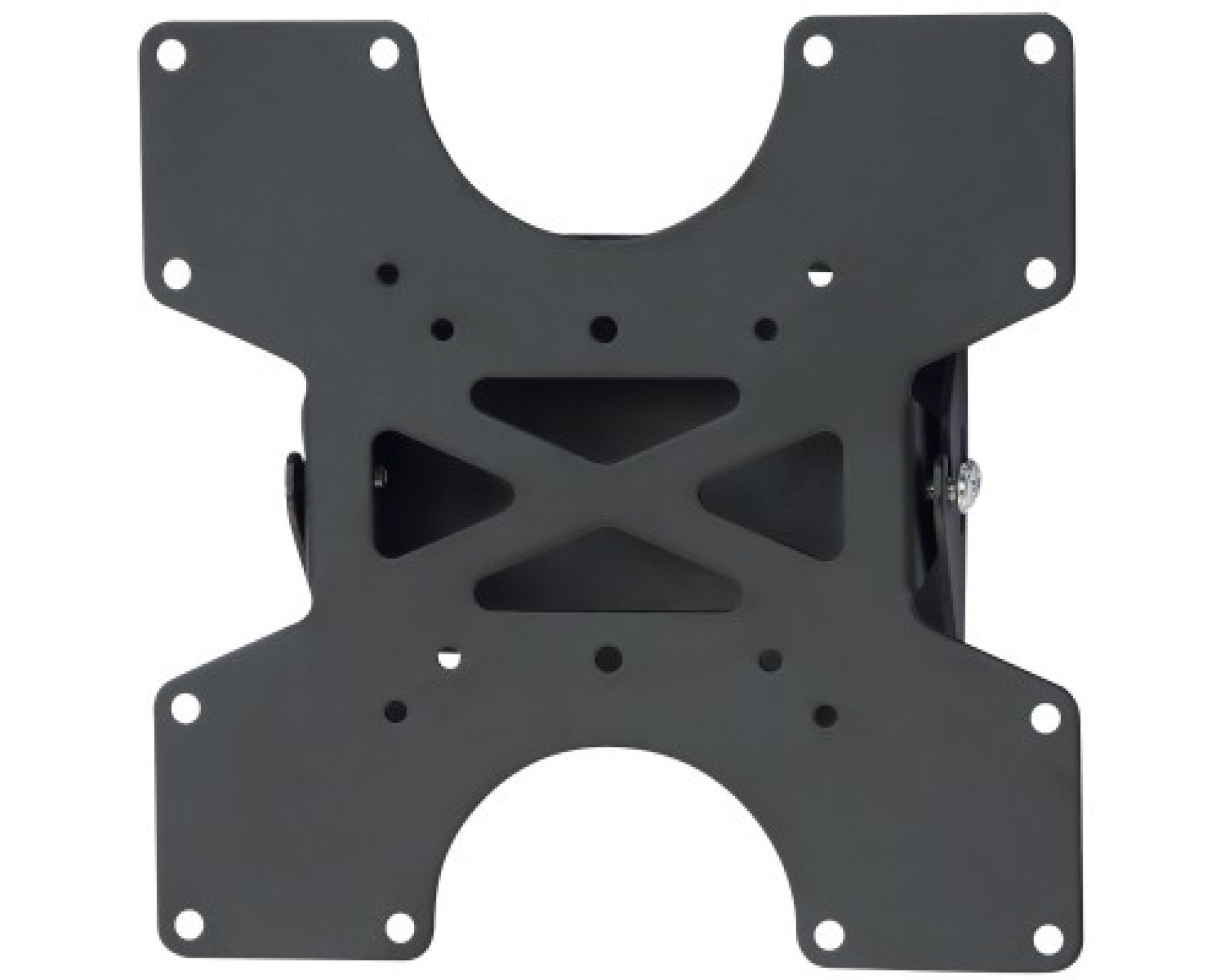

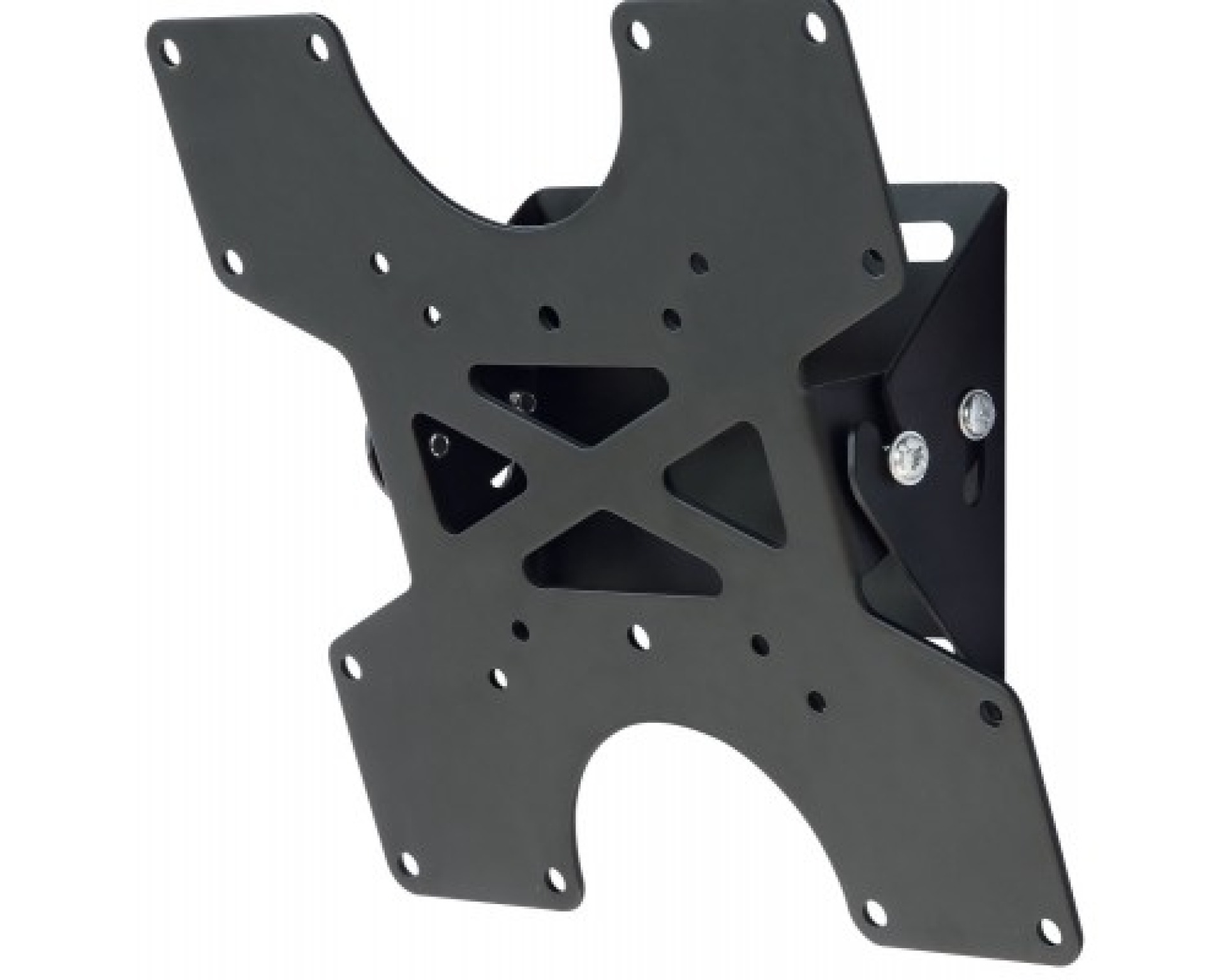

Wall support for LCD TV LED 17"-37" with tilt, black
Wall support for LCD TV LED 17"-37" with tilt, black
Item number:
ICA-LCD-113-BK
EAN no.:
8057685301924
Product information for Wall support for LCD TV LED 17"-37" with tilt, black
• Universal bracket for fixing a flat LED / LCD on the wall; Easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LED LCD TV 17-37"

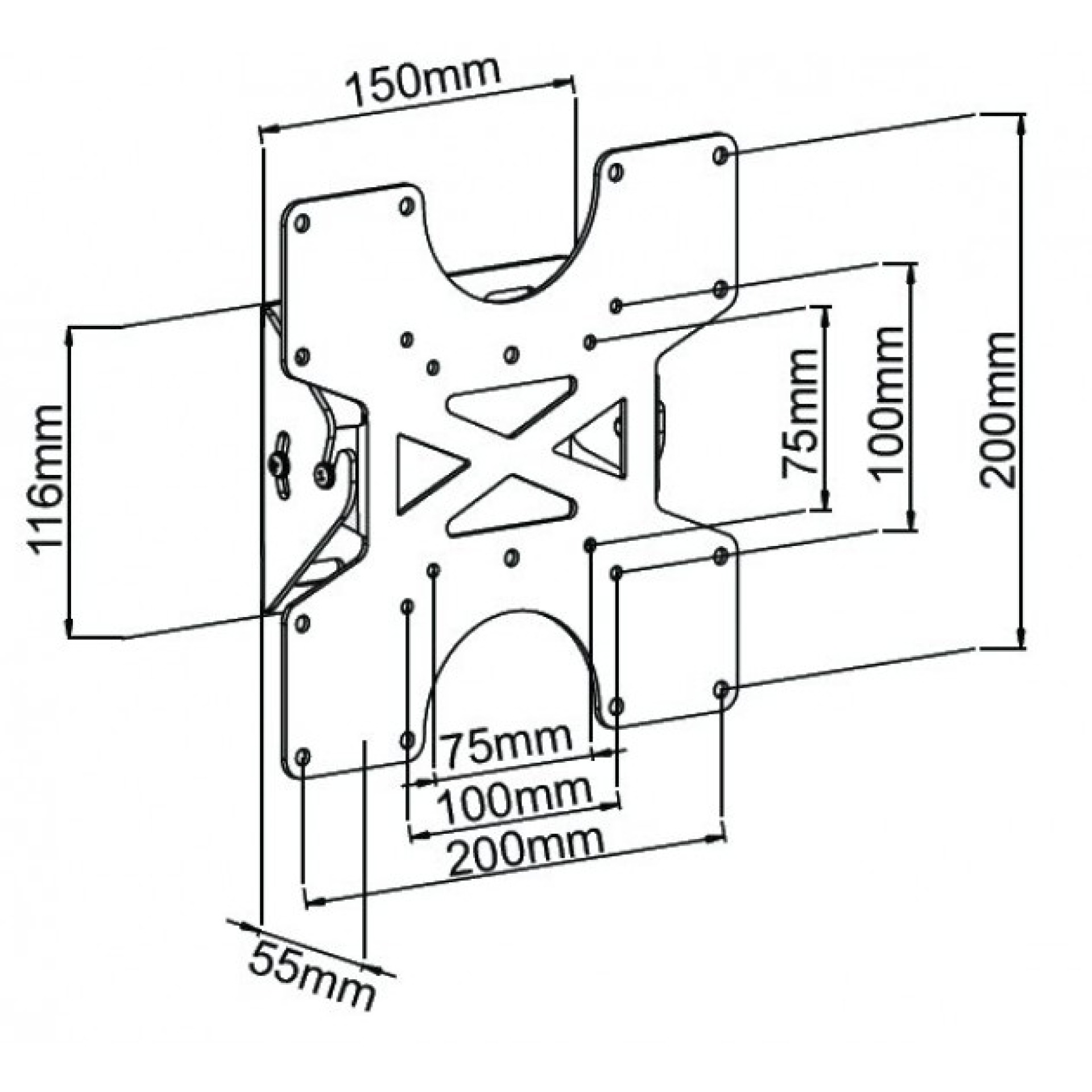

• Supports max VESA 200 x 200 mm
• Maximum weight supported: 35 kg
Specifications
• Tilt - 25° to + 18°
• Distance from wall 55 mm
• Dimensions: 218 x 116 x 55 mm, 1.4 kg
• Color: Black
The package includes
• wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Features
• Bracket suitable for LED LCD TV 17-37"
• Supports max VESA 200 x 200 mm
• Maximum weight supported: 35 kg
Specifications
• Tilt - 25° to + 18°
• Distance from wall 55 mm
• Dimensions: 218 x 116 x 55 mm, 1.4 kg
• Color: Black
The package includes
• wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Technical properties
| Color: | black |
|---|---|
| Fit for: | Television set |
| Lifting capacity: | 35.0 kg |
| Mounting method: | Wall |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
