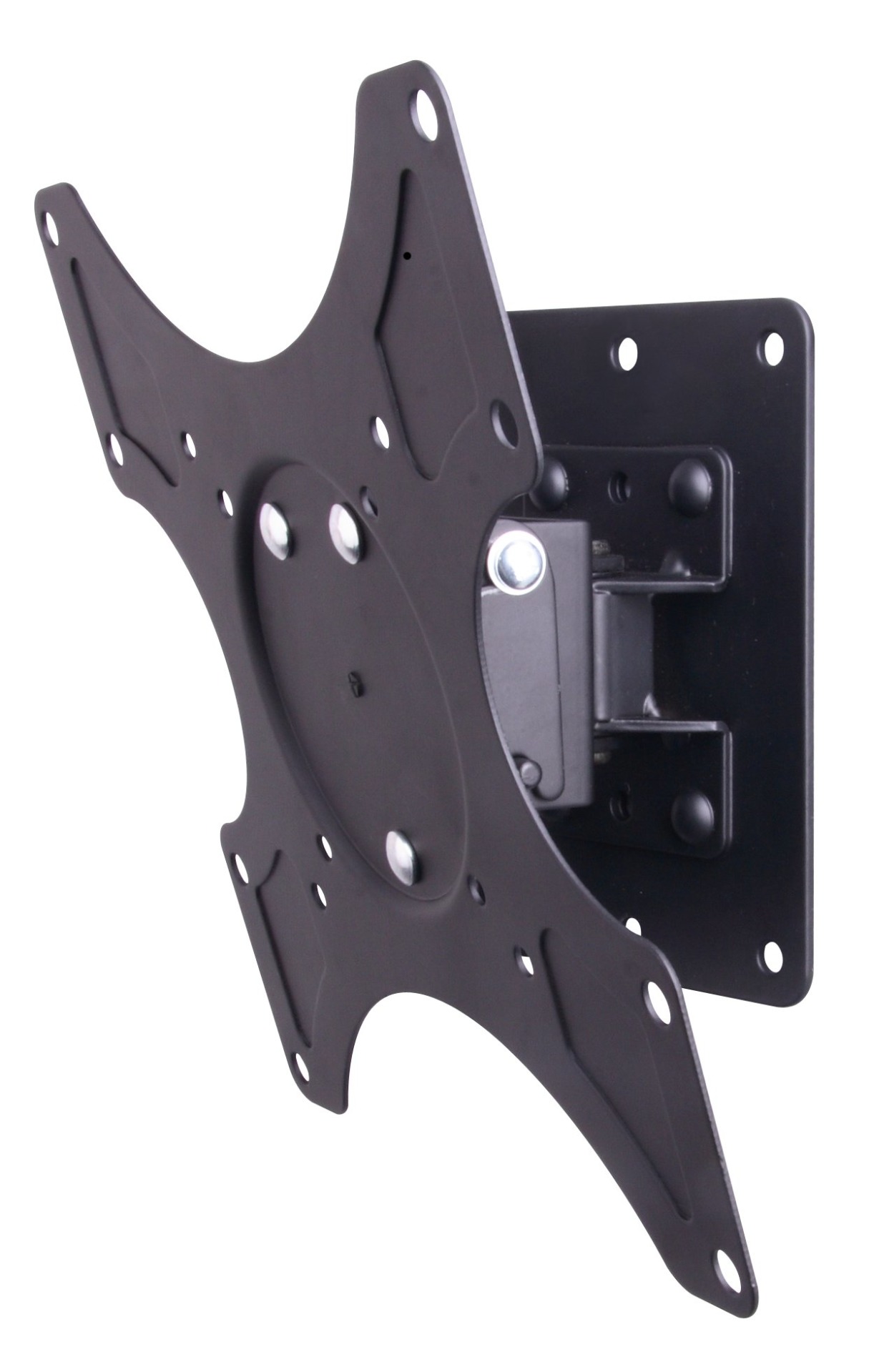

Wall support for LCD TV LED 19" - 37" with tilt black
Wall support for LCD TV LED 19" - 37" with tilt black
Item number:
ICA-LCD-2900B
EAN no.:
8057685301412
Product information for Wall support for LCD TV LED 19" - 37" with tilt black
• Universal bracket for fixing a flat LED / LCD or a monitor to the wall; Easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LED LCD TV 19"-37"
• Supports VESA 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm
• Maximum weight supported: 25 kg
• Arm 1 joint
Specifications

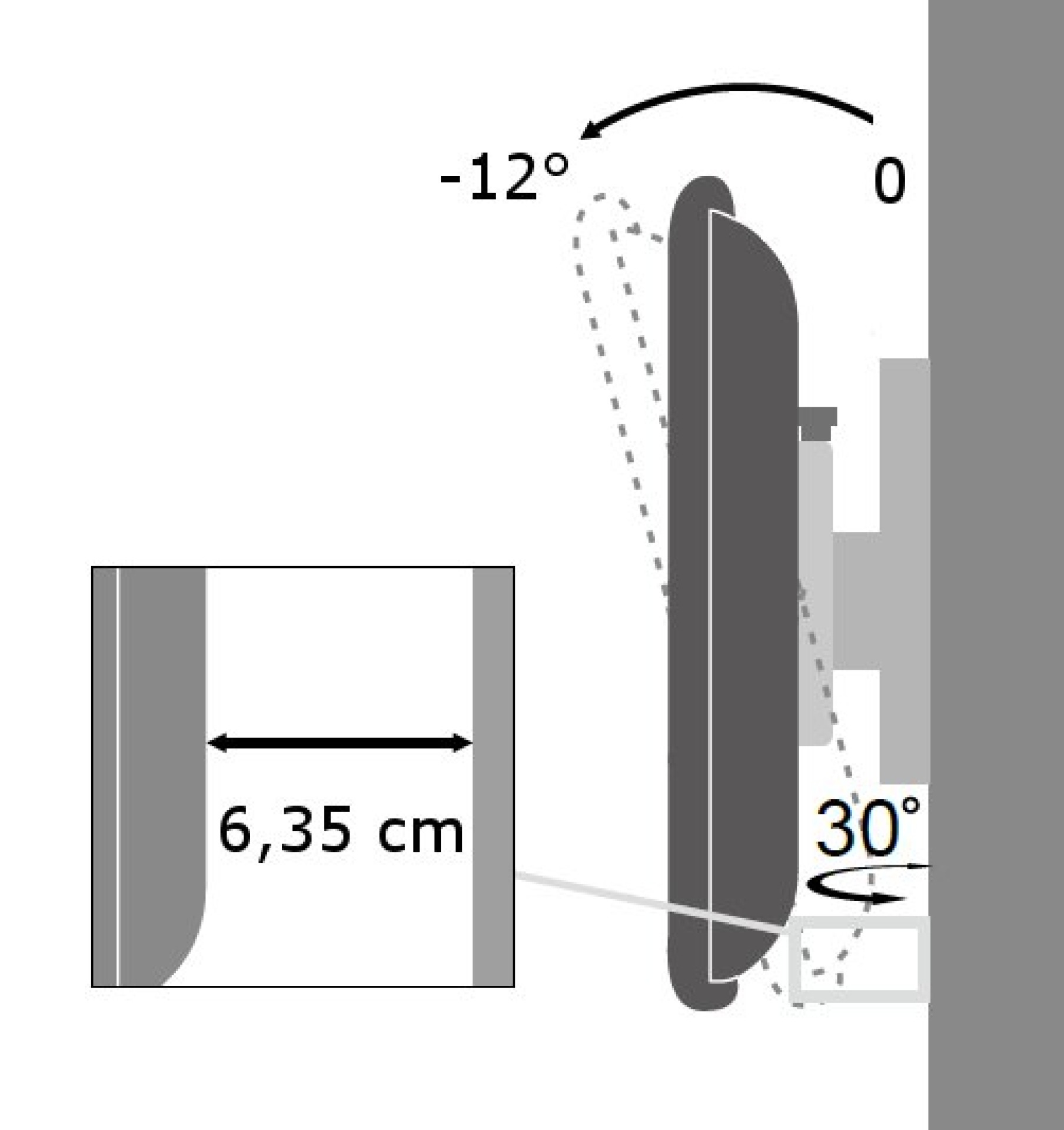

• Tilt 0 to -12°
• Horizontal orientation: 30°
• Minimum distance from the wall: 63.5 mm

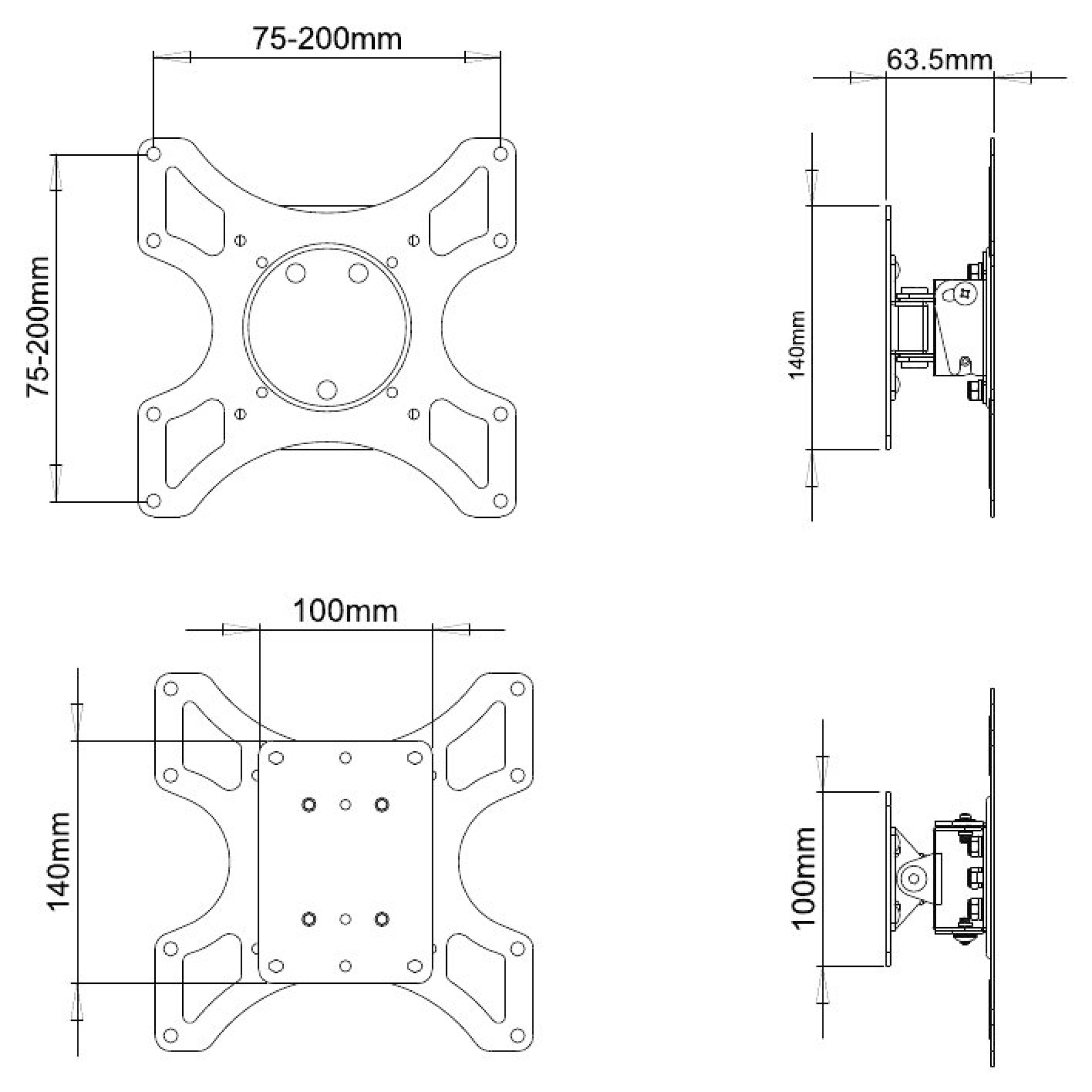

• Dimensions: 100 x 140 mm wall plaque
• Weight: 0.8 kg
• Color: Black
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Features
• Bracket suitable for LED LCD TV 19"-37"
• Supports VESA 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm
• Maximum weight supported: 25 kg
• Arm 1 joint
Specifications
• Tilt 0 to -12°
• Horizontal orientation: 30°
• Minimum distance from the wall: 63.5 mm
• Dimensions: 100 x 140 mm wall plaque
• Weight: 0.8 kg
• Color: Black
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
| Fit for: | Television set |
|---|
Technical properties
| Fit for: | Television set |
|---|
Product information for Wall support for LCD TV LED 19" - 37" with tilt black
• Universal bracket for fixing a flat LED / LCD or a monitor to the wall; Easy and quick to install, it is ideal for home, office and commercial applications
Features
• Bracket suitable for LED LCD TV 19"-37"
• Supports VESA 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm
• Maximum weight supported: 25 kg
• Arm 1 joint
Specifications
• Tilt 0 to -12°
• Horizontal orientation: 30°
• Minimum distance from the wall: 63.5 mm
• Dimensions: 100 x 140 mm wall plaque
• Weight: 0.8 kg
• Color: Black
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
Features
• Bracket suitable for LED LCD TV 19"-37"
• Supports VESA 75 x 75 mm, 100 x 100 mm, 200 x 100 mm, 200 x 200 mm
• Maximum weight supported: 25 kg
• Arm 1 joint
Specifications
• Tilt 0 to -12°
• Horizontal orientation: 30°
• Minimum distance from the wall: 63.5 mm
• Dimensions: 100 x 140 mm wall plaque
• Weight: 0.8 kg
• Color: Black
Package Contents
• Wall mount for LED LCD TV
• Attachments (screws, plugs ...) and installation instructions
| Fit for: | Television set |
|---|
| Fit for: | Television set |
|---|
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
