Wall support for LCD TV LED 43" - 80" , 1015mm wall distance, black
Item number:
ICA-PLB-490
Product information for Wall support for LCD TV LED 43" - 80" , 1015mm wall distance, black

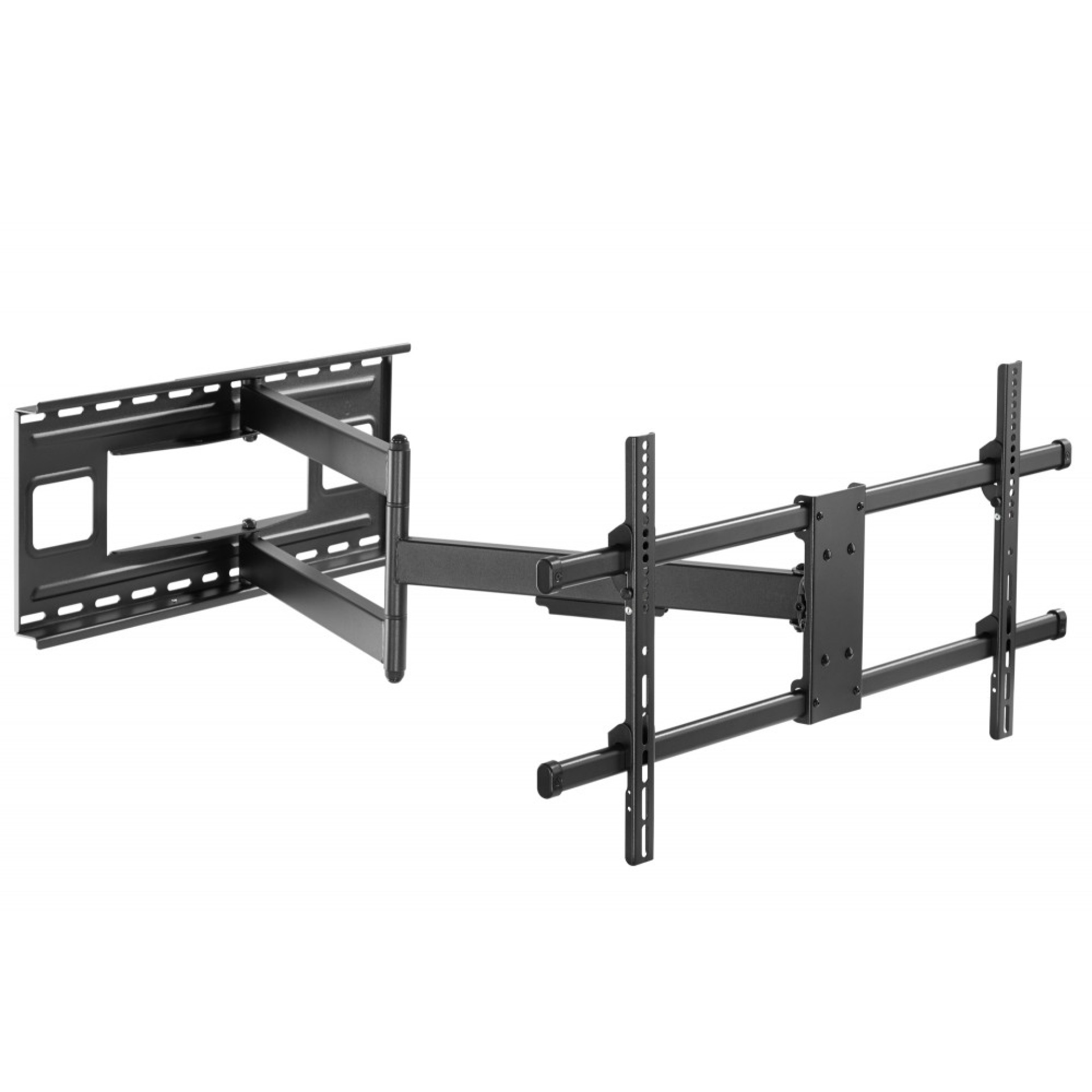

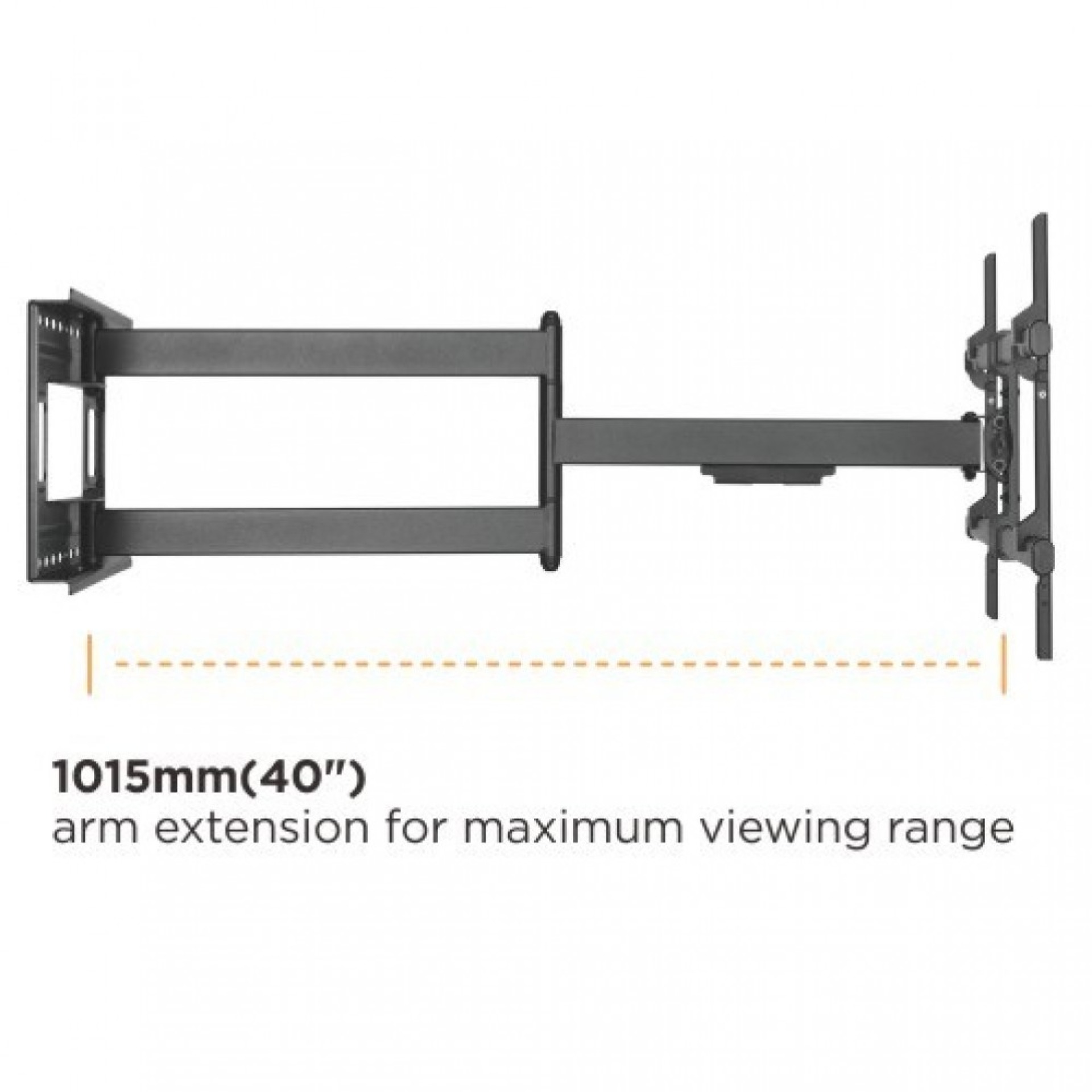

Extendable TV bracket with 1015mm extension arm and nearly unlimited rotation capability.
It offers the maximum viewing range, answering almost any editing challenge. Heavy Duty Arms provide strong support for larger and heavier TVs up to 50kg.
TV installation and removal are simplified thanks to a unique quick release mechanism.
The tilt offers optimal viewing angles. Integrated cable management creates a clean and tidy look.
Features
• Material: steel
• Sheet thickness: THK bracket arm = 1.5mm cold rolled sheet, THK wall plate = 3mm pickling sheet, THK VESA panel = 1.5mm cold rolled sheet (THK bracket arm = 0.059 "cold rolled sheet, THK wall plate = 0.12" pickling sheet, THK VESA panel = 0.059 inch cold rolled sheet)
• Pipe size: 50 x 25 x 1.5mm square steel pipe (2 "x 0.98" x0.059 "square steel pipe)
• Surface finish: powder coated
• Color: black with fine texture

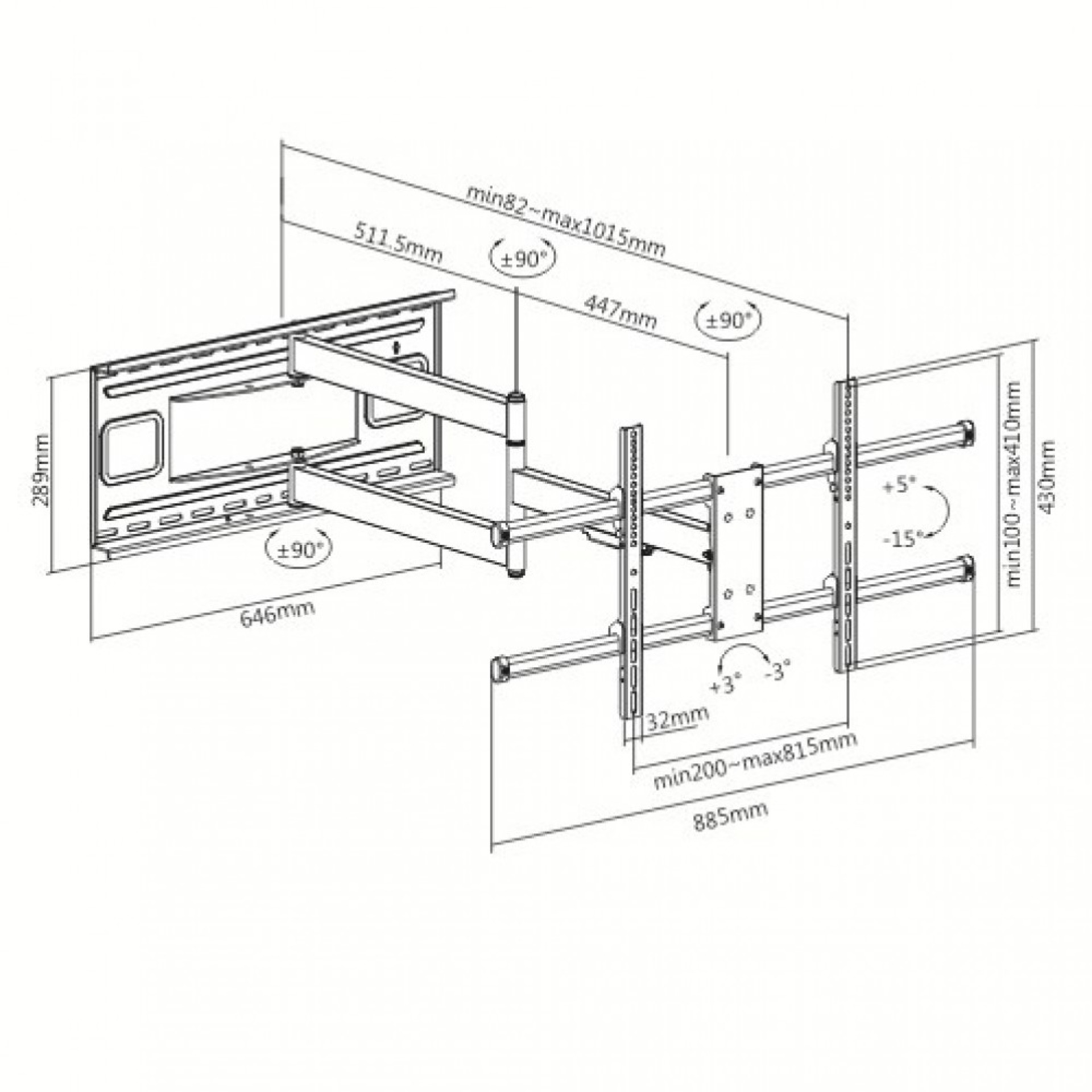

• Dimensions: 1015 x 885 x 430 mm
• Supported Screen Size: 43"-80"
• Suitable for curved TVs
• VESA compatible: 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400
• VESA max: 800x400
• Maximum weight supported: 50 kg
• Profile: 82 ~ 1015 mm

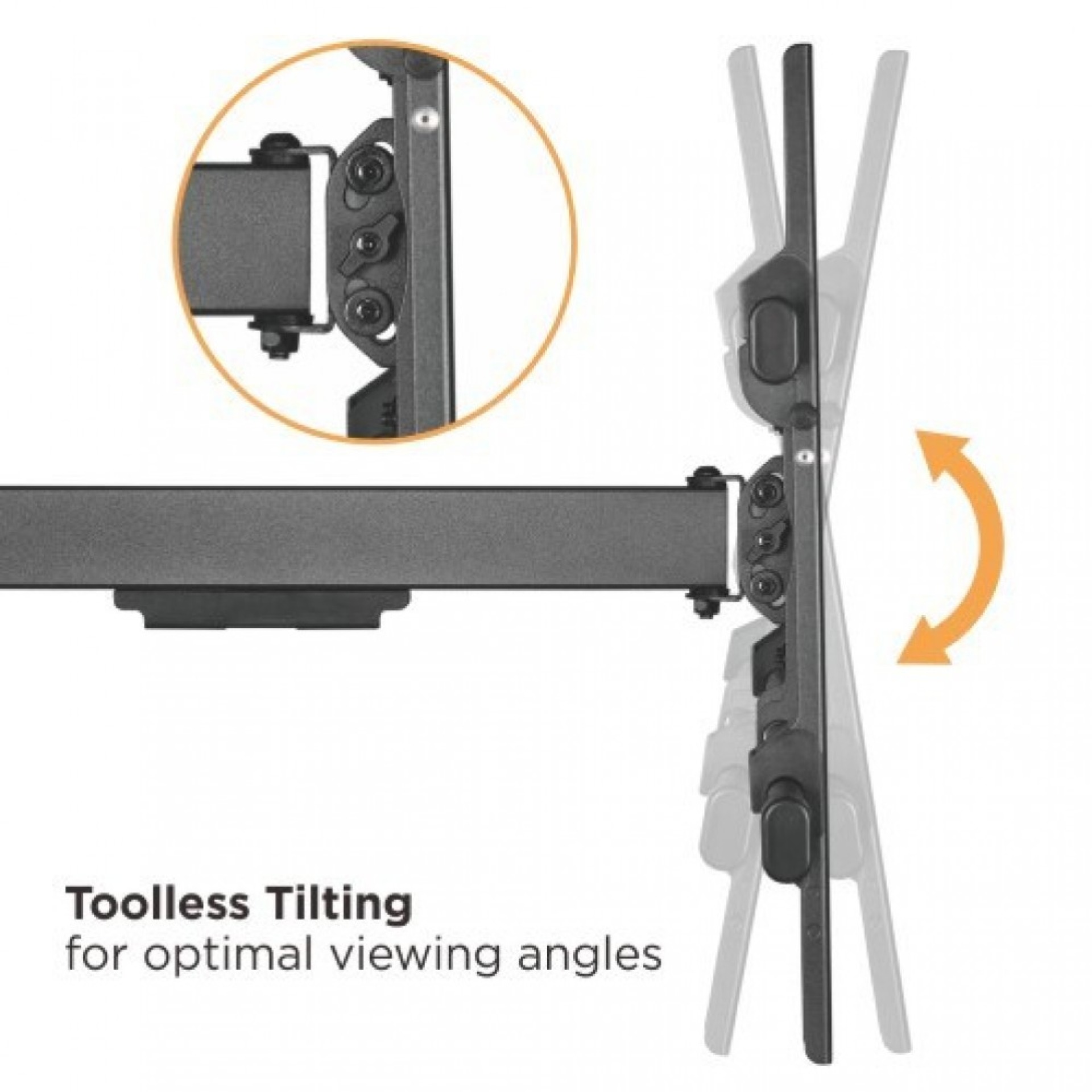

• Tilt range: + 5° ~ -15°
• Rotation range: + 90° ~ -90°
• Screen level: + 3° ~ -3°
• Detachable panel
• Fixed wall plate
• Integrated cable management
• Leveling bubble included in the package
Package Contents
• ICA-PLB 490 extendable TV bracket
• Hardware and installation instructions
It offers the maximum viewing range, answering almost any editing challenge. Heavy Duty Arms provide strong support for larger and heavier TVs up to 50kg.
TV installation and removal are simplified thanks to a unique quick release mechanism.
The tilt offers optimal viewing angles. Integrated cable management creates a clean and tidy look.
Features
• Material: steel
• Sheet thickness: THK bracket arm = 1.5mm cold rolled sheet, THK wall plate = 3mm pickling sheet, THK VESA panel = 1.5mm cold rolled sheet (THK bracket arm = 0.059 "cold rolled sheet, THK wall plate = 0.12" pickling sheet, THK VESA panel = 0.059 inch cold rolled sheet)
• Pipe size: 50 x 25 x 1.5mm square steel pipe (2 "x 0.98" x0.059 "square steel pipe)
• Surface finish: powder coated
• Color: black with fine texture
• Dimensions: 1015 x 885 x 430 mm
• Supported Screen Size: 43"-80"
• Suitable for curved TVs
• VESA compatible: 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400
• VESA max: 800x400
• Maximum weight supported: 50 kg
• Profile: 82 ~ 1015 mm
• Tilt range: + 5° ~ -15°
• Rotation range: + 90° ~ -90°
• Screen level: + 3° ~ -3°
• Detachable panel
• Fixed wall plate
• Integrated cable management
• Leveling bubble included in the package
Package Contents
• ICA-PLB 490 extendable TV bracket
• Hardware and installation instructions
Technical properties
| Suitable for: | Television set |
|---|
