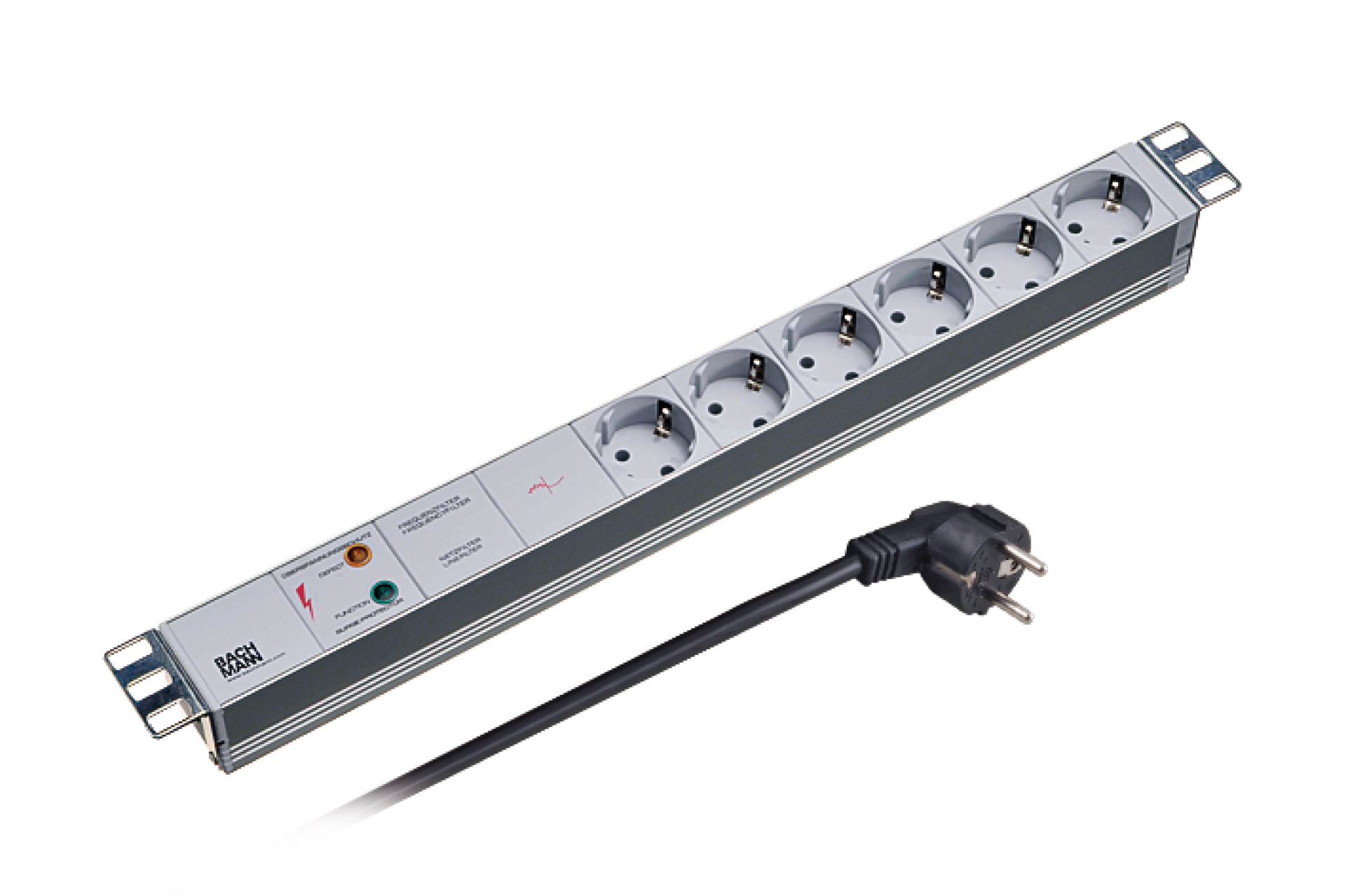

19" 1U Socket Strip with Full Device Protection
19" 1U Socket Strip 6 x CEE7/3 with Surge Protection + Mains Filter, Grey
Item number:
691689
EAN no.:
4016514014453
Product information for 19" 1U Socket Strip 6 x CEE7/3 with Surge Protection + Mains Filter, Grey
Mains- and frequency filter
Overvoltage protection leakage current 6.5 kA
Visual function and failure display
35° turned socket inserts in the aluminium profile

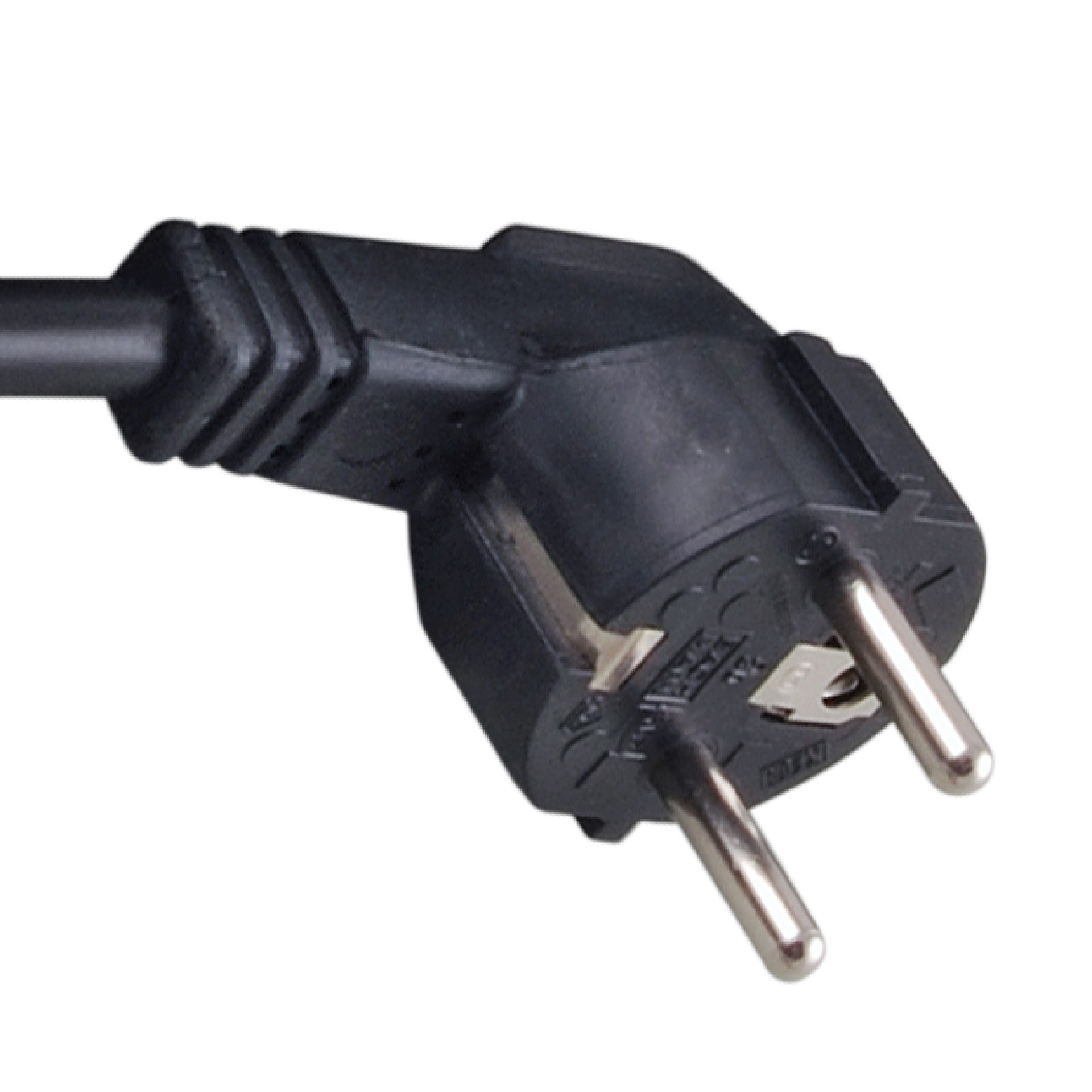

Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7

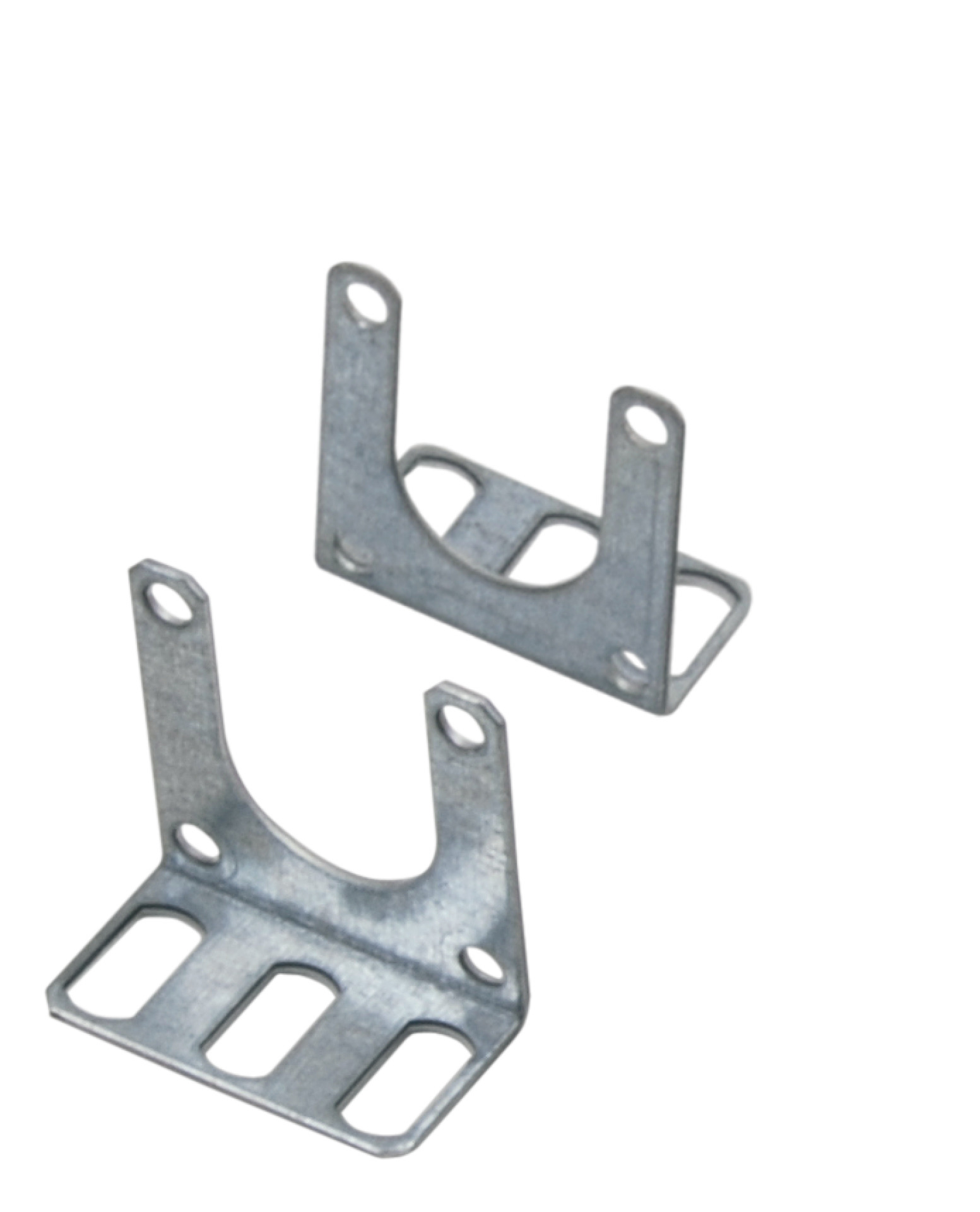

Supplied mounting brackets allow any fastening position
Overvoltage protection leakage current 6.5 kA
Visual function and failure display
35° turned socket inserts in the aluminium profile
Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7
Supplied mounting brackets allow any fastening position
Technical properties
| (Halogenfree): | False |
|---|---|
| Angle rotated central insert: | 35 ° |
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | True |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | True |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | Matt |
| Surface protection: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Variants
| Item no. | Name | Number of socket outlets with protective contact (CEE7/3) | Anti-bacterial treatment | Colour | With on/off switch | RAL-Nummer (ähnlich) | |
|---|---|---|---|---|---|---|---|
| 691689 | 19" 1U Socket Strip 6 x CEE7/3 with Surge Protection + Mains Filter, Grey | 6 | False | grey | False | 7035 | |

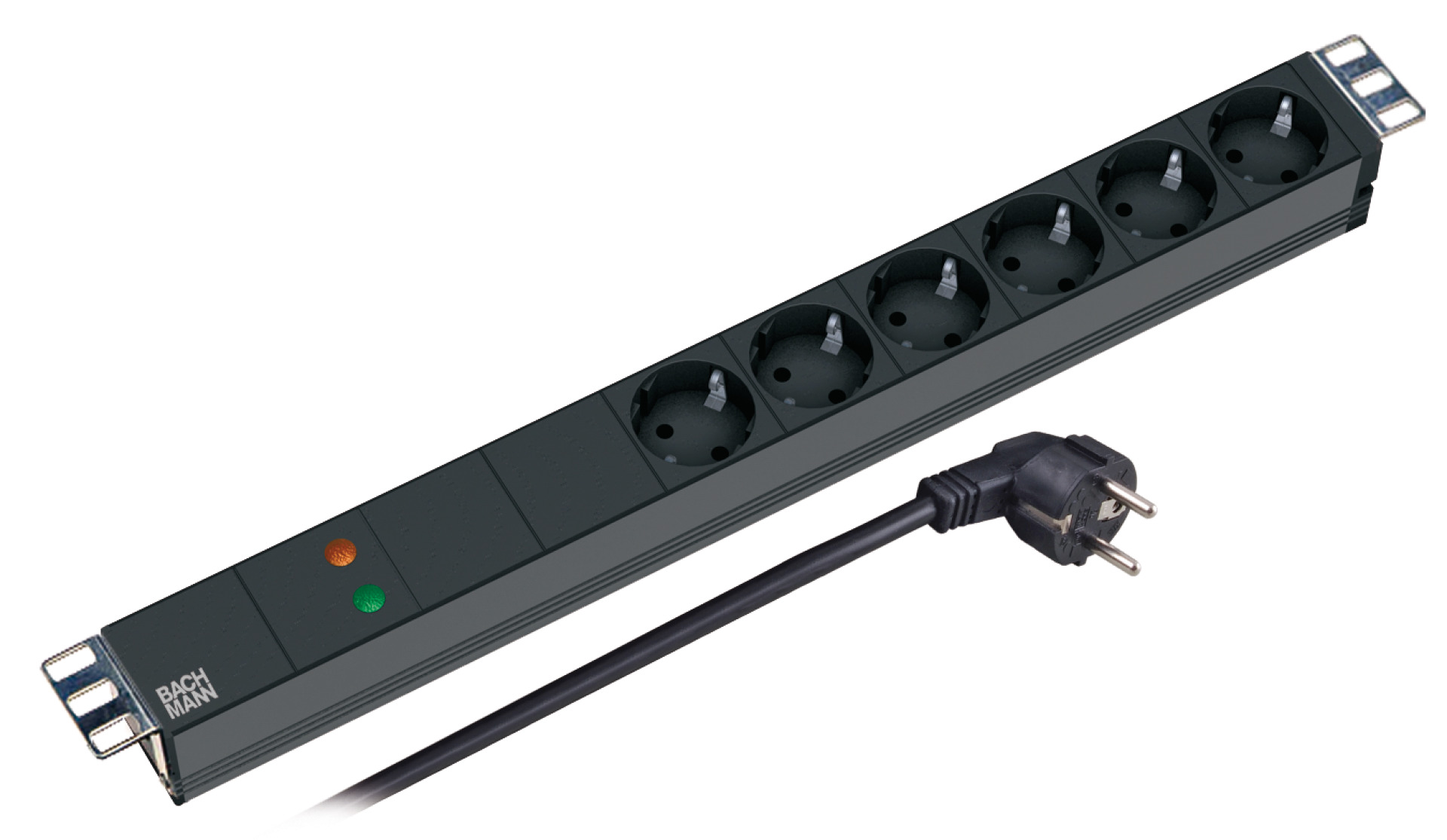

| 691689SW | 19" 1U Socket Strip 6 x CEE7/3 with Surge Protection + Mains Filter, Black | 6 | False | black | False | 9005 |
