19" 1U Socket Strip 8 x (red) with Cable IEC C14

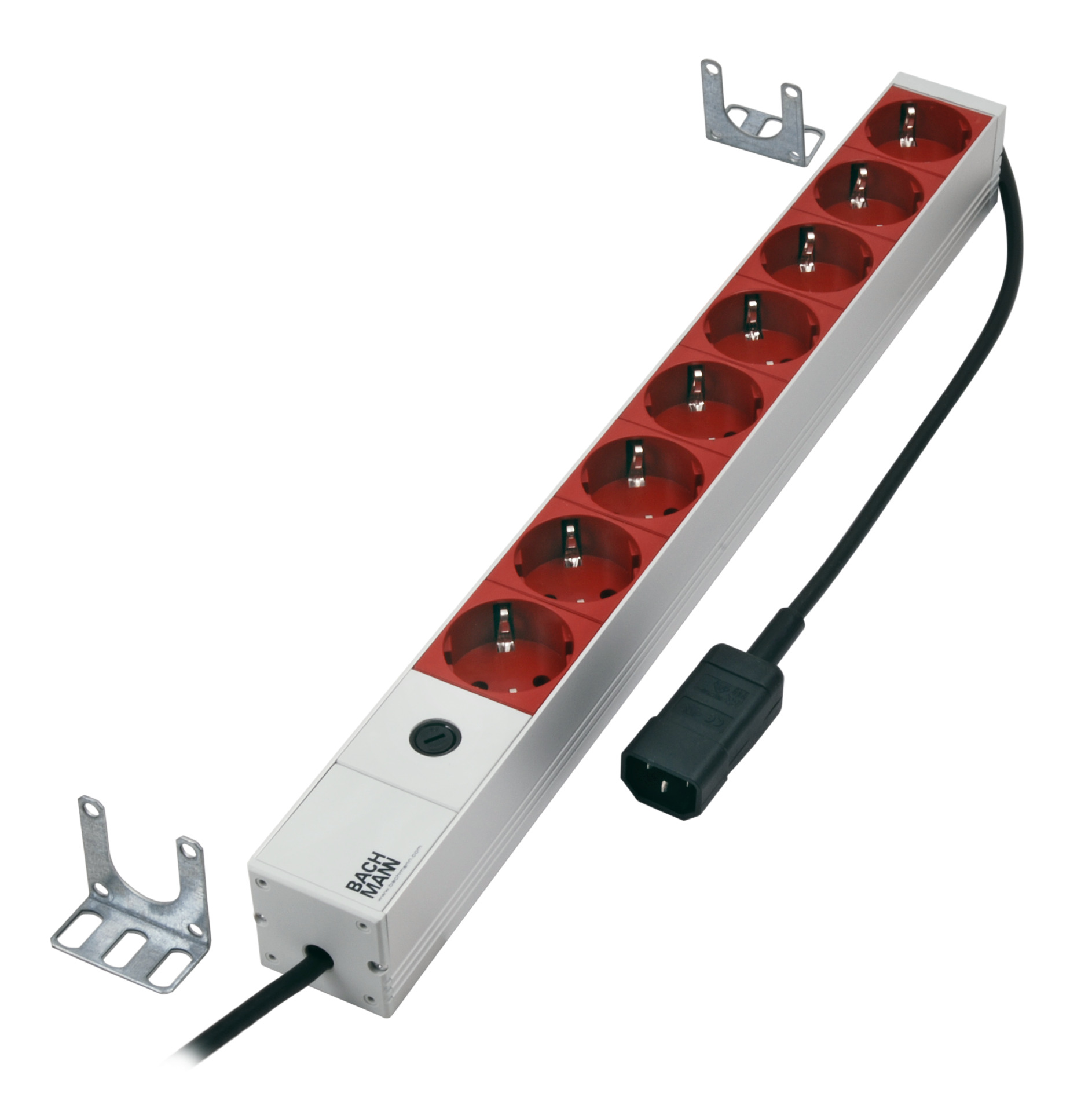

19" 1U Socket Strip 8 x CEE7/3 (Red) with Cable C14
Item number:
691698
EAN no.:
4016514014538
Product information for 19" 1U Socket Strip 8 x CEE7/3 (Red) with Cable C14
Integrated 10 A microfuse
35° turned socket inserts in aluminium profile
Cable 2.0 m black, H05VV-F 3G 1.0 qmm with IEC60320/C14 plug
Supplied mounting brackets allow any fastening position
35° turned socket inserts in aluminium profile
Cable 2.0 m black, H05VV-F 3G 1.0 qmm with IEC60320/C14 plug
Supplied mounting brackets allow any fastening position
Technical properties
| Angle rotated central insert: | 35 ° |
|---|---|
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | False |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | matt |
| Surface treatment: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Manufacturer information
Bachmann Sales GmbH & Co. KG
Ernsthaldenstr. 33
70565 Stuttgart
info@bachmann.com
www.bachmann.com
