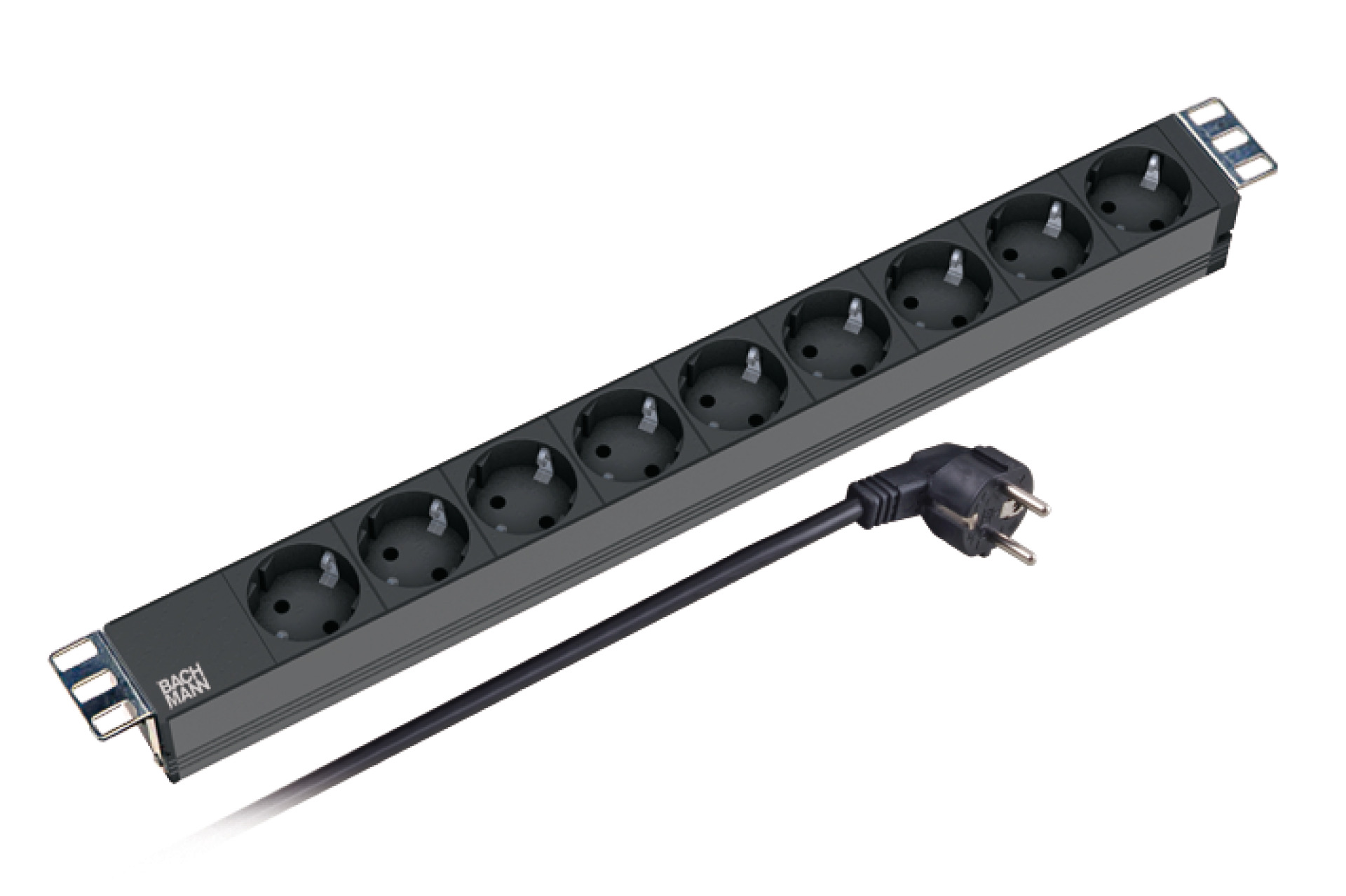

19" 1U Socket Strip 9 x without Switch
19" 1U Socket Strip 9 x CEE7/3 without Switch, Black
Item number:
691683
EAN no.:
4016514019274
Product information for 19" 1U Socket Strip 9 x CEE7/3 without Switch, Black
35° turned socket inserts in the aluminium profile

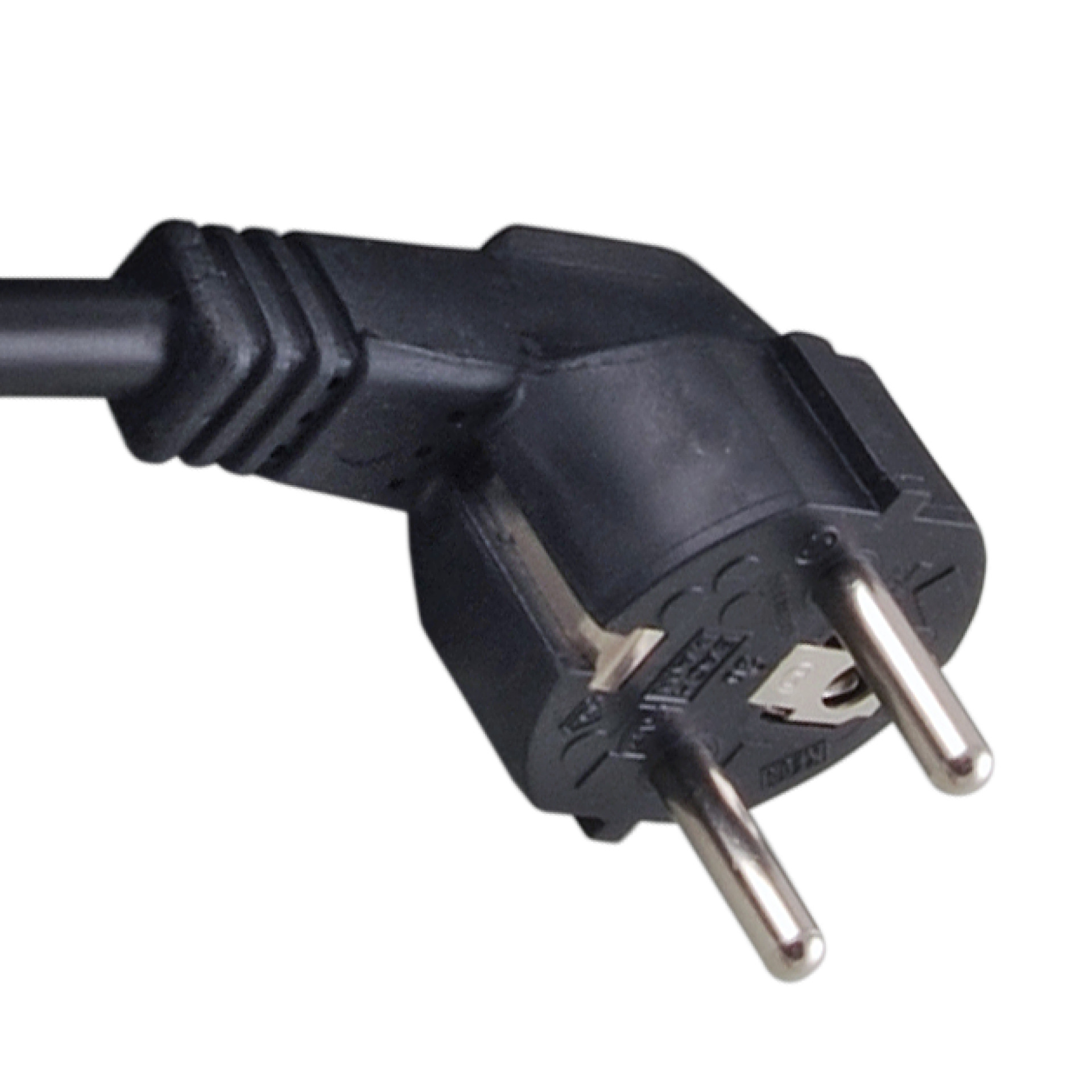

Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7

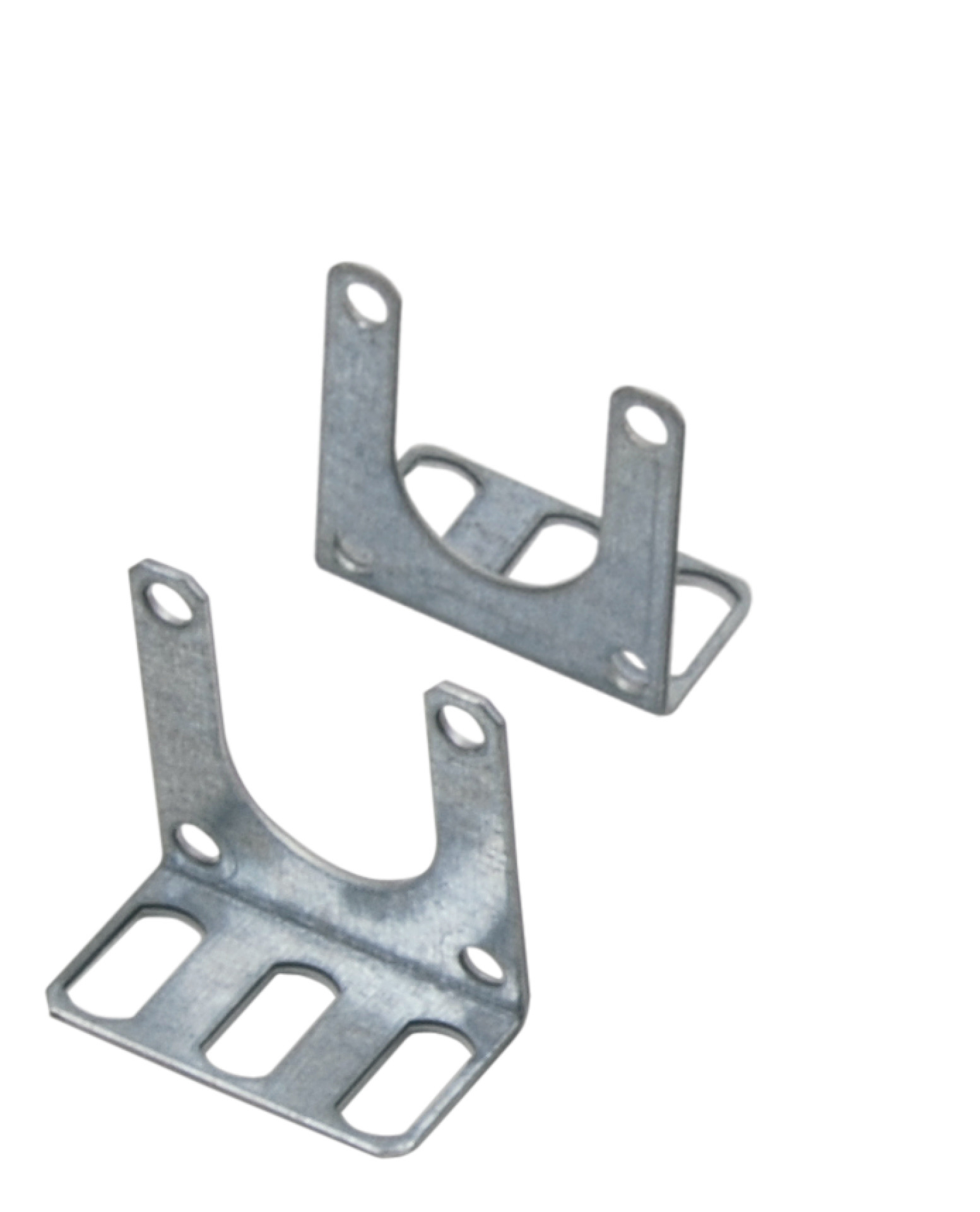

Supplied mounting brackets allow any fastening position
Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7
Supplied mounting brackets allow any fastening position
Technical properties
| Angle rotated central insert: | 35 ° |
|---|---|
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | False |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | matt |
| Surface treatment: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Variants
| Item no. | Name | With on/off switch | Anti-bacterial treatment | Number of socket outlets with protective contact (CEE7/3) | Color | RAL-number (similar) | |
|---|---|---|---|---|---|---|---|

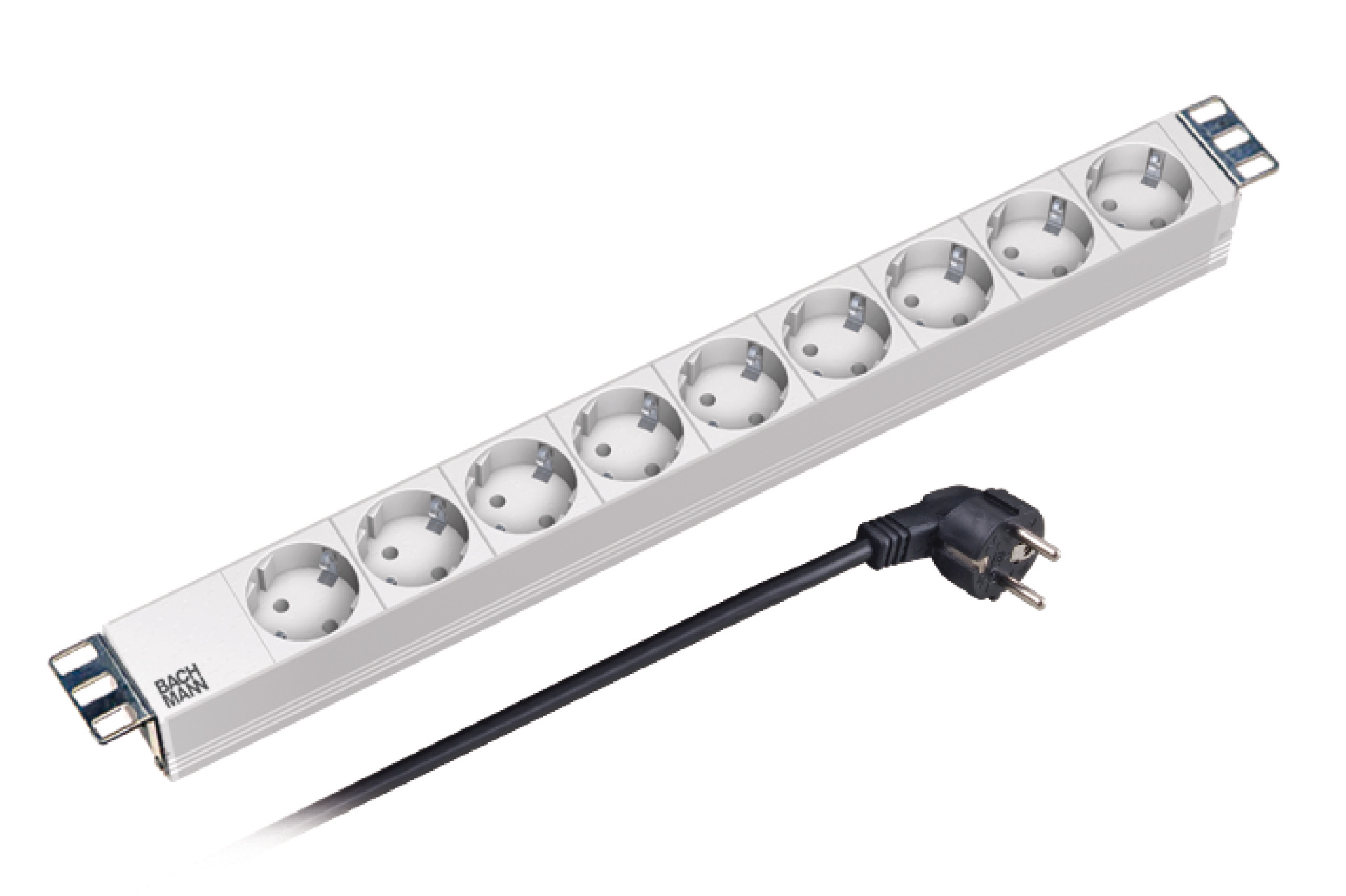

| 691685 | 19" 1U Socket Strip 9 x CEE7/3 without Switch, Grey | False | False | 9 | grey | 7035 | |
| 691683 | 19" 1U Socket Strip 9 x CEE7/3 without Switch, Black | False | False | 9 | black | 9005 |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Manufacturer information
Bachmann Sales GmbH & Co. KG
Ernsthaldenstr. 33
70565 Stuttgart
info@bachmann.com
www.bachmann.com
