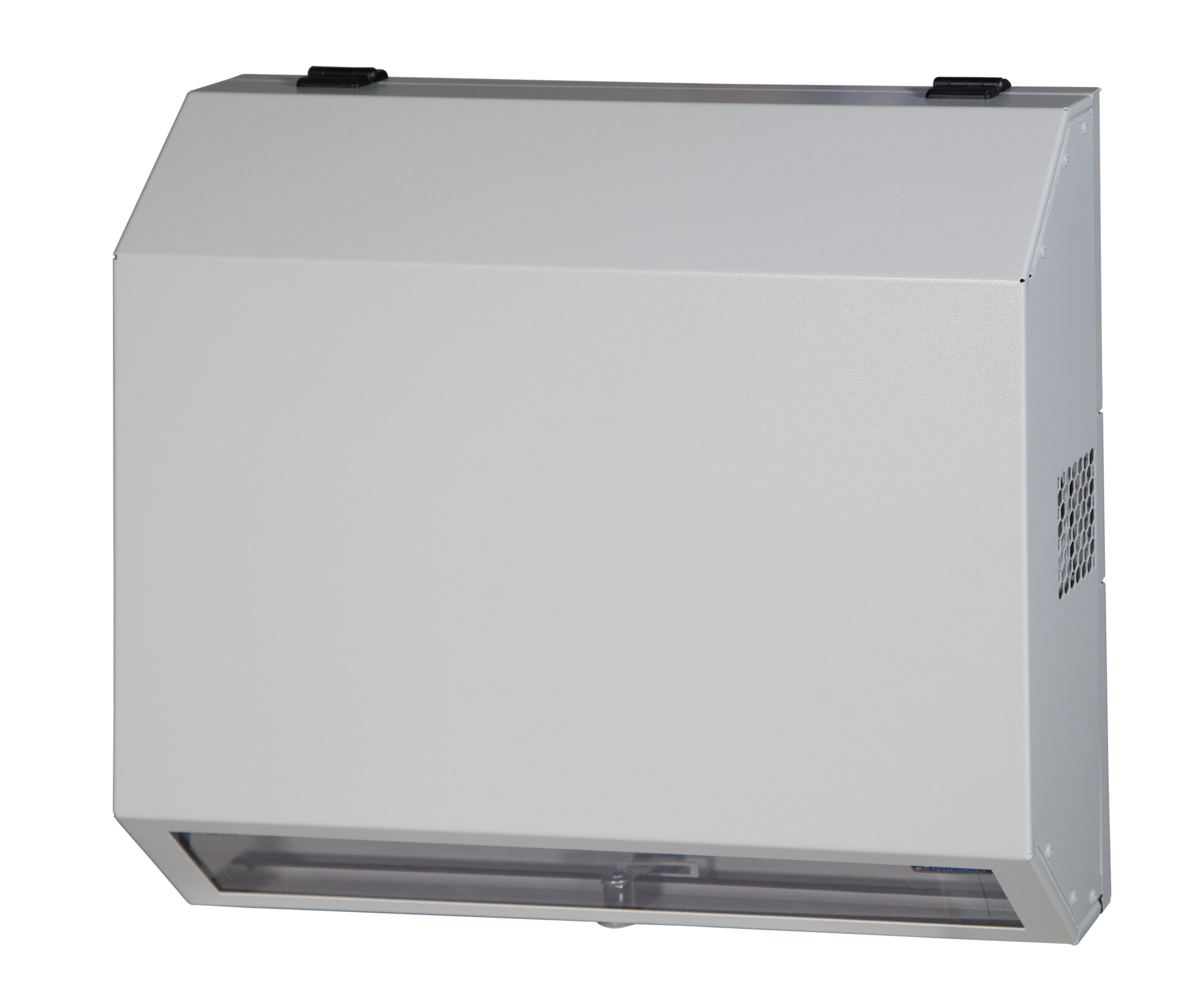

19" Wall Housing 3U Vertical + 5U Horizontal
19“ Wall Housing 3U Vertical + 5U Horizontal, RAL9005
Item number:
691703VTS
EAN no.:
4049759165161
Product information for 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL9005
Steel sheet housing for wall mounting, completely pre-assembled, self-ventilated
Wall raising (overall depth) only 150 mm
3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm

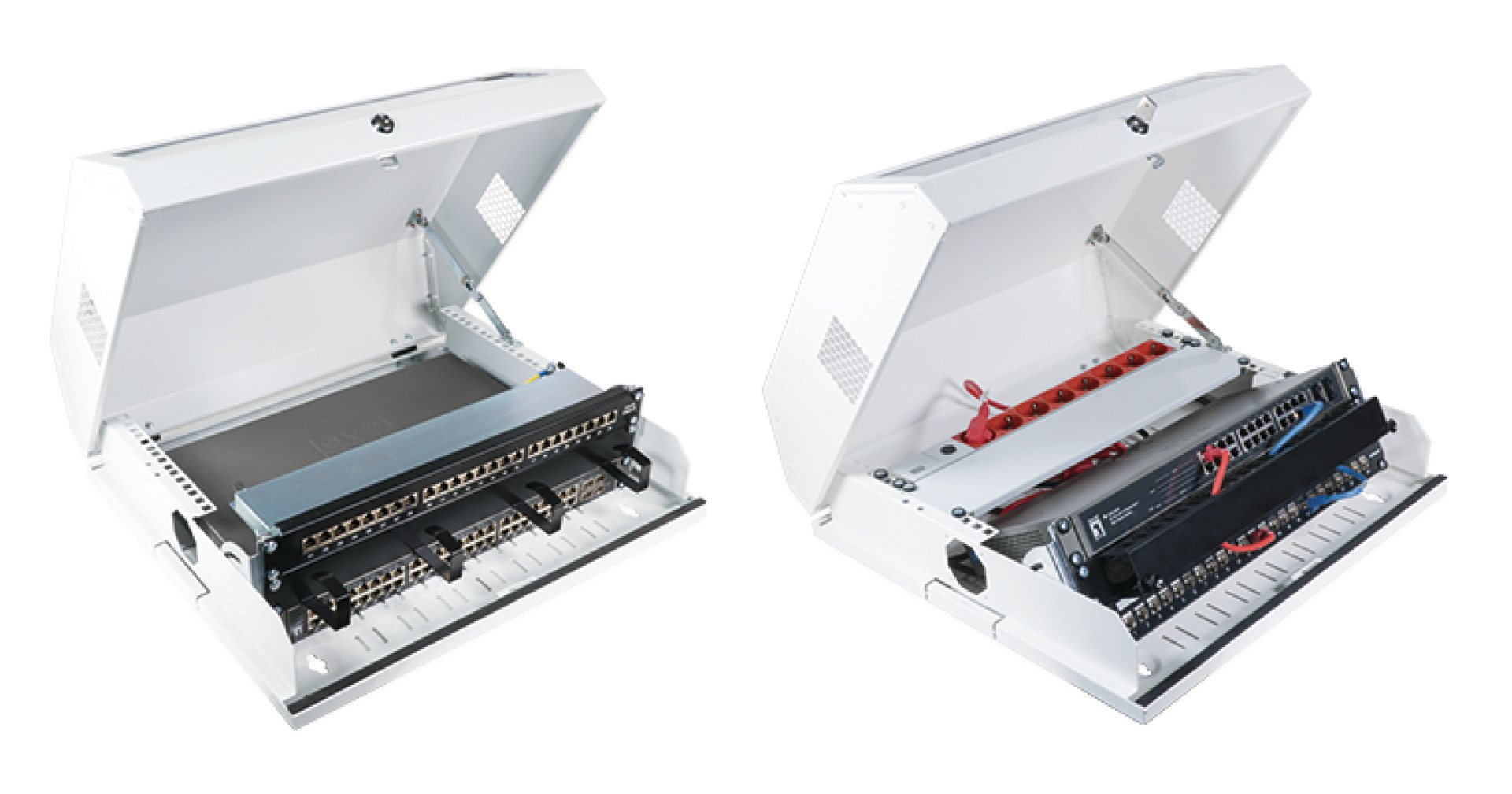

3U level 180° swiveling

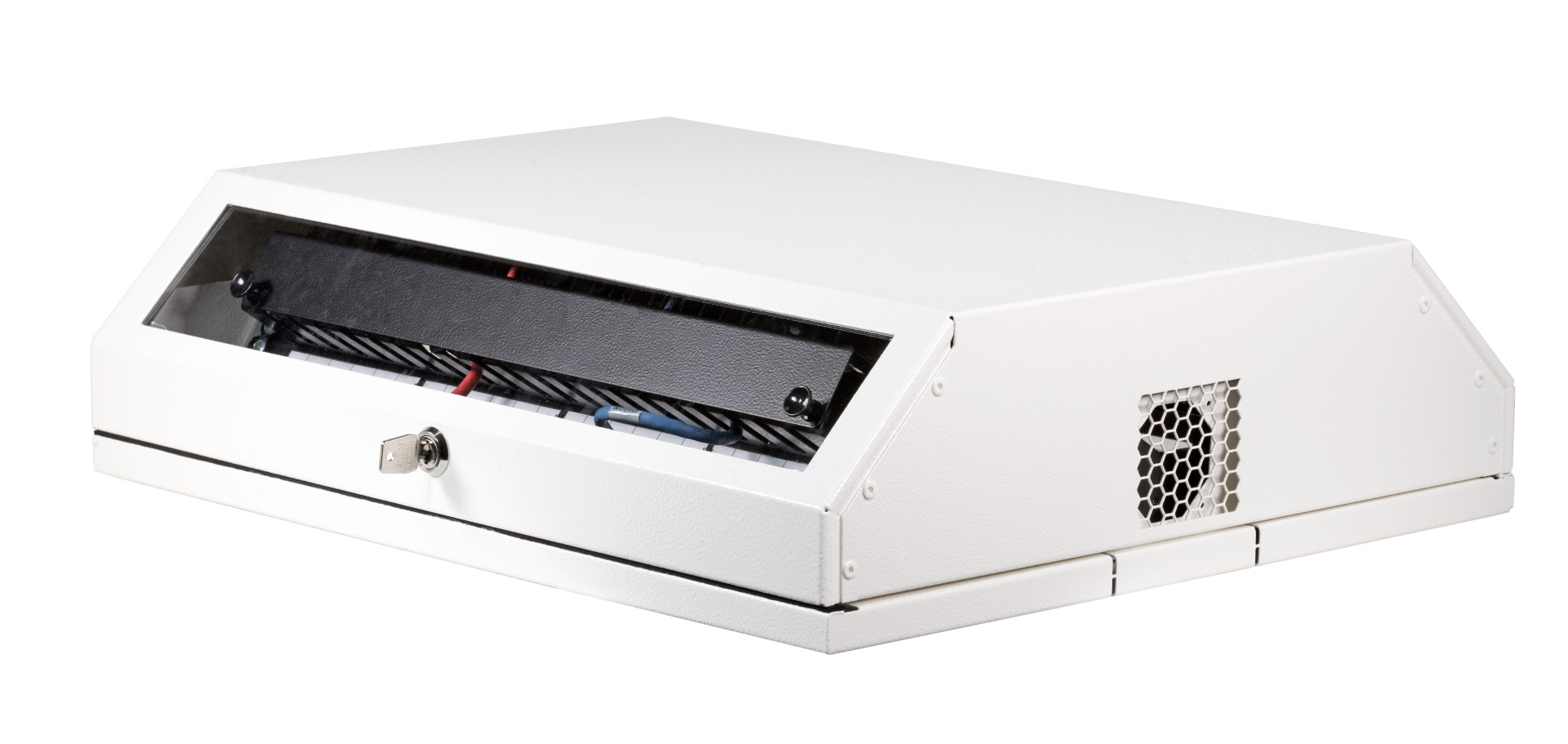

Cover with window, hinged and lockable
Pre-punched ventilation openings in housing

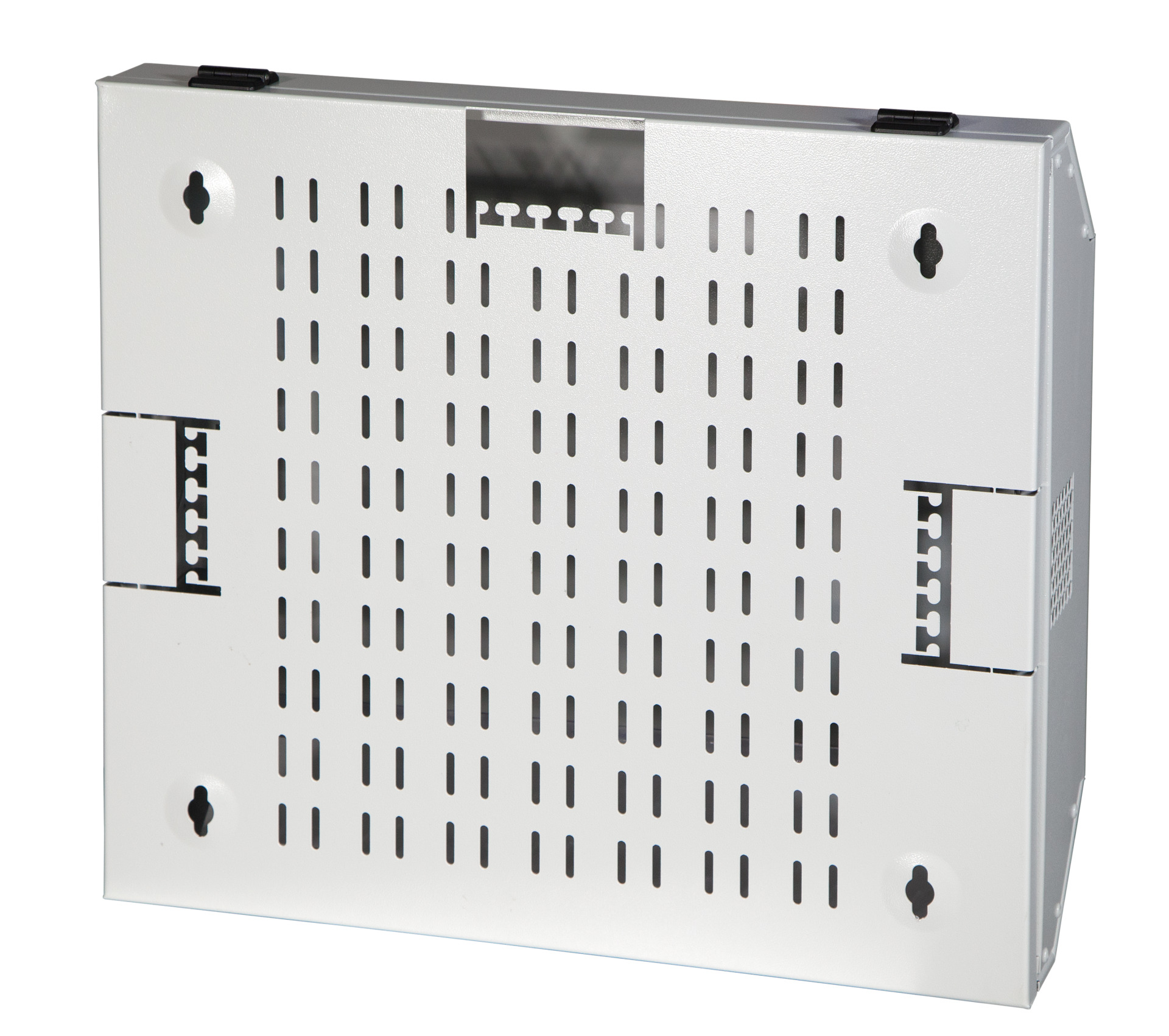

Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20
Included in delivery: 1 x key
Wall raising (overall depth) only 150 mm
3U for vertical mounting of 19" components, max. depths each 1 x 360 / 340 / 300 mm
5U additionally for horizontally mounting of 19" components, max. depth 80 mm

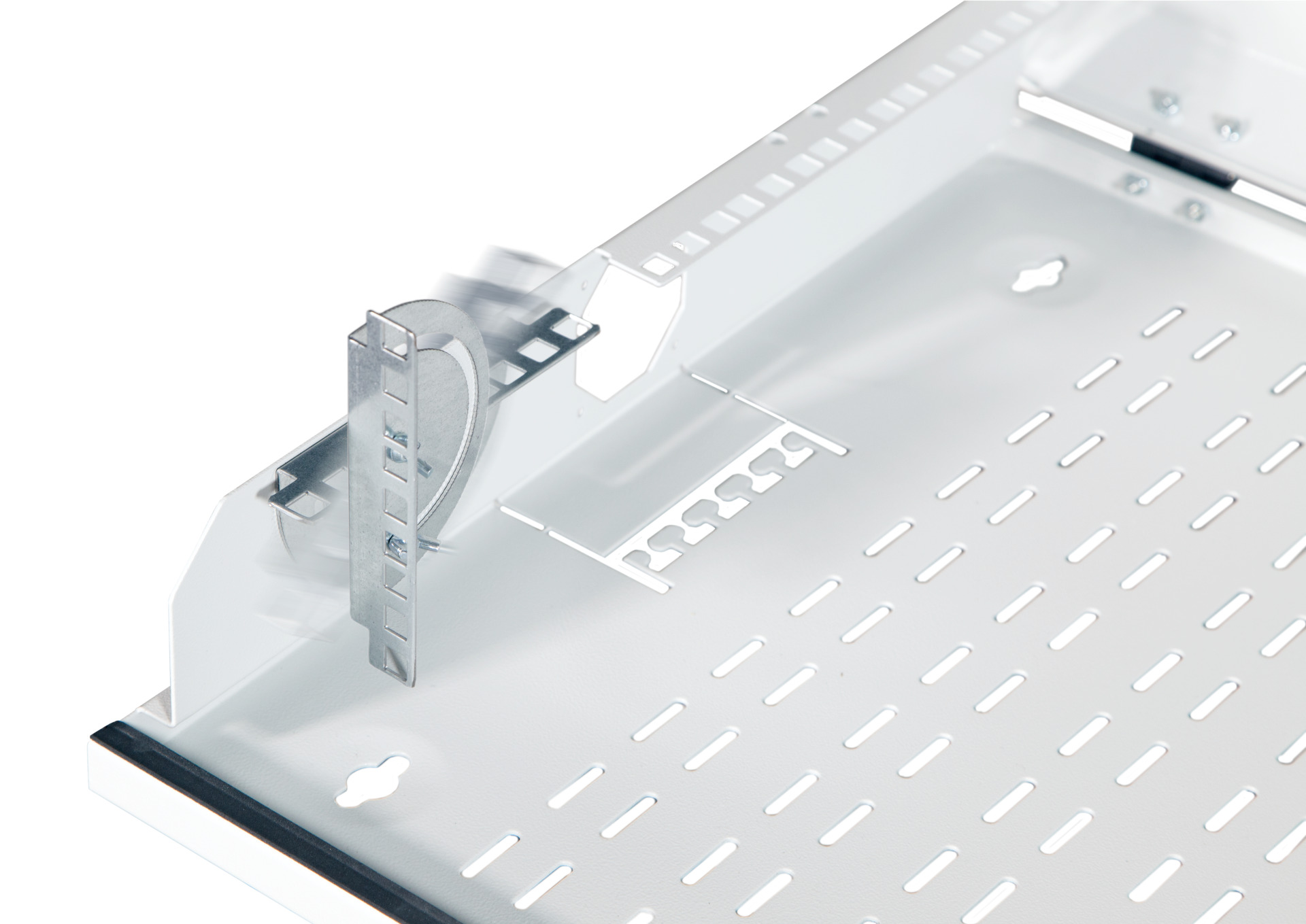

3U level 180° swiveling
Cover with window, hinged and lockable
Pre-punched ventilation openings in housing
Pre-punched cable clamps in rear wall
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black / RAL9010, white
Protection degree IP20
Included in delivery: 1 x key
Technical properties
| Cabinet Series: | 19" Wall Housimg vertical 3+5U, pre-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | Ja |
| Material: | Stahl |
| Model: | With swing frame |
| Modular spacing: | 482,6 mm (19 Zoll) |
| Mounting level: | vorne |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | pulverbeschichtet |
| Type of profile rail: | L-förmig |
| Type of ventilation: | passiv |
| With earthing: | Ja |
| With front door: | Ja |
| With roof plate: | Ja |
| With sidewall: | Ja |
Variants
| Item no. | Name | Max. Load | Height | Width | Depth | Number of height units | Color | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|
| 691703V | 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL7035 | 30 kg | 475 mm | 537 mm | 146 mm | 8 U | grey | 7035 | |
| 691703VTS | 19“ Wall Housing 3U Vertical + 5U Horizontal, RAL9005 | 30 kg | 475 mm | 537 mm | 146 mm | 8 U | schwarz | 9005 | |
| 691703VWS | 19" Wall Housing 3U Vertical + 5U Horizontal, RAL9010 | 30 kg | 475 mm | 537 mm | 146 mm | 8 U | white | 9010 |
