19" Wall Housing Swiveling, 2-Part, Depth 500 mm, RAL7035
19" Wall Housing 9U, Swiveling, 2-Part, RAL7035, Depth 500 mm
Item number:
691609VGR.50
EAN no.:
4049759212674
Product information for 19" Wall Housing 9U, Swiveling, 2-Part, RAL7035, Depth 500 mm
Steel sheet housing with welded frame, pre-assembled, self-ventilated

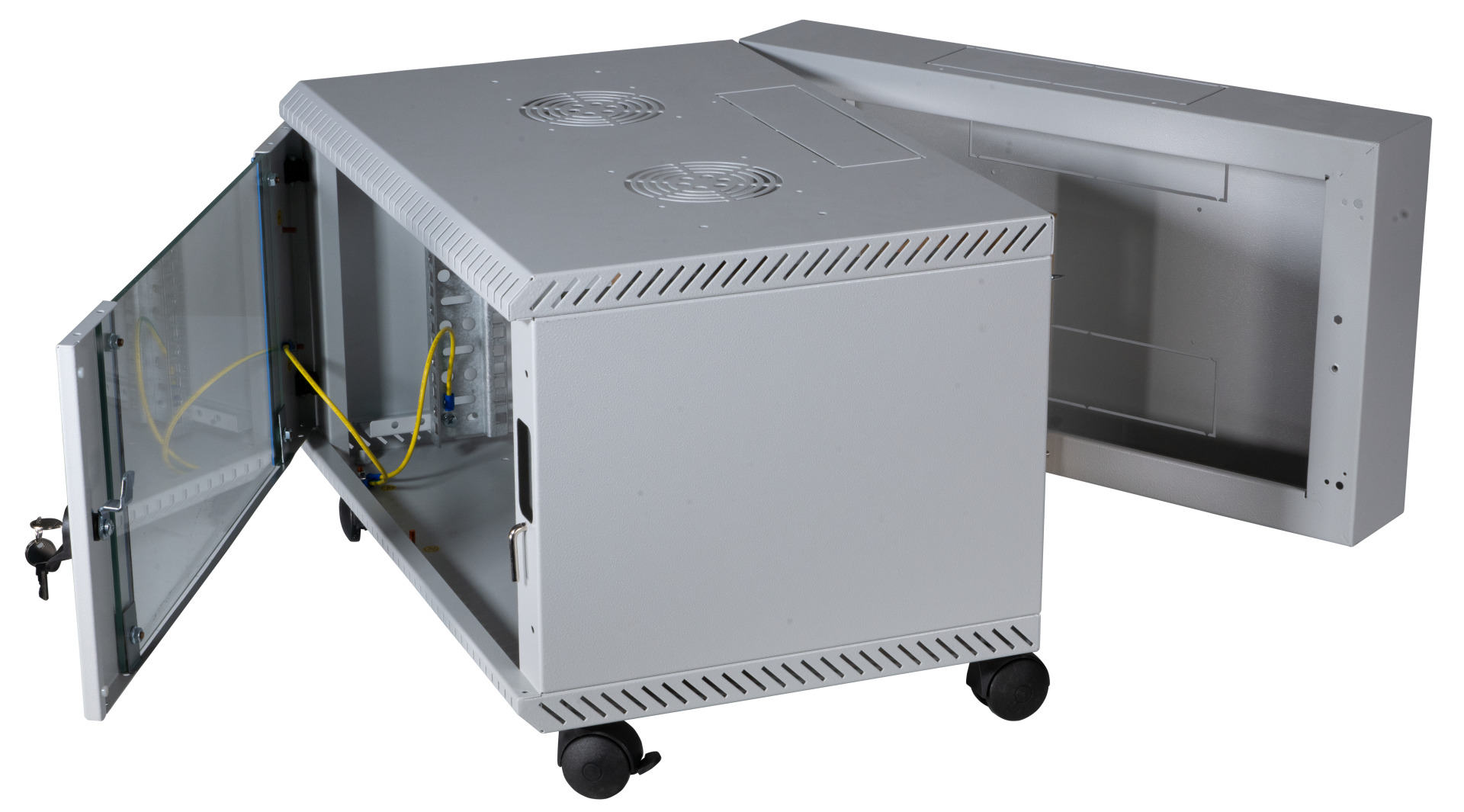

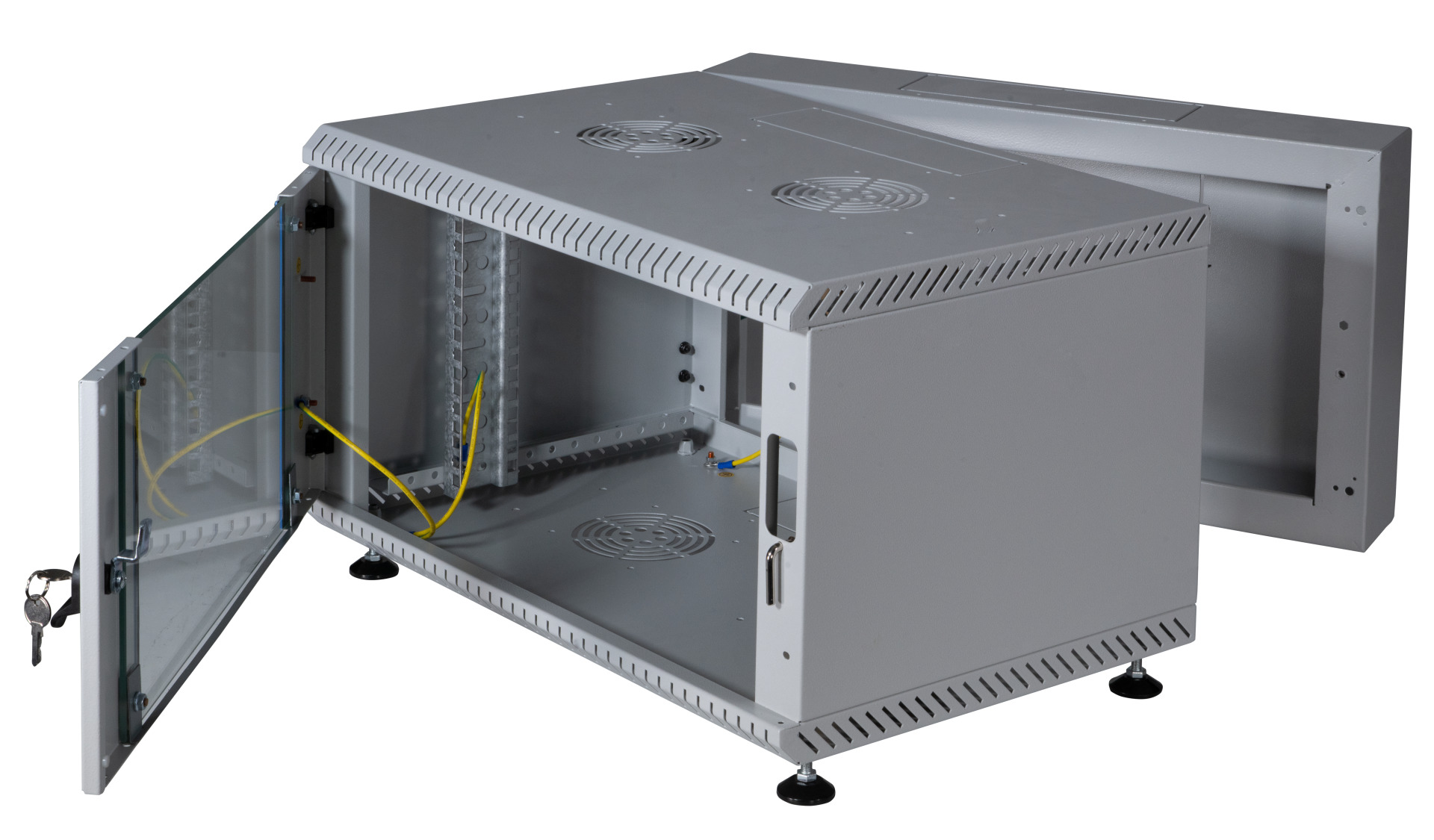

Rear sided swing-frame for swiveling the front part of the housing
Prepared for Plug & Play 2-fan unit (Art.-No. 691656GR)
Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
Front door with metal hinges for increased stability

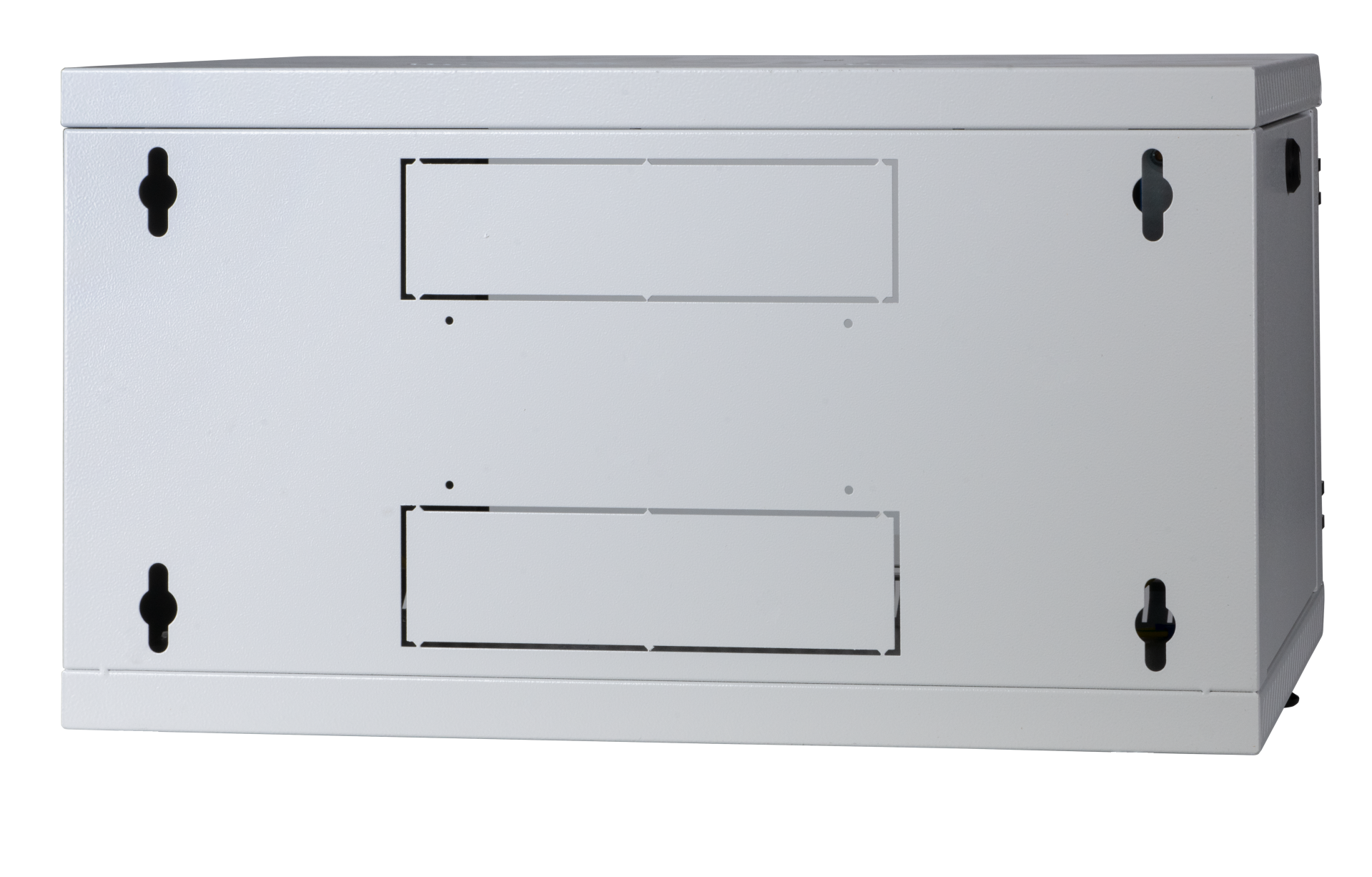

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)

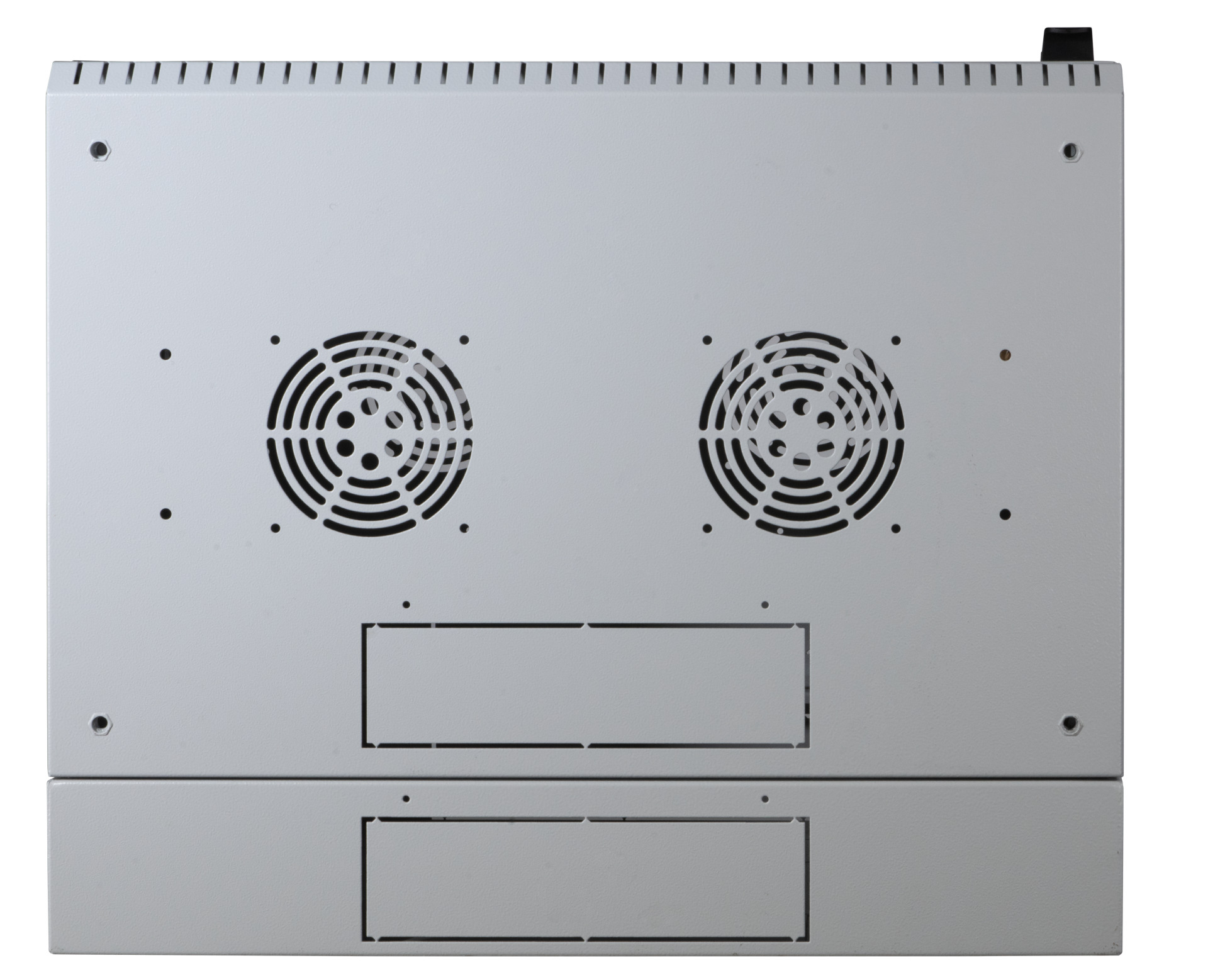

Prepared for mounting of single fan units in roof and bottom
Inside front-sided 2 x 19“ profile rails, galvanised, depth-adjustable

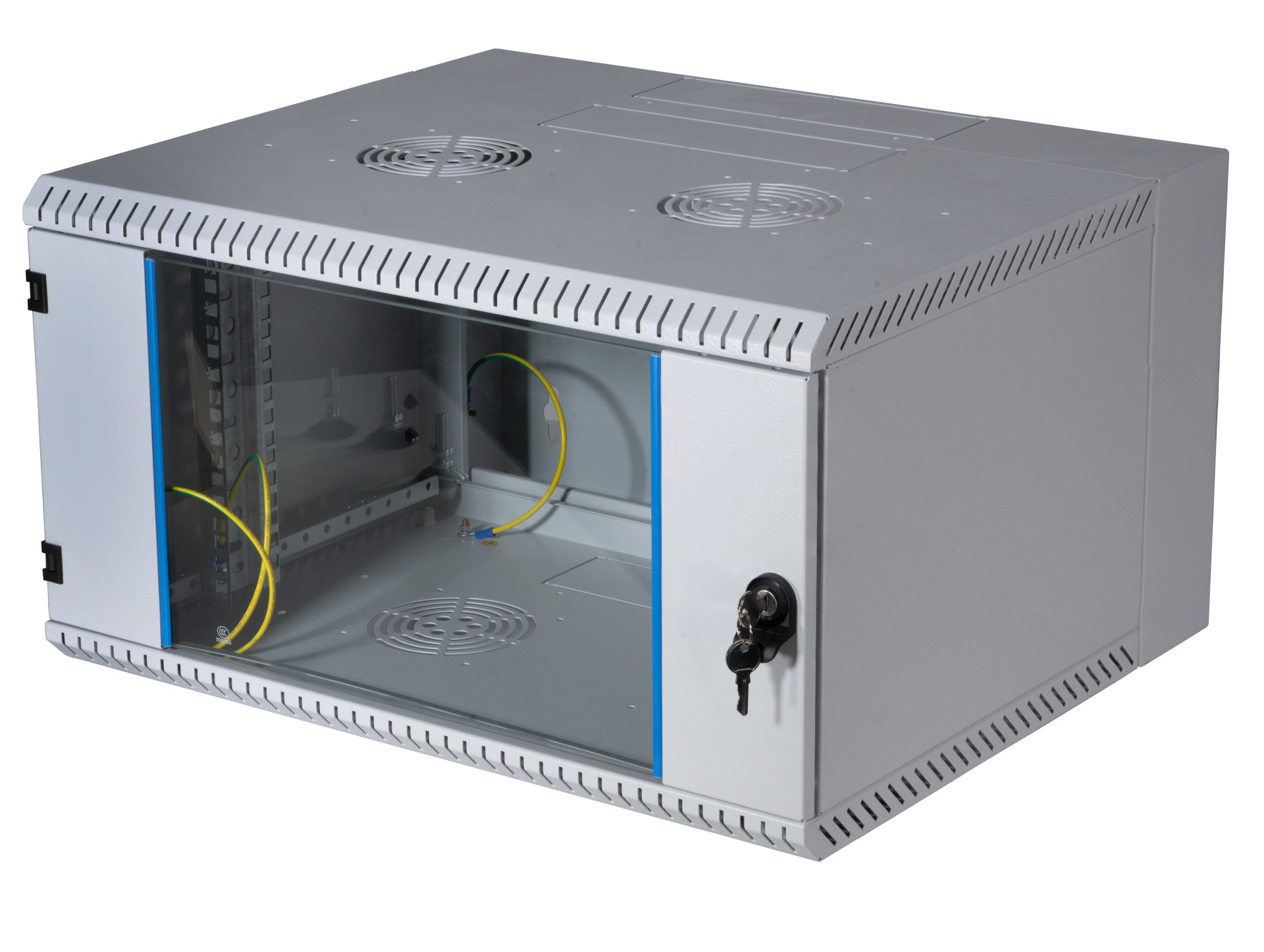

Front door with window made of certified safety glass
Front door lockable with latch
Internal earthing of all cabinet sections
Paint finish: RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Rear sided swing-frame for swiveling the front part of the housing
Prepared for Plug & Play 2-fan unit (Art.-No. 691656GR)
Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
Front door with metal hinges for increased stability
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Prepared for mounting of single fan units in roof and bottom
Inside front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with window made of certified safety glass
Front door lockable with latch
Internal earthing of all cabinet sections
Paint finish: RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Technical properties
| Cabinet Series: | 19" Wall Housing 2-Part, pre-assembled |
|---|---|
| Degree of protection: | IP20 |
| Demountable: | Nein |
| Material: | Stahl |
| Model: | mit Festrahmen |
| Modular spacing: | 482,6 mm (19 Zoll) |
| Mounting level: | vorne |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | pulverbeschichtet |
| Type of front door: | Glass door 1-part |
| Type of profile rail: | L-förmig |
| Type of ventilation: | passiv |
| With earthing: | Ja |
| With front door: | Ja |
| With roof plate: | Ja |
| With sidewall: | Ja |
Variants
| Item no. | Name | Color | Width | Depth | Max. load capacity | Max. Load | Number of height units | Height | RAL-number | |
|---|---|---|---|---|---|---|---|---|---|---|
| 691606VGR.50 | 19" Wall Housing 6U, Swiveling, 2-Part, RAL7035, Depth 500 mm | grey | 600 mm | 500 mm | 40 kg | 40 kg | 6 U | 330 mm | 7035 | |
| 691609VGR.50 | 19" Wall Housing 9U, Swiveling, 2-Part, RAL7035, Depth 500 mm | grey | 600 mm | 500 mm | 40 kg | 40 kg | 9 U | 465 mm | 7035 | |
| 691612VGR.50 | 19" Wall Housing 12U, Swiveling, 2-Part, RAL7035, Depth 500 mm | grey | 600 mm | 500 mm | 40 kg | 40 kg | 12 HE | 600 mm | 7035 | |
| 691615VGR.50 | 19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm | grey | 600 mm | 500 mm | 50 kg | 50 kg | 15 HE | 730 mm | 7035 | |
| 691621VGR.50 | 19" Wall Housing 21U, Swiveling, 2-Part, RAL7035, Depth 500 mm | grey | 600 mm | 500 mm | 50 kg | 50 kg | 21 HE | 997 mm | 7035 |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
