19" Wall Housing Swiveling, 2-Part, Depth 500 mm, RAL7035
19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm
Item number:
691615VGR.50
EAN no.:
4049759212728
Product information for 19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm
Steel sheet housing with welded frame, pre-assembled, self-ventilated

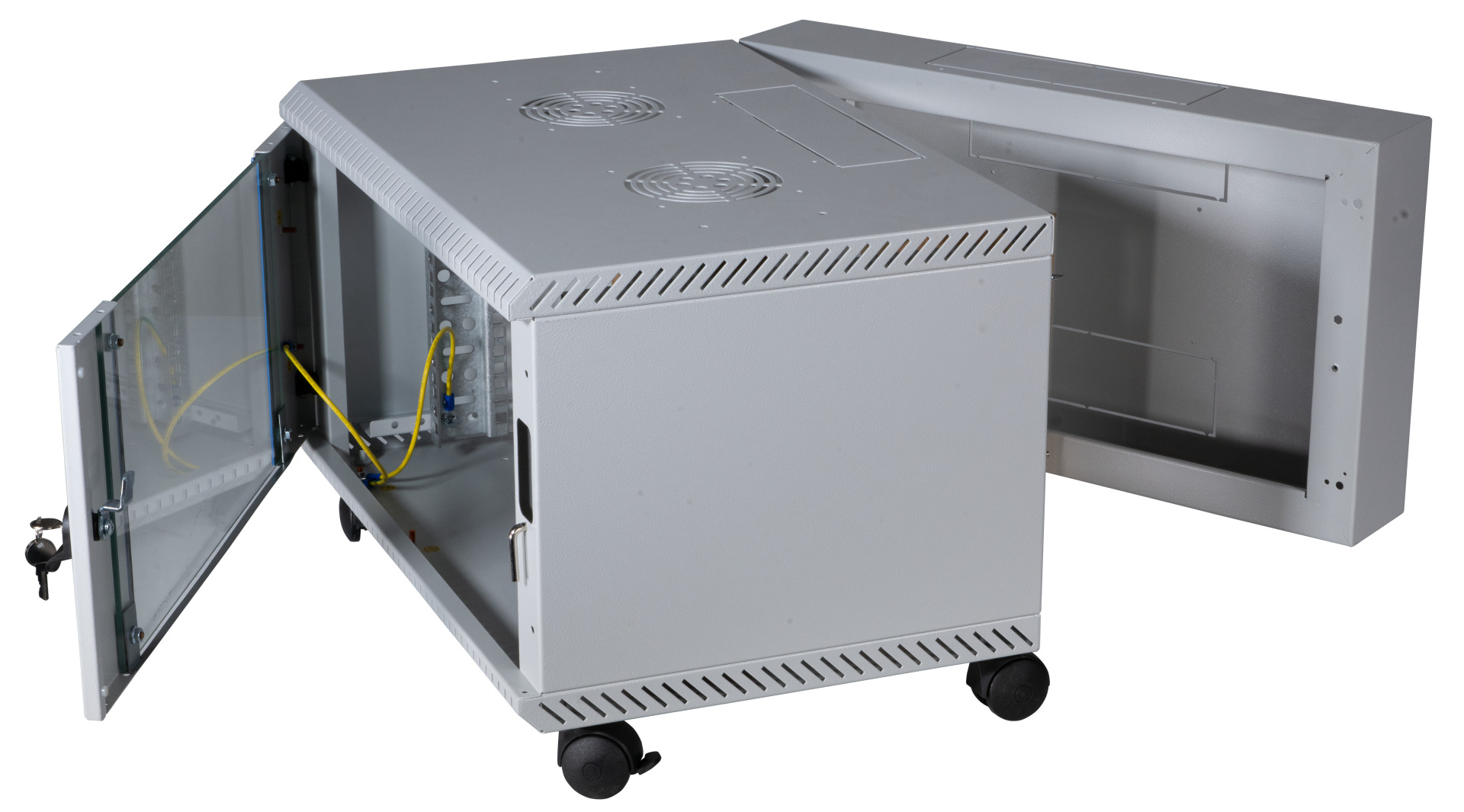

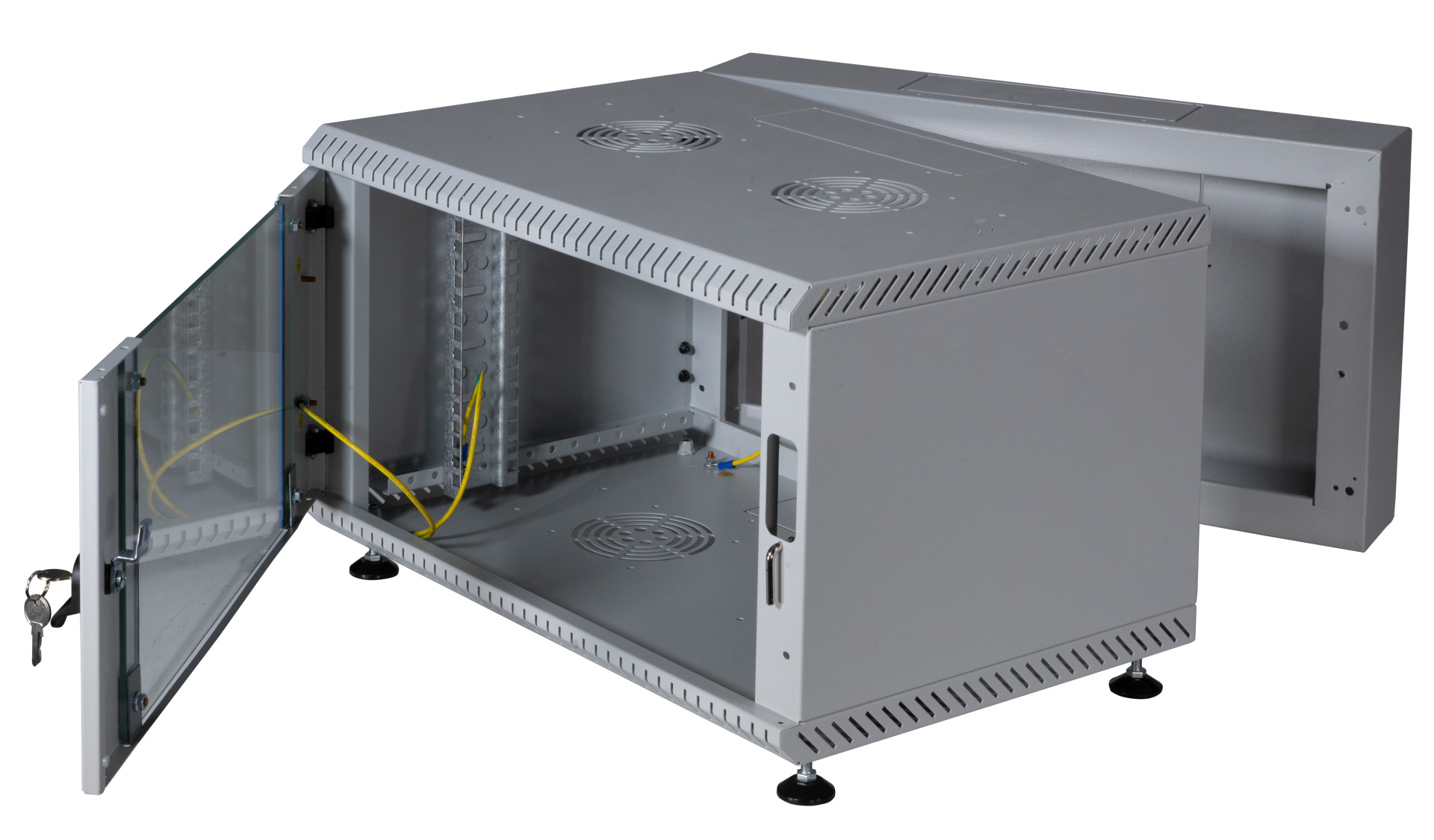

Rear sided swing-frame for swiveling the front part of the housing
Prepared for Plug & Play 2-fan unit (Art.-No. 691656GR)
Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
Front door with metal hinges for increased stability

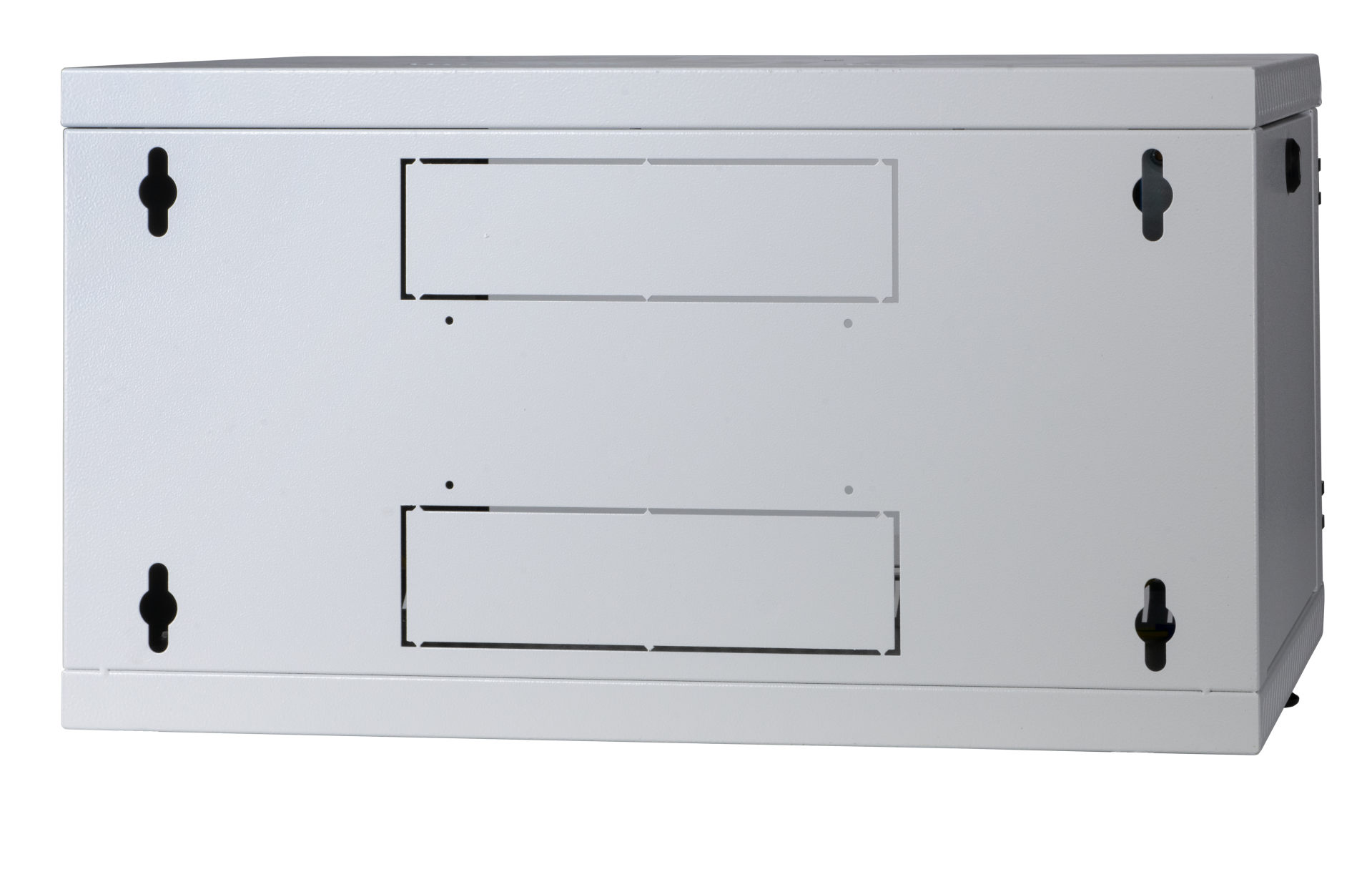

Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)

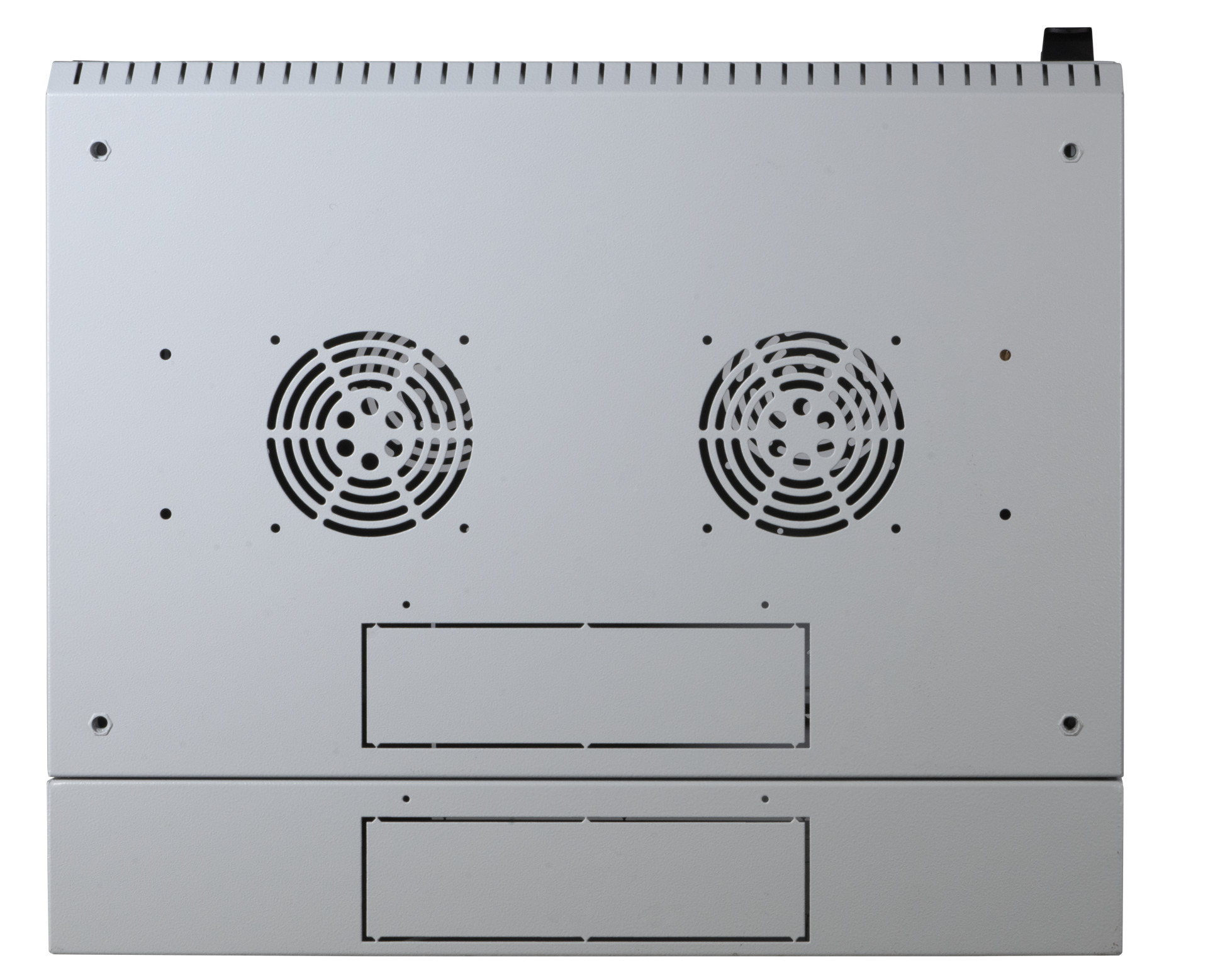

Prepared for mounting of single fan units in roof and bottom
Inside front-sided 2 x 19“ profile rails, galvanised, depth-adjustable

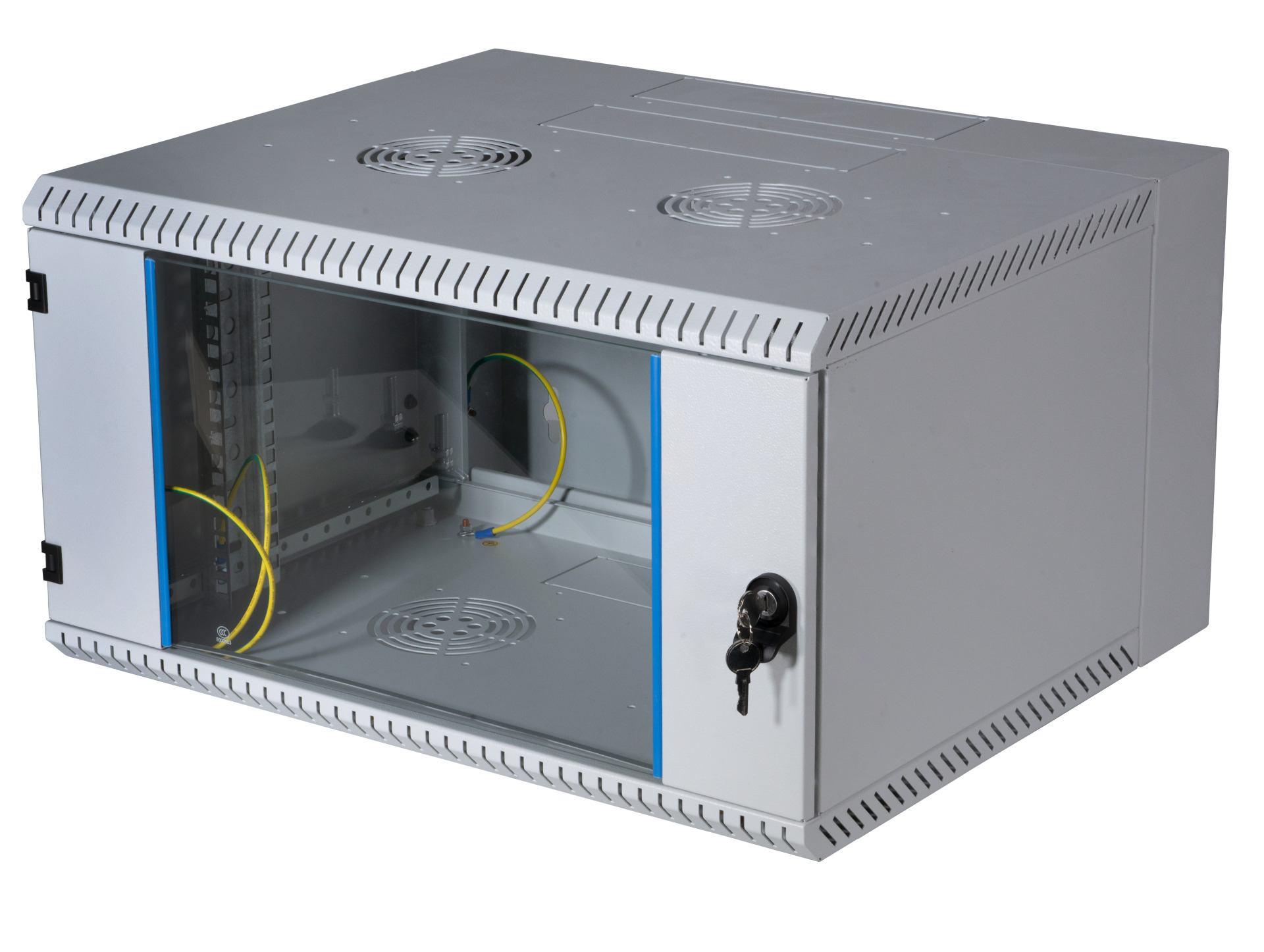

Front door with window made of certified safety glass
Front door lockable with latch
Internal earthing of all cabinet sections
Paint finish: RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Rear sided swing-frame for swiveling the front part of the housing
Prepared for Plug & Play 2-fan unit (Art.-No. 691656GR)
Bottom with 4 x mounting point for leveling feet or castor set (please order separately)
Front door with metal hinges for increased stability
Roof, bottom and rear wall with pre-punched openings for cable entry (250 x 70 mm)
Prepared for mounting of single fan units in roof and bottom
Inside front-sided 2 x 19“ profile rails, galvanised, depth-adjustable
Front door with window made of certified safety glass
Front door lockable with latch
Internal earthing of all cabinet sections
Paint finish: RAL7035, light grey
Protection degree IP20
Included in delivery: 1 x brush terminal, 1 x set of captive nuts (PU 20 pcs.), 2 x key
Delivery in transport packaging, from 30 kg / 12U on disposable pallet
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Demountable: | False |
| Material: | steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front side |
| Number of cartons: | 1 |
| Number of doors: | 1 |
| Surface finishing: | powder coating |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Passive |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
Variants
| Item no. | Name | Depth | Width | Colour | Max. Load | Max. Load Capacity | Height | Number of height units | RAL-Nummer | |
|---|---|---|---|---|---|---|---|---|---|---|
| 691606VGR.50 | 19" Wall Housing 6U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 500 mm | 600 mm | grey | 40 kg | 40 kg | 330 mm | 6 U | 7035 | |
| 691609VGR.50 | 19" Wall Housing 9U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 500 mm | 600 mm | grey | 40 kg | 40 kg | 465 mm | 9 U | 7035 | |
| 691612VGR.50 | 19" Wall Housing 12U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 500 mm | 600 mm | grey | 40 kg | 40 kg | 600 mm | 12 U | 7035 | |
| 691615VGR.50 | 19" Wall Housing 15U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 500 mm | 600 mm | grey | 50 kg | 50 kg | 730 mm | 15 U | 7035 | |
| 691621VGR.50 | 19" Wall Housing 21U, Swiveling, 2-Part, RAL7035, Depth 500 mm | 500 mm | 600 mm | grey | 50 kg | 50 kg | 997 mm | 21 U | 7035 |
