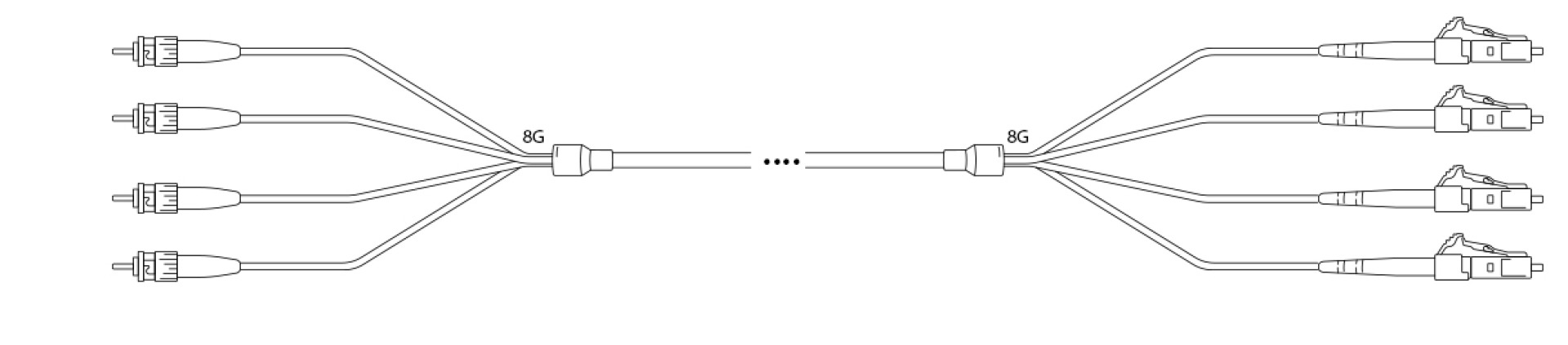

Outdoor Cable A-DQ(ZN) B2Y OM3 50/125µm ST/LC
A-DQ(ZN) B2Y OM3 50/125µm ST/LC 24G 1,0m
Item number:
O8391.1ADQOM3
EAN no.:
4049759203191
Product information for A-DQ(ZN) B2Y OM3 50/125µm ST/LC 24G 1,0m
Outdoor Suitable for direct burial, duct or shaft installation
Primary cabling (Campus), Backbone
PE jacket black , non-metallic, longitudinal water tight
UV resistant, rodent resistant
Central/Loose tubes, 250μm coating. The cable diameter can vary.
Characteristics and advantages of Trunk cables:
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring
Primary cabling (Campus), Backbone
PE jacket black , non-metallic, longitudinal water tight
UV resistant, rodent resistant
Central/Loose tubes, 250μm coating. The cable diameter can vary.
Characteristics and advantages of Trunk cables:
• 2 up to 48 fibers per cable (other Trunks available on request)
• Pre-assembled, polished and factory-tested
• Both-sided assembled with stepped plug whips
• Ready to use, no need for expensive splice- and measuring equipment
• With Premium or Standard cable divider at customers choice
• Attenuation protocol for each assembled connector included in delivery
• All possible combinations of connectors like LC, E2000®, SC and ST available
• Identification with cable markers
• Delivery depending on length and type: one way drum or cable ring
Technical properties
| Category: | OM3 |
|---|---|
| Coding: | 1:1 |
| Colour outer sheath: | black |
| Connector connection 1: | ST |
| Connector connection 2: | SC |
| Crossed: | False |
| Fibre type: | OM3 50/125 |
| Flame retardant: | False |
| Halogen free (according to EN 50267-2-3): | False |
| Jacket Material: | PE |
| Operating Temperature: | -25 – 60 °C |
| Storage Temperature: | -25 – 70 °C |
| With rodent protection: | True |
Variants
| Item no. | Name | Length | Number of connectors connection 1 | Number of connectors connection 2 | Number of fibres | |
|---|---|---|---|---|---|---|
| O8307.1ADQOM3 | A-DQ(ZN) B2Y OM3 50/125µm ST/LC 4G 1,0m | 1.0 m | 4 | 4 | 4 | |
| O8223.1ADQOM3 | A-DQ(ZN) B2Y OM3 50/125µm ST/LC 8G 1,0m | 1.0 m | 8 | 8 | 8 | |
| O8242.1ADQOM3 | A-DQ(ZN) B2Y OM3 50/125µm ST/LC 12G 1,0m | 1.0 m | 12 | 12 | 12 | |
| O8391.1ADQOM3 | A-DQ(ZN) B2Y OM3 50/125µm ST/LC 24G 1,0m | 1.0 m | 24 | 24 | 24 |
