Converter cable adapter USB 3.1 Type C M to Displayport F
Converter Cable Adapter USB 3.1 Type C M to Displayport F
Item number:
IADAP-USB31-DP
EAN no.:
8054529020393

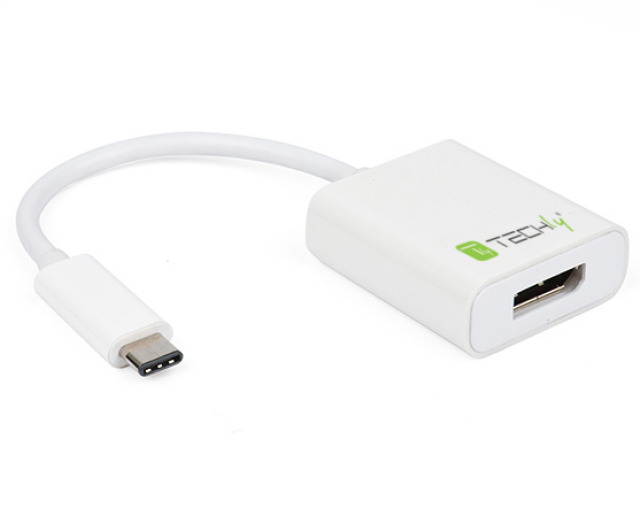

Product information for Converter Cable Adapter USB 3.1 Type C M to Displayport F
The converter IADAP USB31-DP DisplayPort lets you connect an additional monitor to your desktop or laptop's USB port to watch videos or slideshows on the big screen.
Features
• Input: Type C standard USB 3.1, Output: DisplayPort

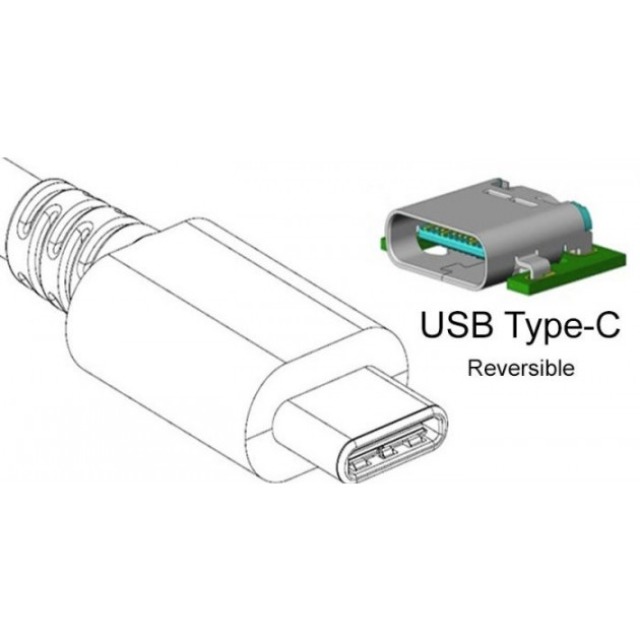

• Reversible USB type C connector for easy connection
• Supports data rates of 5.4 Gbps linear (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
• Supports resolutions up to 3840x2600 / 60Hz (mirror mode) in DP1.1 (or 1.2) mode SST
• USB type C to DisplayPort 1.2 Converter
• Supports multiple color formats: RGB 6/8/10/12-bpcs and YCbCr4: 4: 4, YCbCr4: 2: 2.8/10/12bpcs
• Supports DisplayPort 1.2 previous
• Supports resolutions: 4Kx2K, 24Hz/25Hz/30Hz; 1080P, 24Hz/50Hz/60Hz; 720P, 480P, 576i, 480i / 50Hz and 60Hz
• USB bus powered (no external power required)
Technical specifications
• Input: 1x USB 3.1 Type C Male
• Output: 1x DisplayPort Female
• Maximum resolution: 3840x2600
Environmental Characteristics
• Operating Temperature: 0-45°C
• Operating Humidity: 10% -85% (non-condensing)
• Storage Temperature: -10 to +80°C
• Storage Humidity: 5% -90% (non-condensing)
Dimensions
• Width: 41.5 mm
• Depth: 37 mm
• Height: 14.5 mm
• Cable length: 150 mm
Certifications
• EC
• FCC
Package Contents
• 1x USB converter C / DisplayPort
• 1x User Manual
Features
• Input: Type C standard USB 3.1, Output: DisplayPort
• Reversible USB type C connector for easy connection
• Supports data rates of 5.4 Gbps linear (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
• Supports resolutions up to 3840x2600 / 60Hz (mirror mode) in DP1.1 (or 1.2) mode SST
• USB type C to DisplayPort 1.2 Converter
• Supports multiple color formats: RGB 6/8/10/12-bpcs and YCbCr4: 4: 4, YCbCr4: 2: 2.8/10/12bpcs
• Supports DisplayPort 1.2 previous
• Supports resolutions: 4Kx2K, 24Hz/25Hz/30Hz; 1080P, 24Hz/50Hz/60Hz; 720P, 480P, 576i, 480i / 50Hz and 60Hz
• USB bus powered (no external power required)
Technical specifications
• Input: 1x USB 3.1 Type C Male
• Output: 1x DisplayPort Female
• Maximum resolution: 3840x2600
Environmental Characteristics
• Operating Temperature: 0-45°C
• Operating Humidity: 10% -85% (non-condensing)
• Storage Temperature: -10 to +80°C
• Storage Humidity: 5% -90% (non-condensing)
Dimensions
• Width: 41.5 mm
• Depth: 37 mm
• Height: 14.5 mm
• Cable length: 150 mm
Certifications
• EC
• FCC
Package Contents
• 1x USB converter C / DisplayPort
• 1x User Manual
Technical properties
| Connection 1: | USB-C |
|---|---|
| Connection 2: | DisplayPort (DP) |
| Connection type connection 1: | plug |
| Connection type connection 2: | jack |
Manufacturer information
IC Intracom Italia S.p.A.
Viale Europa, 33
33077 Sacile - Pordenone
info@techly.com
https://www.techly.com
