HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s
EFB-Elektronik

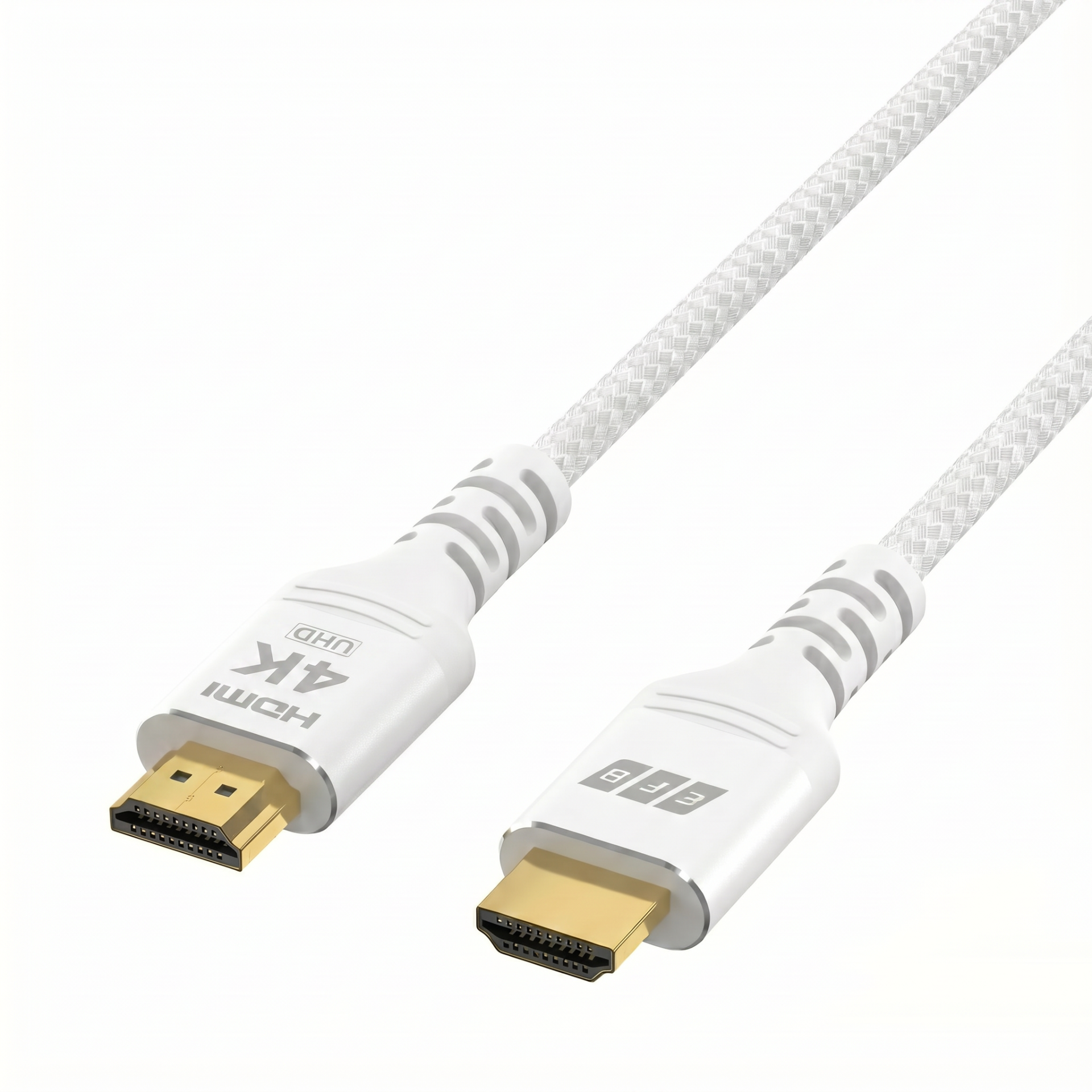

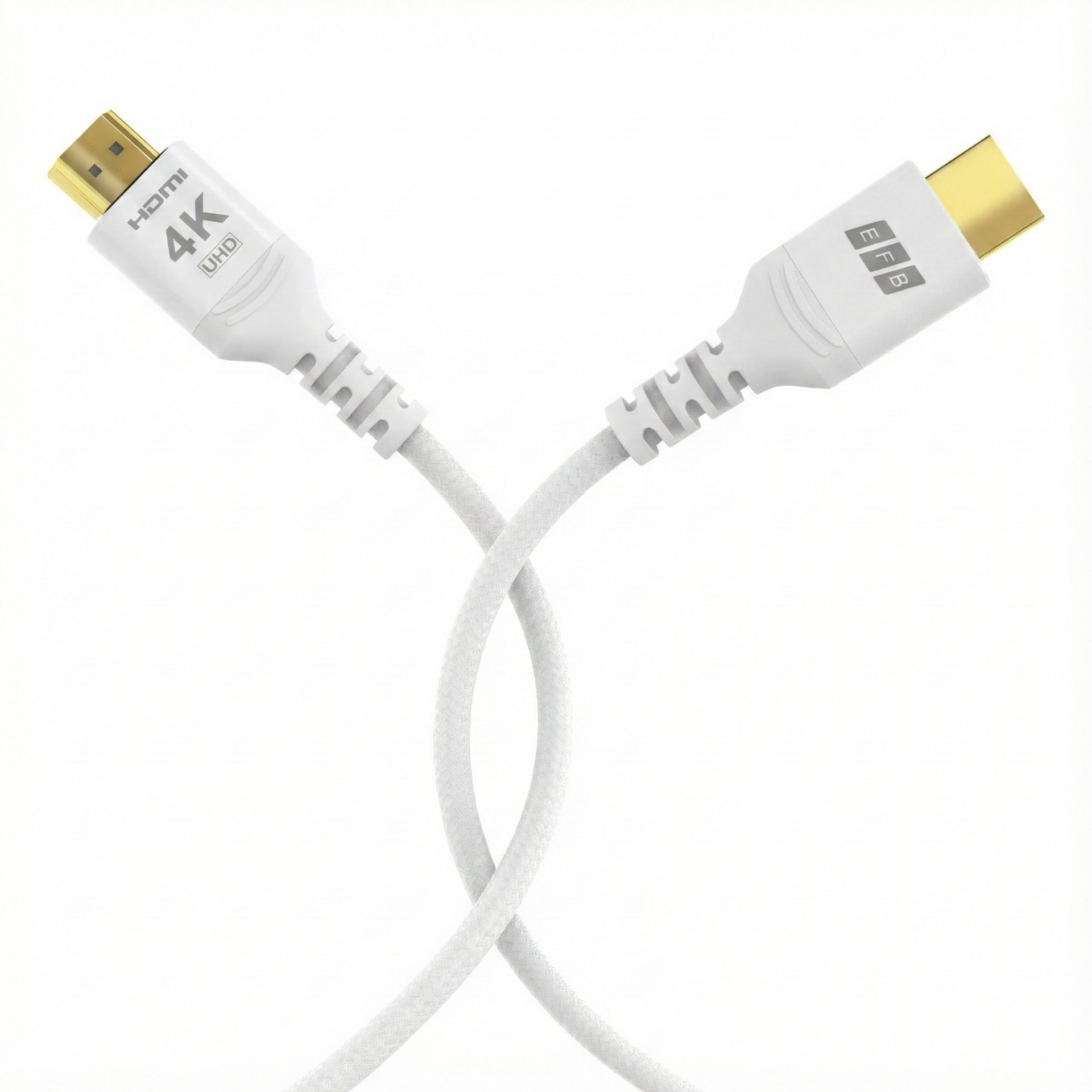

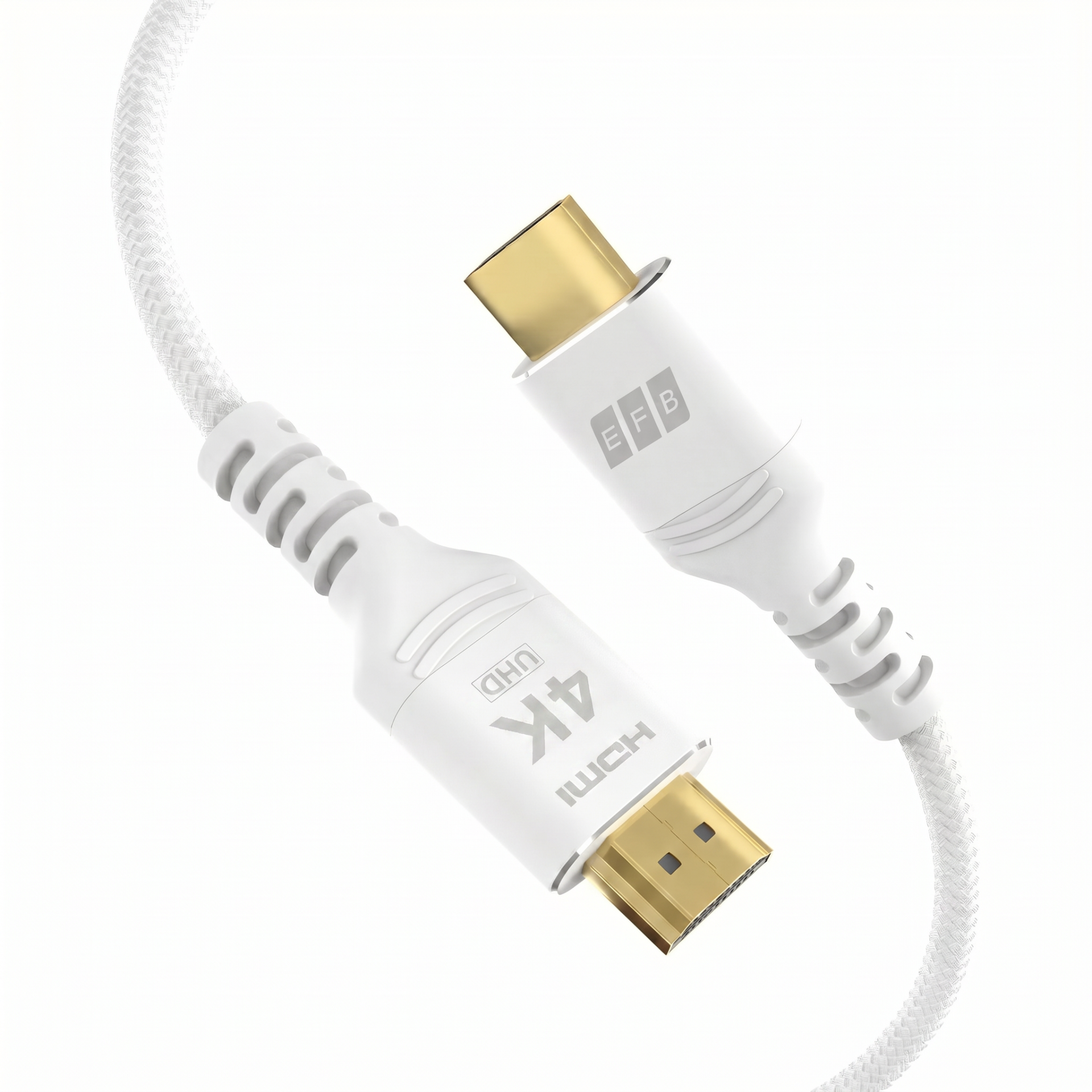

HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s 0.5m white compat. w. HDMI 2.0
Item number:
HDMI-20-00011
EAN no.:
4049759339869
Product information for HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s 0.5m white compat. w. HDMI 2.0
This white HDMI™ cable from EFB-Elektronik meets the requirements for HDMI™ Version 2.0 and supports a maximum resolution of up to 4K@60Hz. It is therefore compatible with the 4K UHD (Ultra High Definition) video standard and performs particularly well with TVs, game consoles, and video cameras. The HDMI™ standard is backward compatible and works with a wide range of devices. With a bandwidth of 18 Gbit/s, even high-quality media can be transmitted effortlessly.
• Contact material: gold-plated contacts for reliable transmission quality
• HDR10: for vibrant colors and high contrast
• Maximum data transfer rate: 18 Gbps
Product benefits
HEC-compatible devices allow for the transfer of network data via an integrated Ethernet channel, eliminating the need for a separate network cable. Media playback becomes even more vivid thanks to HDR10, which transmits a wider color spectrum and finer brightness nuances.
Product description
The cable jacket is made of PVC+textile. The HDMI™ Type A connectors feature an aluminum housing, which helps prevent damage.
Technical details
• Connector 1: HDMI™ Type A connector (19-pin)
• Connector 2: HDMI™ Type A plug (19-pin)
• Connector angle: 180° (straight)
• Supported technologies/protocols: HDR10, 3D, HEC
• Signal type: digital
• Cable diameter: 6.0 mm
• Jacket material: PVC + fabric
• Maximum mating cycles: 10,000
• With kink protection
• Brand: EFB-Elektronik
Contents
• 1 x HDMI™ cable
• Contact material: gold-plated contacts for reliable transmission quality
• HDR10: for vibrant colors and high contrast
• Maximum data transfer rate: 18 Gbps
Product benefits
HEC-compatible devices allow for the transfer of network data via an integrated Ethernet channel, eliminating the need for a separate network cable. Media playback becomes even more vivid thanks to HDR10, which transmits a wider color spectrum and finer brightness nuances.
Product description
The cable jacket is made of PVC+textile. The HDMI™ Type A connectors feature an aluminum housing, which helps prevent damage.
Technical details
• Connector 1: HDMI™ Type A connector (19-pin)
• Connector 2: HDMI™ Type A plug (19-pin)
• Connector angle: 180° (straight)
• Supported technologies/protocols: HDR10, 3D, HEC
• Signal type: digital
• Cable diameter: 6.0 mm
• Jacket material: PVC + fabric
• Maximum mating cycles: 10,000
• With kink protection
• Brand: EFB-Elektronik
Contents
• 1 x HDMI™ cable
| 3D: | True |
|---|---|
| ARC: | True |
| Backwards compatible: | True |
| Bandwith: | 18 Gbit/s |
| Bending radius (dynamic/static): | 15 mm |
| CEC: | True |
| Cable and plug compatibility: | Premium High-Speed HDMI |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Color depth: | 8-Bit |
| Compliant with: | TV,gaming console,Videocamera,home cinema,Blu-ray Player,DVD Player |
| Compressions technologies: | VESA DSC,Dolby Vision,HDR10+ |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1.5 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| Enhanced Color: | HighDynamicRange |
| HDCP Version: | HDCP 2.2 |
| HDMI Power: | True |
| HDMI certified: | True |
| HDR: | HDR10 |
| HEC (Ethernet channel): | True |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | Aluminium |
| Material Inner Conductor: | BC |
| Material jacket: | PVC+Textile |
| Max. mating cycles: | 10000 |
| Max. resolution: | 4K@60Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 19 |
| Number of poles connection 2: | 19 |
| Number of shieldings: | double |
| Operating temperature: | -15 – 75 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 20mm x 20mm x 10.8mm |
| Plug dimensions Side 2: | 20mm x 20mm x 10.8mm |
| Plug imprint: | EFB LOGO, HDMI 4K UHD |
| Scope of delivery: | 1 x HDMI Cable |
| Shielded: | True |
| Speed: | 18 Gbit/s |
| Storage Temperature: | -20 – 80 °C |
| Supported audio formats: | compressed Audio format (Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos) |
| Supported video standards: | 4K UHD - Ultra High Definition |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | HDMI Type A |
| Type of connector connection 2: | HDMI Type A |
| Type of packaging: | paper box |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | True |
| Version: | HDMI Version 2.0 |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Technical properties
| 3D: | True |
|---|---|
| ARC: | True |
| Backwards compatible: | True |
| Bandwith: | 18 Gbit/s |
| Bending radius (dynamic/static): | 15 mm |
| CEC: | True |
| Cable and plug compatibility: | Premium High-Speed HDMI |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Color depth: | 8-Bit |
| Compliant with: | TV,gaming console,Videocamera,home cinema,Blu-ray Player,DVD Player |
| Compressions technologies: | VESA DSC,Dolby Vision,HDR10+ |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1.5 kg/cm² |
| DSC: | False |
| Dust cover: | false |
| Enhanced Color: | HighDynamicRange |
| HDCP Version: | HDCP 2.2 |
| HDMI Power: | True |
| HDMI certified: | True |
| HDR: | HDR10 |
| HEC (Ethernet channel): | True |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | Aluminium |
| Material Inner Conductor: | BC |
| Material jacket: | PVC+Textile |
| Max. mating cycles: | 10000 |
| Max. resolution: | 4K@60Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 19 |
| Number of poles connection 2: | 19 |
| Number of shieldings: | double |
| Operating temperature: | -15 – 75 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 20mm x 20mm x 10.8mm |
| Plug dimensions Side 2: | 20mm x 20mm x 10.8mm |
| Plug imprint: | EFB LOGO, HDMI 4K UHD |
| Scope of delivery: | 1 x HDMI Cable |
| Shielded: | True |
| Speed: | 18 Gbit/s |
| Storage Temperature: | -20 – 80 °C |
| Supported audio formats: | compressed Audio format (Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos) |
| Supported video standards: | 4K UHD - Ultra High Definition |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | HDMI Type A |
| Type of connector connection 2: | HDMI Type A |
| Type of packaging: | paper box |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | True |
| Version: | HDMI Version 2.0 |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Variants
| Item no. | Name | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| HDMI-20-00011 | HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s 0.5m white compat. w. HDMI 2.0 | white | 0.5 m | 6.0 mm | 30AWG | |
| HDMI-20-00012 | HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s 1m white compat. w. HDMI 2.0 | white | 1 m | 6.0 mm | 30AWG | |
| HDMI-20-00013 | HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s 2m white compat. w. HDMI 2.0 | white | 2 m | 6.0 mm | 30AWG | |
| HDMI-20-00014 | HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s 3m white compat. w. HDMI 2.0 | white | 3 m | 6.0 mm | 30AWG | |
| HDMI-20-00015 | HDMI Cable high-speed w.Ethernet 4K60Hz 18 Gbit/s 5m white compat. w. HDMI 2.0 | white | 5 m | 7.3 mm | 28AWG |
