HDMI High Speed with Ethernet Cable A/A M/M, black
HDMI Kabel High Speed with Ethernet, black, 25 m
Item number:
ICOC-HDMI-4-250
EAN no.:
8057685304512
Product information for HDMI Kabel High Speed with Ethernet, black, 25 m
• Triple shielded with resistant connectors for a better performance
• This cable fully meets the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free

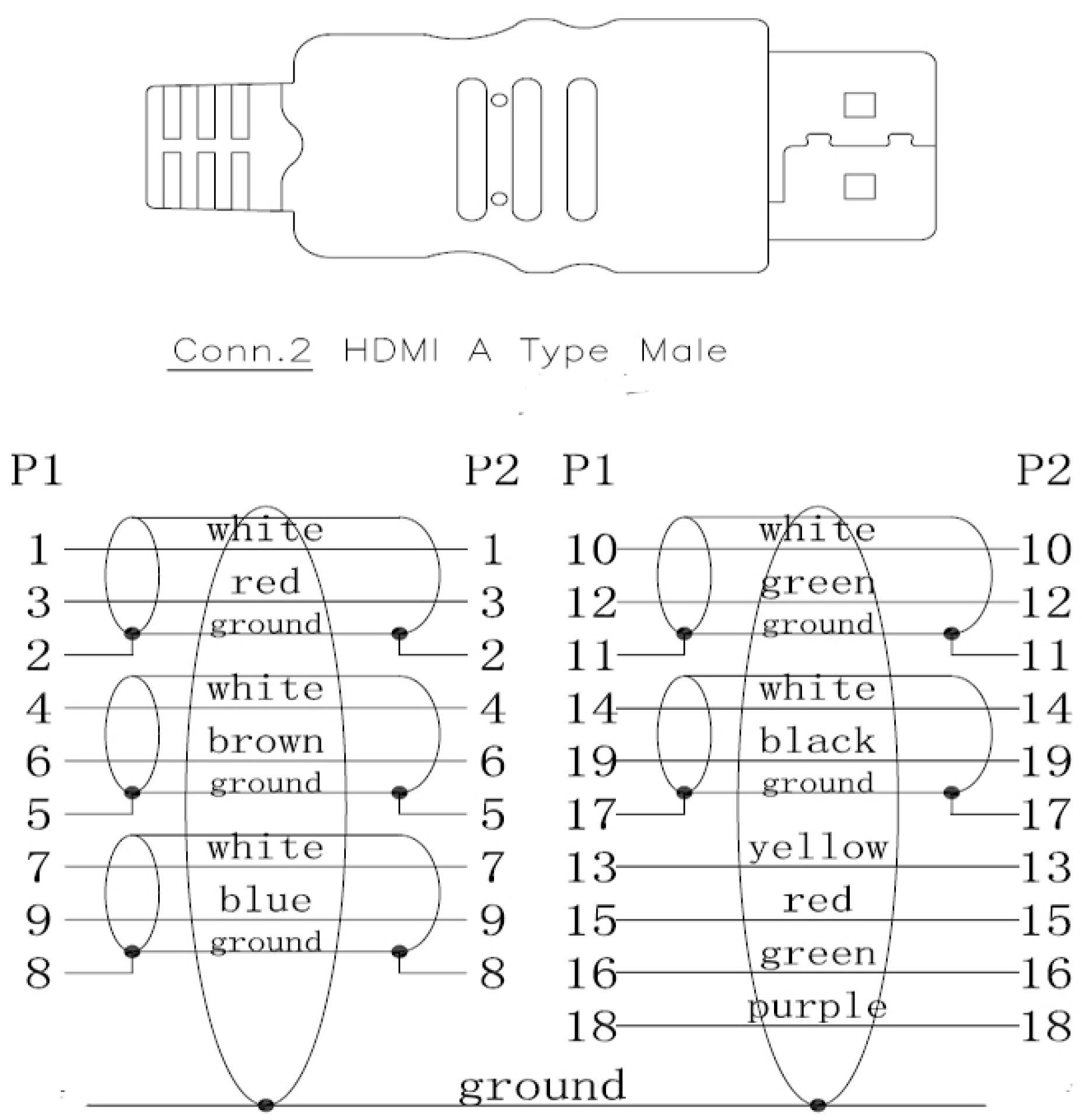

• Connections: HDMI 19-pin male to HDMI 19-pin male
• High-speed, two-way communication up to 100 Mbps
• Supports HD resolutions beyond 1080p and Deep Color
• Compliant with HDMI High Speed
• Molded PVC boot
• HDMI Ethernet Channel: supports Internet via HDMI (HEC)
• Audio Return Channel: Allows an HDMI connected TV with a built-in tuner to send audio data "upstream" to a surround audio system
• No separate audio cable needed
• Supports 3D: defines protocols input / output for major 3D video formats, even for games and 3D home theater applications
• Supports a resolution of Ultra HD 4K
General information
• Bandwidth: 18 Gbps
• 600 MHz
• Supports HEC
Connectors and Cable
• 2x HDMI 19-pin male
• Gold-plated contacts
• Shield: braid and aluminium foil
• Internal conductors: AWG 30
• Cable diameter: 6.0 mm
Features
• Supports YCbCr 4:2:0
• Supports 32 audio channels
• Supports audio 1536 kHz
• Supports 4 audio streams
• Supports display 21:9
Electrical information
• Current rating: 0.5 A DC
• Supports voltage 300 V DC
• Insulation resistance: 50 MOhm
• Conductive resistance: 2 Ohm
Standards and Certifications
• UL 20276
• ISO 9002
• RU
• EC
Package Contents
• High Speed HDMI Cable with Ethernet
• This cable fully meets the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free
• Connections: HDMI 19-pin male to HDMI 19-pin male
• High-speed, two-way communication up to 100 Mbps
• Supports HD resolutions beyond 1080p and Deep Color
• Compliant with HDMI High Speed
• Molded PVC boot
• HDMI Ethernet Channel: supports Internet via HDMI (HEC)
• Audio Return Channel: Allows an HDMI connected TV with a built-in tuner to send audio data "upstream" to a surround audio system
• No separate audio cable needed
• Supports 3D: defines protocols input / output for major 3D video formats, even for games and 3D home theater applications
• Supports a resolution of Ultra HD 4K
General information
• Bandwidth: 18 Gbps
• 600 MHz
• Supports HEC
Connectors and Cable
• 2x HDMI 19-pin male
• Gold-plated contacts
• Shield: braid and aluminium foil
• Internal conductors: AWG 30
• Cable diameter: 6.0 mm
Features
• Supports YCbCr 4:2:0
• Supports 32 audio channels
• Supports audio 1536 kHz
• Supports 4 audio streams
• Supports display 21:9
Electrical information
• Current rating: 0.5 A DC
• Supports voltage 300 V DC
• Insulation resistance: 50 MOhm
• Conductive resistance: 2 Ohm
Standards and Certifications
• UL 20276
• ISO 9002
• RU
• EC
Package Contents
• High Speed HDMI Cable with Ethernet
Variants
| Item no. | Name | Color | Length | |
|---|---|---|---|---|
| ICOC-HDMI-4-005 | HDMI Kabel High Speed with Ethernet, black, 0,5 m | black | 0.5 m | |
| ICOC-HDMI-4-010 | HDMI Kabel High Speed with Ethernet, black, 1 m | black | 1.0 m | |
| ICOC-HDMI-4-020 | HDMI Kabel High Speed with Ethernet, black, 2 m | black | 2.0 m | |
| ICOC-HDMI-4-030 | HDMI Kabel High Speed with Ethernet, black, 3 m | black | 3.0 m | |
| ICOC-HDMI-4-050 | HDMI Kabel High Speed with Ethernet, black, 5 m | black | 5.0 m | |
| ICOC-HDMI-4-100 | HDMI Kabel High Speed with Ethernet, black, 10 m | black | 10.0 m | |
| ICOC-HDMI-4-150 | HDMI Kabel High Speed with Ethernet, black, 15 m | black | 15.0 m | |
| ICOC-HDMI-4-250 | HDMI Kabel High Speed with Ethernet, black, 25 m | black | 25.0 m |
Safety instructions
Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
