INFRALAN® I-B(ZN)BH 50/125µ, OM3

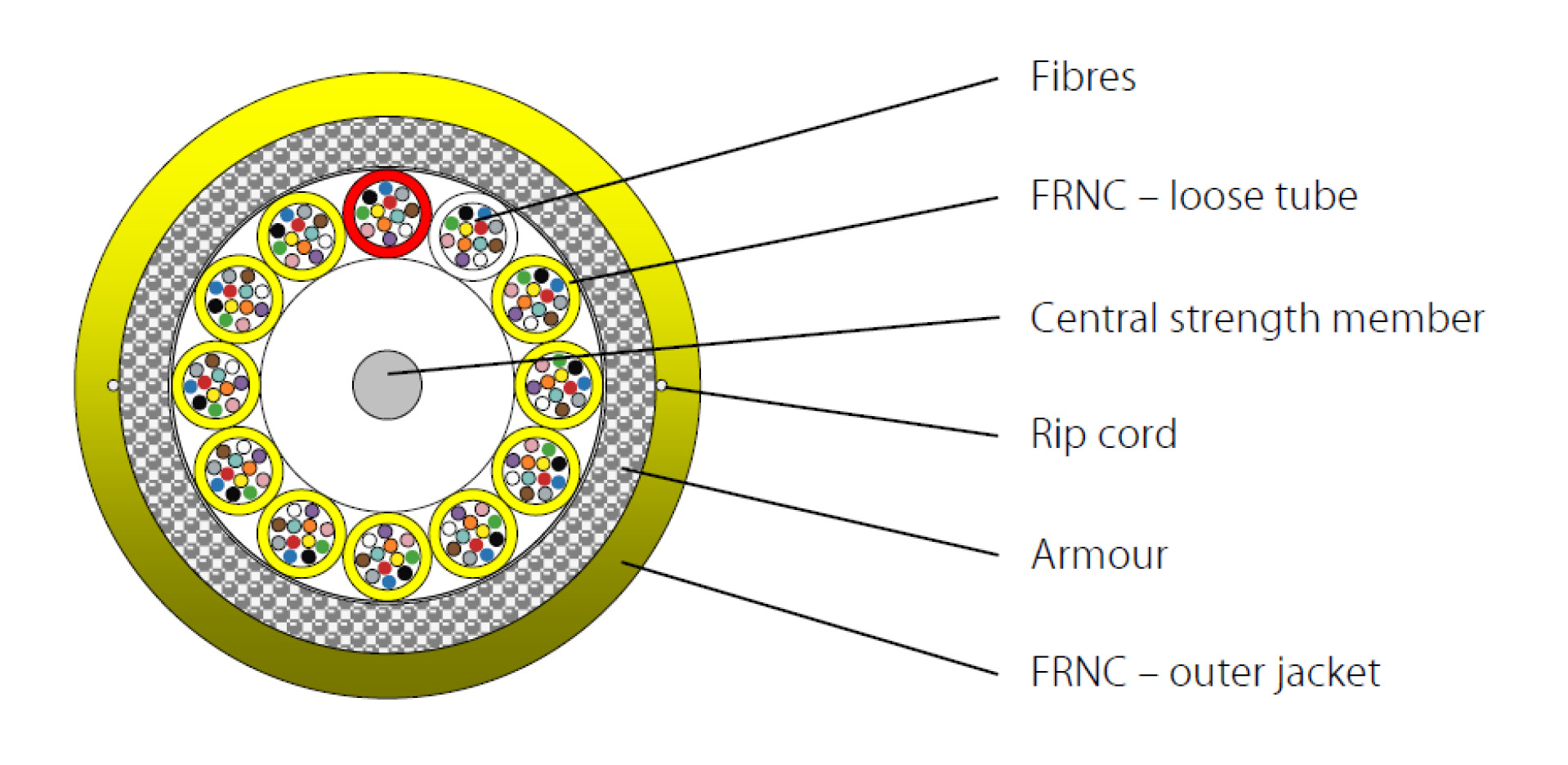

INFRALAN® I-B(ZN)BH OM3 48G (4x12) B2ca 3000N LSZH aqua 8.3mm
Item number:
56348.2OM3-CPR
EAN no.:
4049759223199
Product information for INFRALAN® I-B(ZN)BH OM3 48G (4x12) B2ca 3000N LSZH aqua 8.3mm
Fields of application:
For building connections
For campus cabling
For use in plastic pipe systems
For installation in cable ducts and on flatbeds
Characteristics:
Easy to use construction
Gel-free cable construction for clean and fast assembly
Small dimensions
High laying stability
Fire behaviour tested and certified according to
Construction Products Regulation (see Euro fire class)
Cable diameter may vary
For building connections
For campus cabling
For use in plastic pipe systems
For installation in cable ducts and on flatbeds
Characteristics:
Easy to use construction
Gel-free cable construction for clean and fast assembly
Small dimensions
High laying stability
Fire behaviour tested and certified according to
Construction Products Regulation (see Euro fire class)
Cable diameter may vary
Technical properties
| Application: | innen |
|---|---|
| Armouring: | Ja |
| Blow in: | Nein |
| Cable metal free: | Ja |
| Cable silicone free: | Ja |
| Colour outer sheath: | aqua |
| Crush resistance: | 1000 N/dm |
| Fiber marking: | Farbe |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | nach EN 60332-3-24 |
| Harmonised Standard: | EN 50575 |
| Jacket material: | LSZH |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -10 – 70 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Tube marking: | Farbe |
| Type of tube: | verseilte Bündelader |
| With rodent protection: | Ja |
| With strain relief: | True |
Variants
| Item no. | Name | Cable Ø | Tensile force max. | Category | Number of fibres | CPR-Class | Aufbau | Außendurchmesser ca. | Biegeradius | VDE-Bezeichnung | Gewicht | Number of fibers | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56324.2OM3-CPR | INFRALAN® I-B(ZN)BH OM3 24G (2x12) B2ca 3000N LSZH aqua 8.3mm | 8.3 mm | 3000 N | OM3 | 24 | B2ca | 24G ( 2 x 12 ) Multimode OM3 | 8,3 mm | 166 mm | I-B(ZN)BH 24G 50/125µ | 75 kg/km | - | |
| 56348.2OM3-CPR | INFRALAN® I-B(ZN)BH OM3 48G (4x12) B2ca 3000N LSZH aqua 8.3mm | 8.3 mm | 3000 N | OM3 | - | B2ca | 48G ( 4 x 12 ) Multimode OM3 | 8,3 mm | 166 mm | I-B(ZN)BH 48G 50/125µ | 75 kg/km | 48 |
