INFRALAN® U-DQ(ZN)BH OM3 Eca 3000N LSZH black 7.5mm
INFRALAN® U-DQ(ZN)BH OM3 12G (1x12) Eca 3000N LSZH black 7.5mm
Item number:
54512D1E-CPR
EAN no.:
4049759312640
Product information for INFRALAN® U-DQ(ZN)BH OM3 12G (1x12) Eca 3000N LSZH black 7.5mm

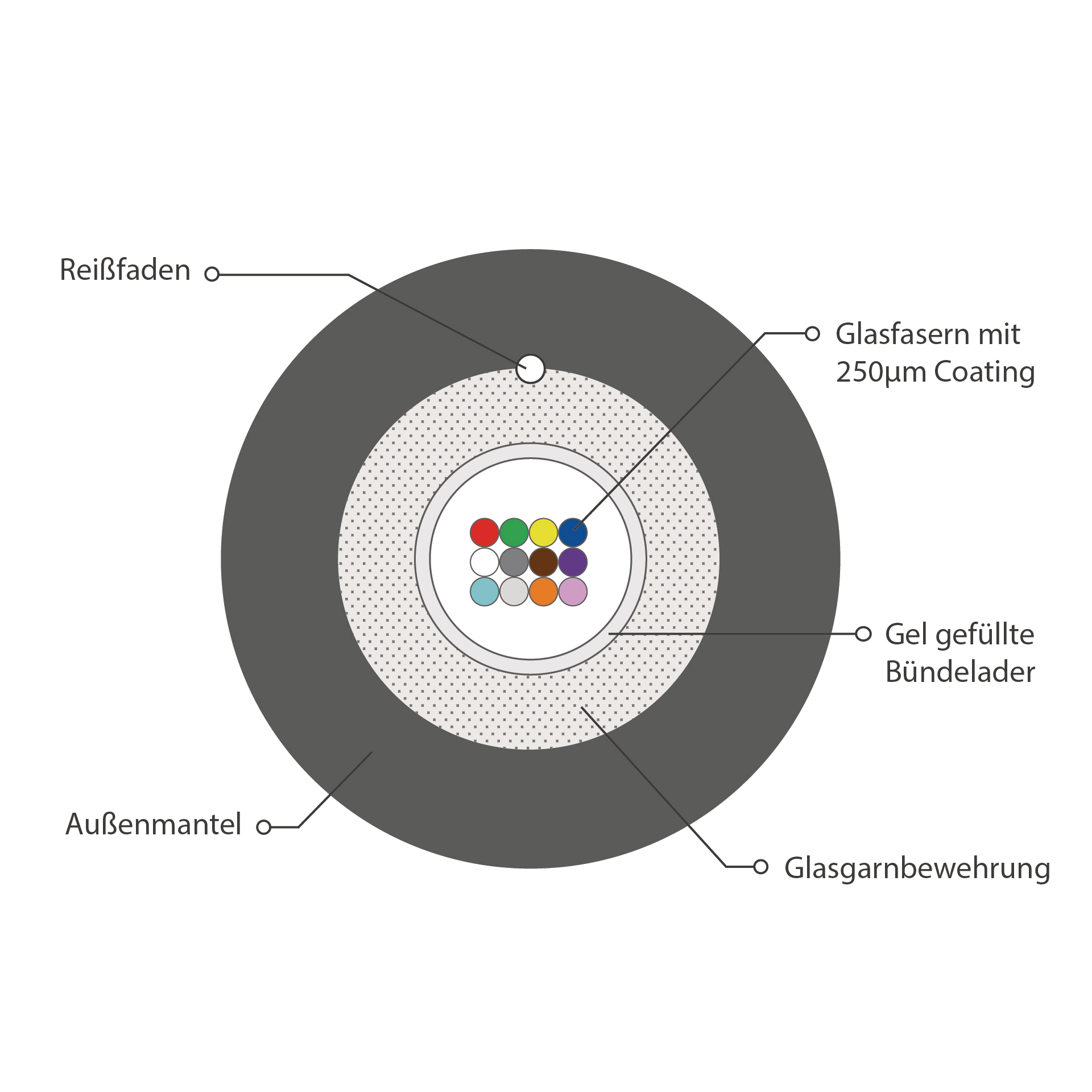

Fiber optic cable with a central gel-filled loose tube and up to 24 fibers, ideal for structured cabling.
With a tensile strength of 3000N, it is suitable for both indoor and outdoor applications. The dielectric design includes a glass yarn armor that is longitudinally watertight and rodent-proof, as well as a flame-retardant jacket.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
It can be used outdoors, for direct burial in sand beds or in shafts, and as a flame-retardant cable indoors.
Features:
• Universal cable for versatile applications
• High tensile strength of 3000N for robust applications
• The jacket is made of halogen-free, flame-retardant material according to IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
With a tensile strength of 3000N, it is suitable for both indoor and outdoor applications. The dielectric design includes a glass yarn armor that is longitudinally watertight and rodent-proof, as well as a flame-retardant jacket.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
It can be used outdoors, for direct burial in sand beds or in shafts, and as a flame-retardant cable indoors.
Features:
• Universal cable for versatile applications
• High tensile strength of 3000N for robust applications
• The jacket is made of halogen-free, flame-retardant material according to IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
Technical properties
| (Halogenfree): | Yes |
|---|---|
| Application: | Inside/outside |
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Colour outer sheath: | black |
| Crush resistance: | 3500 N/dm |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame-retardant: | According to IEC/EN 60332-1-2 |
| Jacket Material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Radial water blocking: | True |
| Temperature Range (Installation): | -15 – 60 °C |
| Temperature Range (Operation): | -30 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube Ø: | 2.8 mm |
| Type of tube: | zentrale Bündelader |
| UV resistance: | True |
| With rodent protection: | True |
Variants
| Item no. | Name | Cable Ø | CPR-Class | Tensile force max. | Category | Number of fibres | Aufbau | Außendurchmesser ca. | Brandlast | Biegeradius | VDE-Bezeichnung | Gewicht | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54504D1E-CPR | INFRALAN® U-DQ(ZN)BH OM3 4G (1x4) Eca 3000N LSZH black 7.5mm | 7.5 mm | Eca | 3000 N | OM3 | 4 | 4G ( 1 x 4 ) Multimode OM3 | 7,5 mm | 1285 MJ/km | 75 mm | U-DQ(ZN)BH 4G50/125 | 51,7 kg/km | |
| 54512D1E-CPR | INFRALAN® U-DQ(ZN)BH OM3 12G (1x12) Eca 3000N LSZH black 7.5mm | 7.5 mm | Eca | 3000 N | OM3 | 12 | 12G ( 1 x 12 ) Multimode OM3 | 7,5 mm | 1285 MJ/km | 75 mm | U-DQ(ZN)BH 12G50/125 | 51,7 kg/km | |
| 54524D1E-CPR | INFRALAN® U-DQ(ZN)BH OM3 24G (2x12) Eca 3000N LSZH black 7.5mm | 7.5 mm | Eca | 3000 N | OM3 | 24 | 24G ( 1 x 24 ) Multimode OM3 | 7,5 mm | 1285 MJ/km | 75 mm | U-DQ(ZN)BH 24G50/125 | 51,7 kg/km |
