INFRALAN® U-DQ(ZN)BH OS2 Eca 3000N LSZH black, 7.5mm G657A1
INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Eca 3000N LSZH black, 7.5mm G657A1
Item number:
54404D1E-CPR
EAN no.:
4049759312589
Product information for INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Eca 3000N LSZH black, 7.5mm G657A1

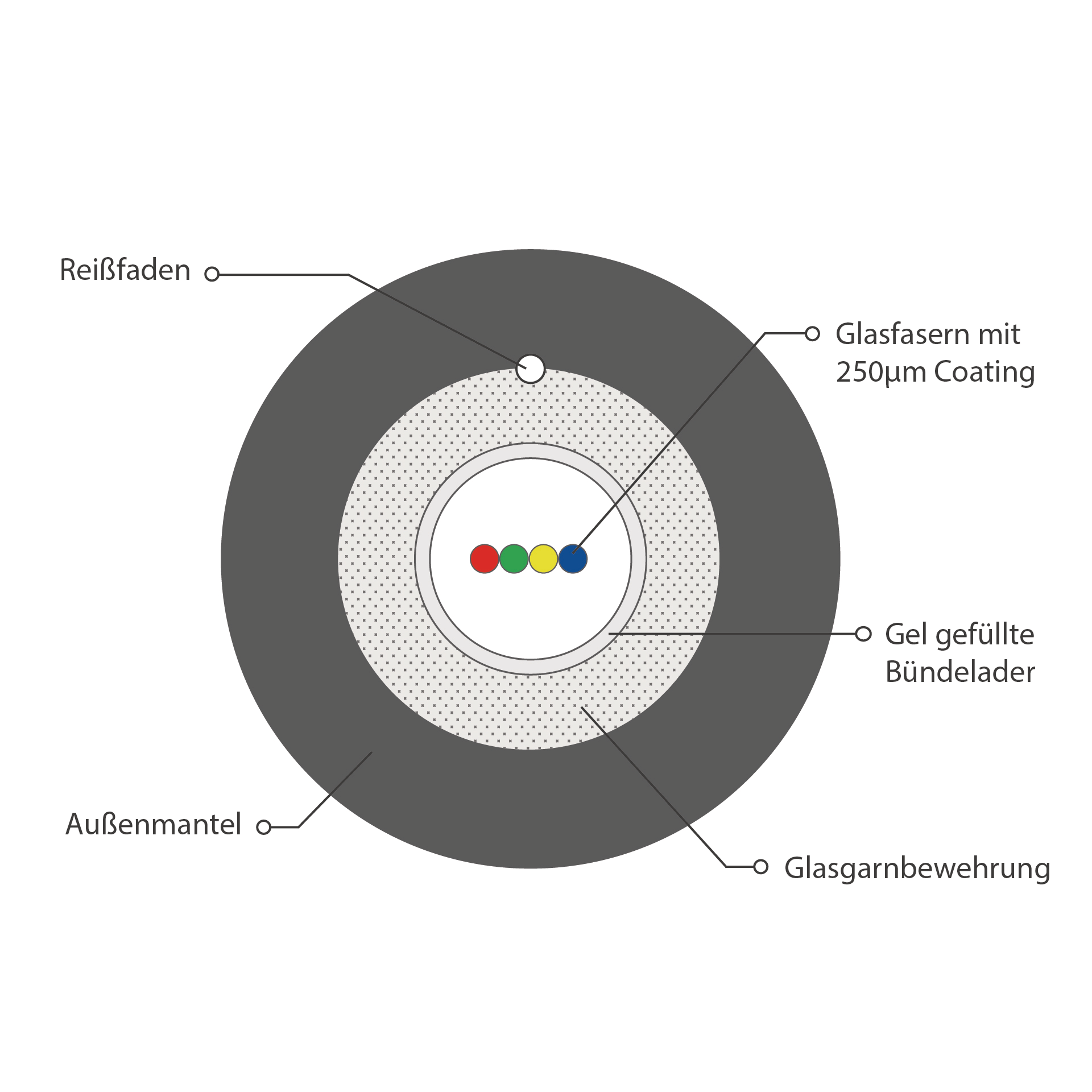

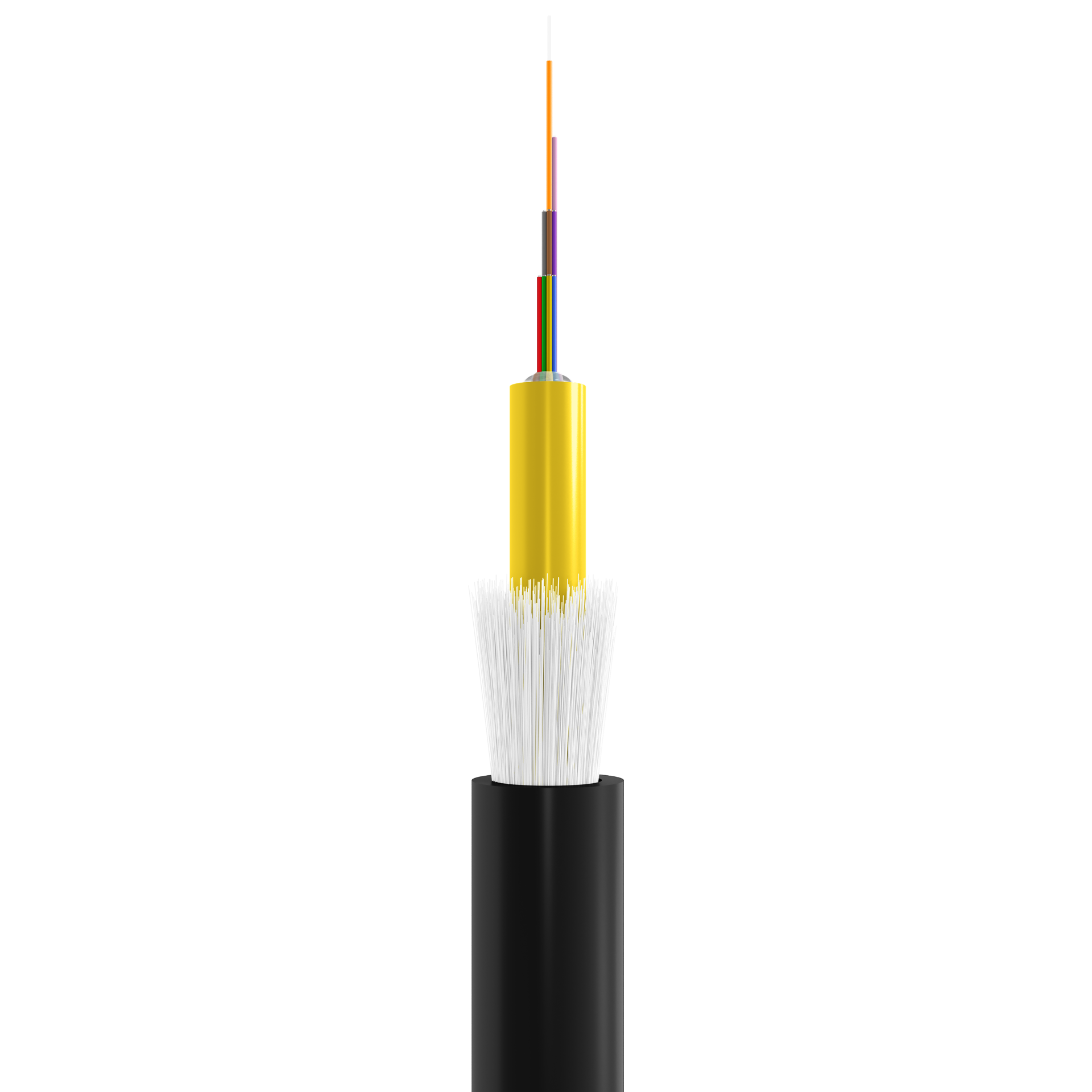

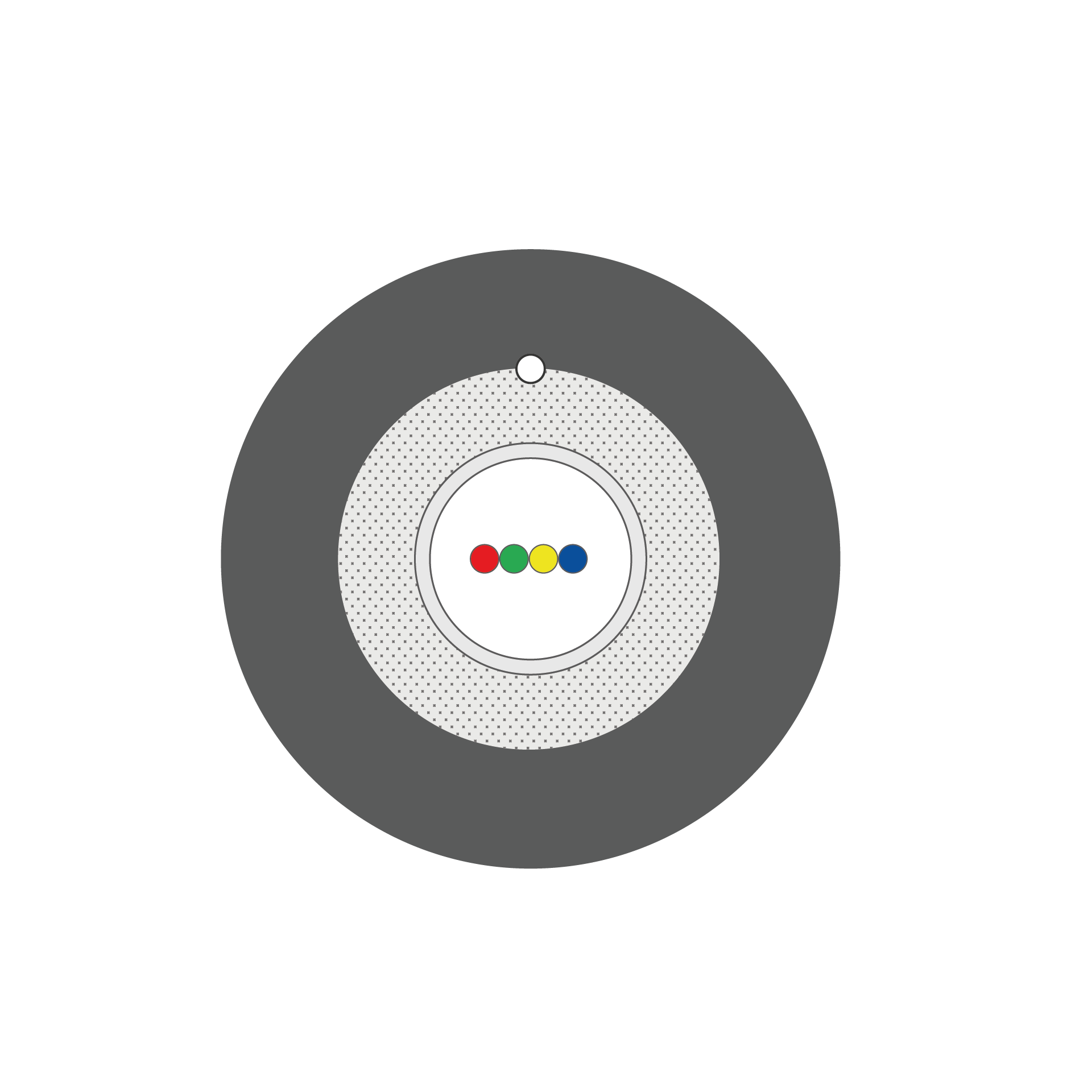

Fiber optic cable with a central gel-filled loose tube and up to 24 fibers, ideal for structured cabling.
With a tensile strength of 3000N, it is suitable for both indoor and outdoor applications. The dielectric design includes a glass yarn armor that is longitudinally watertight and rodent-proof, as well as a flame-retardant jacket.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
It can be used outdoors, for direct burial in sand beds or in shafts, and as a flame-retardant cable indoors.
Features:
• Universal cable for versatile applications
• High tensile strength of 3000N for robust applications
• The jacket is made of halogen-free, flame-retardant material according to IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
With a tensile strength of 3000N, it is suitable for both indoor and outdoor applications. The dielectric design includes a glass yarn armor that is longitudinally watertight and rodent-proof, as well as a flame-retardant jacket.
This cable is versatile for LAN and WAN backbones, telecom access lines, fiber-to-business, fiber-to-the-home and access connections.
It can be used outdoors, for direct burial in sand beds or in shafts, and as a flame-retardant cable indoors.
Features:
• Universal cable for versatile applications
• High tensile strength of 3000N for robust applications
• The jacket is made of halogen-free, flame-retardant material according to IEC 60332-1-2 and Eurofire class Eca.
• Suitable for connector assemblies, supports easy integration into existing networks
• Metal-free and longitudinally watertight
• Rodent-proof and flame-retardant
• The cable diameter can vary depending on the design and number of fibers
• DIN/VDE: U-DQ(ZN)BH
Technical properties
| Application: | Inside/outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | No |
| Colour outer sheath: | schwarz |
| Crush resistance: | 3500 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OS2 G657A1 |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to EN 60332-1-2 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 1310nm: | 0.39 dB/km |
| IL max. (dB/km) 1550nm: | 0.22 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | True |
| Oil resistant: | no |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable, 1x Drum |
| Temperature Range (Installation): | -15 – 60 °C |
| Temperature Range (Operation): | -30 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Colour |
| Tube Ø: | 2.8 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With rodent protection: | Ja |
| With strain relief: | True |
Variants
| Item no. | Name | Category | CPR-Class | Tensile force max. | Number of fibers | Cable Ø | Number of fibres per tube | Construct | Suitable for underground installation | Outer diameter approx. | Fire load | Bending radius | VDE-Name | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54404D1E-CPR | INFRALAN® U-DQ(ZN)BH OS2 4E (1x4) Eca 3000N LSZH black, 7.5mm G657A1 | OS2 | Eca | 3000 N | 4 | 7.5 mm | 4 | (1x4) | True | 7.5 mm | 1285 MJ/km | 75 mm | U-DQ(ZN)BH 4E9/125 | 51.7 kg/km | |
| 54412D1E-CPR | INFRALAN® U-DQ(ZN)BH OS2 12E (1x12) Eca 3000N LSZH black, 7.5mm G657A1 | OS2 | Eca | 3000 N | 12 | 7.3 mm | 12 | (1x12) | True | 7.5 mm | 1285 MJ/km | 75 mm | U-DQ(ZN)BH 12E9/125 | 51.7 kg/km | |
| 54424D1E-CPR | INFRALAN® U-DQ(ZN)BH OS2 24E (1x24) Eca 3000N LSZH black, 7.5mm G657A1 | OS2 | Eca | 3000 N | 24 | 7.5 mm | 24 | (1x24) | True | 7.5 mm | 1285 MJ/km | 75 mm | U-DQ(ZN)BH 24E9/125 | 51.7 kg/km |
