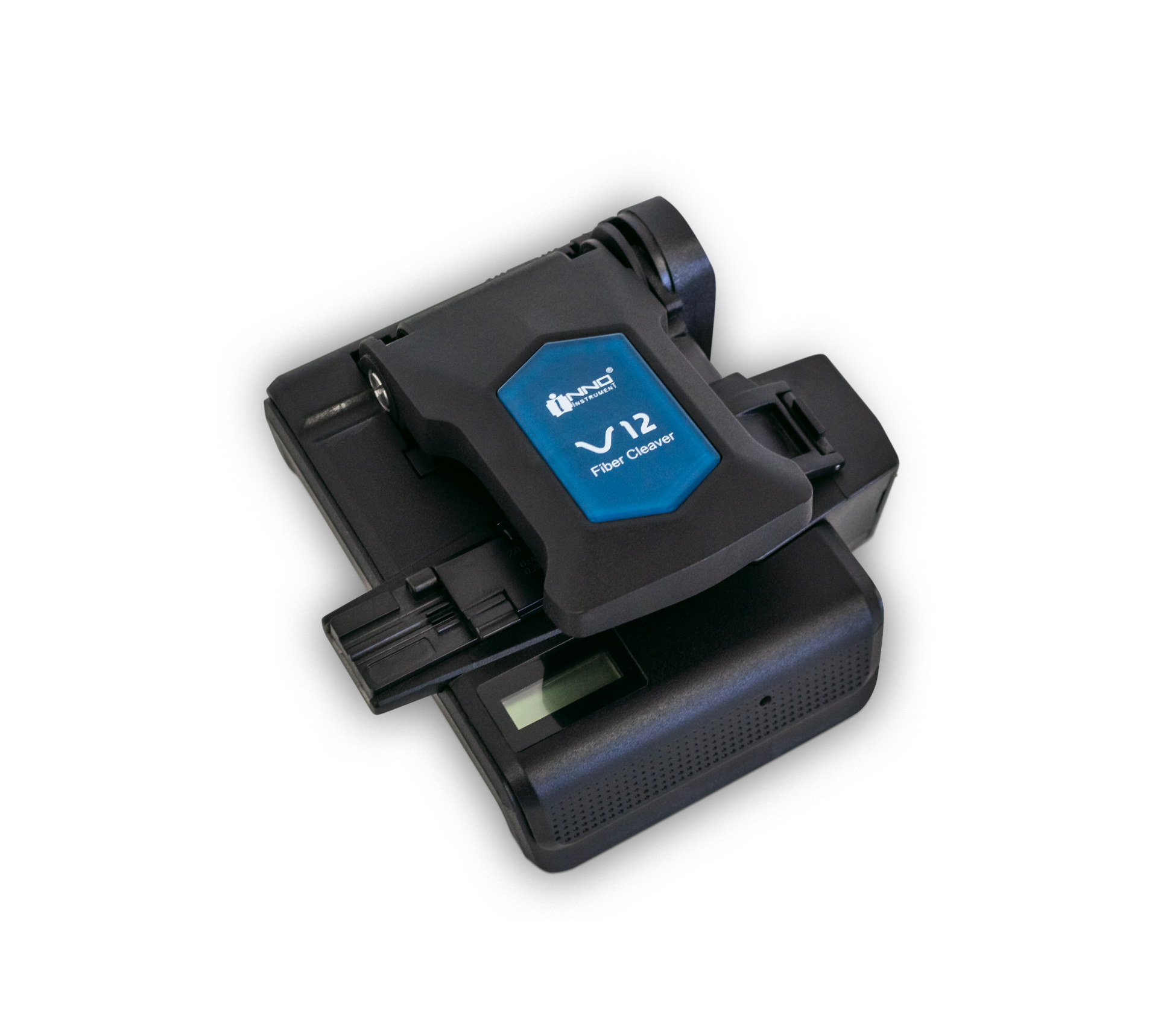

Inno core centering splicer M9+ Incl. Inno V12 breaking tool
Inno core centering splicer M9+ Incl. Inno V12 breaking tool
Item number:
VIEW-M9+
EAN no.:
4043493177800
Product information for Inno core centering splicer M9+ Incl. Inno V12 breaking tool

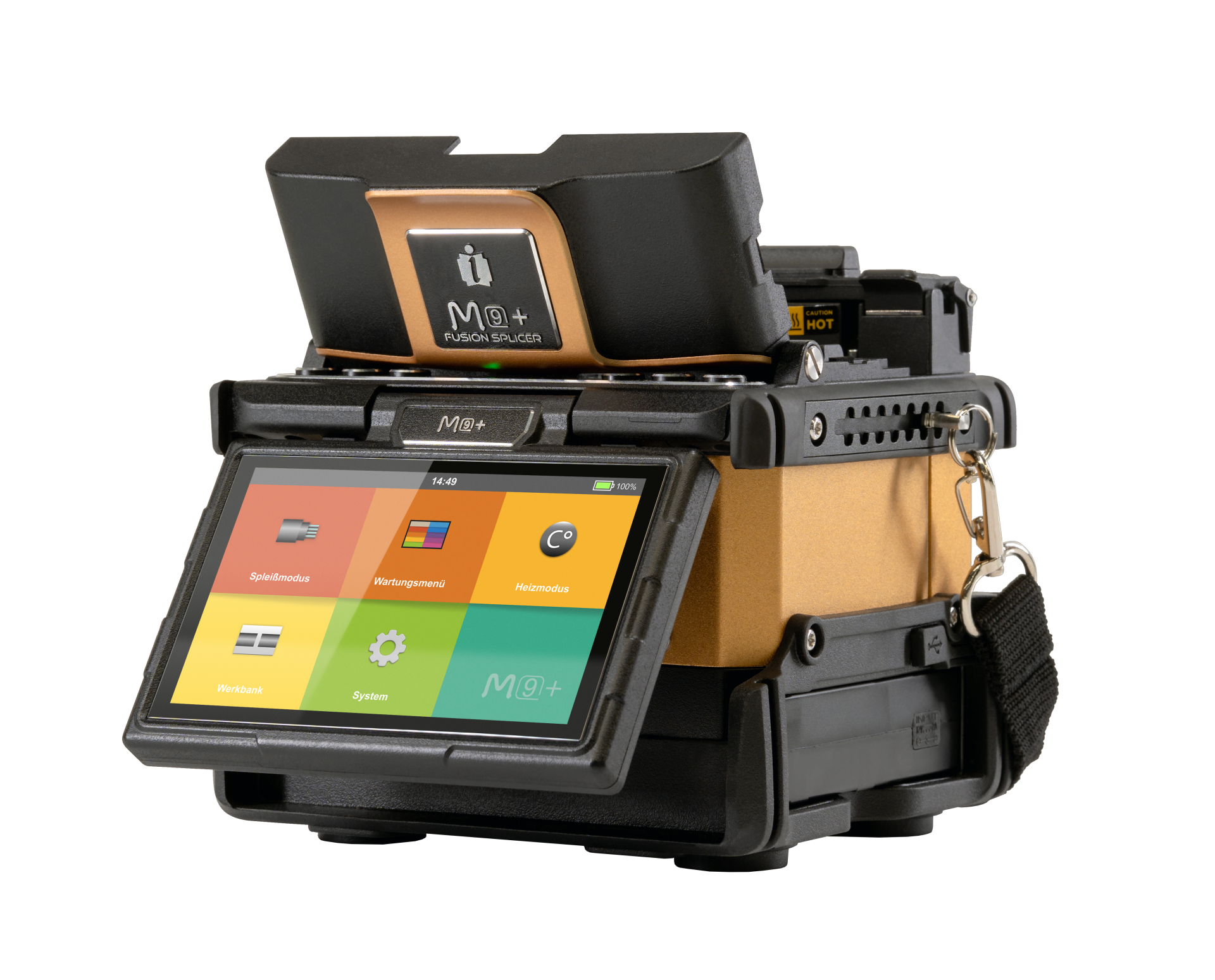

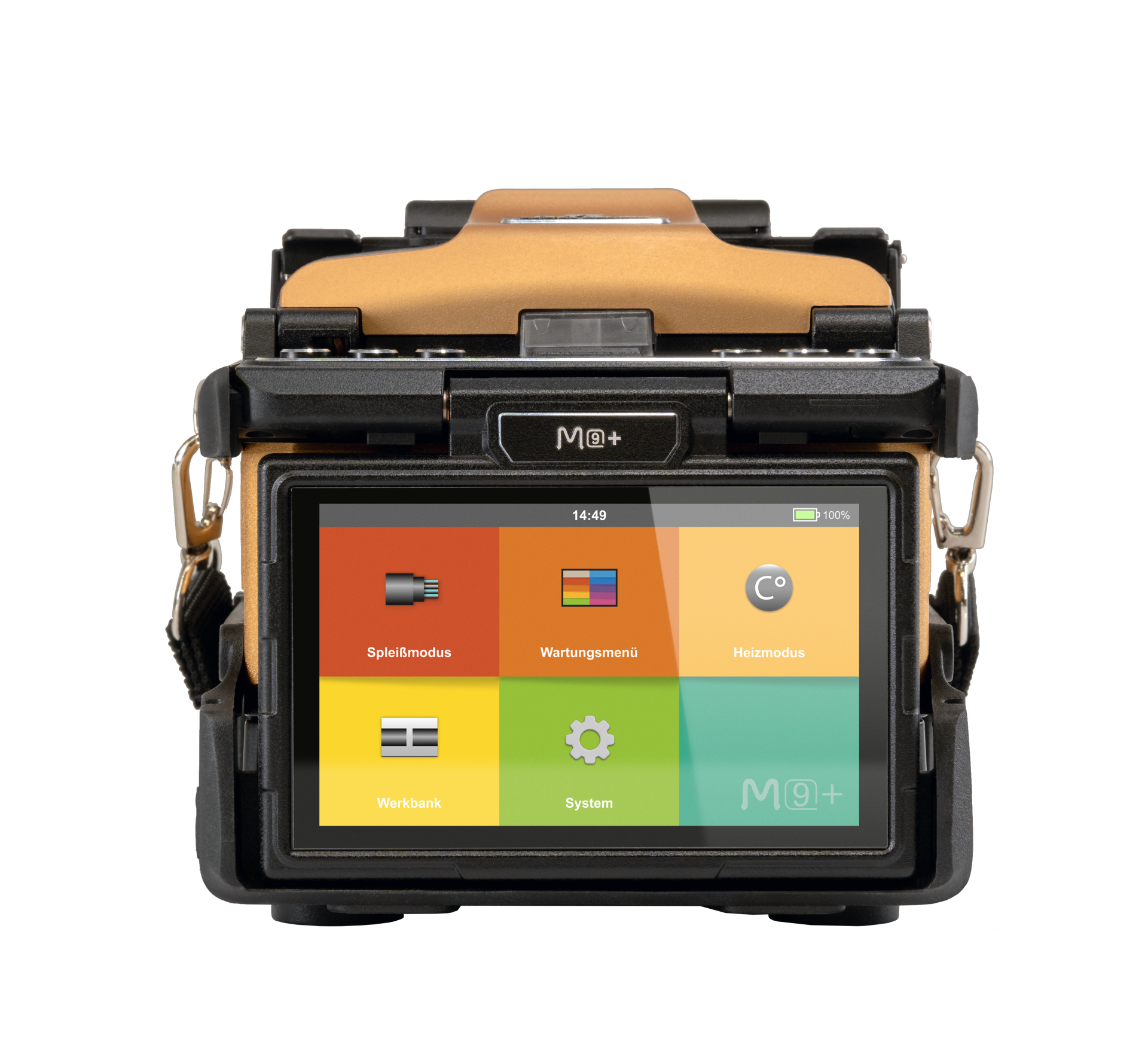

The View M9+ from INNO Instrument is a top-class core-centering splicer. The X stands for “eXceed eXpectations” – and that’s exactly what the View M9+ does: exceed expectations. The flagship of the South Korean premium manufacturer defines the benchmark for splicing efficiency. Point.
The features of this device are bursting with superlatives. Splice time: 4 seconds. Heating time: 9 seconds. Battery performance: 200 working cycles. Magnification: 320x In addition, a high-resolution 4.3 inch color LCD touchscreen, an intuitive user interface, a robust design, a large device memory for measured values and documentation images (Cloud View Pro Manager and USB-C). And the View M9+ looks good too.
The features of this device are bursting with superlatives. Splice time: 4 seconds. Heating time: 9 seconds. Battery performance: 200 working cycles. Magnification: 320x In addition, a high-resolution 4.3 inch color LCD touchscreen, an intuitive user interface, a robust design, a large device memory for measured values and documentation images (Cloud View Pro Manager and USB-C). And the View M9+ looks good too.
Technical properties
| Battery Capacity: | 3000 mAh |
|---|---|
| Connections: | USB Typ C |
| Displaysize: | 4,3" |
| Electrode Life: | 6000 arcs |
| Fiber Count: | Single |
| Heating Time (oven): | 9 sec |
| Magnification: | 320x |
| Operating Conditions: | Altitude: 0-5000m |
| Operating Conditions: | Humidity: 0 - 95% |
| Operating Conditions: | Temperature: -10 - 50°C |
| Operating Conditions: | Max. Wind: 15m/s |
| Size (WxHxD): | 144x136x125 mm |
| Splice Mode: | 128 |
| Splicing Time: | 4 sec |
| Storage Conditions: | Temperatur: -40 - 80°C |
| Storage Conditions: | Humidity: 0 - 95% |
| Tension Test: | 1,96 - 2,25 N |
| Typical Return Loss: | >60 dB |
| Weight: | 1.63 KG |
