19" Network Cabinet OFFICE - Acoustically Insulated

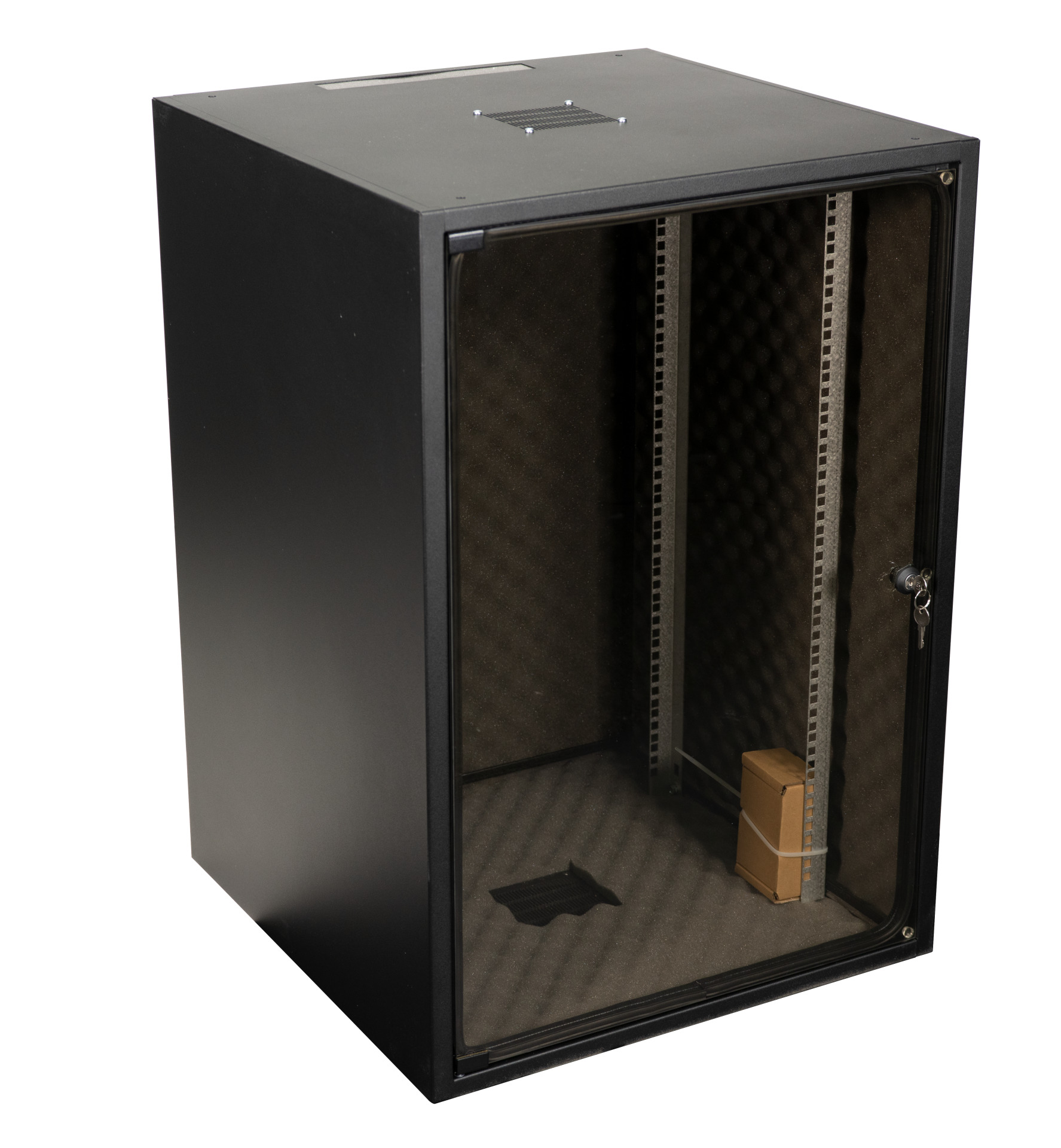

Network Cabinet OFFICE 18U, 600x600 mm, RAL9005, Acoustically Insulated
Item number:
OFF-1866TS.V1RW-AK
EAN no.:
4049759217891
Product information for Network Cabinet OFFICE 18U, 600x600 mm, RAL9005, Acoustically Insulated
19" network cabinet according to DIN41494
Steel sheet housing, self-supporting, completely pre-assembled, active ventilated
Interior lined with sound-absorbing foam, attenuation ca. 8 dB
Front door with additional, high quality rubber sealing
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable

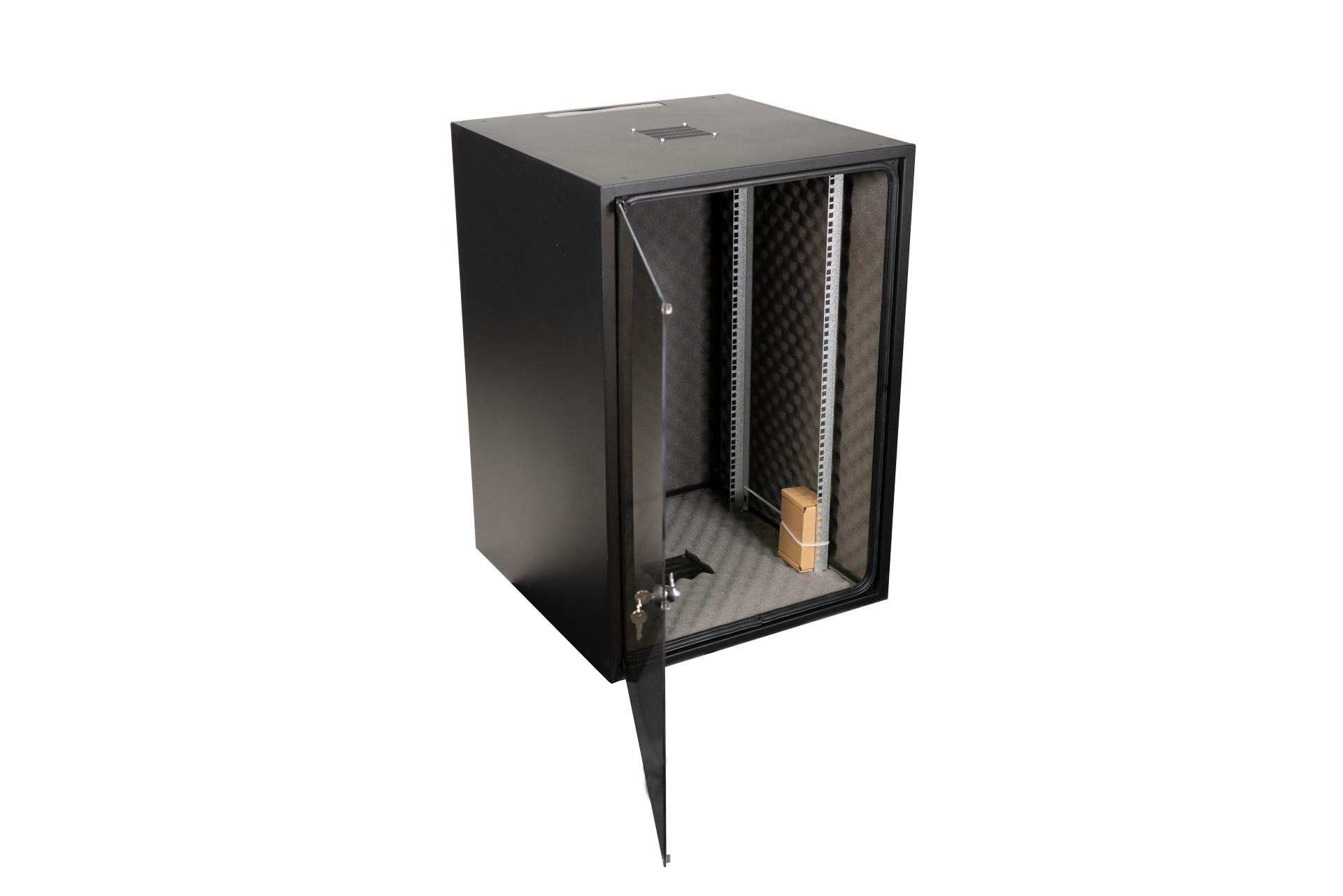

Front door full glass, 1-part (thickness 4 mm)
Front door with 1-point latch-locking
Door stop possible left or right-sided

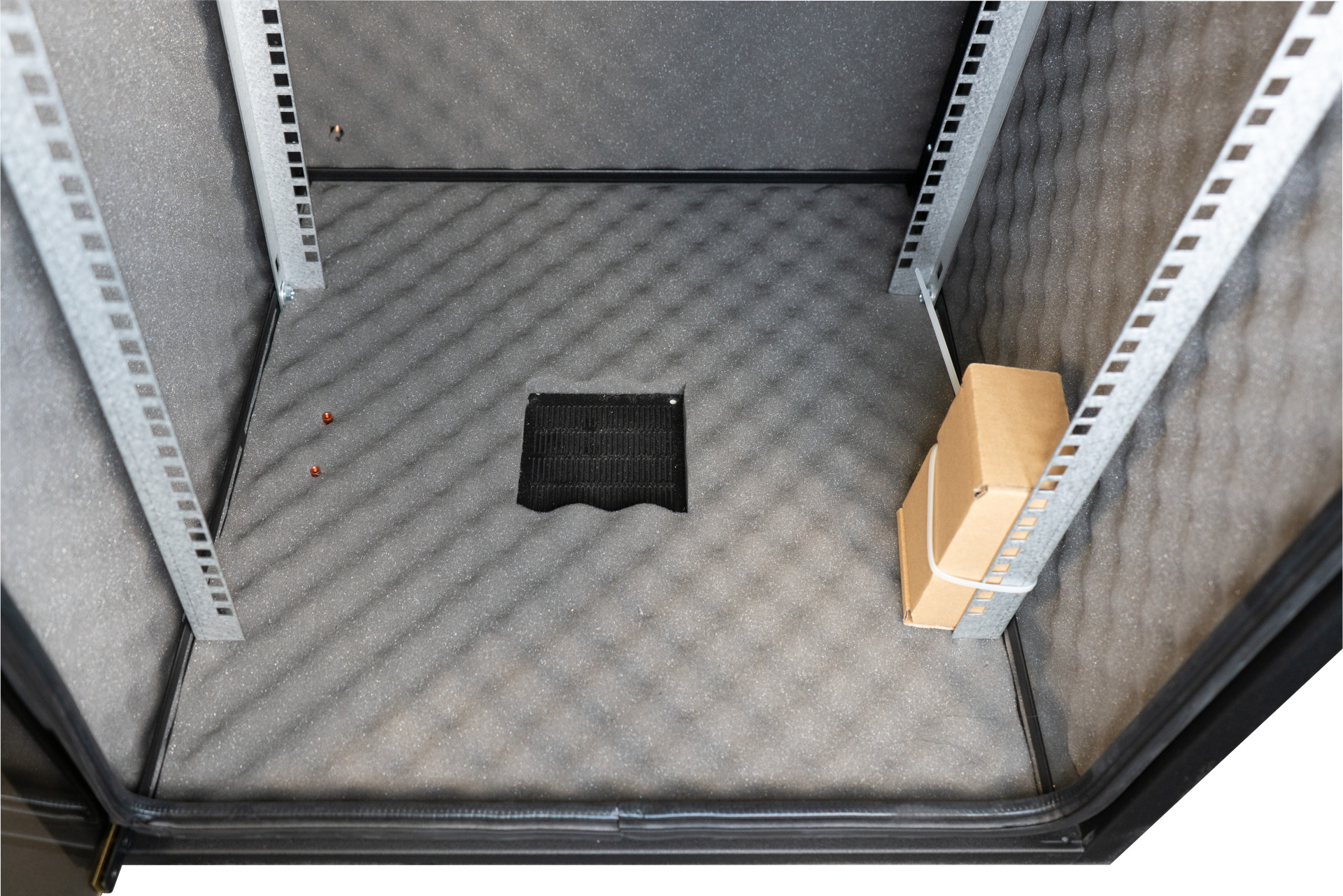

Bottom and rear with pre-punched openings for cable entry

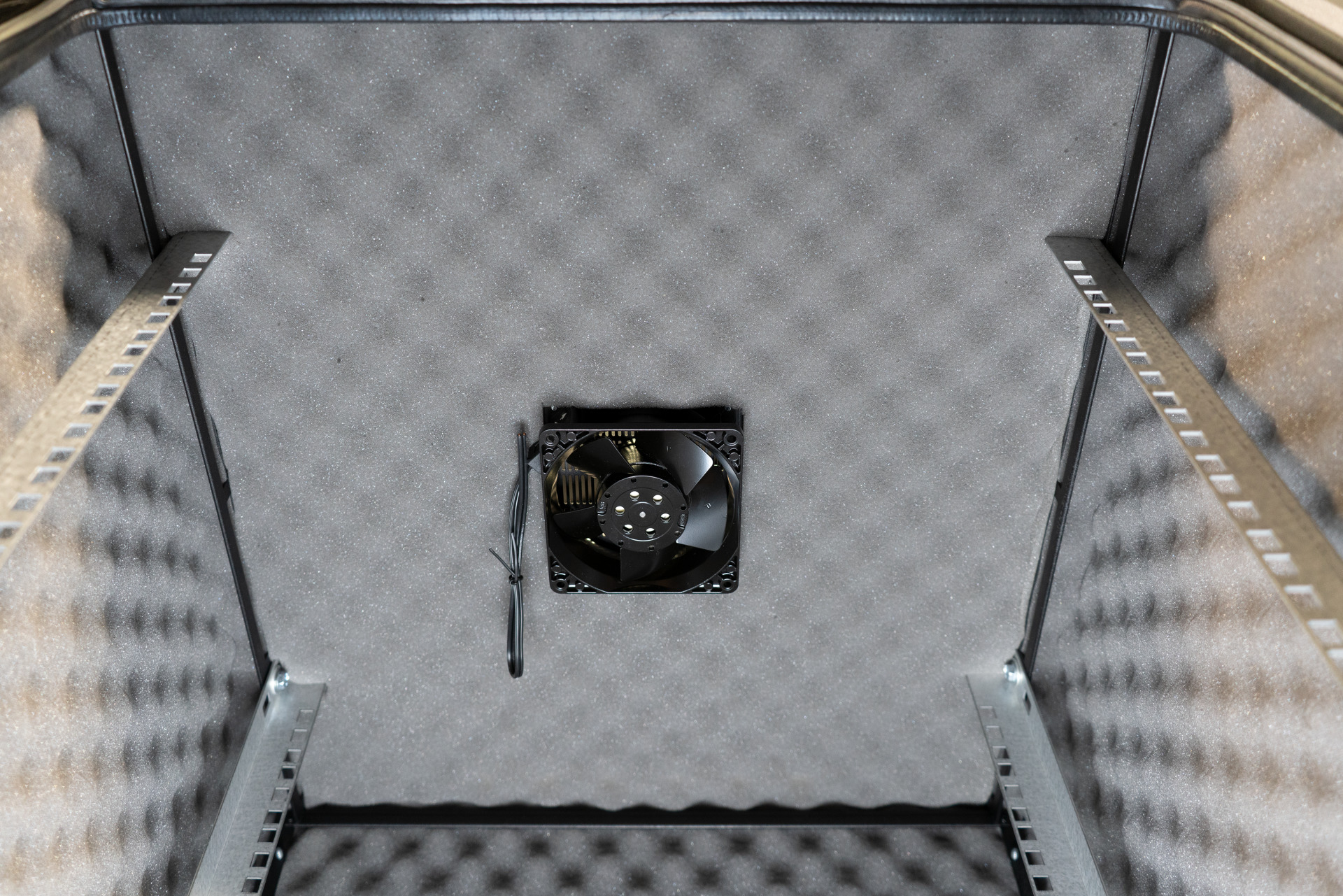

Roof equiped with high quality single fan with cable open end (ca. 0,3 m, without thermostat/temperature controller + cables, please order separately)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey / RAL9005, jet black
Max. load 45 kg
Protection degree IP20
Included in delivery: 1 x brush, 4 x leveling feet M8, 2 x key
Delivery in transport packaging on disposable pallet
Steel sheet housing, self-supporting, completely pre-assembled, active ventilated
Interior lined with sound-absorbing foam, attenuation ca. 8 dB
Front door with additional, high quality rubber sealing
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Front door full glass, 1-part (thickness 4 mm)
Front door with 1-point latch-locking
Door stop possible left or right-sided
Bottom and rear with pre-punched openings for cable entry
Roof equiped with high quality single fan with cable open end (ca. 0,3 m, without thermostat/temperature controller + cables, please order separately)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey / RAL9005, jet black
Max. load 45 kg
Protection degree IP20
Included in delivery: 1 x brush, 4 x leveling feet M8, 2 x key
Delivery in transport packaging on disposable pallet
Technical properties
| Degree of protection: | IP20 |
|---|---|
| Demountable: | False |
| Material: | Steel |
| Model: | With permanent frame |
| Modular spacing: | 482.6 mm (19 inch) |
| Mounting level: | Front and rear |
| Surface finishing: | Powder coating |
| Type of back door: | Rear wall |
| Type of front door: | Full glass door 1-part |
| Type of profile rail: | L-shaped |
| Type of ventilation: | Active |
| With backside door: | False |
| With earthing: | True |
| With front door: | True |
| With roof plate: | True |
| With sidewall: | True |
| With socket: | False |
Variants
| Item no. | Name | Depth | Width | Number of height units | Color | Height | RAL-number | Number of doors | |
|---|---|---|---|---|---|---|---|---|---|
| OFF-1866GR.V1RW-AK | Network Cabinet OFFICE 18U, 600x600 mm, RAL7035, Acoustically Insulated | 600 mm | 600 mm | 18 U | grey | 871 mm | 7035 | 1 | |
| OFF-1866TS.V1RW-AK | Network Cabinet OFFICE 18U, 600x600 mm, RAL9005, Acoustically Insulated | 600 mm | 600 mm | 18 U | black | 871 mm | 9005 | 1 | |
| OFF-1868TS.V1RW-AK | Network Cabinet OFFICE 18U, 600x800 mm, RAL9005, Acoustically Insulated | 800 mm | 600 mm | 18 U | black | 871 mm | 9005 | 1 |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Manufacturer information
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
