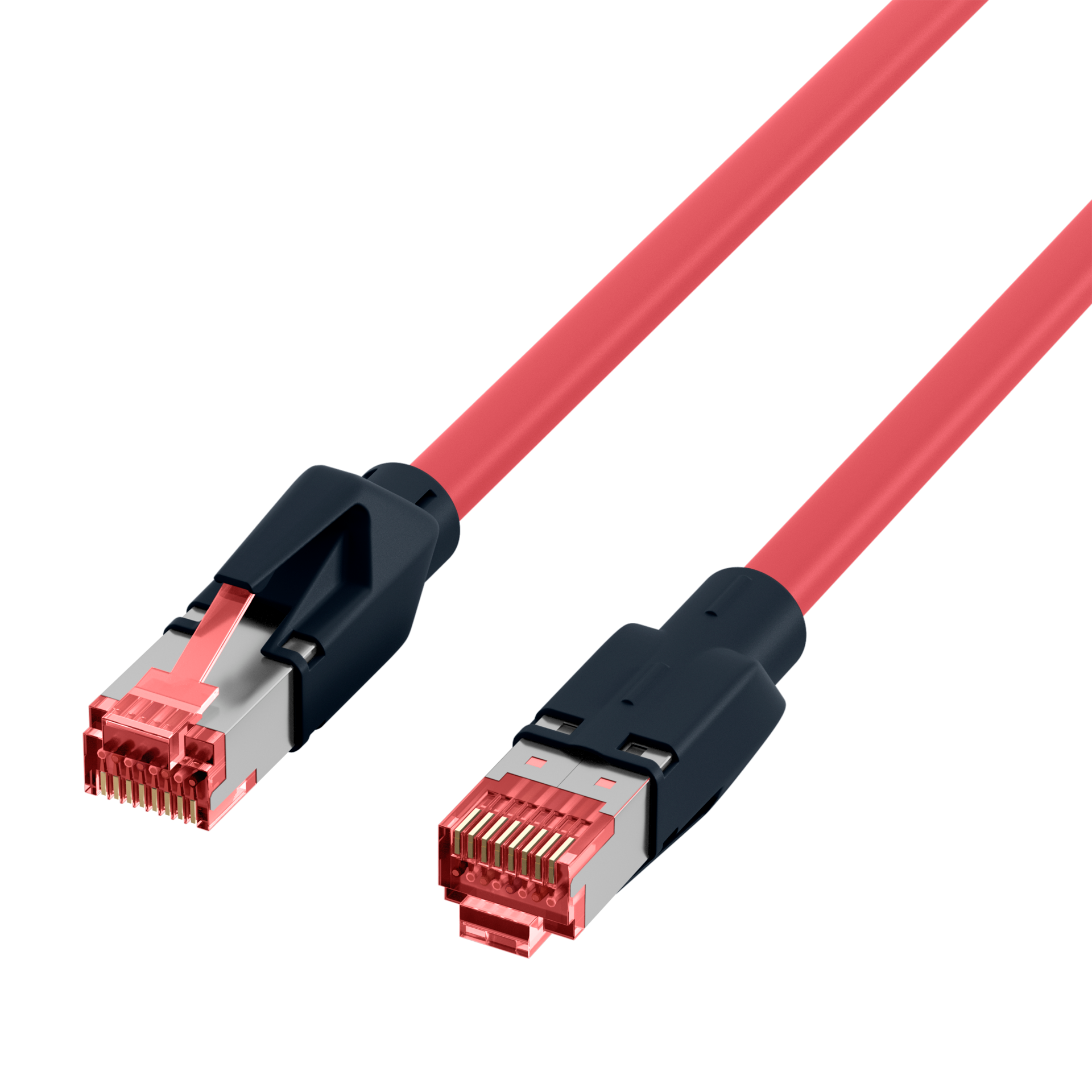

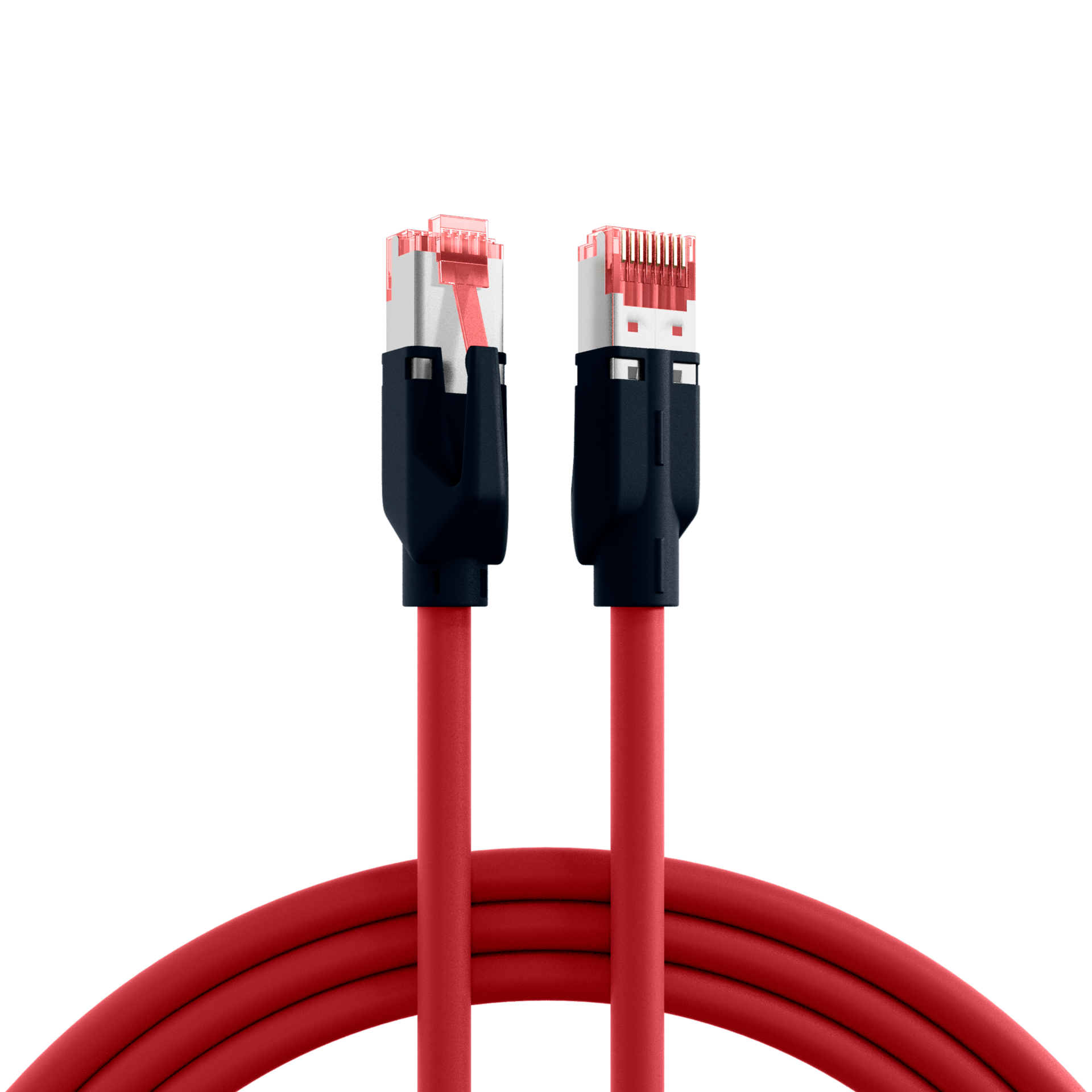

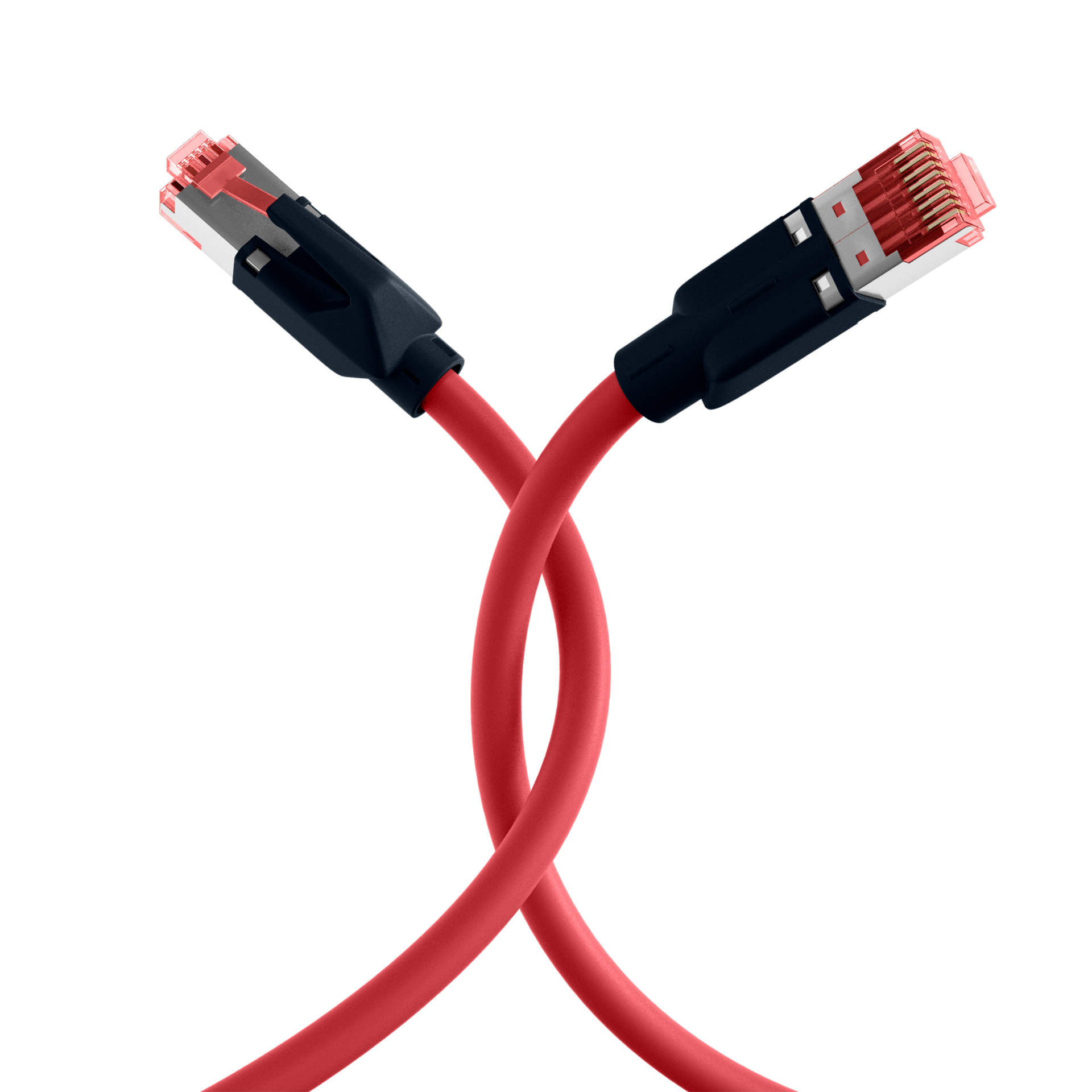

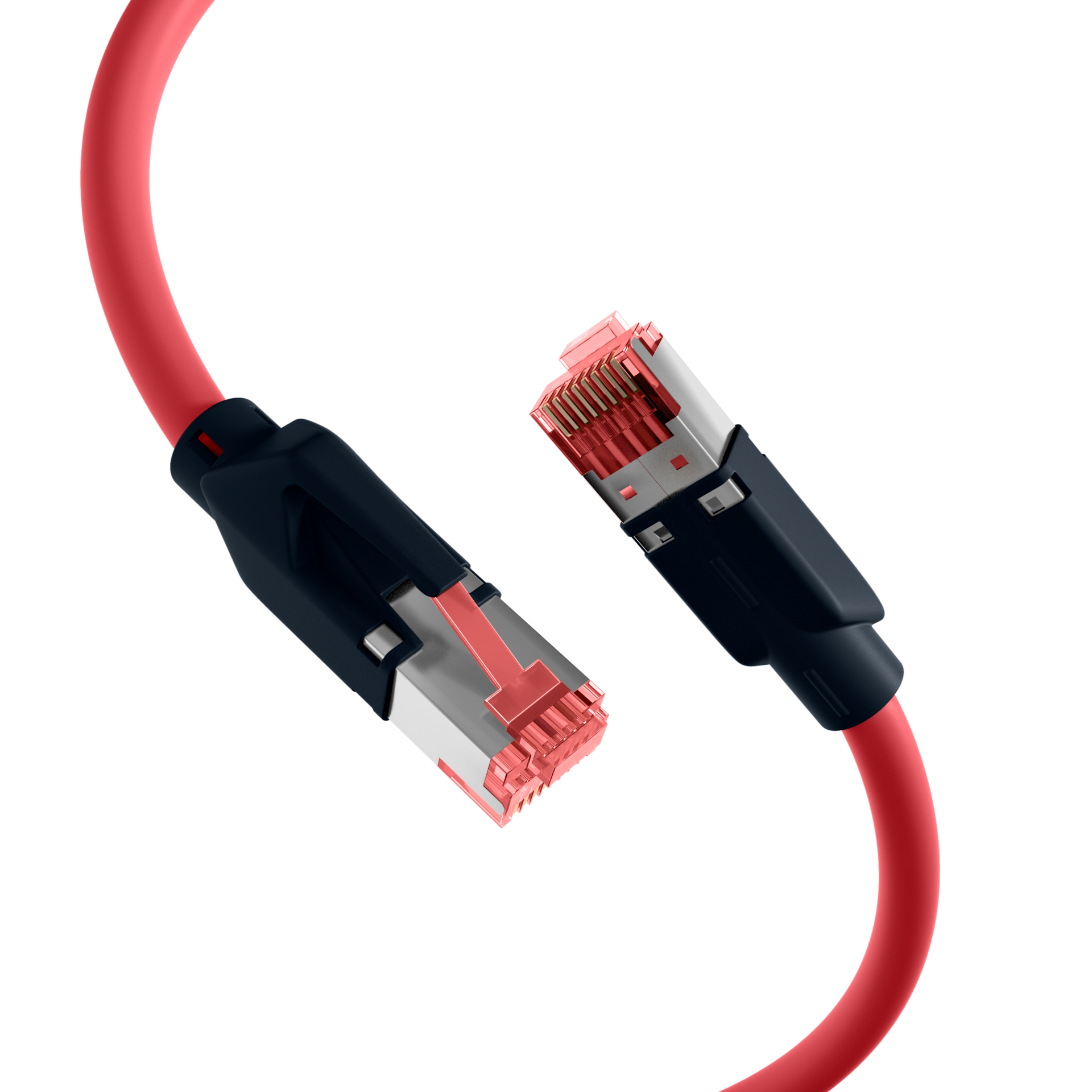

RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red
RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 7,5m
Item number:
K8048PUI7,5
EAN no.:
4049759236533
Product information for RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 7,5m
RJ45 patch cable Cat.6A S/FTP PUR Draka UC900 TM21
The Cat.6A (IEC) patch cable has gold-plated contacts and meets the requirements for 2.5Gbit, 5Gbit and 10Gbit Ethernet.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG26/7
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant, ozone-resistant, UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is 500 MHz.
The Cat.6A (IEC) patch cable has gold-plated contacts and meets the requirements for 2.5Gbit, 5Gbit and 10Gbit Ethernet.
Technical product features
• Cat.6A (IEC)
• S/FTP cable with AWG26/7
• Sheath material made of polyurethane (PUR)
• Fire protection: flame-retardant, halogen-free, low-smoke
• Sheath properties: oil-resistant, ozone-resistant, UV-resistant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The sheath of the shielded patch cable is made of polyurethane (PUR) material. The cable also offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The red TM21 connectors are assigned according to TIA/EIA 568B and are 1:1.
The network cable has a copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet and in data centers. The frequency range is 500 MHz.
Technical properties
| AWG-size: | 26/7 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | put-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Bending radius: | >25 mm |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Cable type acc. to Manufacturer: | Draka UC900 SS27 Cat.7 PUR |
| Cabling standard: | EN50173 |
| Cabling standard: | ISO/IEC 11801 |
| Cabling standard: | ANSI/TIA-568 |
| Category: | 6A (IEC) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | red |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Conductor resistance DC: | 170 Ω/km |
| Connector: | IEC 60603-7-51 |
| Connector type: | TM21 red |
| Contact Resistance: | ≤ 20 mΩ |
| Contacts: | Gold plated |
| Current capacity: | max. 1 A |
| Euro class: | Eca |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ±5 Ω |
| Insulation Resistance: | > 2000 MΩ |
| Jacket material: | Polyurethan (PUR) |
| Length imprint: | False |
| Locking lever: | True |
| Loop resistance: | < 340 Ω/km |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| NVP value: | 79 % |
| Oil resistant: | acc. EN 60811-2-1 |
| Operating-/ tempering voltage: | max. 50 V DC |
| Operating Temperature: | -20 – 60 °C |
| Outer diameter of the cable: | 5.9 mm |
| Ozone resistance: | acc. EN60811-2-1 |
| Pin assignment: | 1:1 |
| Raw cable: | Cat.7 |
| Resistance unbalance: | < 3 % |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -35 – 75 °C |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Transmission: | 10Gbit |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | True |
Variants
| Item no. | Name | Length | POE class | Length tolerance | |
|---|---|---|---|---|---|
| K8048PUI0,25 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 0,25m | 0.25 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI0,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 0,5m | 0.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI1 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 1m | 1.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI1,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 1,5m | 1.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI2 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 2m | 2.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI3 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 3m | 3.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI5 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 5m | 5.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI7,5 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 7,5m | 7.5 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI10 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 10m | 10.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt | ±5 % | |
| K8048PUI15 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 15m | 15.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8048PUI20 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 20m | 20.0 m | PoE acc. to IEEE802.3af;PoE acc. to IEEE802.3at | ±5 % | |
| K8048PUI25 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 25m | 25.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8048PUI30 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 30m | 30.0 m | PoE acc. to IEEE802.3af | ±5 % | |
| K8048PUI40 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 40m | 40.0 m | No | ±5 % | |
| K8048PUI50 | RJ45 Patch Cord Cat.6A S/FTP PUR Draka UC900 TM21 red 50m | 50.0 m | No | ±5 % |
