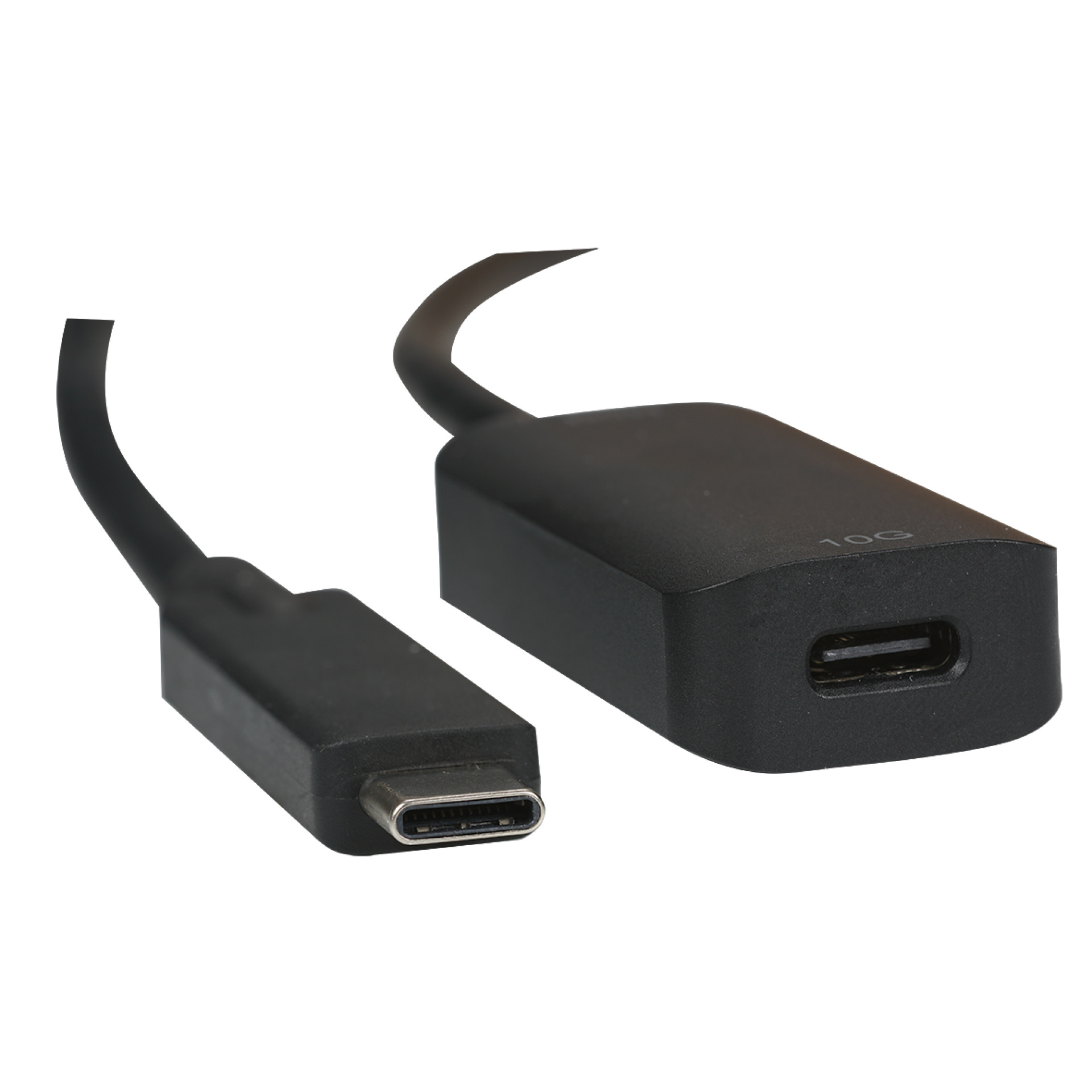

USB3.2 10Gbit Type-C to Type-C Extender Cable
USB 3.2 Gen2 10Gbit Extender Cable, Type-C Plug - Type-C Jack, 5m
Item number:
EBUSBC-USBC10GE.5
EAN no.:
4049759272081
Product information for USB 3.2 Gen2 10Gbit Extender Cable, Type-C Plug - Type-C Jack, 5m
Type-C Malex1 (connect Type-C host)
Type-C Femalex1 (connect Type-C device)
Compatible with USB 3.2 Gen2, max 10Gbps, downward compatible with lower versions (USB3.0, USB2.0)
Support max 10m distance
Supports max 5V/1.5A downstream charging for connected Type-C device
Note:
1) To achieve max 10Gbps bandwidth, both Type-C host and device should support 10Gbps data transmission.
2) This extension cable is for data transmission only, it doesn't support video&PD Charging.
Type-C Femalex1 (connect Type-C device)
Compatible with USB 3.2 Gen2, max 10Gbps, downward compatible with lower versions (USB3.0, USB2.0)
Support max 10m distance
Supports max 5V/1.5A downstream charging for connected Type-C device
Note:
1) To achieve max 10Gbps bandwidth, both Type-C host and device should support 10Gbps data transmission.
2) This extension cable is for data transmission only, it doesn't support video&PD Charging.
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 10 Gbit/s |
| Beding radius (dynamic/static): | 48 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | active |
| Chip: | True |
| Compliant with: | laptop/smartphone/tablets |
| Connection type connection 1: | plug |
| Connection type connection 2: | Jack |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | TPE+ABS |
| Material Inner Conductor: | TC |
| Material jacket: | TPE |
| Max. Transfer Rate: | 10 Gbit/s |
| Max. mating cycles: | 5000 |
| Max. resolution: | 4K@60Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 24 |
| Number of shieldings: | double |
| Operating temperature: | 0 – 45 |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 47.5mm x 12.4mm x 6.3mm |
| Plug dimensions Side 2: | 52mm x 22.5mm x 11.5mm |
| Scope of delivery: | 1x USB-C cable |
| Shielded: | True |
| Storage Temperature: | -10 – 55 |
| Supported protocols / functions: | USB OTG |
| Tensile strength (short/long): | 29,4 N |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | USB Type-C |
| Type of packaging: | recycled plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Version: | USB 3.2 Gen 2 |
| Warranty: | 12 months |
| With termination resistor: | True |
| eARC: | False |
