USB-C Cable 100W PD 3.0 5A E-Marker Chip
EFB-Elektronik

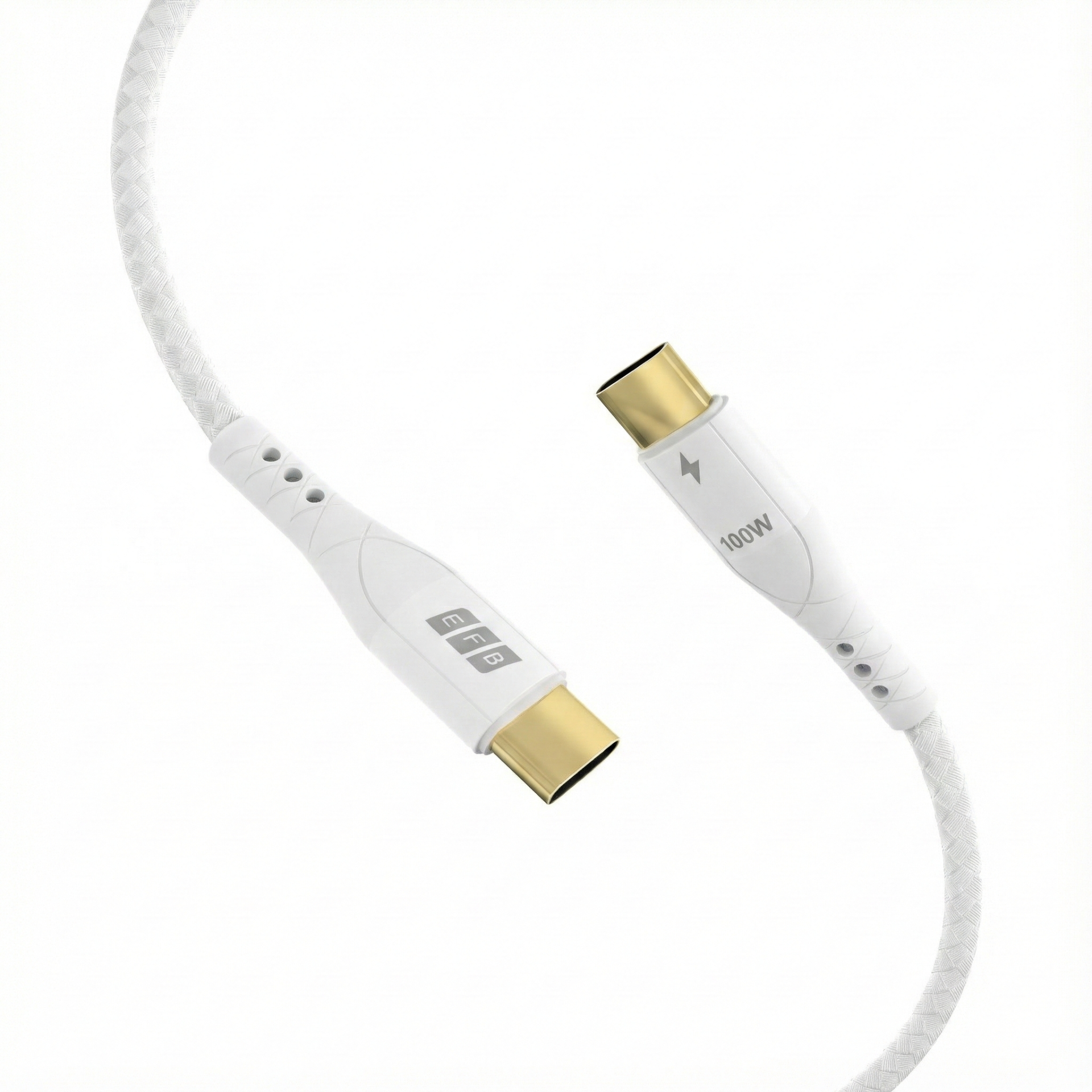

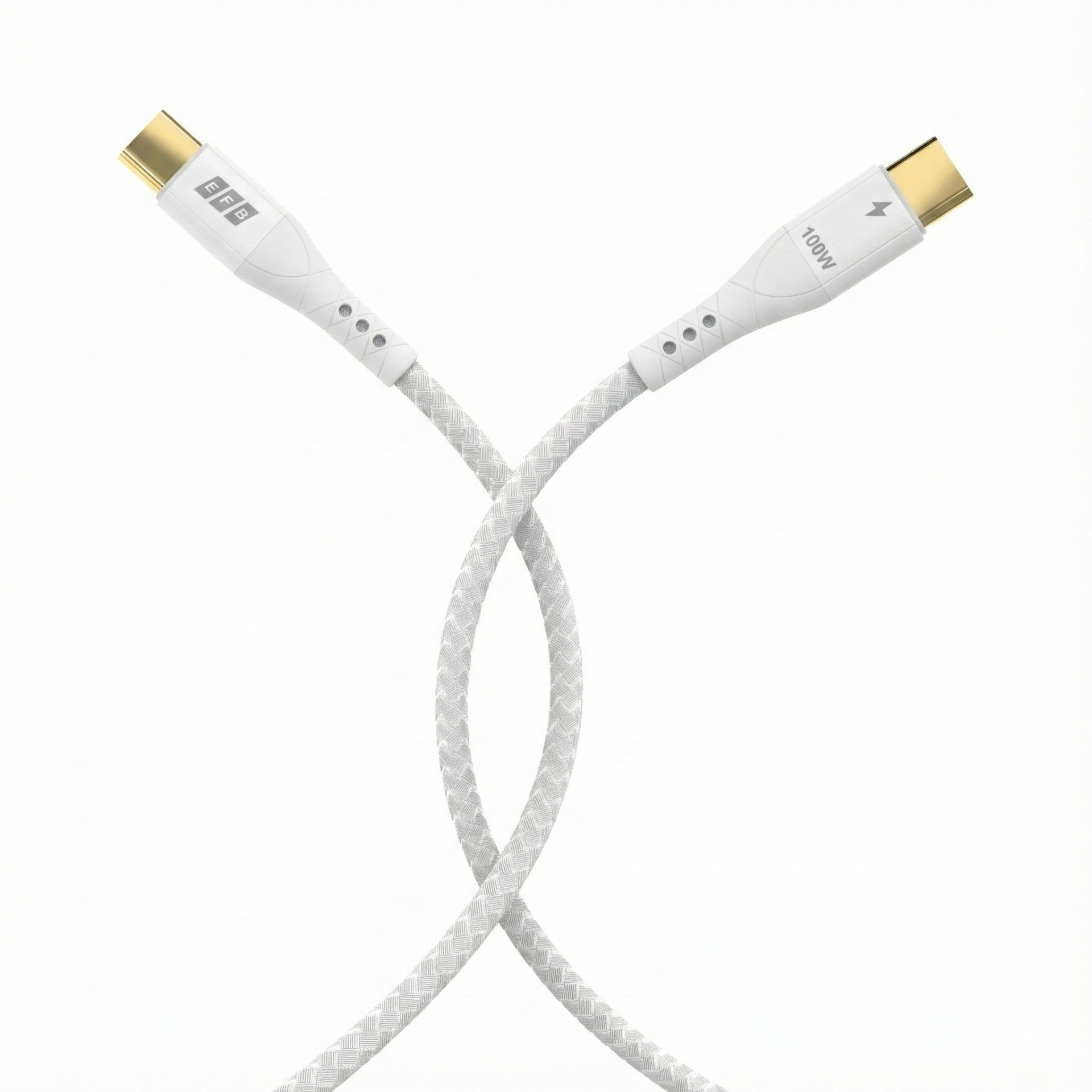

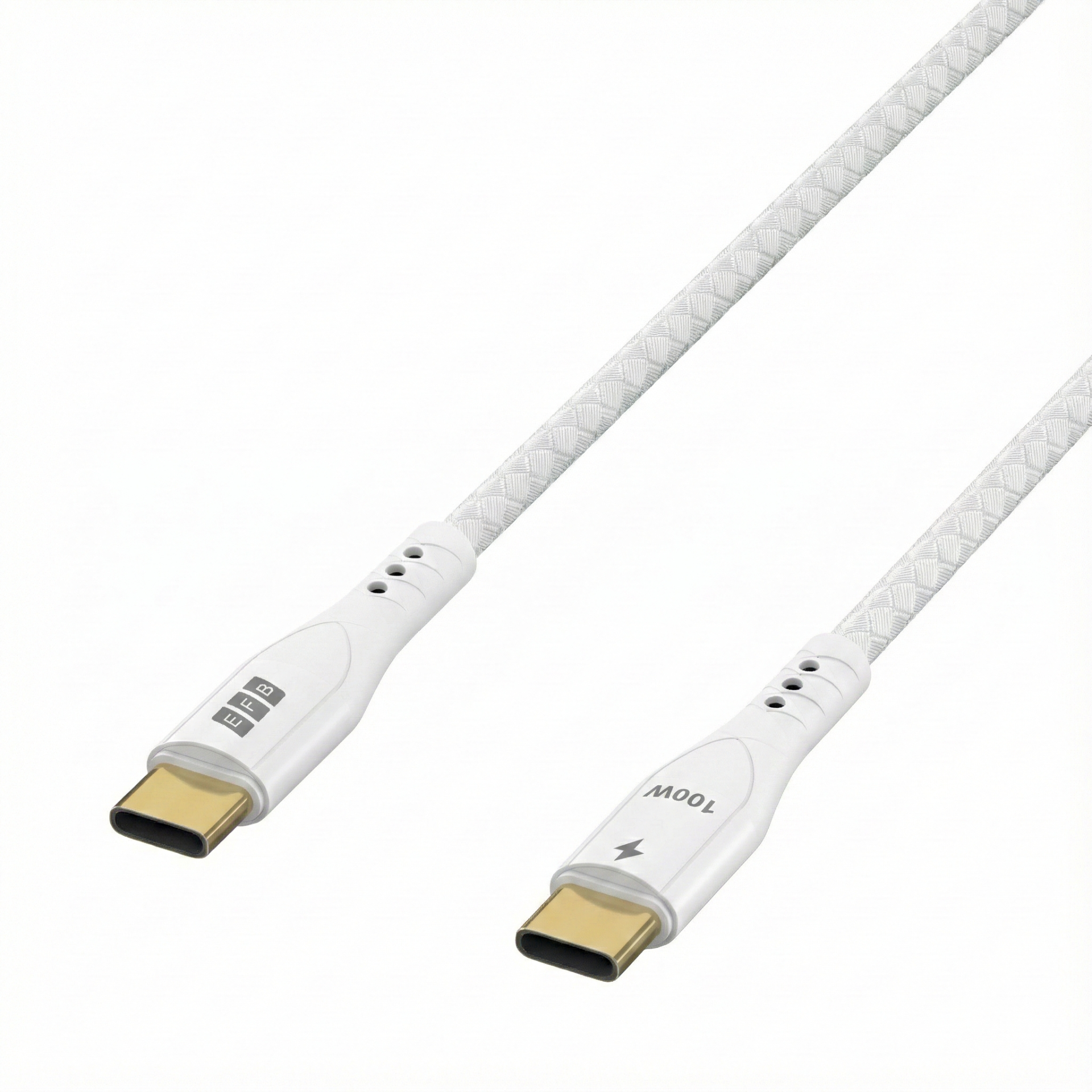

USB-C Cable 100W PD 3.0 5A E-Marker Chip 3m white w. gold contacts, txtl. sh.
Item number:
USB-CC-00039
EAN no.:
4049759339852
Product information for USB-C Cable 100W PD 3.0 5A E-Marker Chip 3m white w. gold contacts, txtl. sh.
This white USB-C cable from EFB-Elektronik meets the requirements for USB 2.0 High-Speed. The USB standard is backward compatible and suitable for many devices. With a bandwidth of 480 Mbit/s, various types of media can be easily transferred.
• Features a built-in chip for improved data exchange between connected devices
• Contact material: gold-plated contacts for reliable transmission quality
• Power delivery: up to 100 W for extra-fast charging
Product benefits
Power delivery of up to 100 W is possible.
Product description
The cable jacket is made of PVC and fabric. The USB Type-C connectors feature an aluminum housing, which helps prevent damage.
Technical Details
• Connector 1: USB Type-C plug (24-pin)
• Connector 2: USB Type-C plug (24-pin)
• Connector angle: 180° (straight)
• Maximum transfer rate: 480 Mbit/s
• Cable diameter: 4.0 mm
• Sheath material: PVC + textile
• Maximum mating cycles: 10,000
• With kink protection
• Brand: EFB-Elektronik
Package contents
• 1 x USB cable
• Features a built-in chip for improved data exchange between connected devices
• Contact material: gold-plated contacts for reliable transmission quality
• Power delivery: up to 100 W for extra-fast charging
Product benefits
Power delivery of up to 100 W is possible.
Product description
The cable jacket is made of PVC and fabric. The USB Type-C connectors feature an aluminum housing, which helps prevent damage.
Technical Details
• Connector 1: USB Type-C plug (24-pin)
• Connector 2: USB Type-C plug (24-pin)
• Connector angle: 180° (straight)
• Maximum transfer rate: 480 Mbit/s
• Cable diameter: 4.0 mm
• Sheath material: PVC + textile
• Maximum mating cycles: 10,000
• With kink protection
• Brand: EFB-Elektronik
Package contents
• 1 x USB cable
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bending radius (dynamic/static): | 40 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | True |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | Aluminium |
| Material Inner Conductor: | BC |
| Material jacket: | PVC+Textile |
| Max. mating cycles: | 10000 |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 24 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 8.25 x 2.35 x 14.5mm |
| Plug dimensions Side 2: | 8.25 x 2.35 x 14.5mm |
| Power Delivery: | 100 W |
| Scope of delivery: | 1xUSB Cable |
| Shielded: | True |
| Speed: | 480 Mbit/s |
| Temperature: | -20 – 70 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | USB Type-C |
| Type of packaging: | paper box |
| VESA certified: | False |
| VRR: | False |
| Version: | USB 2.0 High-Speed |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Technical properties
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bending radius (dynamic/static): | 40 mm |
| CEC: | False |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | True |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | false |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | Aluminium |
| Material Inner Conductor: | BC |
| Material jacket: | PVC+Textile |
| Max. mating cycles: | 10000 |
| Model: | Round Cable |
| Number of poles connection 1: | 24 |
| Number of poles connection 2: | 24 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 8.25 x 2.35 x 14.5mm |
| Plug dimensions Side 2: | 8.25 x 2.35 x 14.5mm |
| Power Delivery: | 100 W |
| Scope of delivery: | 1xUSB Cable |
| Shielded: | True |
| Speed: | 480 Mbit/s |
| Temperature: | -20 – 70 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | USB Type-C |
| Type of connector connection 2: | USB Type-C |
| Type of packaging: | paper box |
| VESA certified: | False |
| VRR: | False |
| Version: | USB 2.0 High-Speed |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Variants
| Item no. | Name | Colour | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| USB-CC-00036 | USB-C Cable 100W PD 3.0 5A E-Marker Chip 0.5m white w. gold contacts, txtl. sh. | white | 0.5 m | 4.0 mm | 20AWG | |
| USB-CC-00037 | USB-C Cable 100W PD 3.0 5A E-Marker Chip 1m white w. gold contacts, txtl. sh. | white | 1 m | 4.0 mm | 20AWG | |
| USB-CC-00038 | USB-C Cable 100W PD 3.0 5A E-Marker Chip 2m white w. gold contacts, txtl. sh. | white | 2 m | 4.0 mm | 20AWG | |
| USB-CC-00039 | USB-C Cable 100W PD 3.0 5A E-Marker Chip 3m white w. gold contacts, txtl. sh. | white | 3 m | 4.0 mm | 20AWG |
