19" 1U Socket Strip with Surge Protection

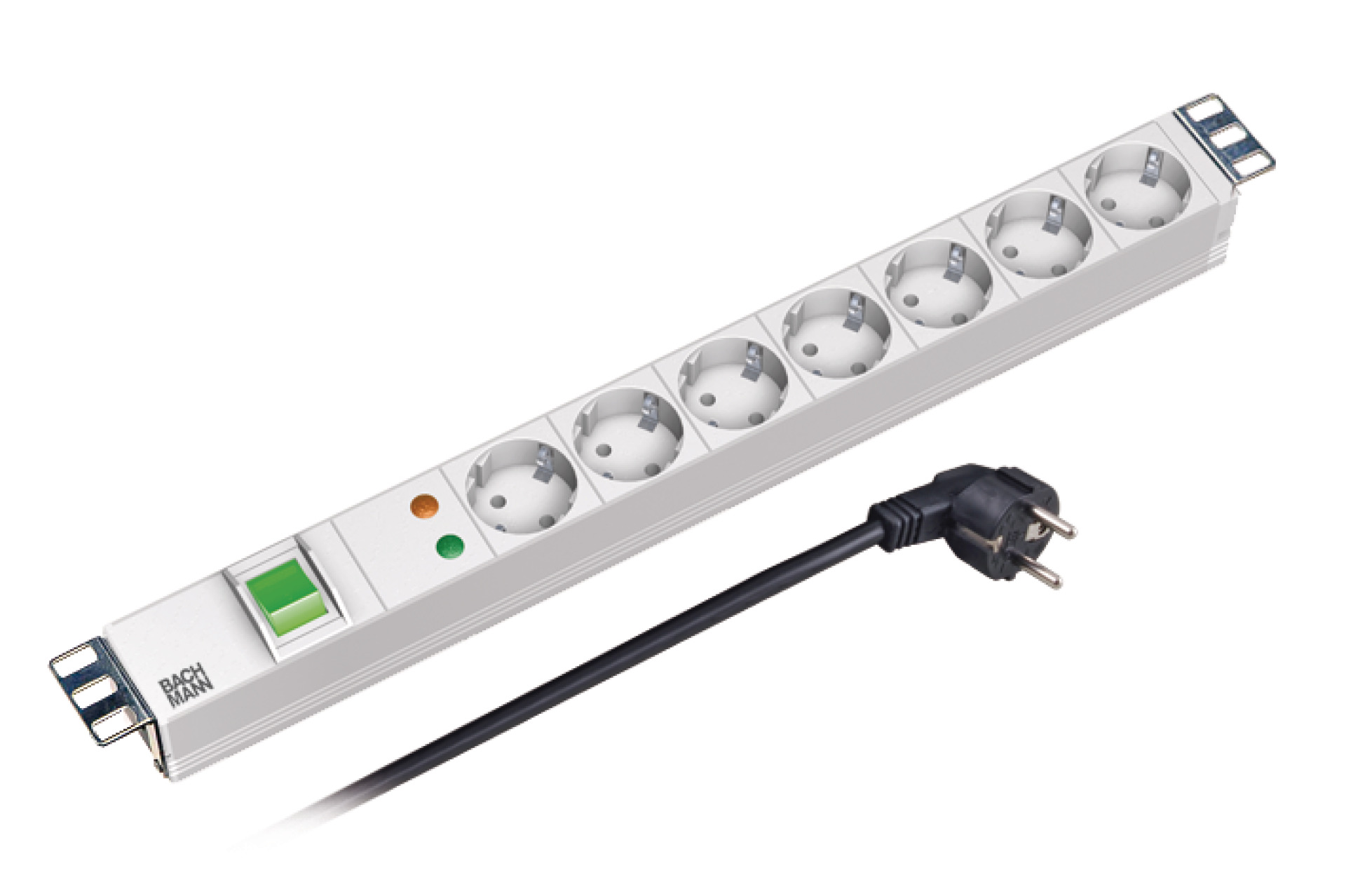

19" 1U Socket Strip 7 x CEE7/3 with Surge Protection and Switch, Grey
Item number:
691688
EAN no.:
4016514014484
Product information for 19" 1U Socket Strip 7 x CEE7/3 with Surge Protection and Switch, Grey
Overvoltage protection leakage current 6.5 kA
Visual function and failure display
35° turned socket inserts in the aluminium profile

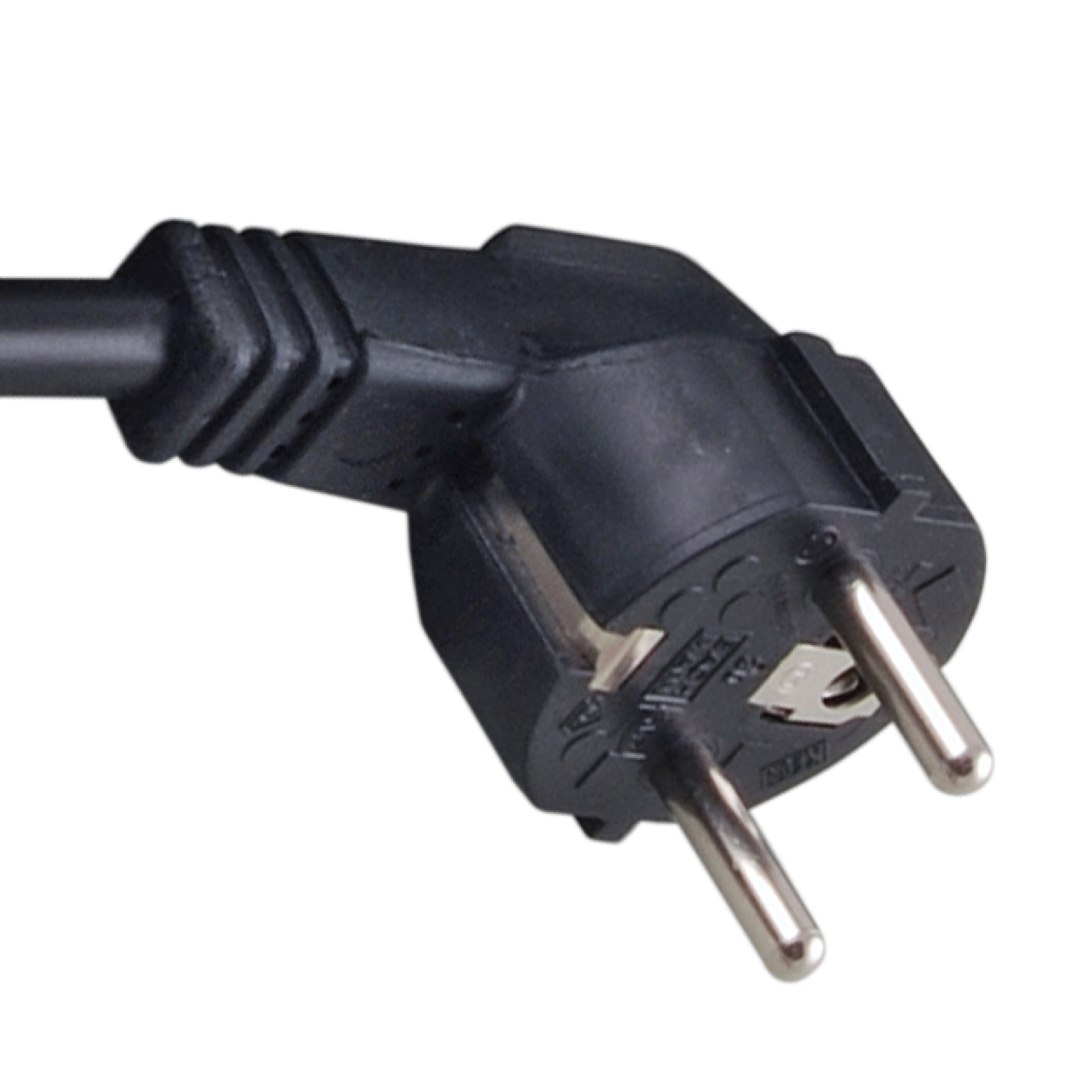

Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7

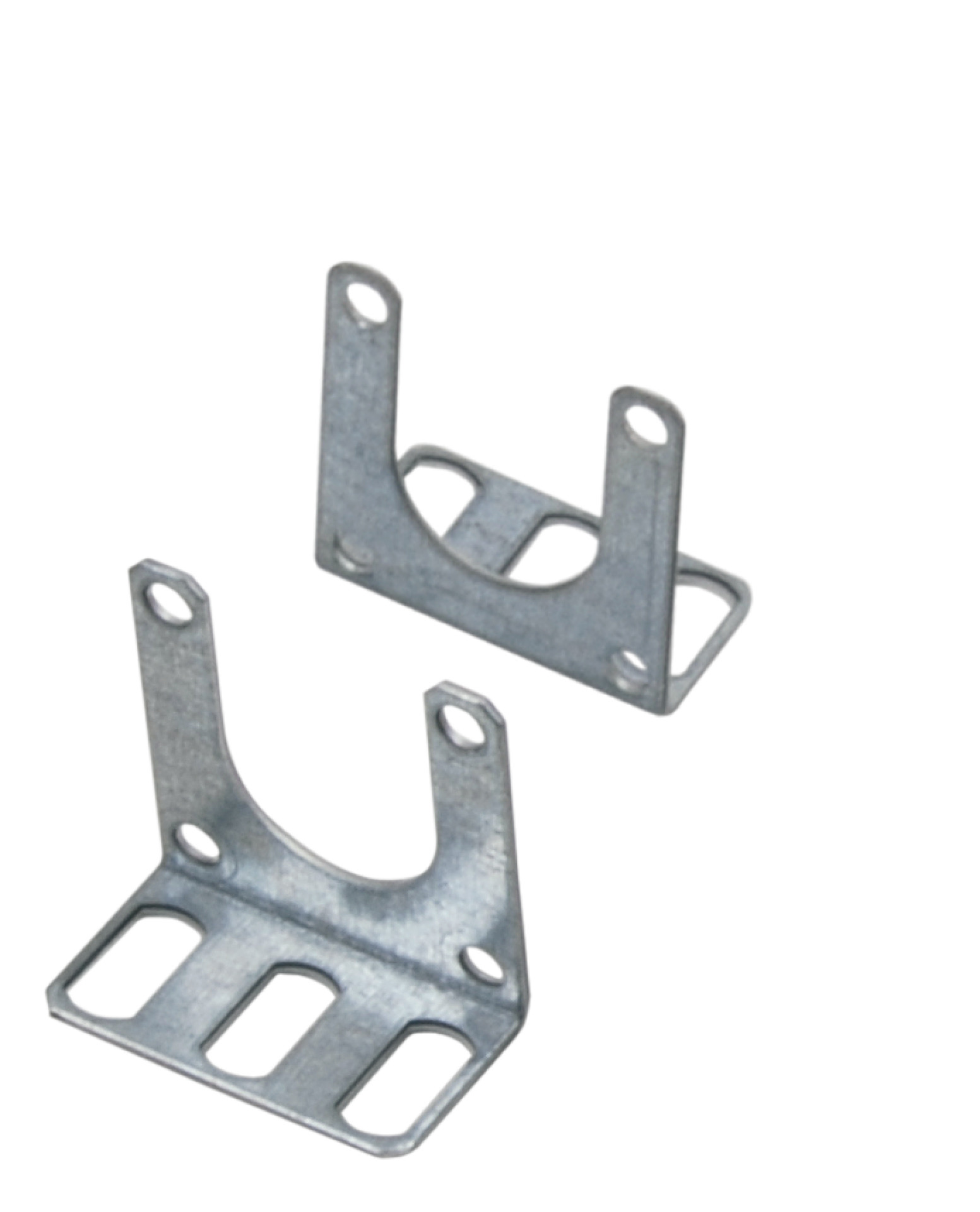

Supplied mounting brackets allow any fastening position
Visual function and failure display
35° turned socket inserts in the aluminium profile
Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7
Supplied mounting brackets allow any fastening position
Technical properties
| Angle rotated central insert: | 35 ° |
|---|---|
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Halogen free: | No |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | True |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | matt |
| Surface treatment: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Variants
| Item no. | Name | Anti-bacterial treatment | Color | With on/off switch | Number of socket outlets with protective contact (CEE7/3) | RAL-number (similar) | |
|---|---|---|---|---|---|---|---|

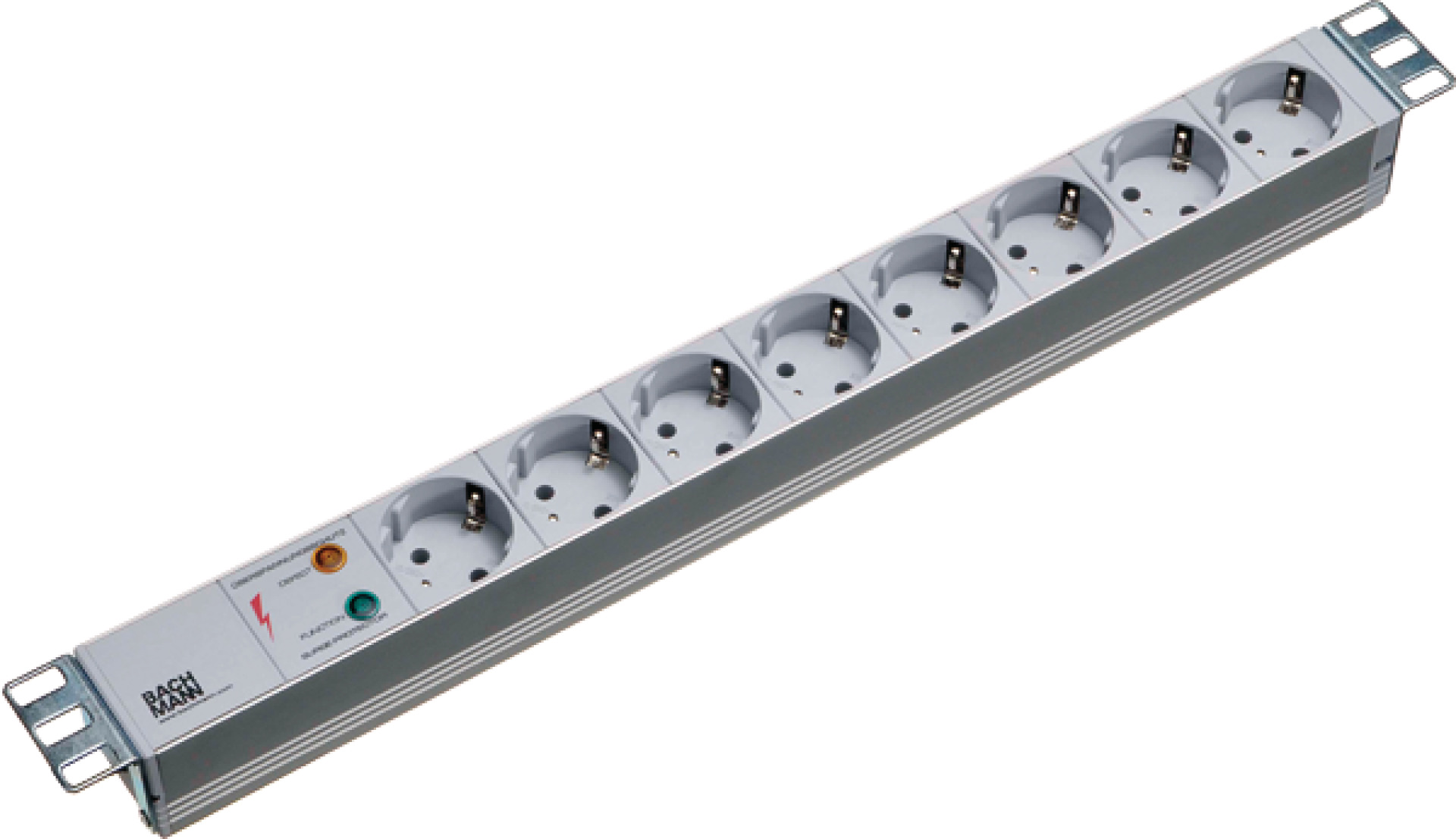

| 691687 | 19" 1U Socket Strip 8 x CEE7/3 with Surge Protection, Grey | False | grey | False | 8 | 7035 | |
| 691688 | 19" 1U Socket Strip 7 x CEE7/3 with Surge Protection and Switch, Grey | False | grey | True | 7 | 7035 |
Safety instructions
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
