19" 1U Socket Strip with Surge Protection

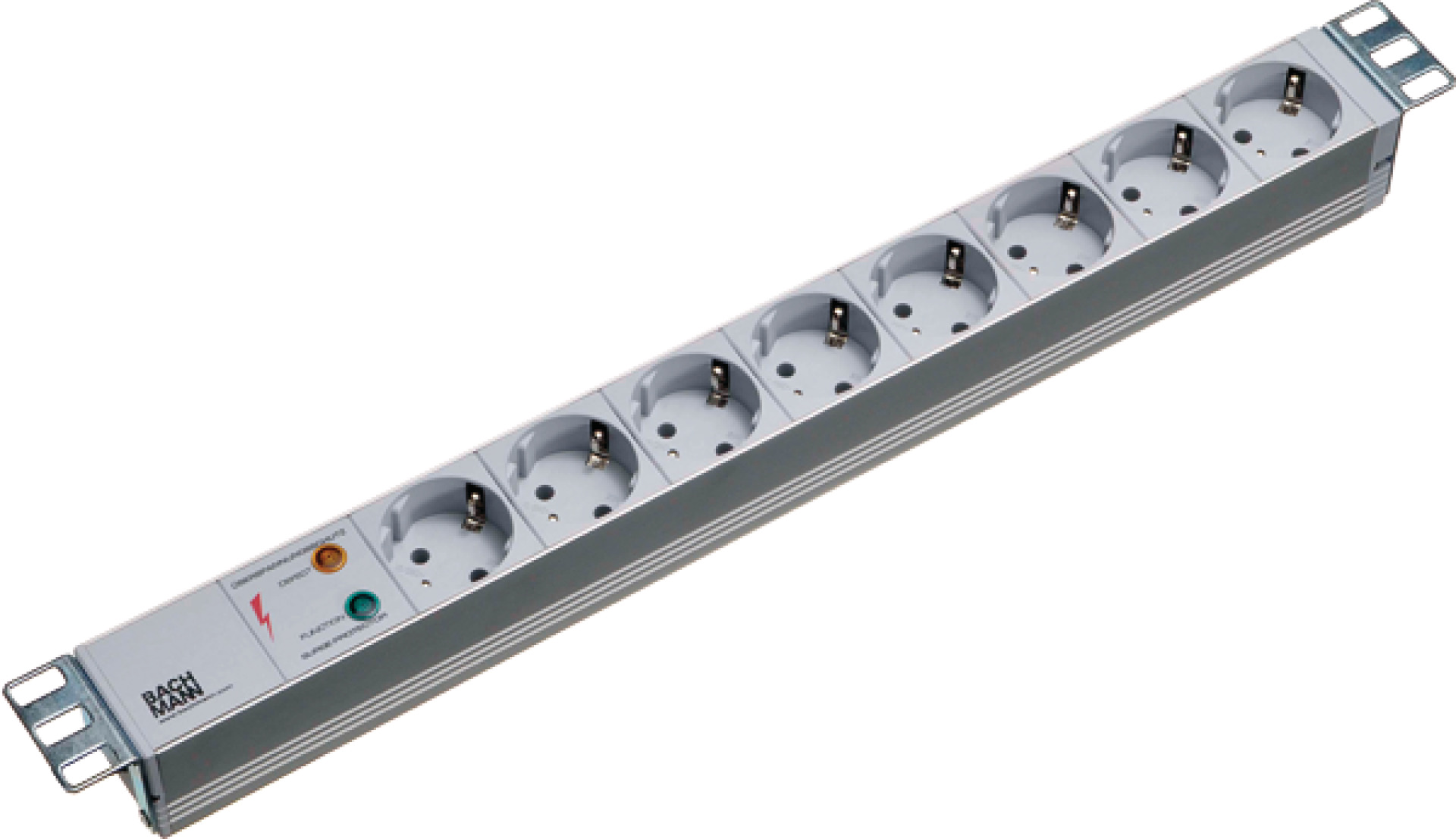

19" 1U Socket Strip 8 x CEE7/3 with Surge Protection, Grey
Item number:
691687
EAN no.:
4016514014477
Product information for 19" 1U Socket Strip 8 x CEE7/3 with Surge Protection, Grey
Overvoltage protection leakage current 6.5 kA
Visual function and failure display
35° turned socket inserts in the aluminium profile

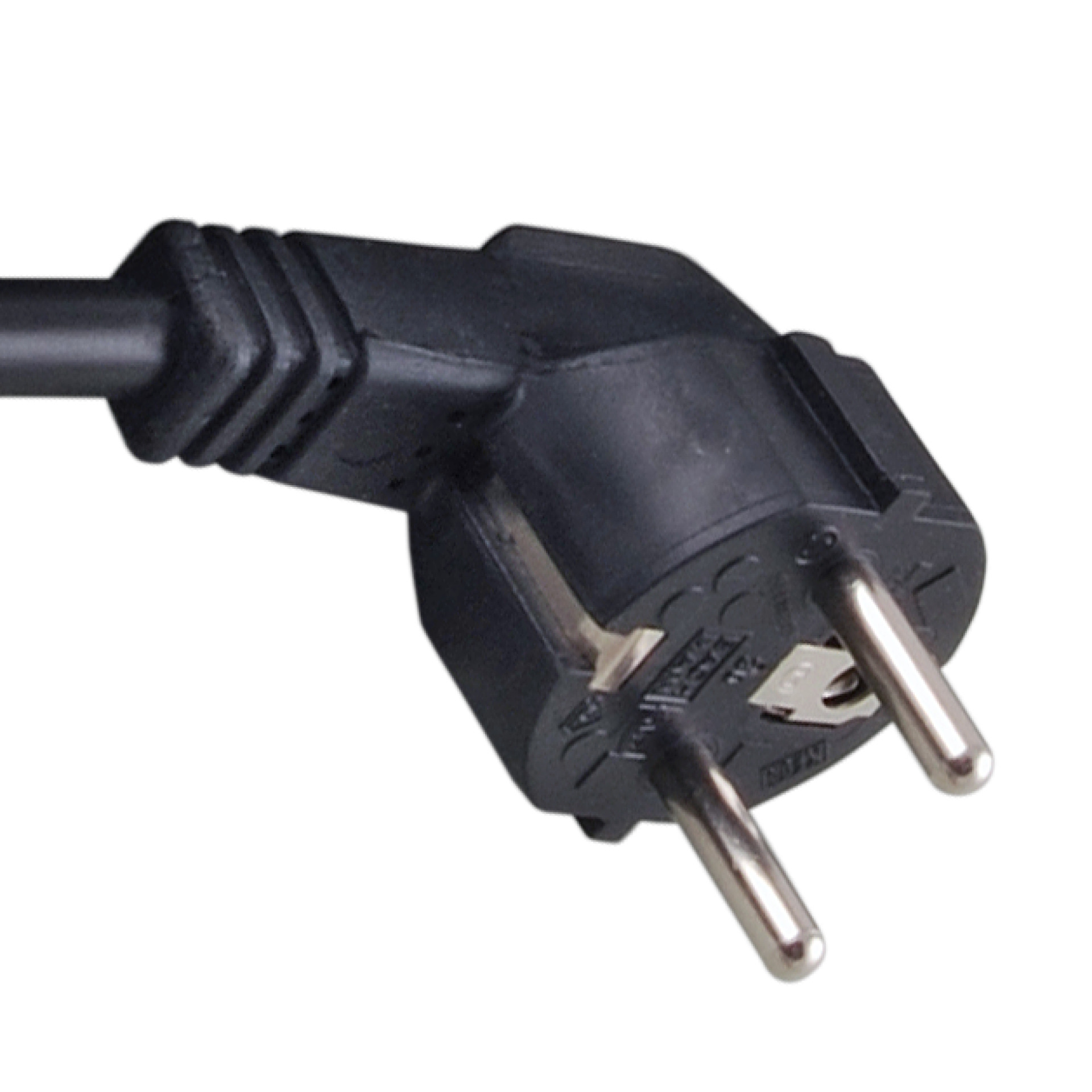

Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7

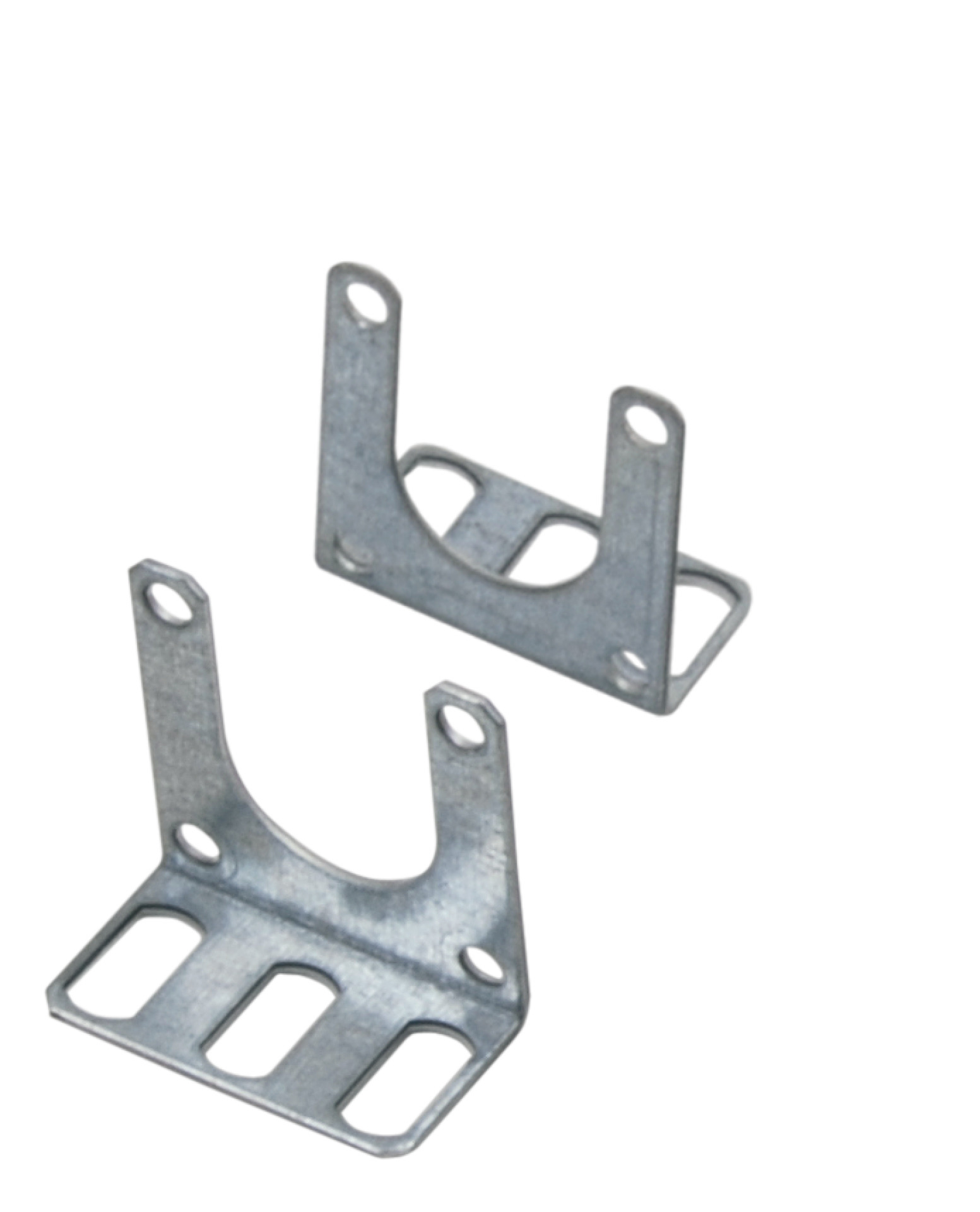

Supplied mounting brackets allow any fastening position
Visual function and failure display
35° turned socket inserts in the aluminium profile
Cable H05VV-F 3G 1.5 mm², black, 2.0 m, 250 V AC / 16 A with angled CEE7/3 plug CEE7/7
Supplied mounting brackets allow any fastening position
Technical properties
| (Halogenfree): | False |
|---|---|
| Angle rotated central insert: | 35 ° |
| Core cross section: | 1.50 mm² |
| Degree of protection: | IP20 |
| Housing shape: | Rectangular |
| Length of power cord: | 2.0 m |
| Mains filter: | False |
| Material: | Metal |
| Material quality: | Aluminium |
| Nominal current: | 16 A |
| Over voltage protection: | True |
| Residual current circuit breaker (RCCB): | False |
| Rotated central insert: | True |
| Surface finishing: | Matt |
| Surface protection: | Anodised |
| Transparent: | False |
| With cover lid: | False |
Variants
| Item no. | Name | Anti-bacterial treatment | Colour | Number of socket outlets with protective contact (CEE7/3) | With on/off switch | RAL-Nummer (ähnlich) | |
|---|---|---|---|---|---|---|---|
| 691687 | 19" 1U Socket Strip 8 x CEE7/3 with Surge Protection, Grey | False | grey | 8 | False | 7035 | |

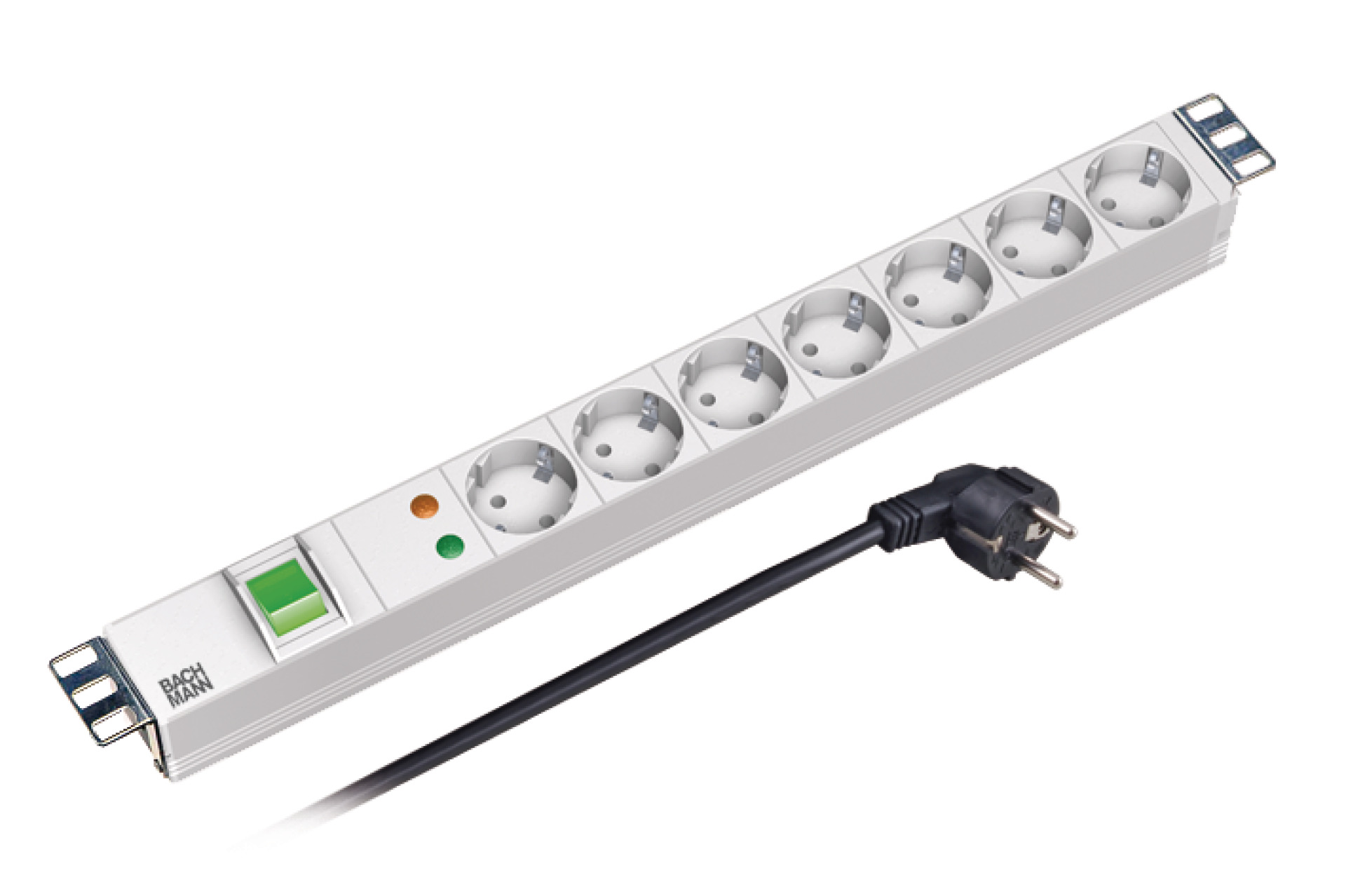

| 691688 | 19" 1U Socket Strip 7 x CEE7/3 with Surge Protection and Switch, Grey | False | grey | 7 | True | 7035 |
