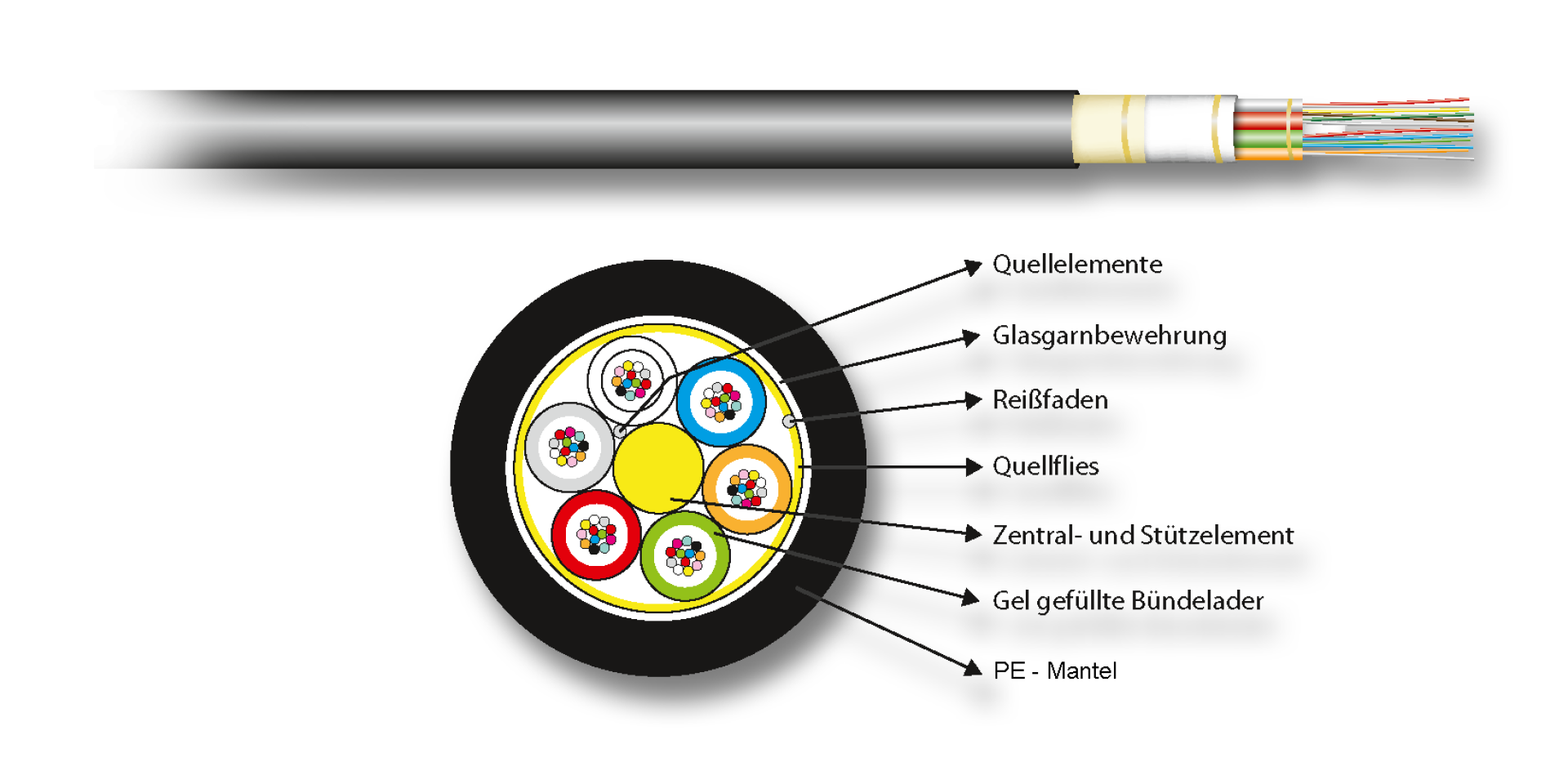

Außenkabel A-DQ (ZN)B2Y SM G657.A1 1750N
A-DQ(ZN)B2Y OS2 24E (1x24) Fca 1750N PE black 7.3mm G657A1
Item number:
55424.1
EAN no.:
4049759073145
Product information for A-DQ(ZN)B2Y OS2 24E (1x24) Fca 1750N PE black 7.3mm G657A1
Application:
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
Resistant to oil, petrol, acid and leach
The cable diameter can vary
For fixed installation outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Suitable for underground laying (direct buried)
Characteristics:
Outdoor cable
Resistant to oil, petrol, acid and leach
The cable diameter can vary
Technical properties
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| Application: | Outside |
| Armouring: | True |
| Blow in: | False |
| Cable & Fiber: |
IEC/EN 60794-1 IEC 60794-3 |
| Cable metal free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 1500 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | G657.A1 |
| Fibre type: | Single mode 9/125 |
| Flame-retardant: | False |
| Halogen free (according to EN 60754-1/2): | True |
| IL max. (dB/km) 1310nm: | 0.4 dB/km |
| IL max. (dB/km) 1550nm: | 0.4 dB/km |
| Jacket Material: | PE |
| Longitudinally watertight: | 3/24 m/h |
| Longitudinal water blocking: | True |
| Low smoke: | False |
| Low smoke (according to EN 61034-2): | False |
| Oil resistant: | Yes |
| Radial water blocking: | True |
| Resistant to chemicals: | True |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -25 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: |
Up to 12 fibers: 2.9 Up to 24 fibers: 3.5 mm |
| Type of tube: | Central tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
