Complete Set 19" Cabinet PRO 42U 800x1000 + Side Cooler 3.5 kW
Prices only visible for logged in users
Cabinet 42U + Bay Cooler 3.5 kW, WxD 1100x1000, RAL7035, *Complete Set*
Item number:
PRO-4210GR.SKL3,5
EAN no.:
4049759266677
Product information for Cabinet 42U + Bay Cooler 3.5 kW, WxD 1100x1000, RAL7035, *Complete Set*
Nearly noiseless and without heat for the installation room
Ideal for all quite locations: office, conference / seminar room, libraries, hospital, …

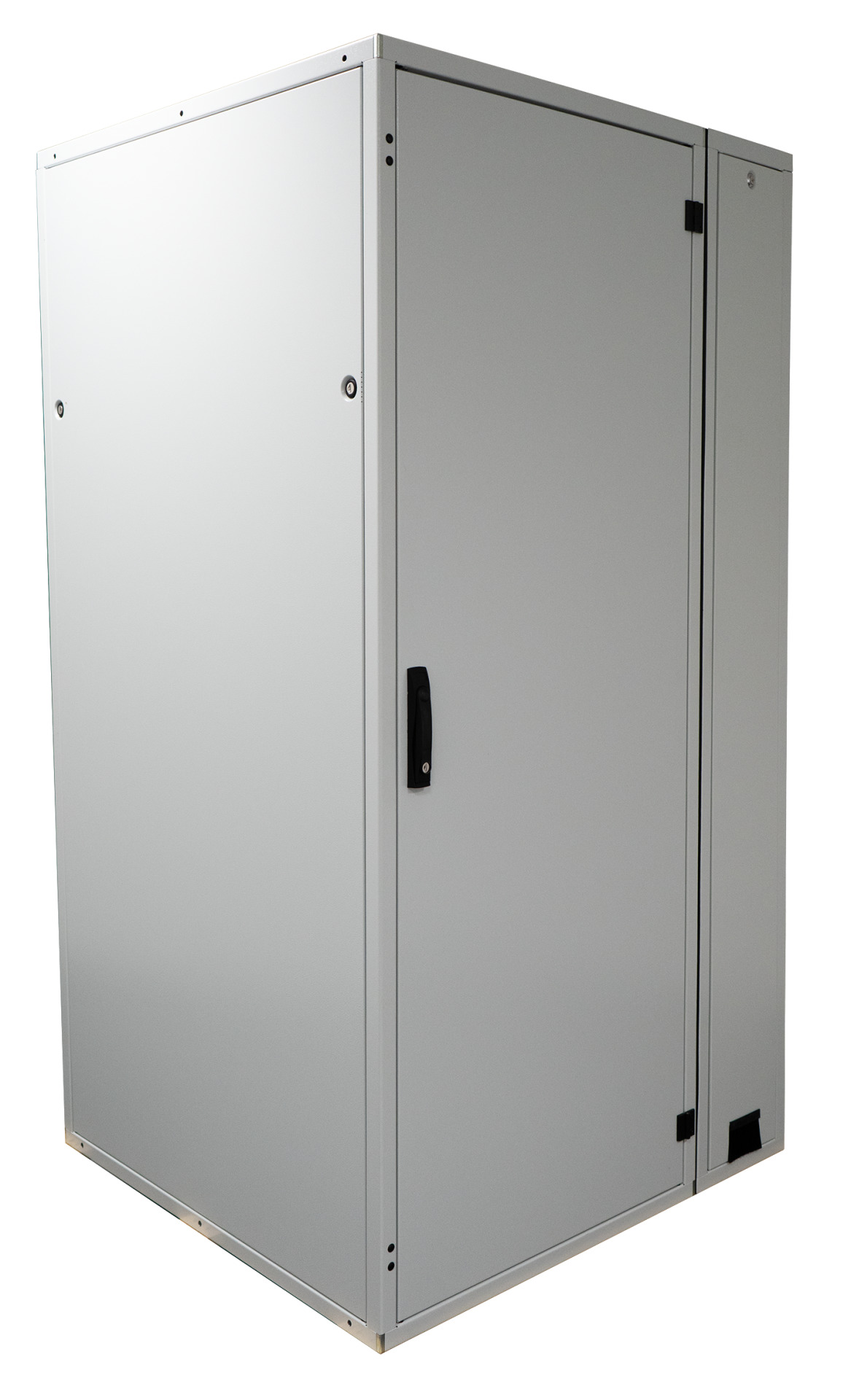

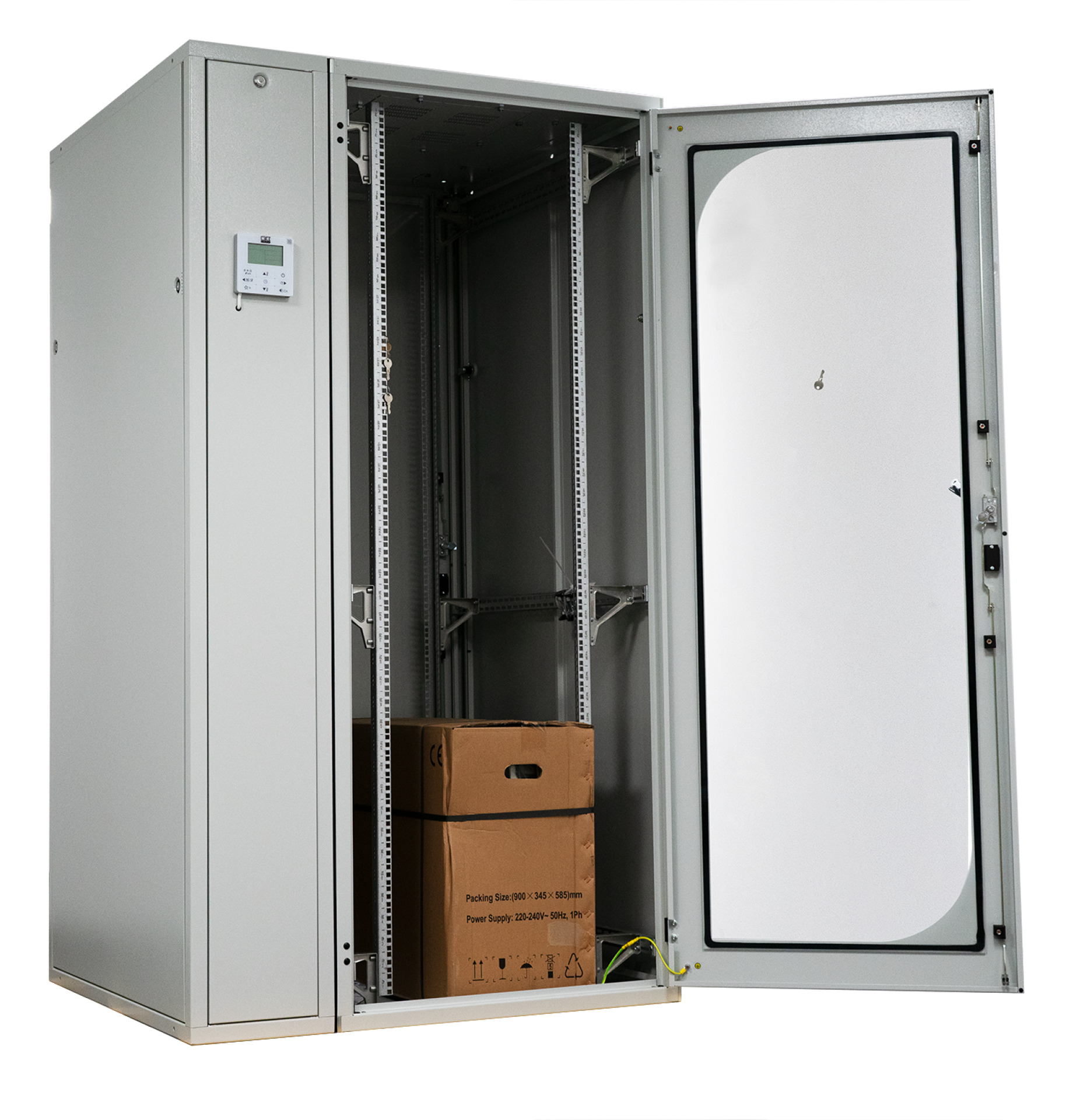

19" network/server cabinet 42U, depth 1000 mm, coplet set with side cooler

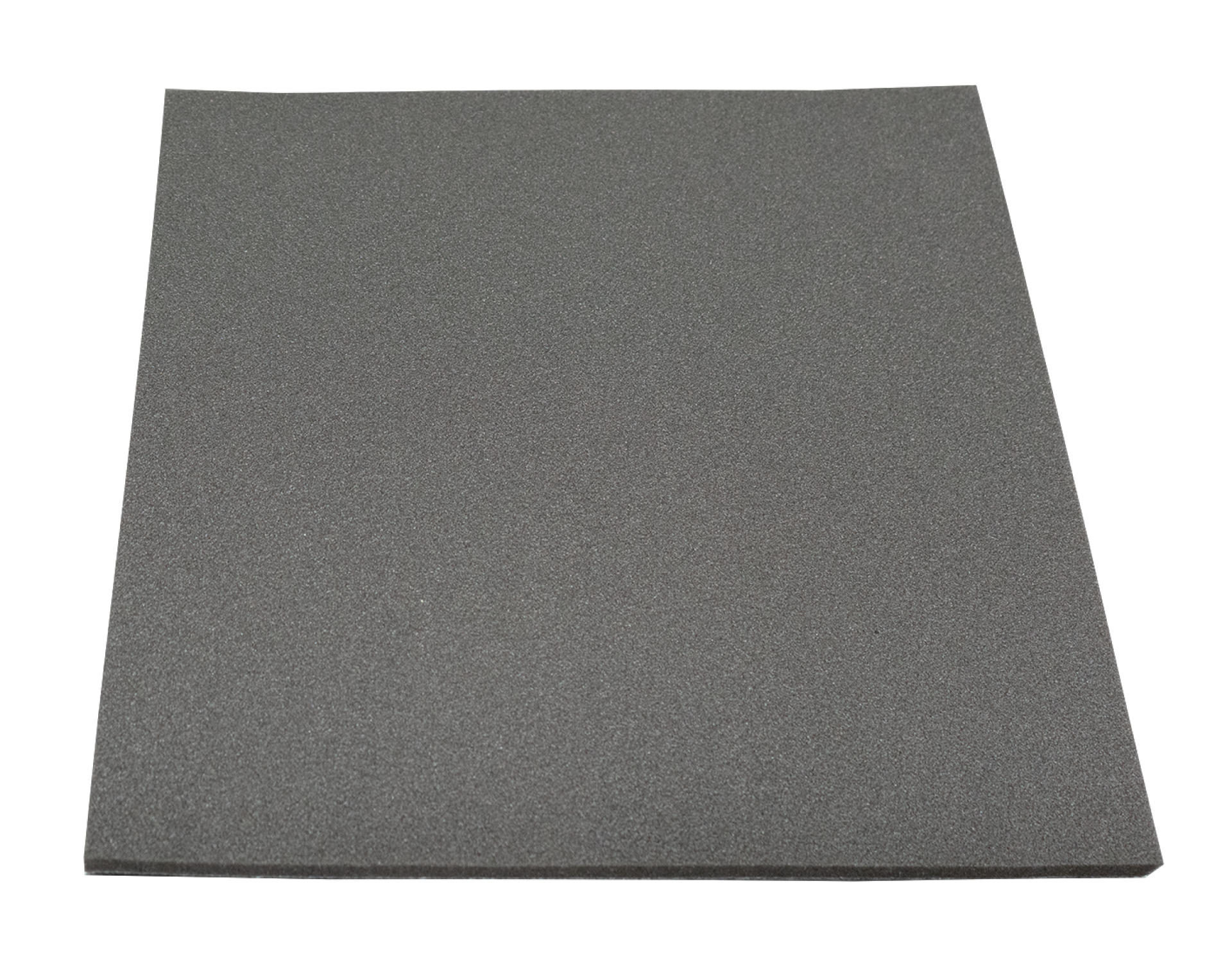

Nearly noiseless due to integrated noise absorption mats – practically not noticeable in the installation location!

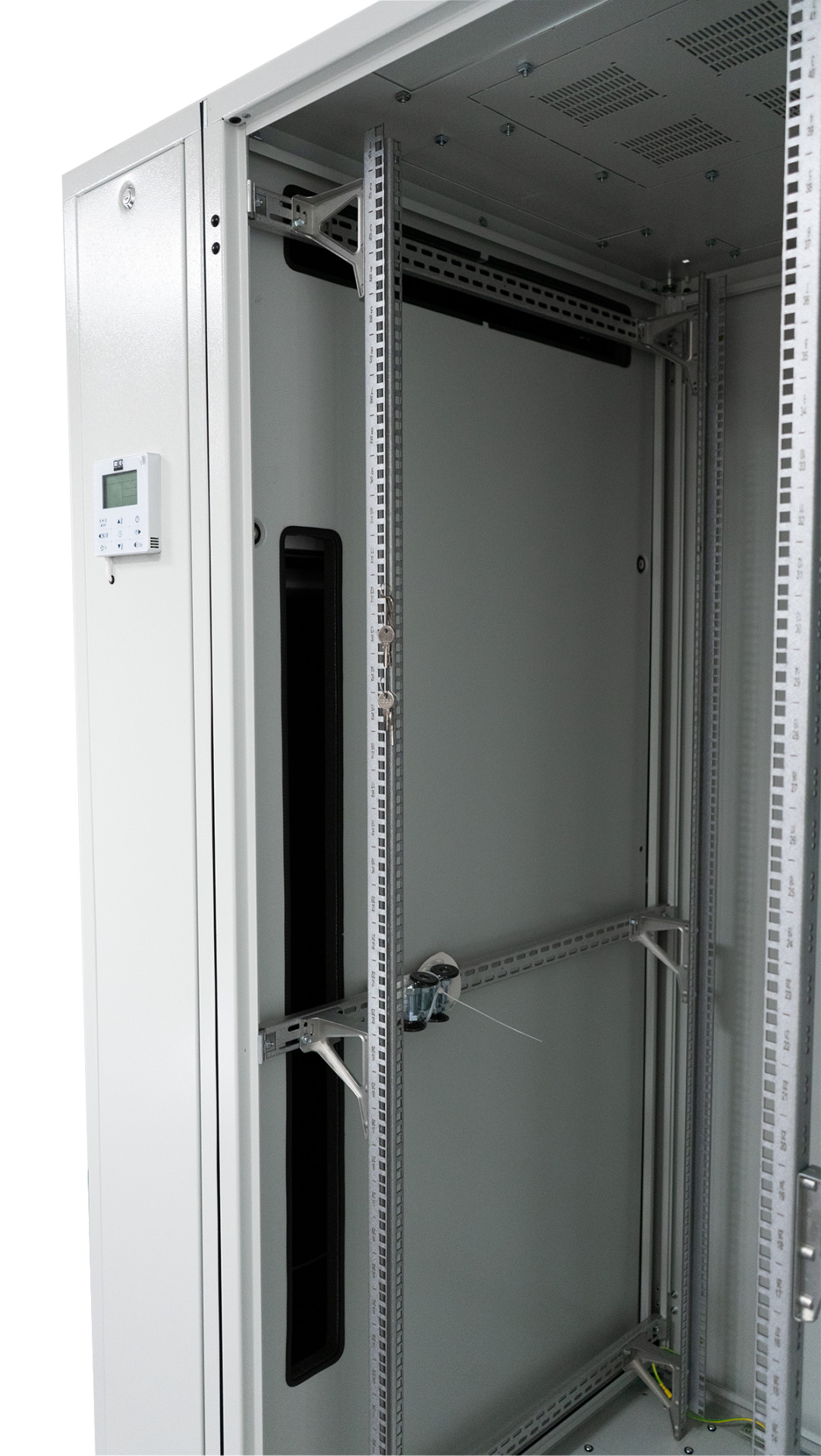

Integrated air routing system guides the cold air into the frontside of the cabinet
Evacuating of the waste heat in top of the cabinet
No waste heat for the installation room
Side module contains the cooling unit of the split-climatic system
Outdoor unit („Chiller“) is installed in next room or at a outside wall
Energy efficiency class "A" due to cooling system in Inverter Technology, means that only the actually necessary energy is used
Common Specifications:
Side cooler inside fully lined with special acoustic foam for especially quite operation
Insulated side and rear wall, detachable
Rear-sided outlet for cables an cooling pipes

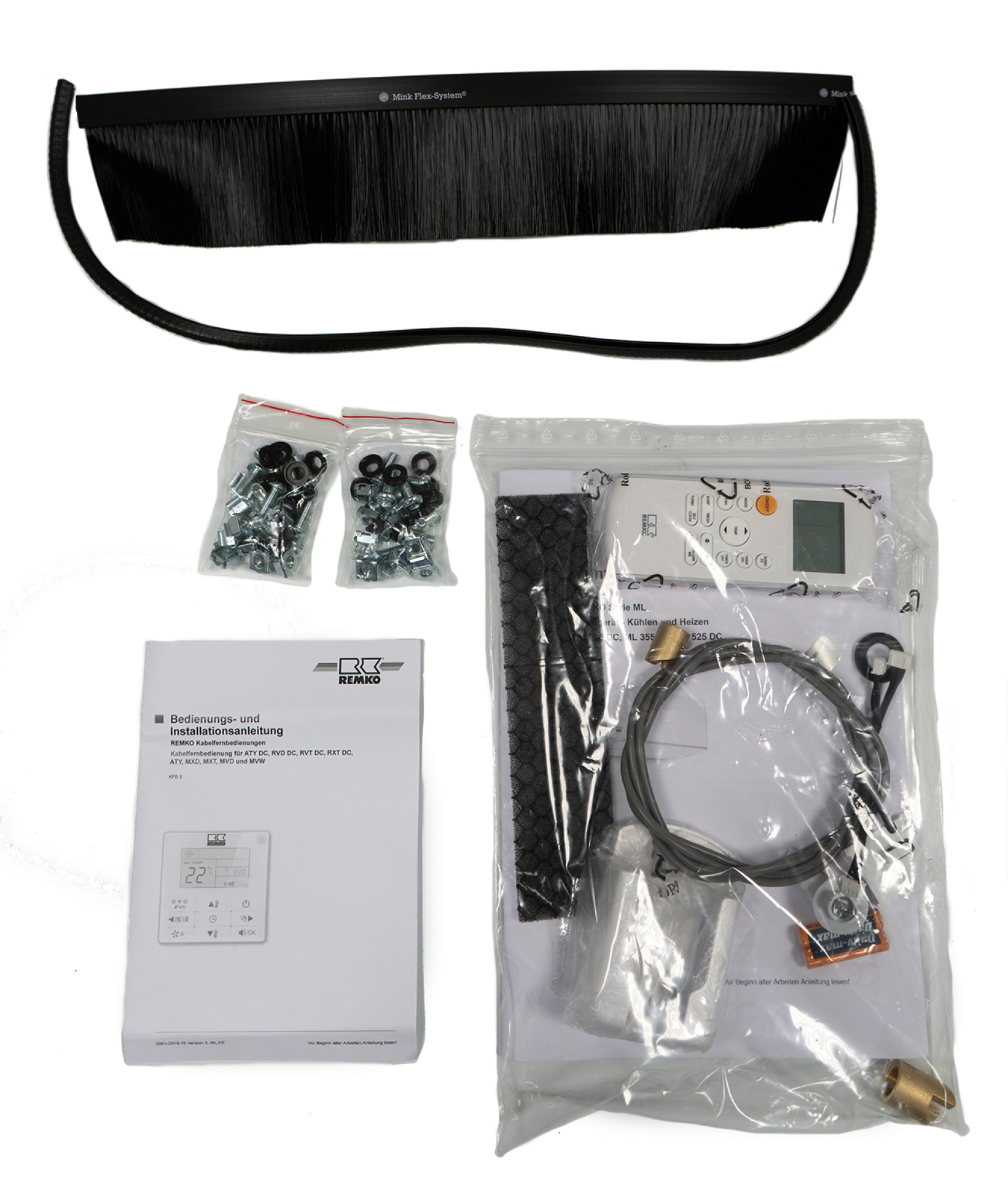

Control via touch panel in the front or IR remote control (included)
Paint finish RAL7035, light grey (RAL9005 or special design on request)
Technical specifications indoor unit (integrated in side module):
Modern inverter technology
Cooling power 3500 W / power consumption 880 W / yearly consumption 440 kWh
Energy efficiency class "A“
Dimensions (H x W x D) 285 x 885 x 210 mm,weight 11 kg
Operation voltage 230 V / 50 Hz
De-humidifiers 1,3 l/h
Air flow 720 m³/h
SPL max. 39 dB(A)
Protection degree IP40
Technical specifications outdoor unit:
Modern inverter technology
Cooling power 3500 W
Operation temperature -15°C .. +48°C
Dimensions (H x W x D) 545 x 770 x 288 mm, weight 35 kg
Refridgerant 1000 g R410A
Motor power 43 W
Air flow 33 m³/h
SPL max. 45 dB(A)
Ideal for all quite locations: office, conference / seminar room, libraries, hospital, …
19" network/server cabinet 42U, depth 1000 mm, coplet set with side cooler
Nearly noiseless due to integrated noise absorption mats – practically not noticeable in the installation location!
Integrated air routing system guides the cold air into the frontside of the cabinet
Evacuating of the waste heat in top of the cabinet
No waste heat for the installation room
Side module contains the cooling unit of the split-climatic system
Outdoor unit („Chiller“) is installed in next room or at a outside wall
Energy efficiency class "A" due to cooling system in Inverter Technology, means that only the actually necessary energy is used
Common Specifications:
Side cooler inside fully lined with special acoustic foam for especially quite operation
Insulated side and rear wall, detachable
Rear-sided outlet for cables an cooling pipes
Control via touch panel in the front or IR remote control (included)
Paint finish RAL7035, light grey (RAL9005 or special design on request)
Technical specifications indoor unit (integrated in side module):
Modern inverter technology
Cooling power 3500 W / power consumption 880 W / yearly consumption 440 kWh
Energy efficiency class "A“
Dimensions (H x W x D) 285 x 885 x 210 mm,weight 11 kg
Operation voltage 230 V / 50 Hz
De-humidifiers 1,3 l/h
Air flow 720 m³/h
SPL max. 39 dB(A)
Protection degree IP40
Technical specifications outdoor unit:
Modern inverter technology
Cooling power 3500 W
Operation temperature -15°C .. +48°C
Dimensions (H x W x D) 545 x 770 x 288 mm, weight 35 kg
Refridgerant 1000 g R410A
Motor power 43 W
Air flow 33 m³/h
SPL max. 45 dB(A)
Technical properties
| Alignment of cooling unit: | Left |
|---|---|
| Function master/slave: | False |
| Number of doors: | 2 |
| Sort of temperature control: | Micro controller |
| Voltage type: | AC |
