Door for ESV 47HE, W=800, perforated steel, 2-part
Door for ESV 47HE, W=800, perforated steel, 2-part, RAL7035
Item number:
ESV-TUR478P2.GR
Product information for Door for ESV 47HE, W=800, perforated steel, 2-part, RAL7035

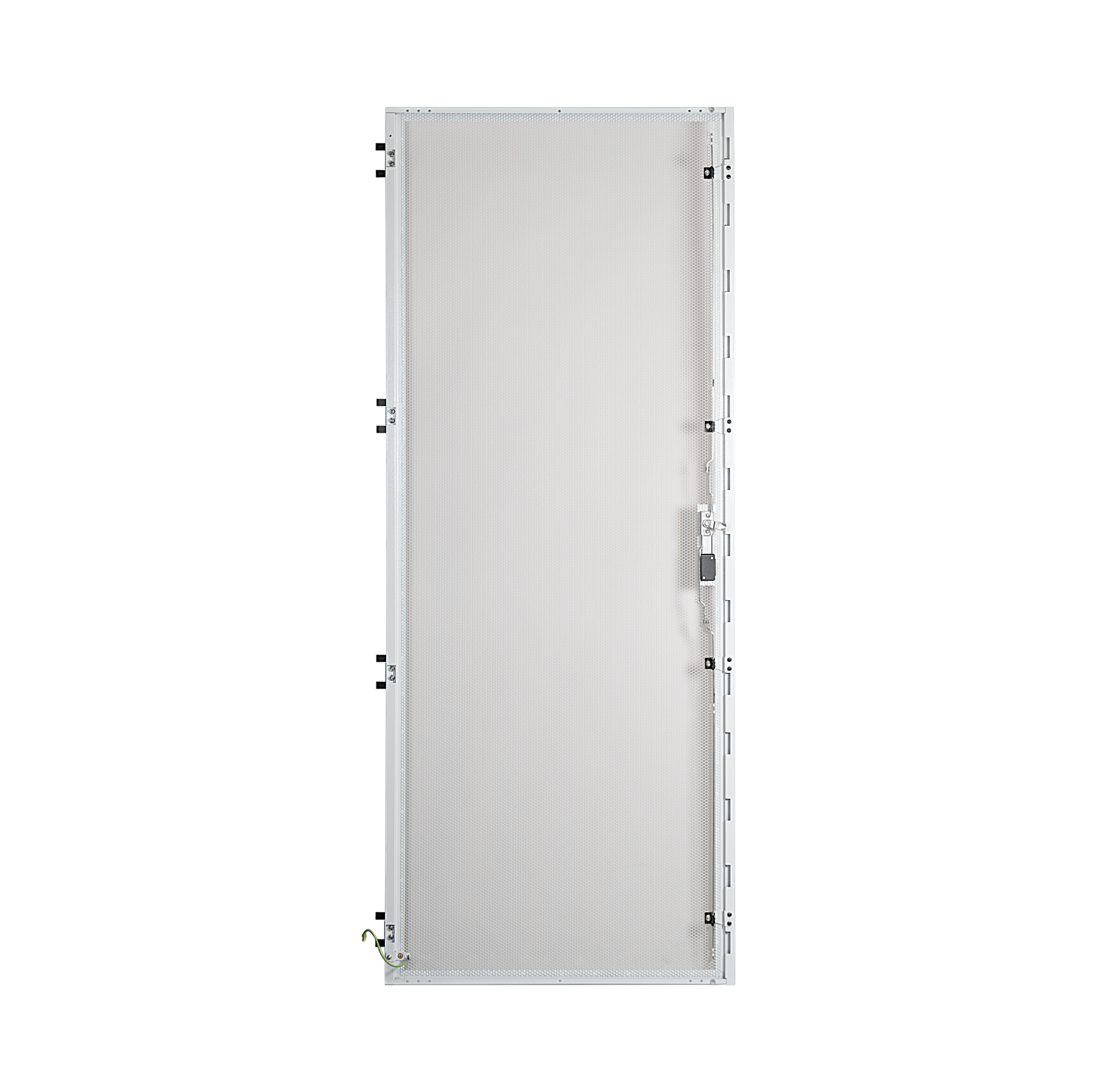

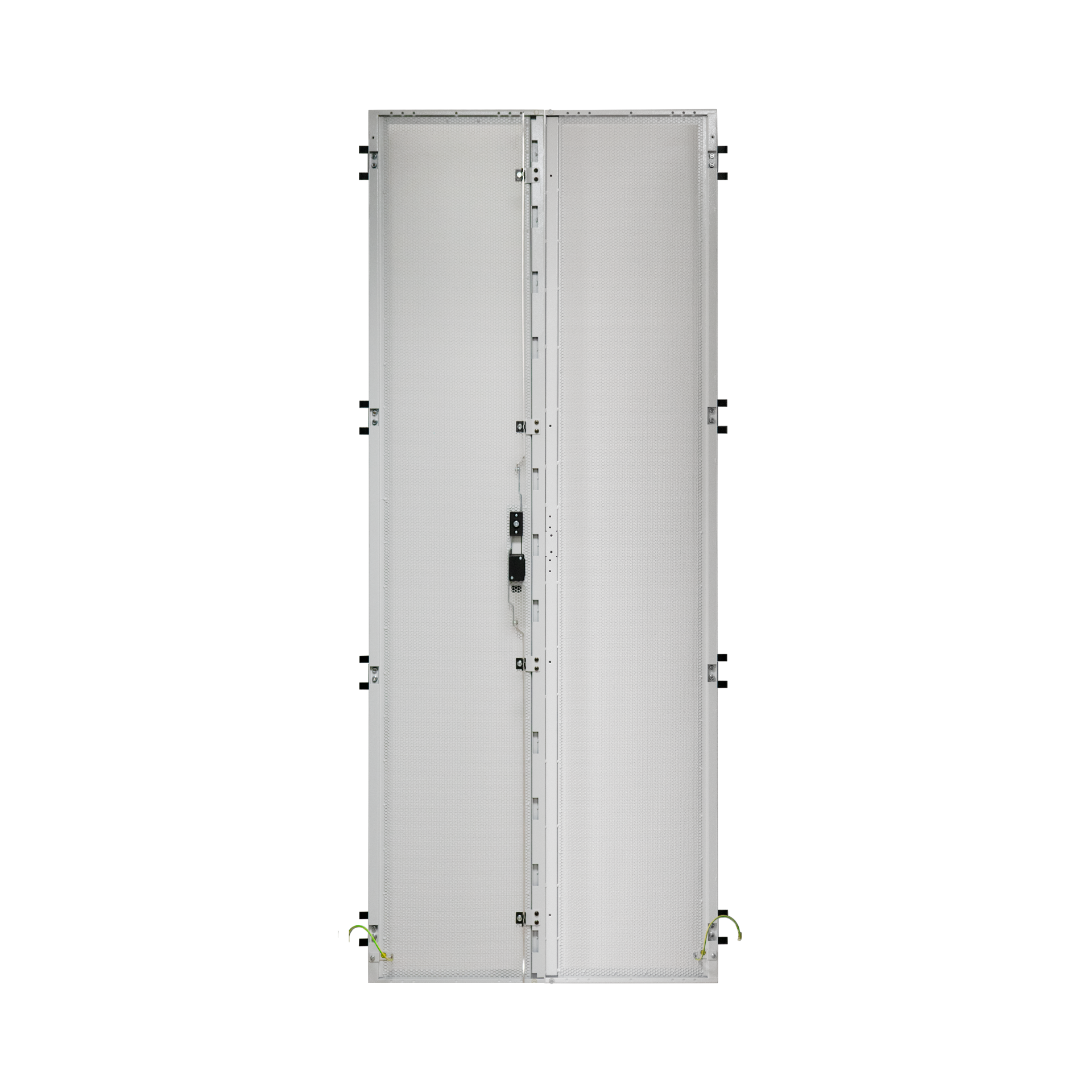

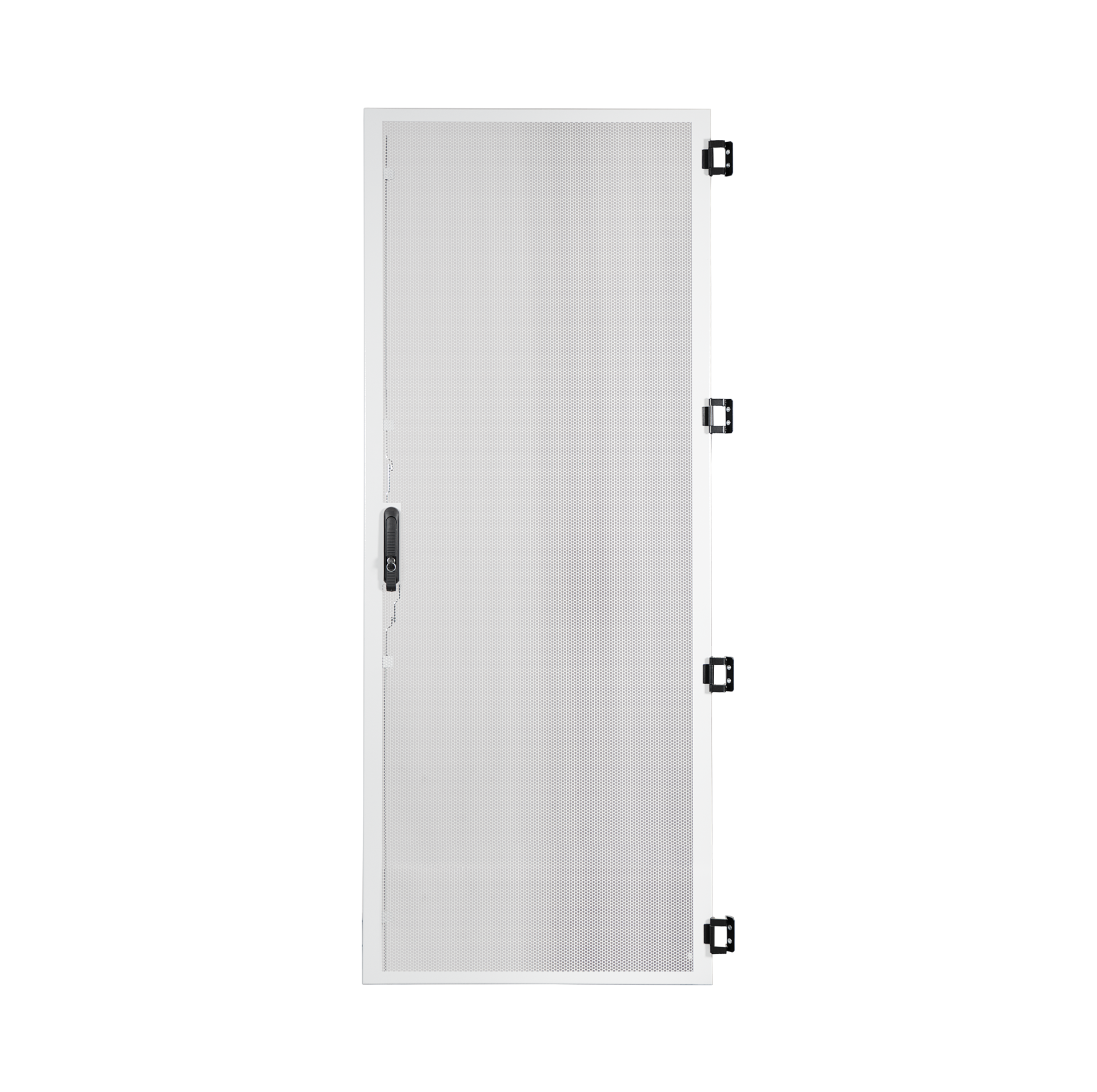

Two-part perforated steel door for 47U ESV cabinets, 800 mm wide
Perforation level 80%, perforated area 86%

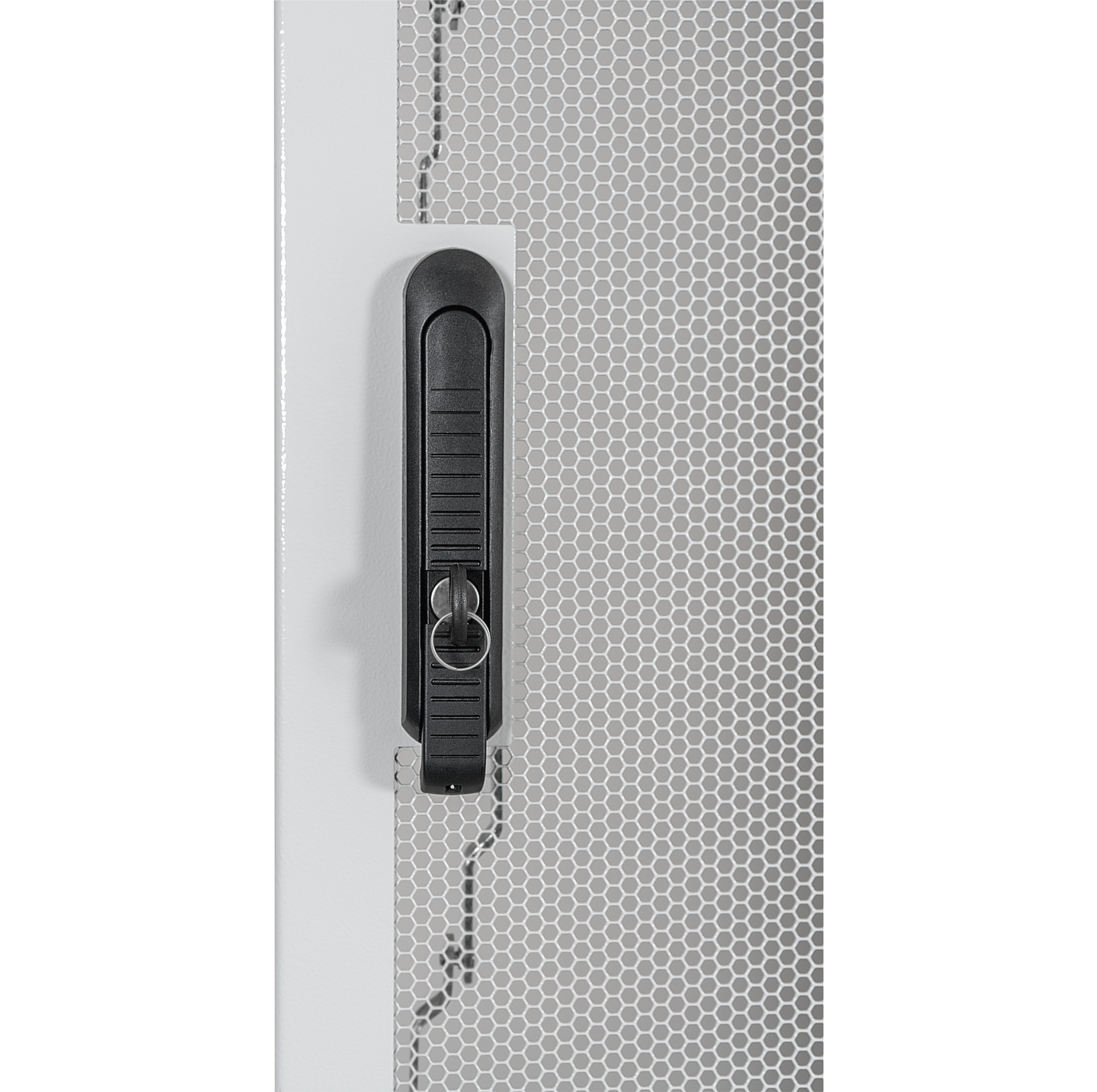

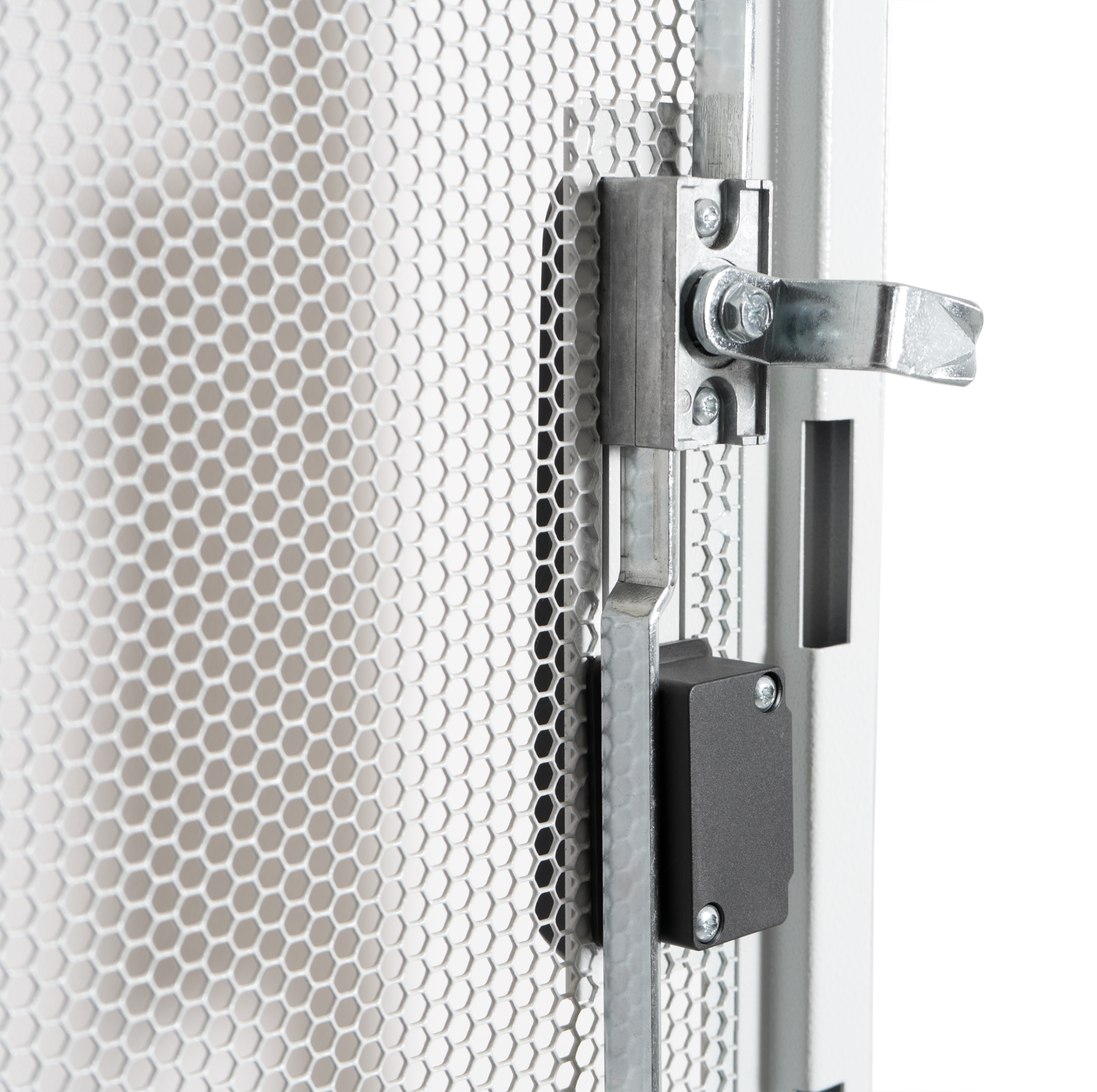

5-point locking with pivoting handle and profile half cylinder according to DIN 18252 / EN1303 (profile cylinder replaceable on-site)
Door opening angle 270°
Prepared cable routing, e.g., for electronic locking systems
Paint finish RAL 7035, light gray
Supplied pre-assembled including all hinges, screws and 2 keys
Perforation level 80%, perforated area 86%
5-point locking with pivoting handle and profile half cylinder according to DIN 18252 / EN1303 (profile cylinder replaceable on-site)
Door opening angle 270°
Prepared cable routing, e.g., for electronic locking systems
Paint finish RAL 7035, light gray
Supplied pre-assembled including all hinges, screws and 2 keys
Technical properties
| Cabinet Series: | EFB-Server |
|---|---|
| Material: | Steel |
| Model: | Symmetrically divided double wing door |
| Surface finishing: | Powder coating |
| Version as glazed door: | True |
