Dsub Jack, IDC contacts flat
EFB

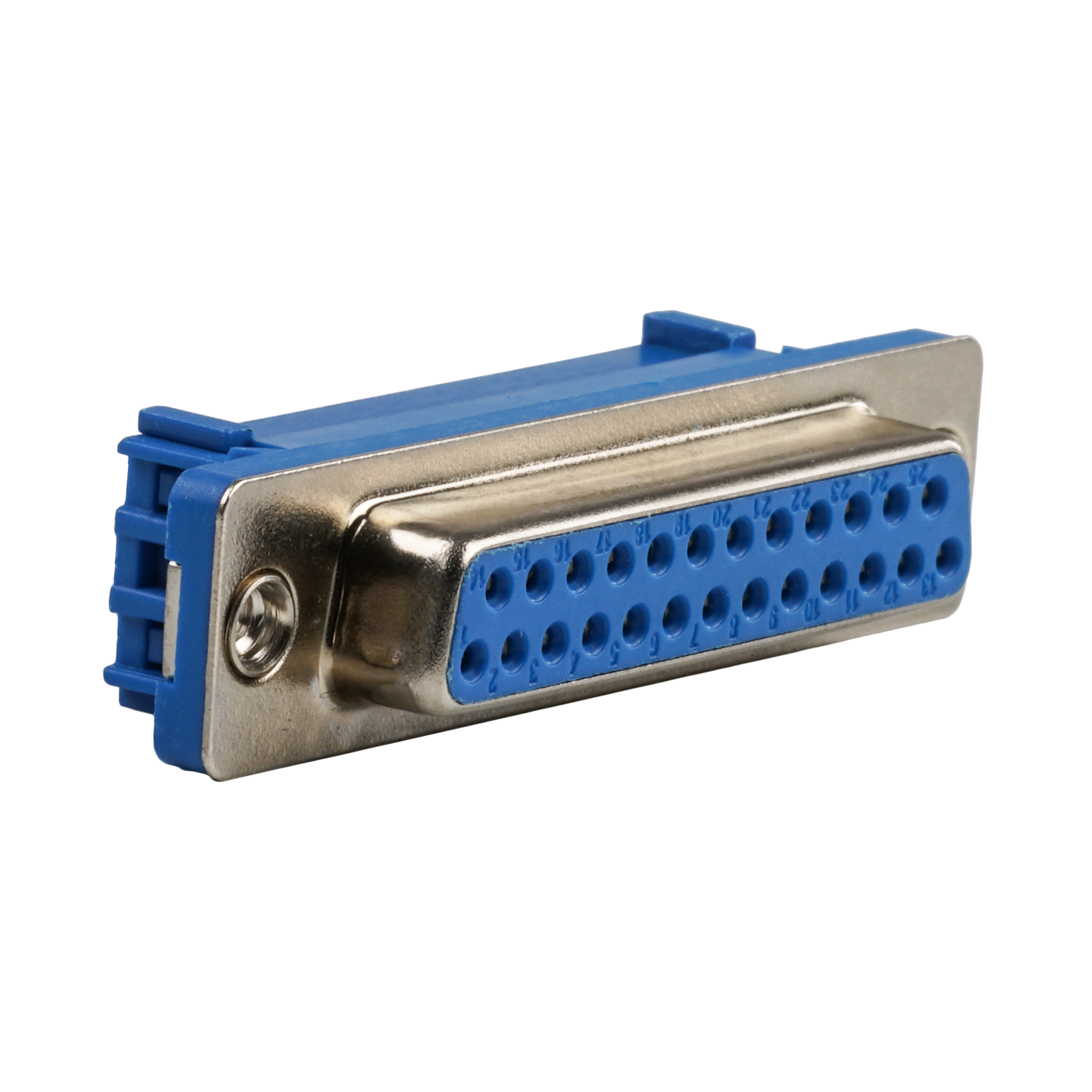

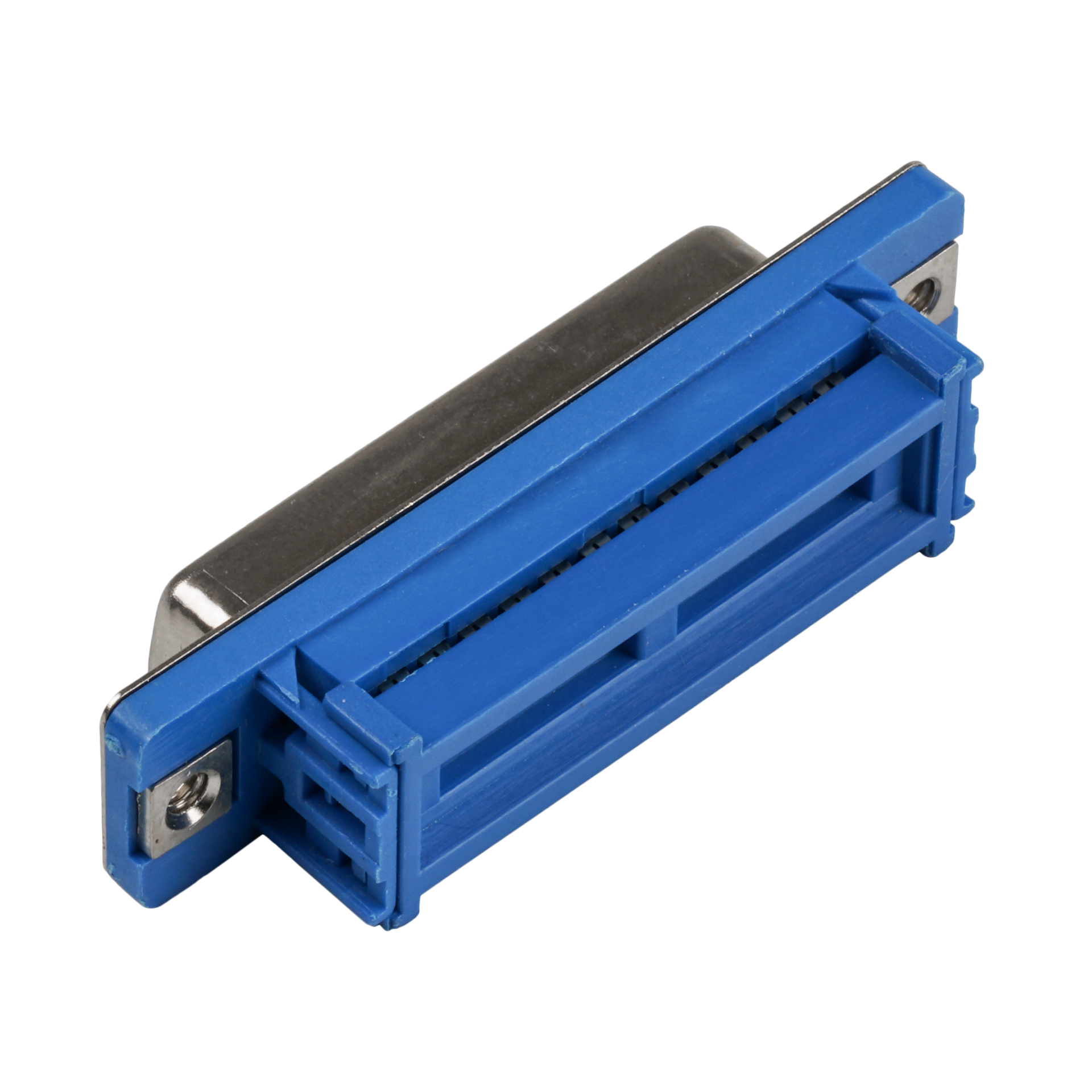

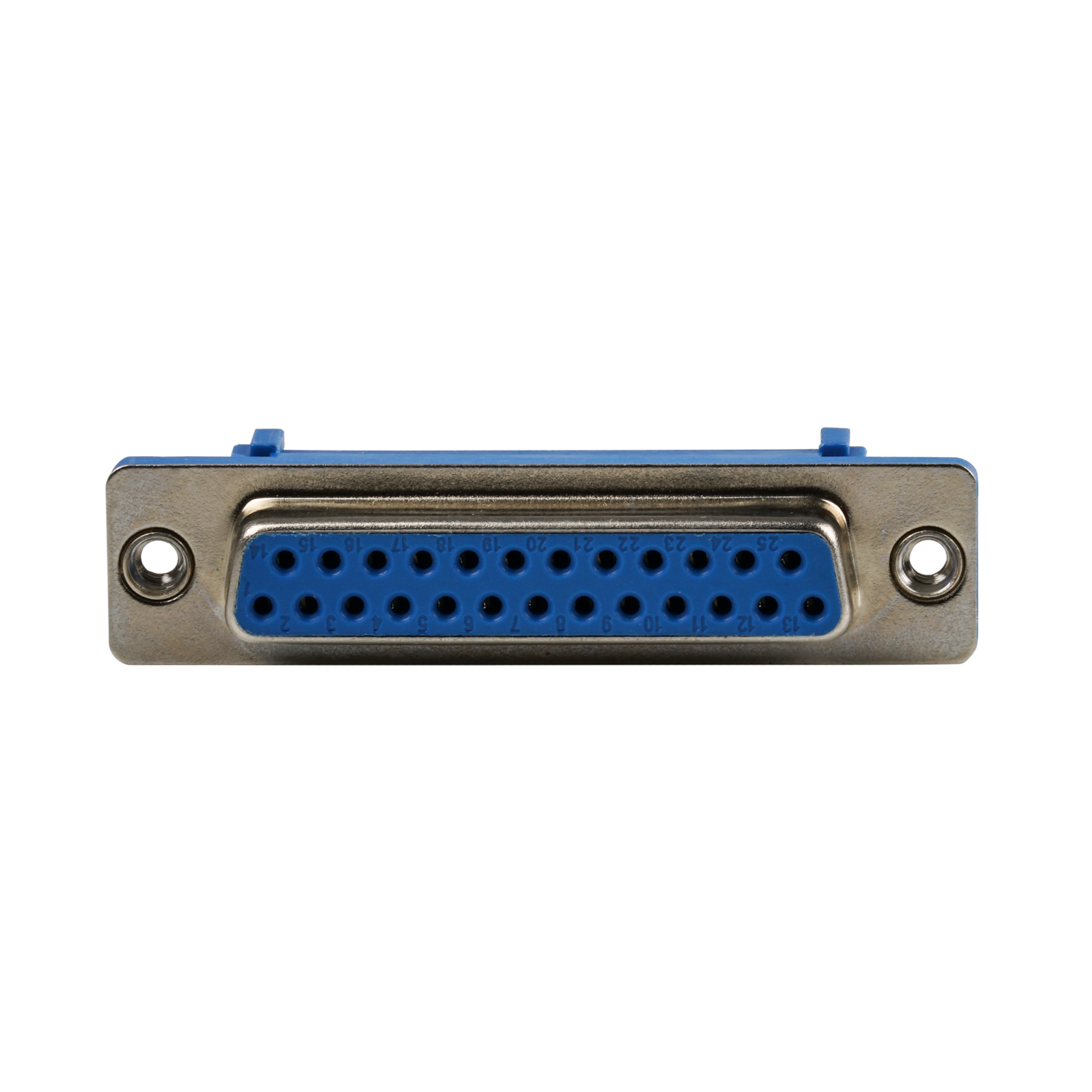

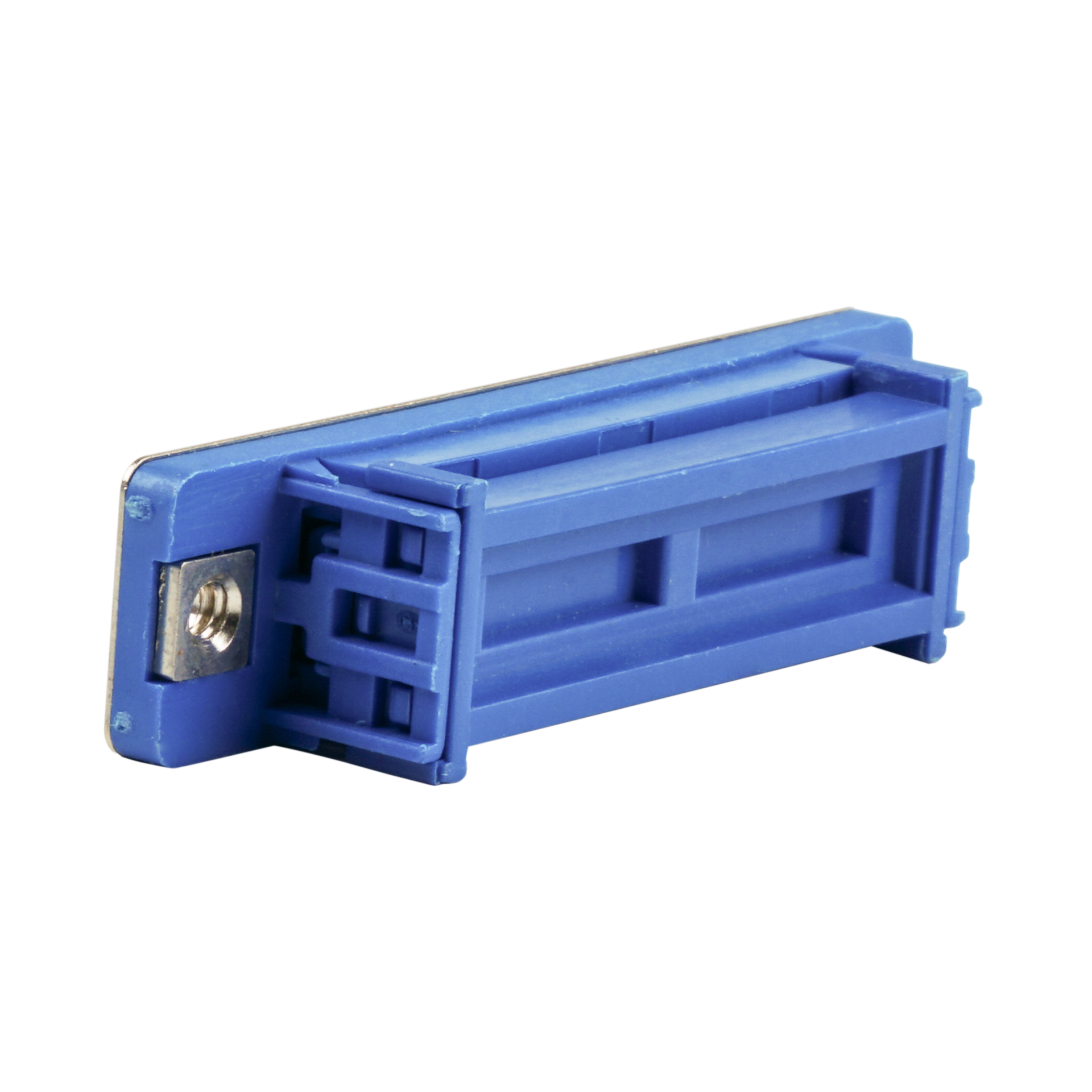

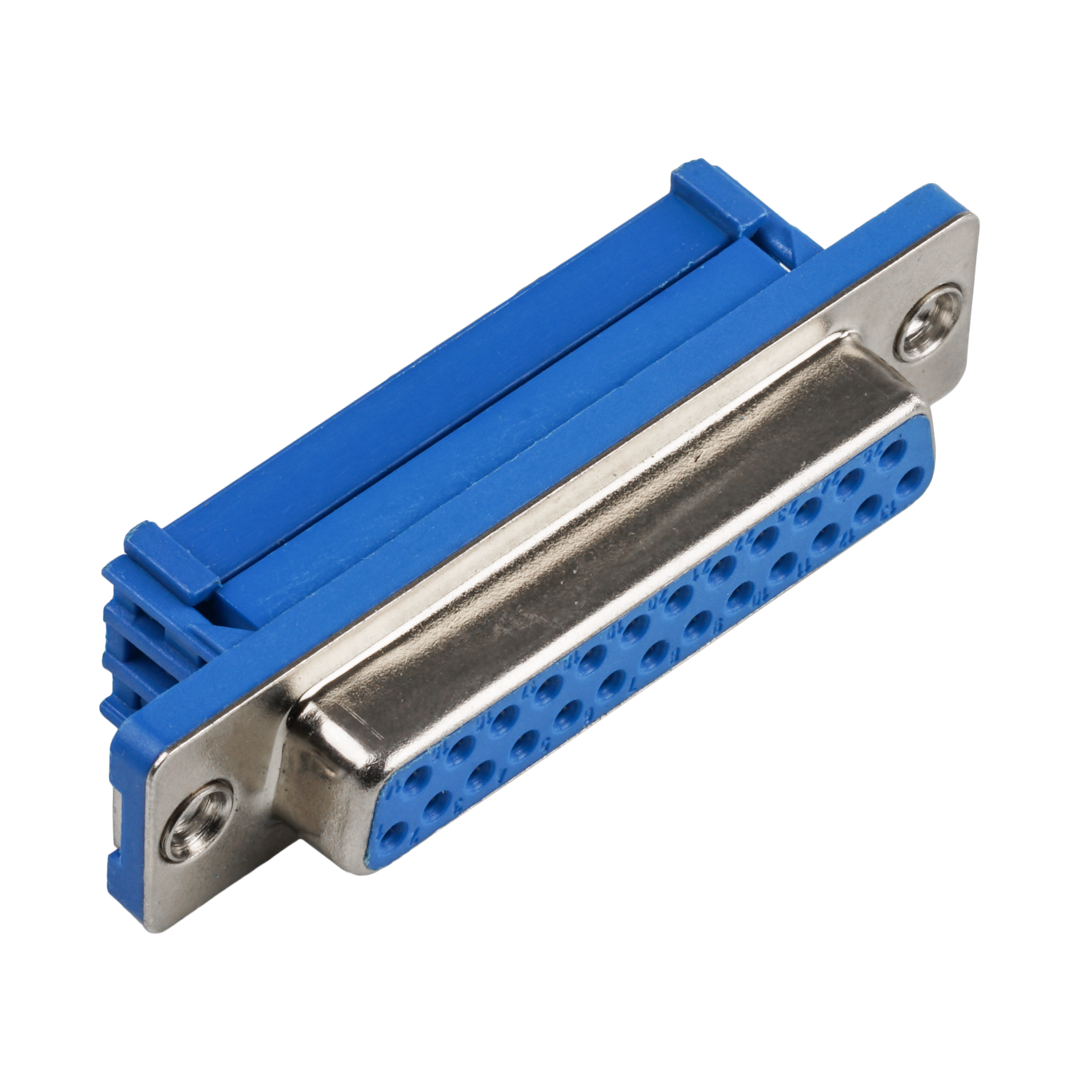

Dsub Jack, IDC contacts flat, version, E-DFF 25 LPIII/Z
Item number:
29012.1V2
EAN no.:
4049759335281
Product information for Dsub Jack, IDC contacts flat, version, E-DFF 25 LPIII/Z
• Quality level III
• 50 mating cycles
• 50 mating cycles
| Conductor cross-section: | 28AWG ~ 26AWG |
|---|---|
| Connection angle (180°/90°): | 180 |
| Connection type: | Other |
| Contact manufacturing method (turned/stamped): | stamped |
| Contact type: | female |
| For cable type (round/flat): | flat |
| Model: | jack |
| Temperature range: | -25 – 85 |
Technical properties
| Conductor cross-section: | 28AWG ~ 26AWG |
|---|---|
| Connection angle (180°/90°): | 180 |
| Connection type: | Other |
| Contact manufacturing method (turned/stamped): | stamped |
| Contact type: | female |
| For cable type (round/flat): | flat |
| Model: | jack |
| Temperature range: | -25 – 85 |
Variants
| Item no. | Name | Number of poles | Type | Packaging | Numbrt of rows | |
|---|---|---|---|---|---|---|
| 29010.1V2 | Dsub Jack, IDC contacts flat, version, E-DFF 09 LPIII/Z | 9 | EDFF 09 LPIII/Z | 90 Stück pro Blister | 2 | |
| 29011.1V2 | Dsub Jack, IDC contacts flat, version, E-DFF 15 LPIII/Z | 15 | EDFF 15 LPIII/Z | 70 Stück pro Blister | 2 | |
| 29012.1V2 | Dsub Jack, IDC contacts flat, version, E-DFF 25 LPIII/Z | 25 | EDFF 25 LPIII/Z | 40 Stück pro Blister | 2 |
