Equipped Front Panel with 6 x LC Duplex Adapter OM4

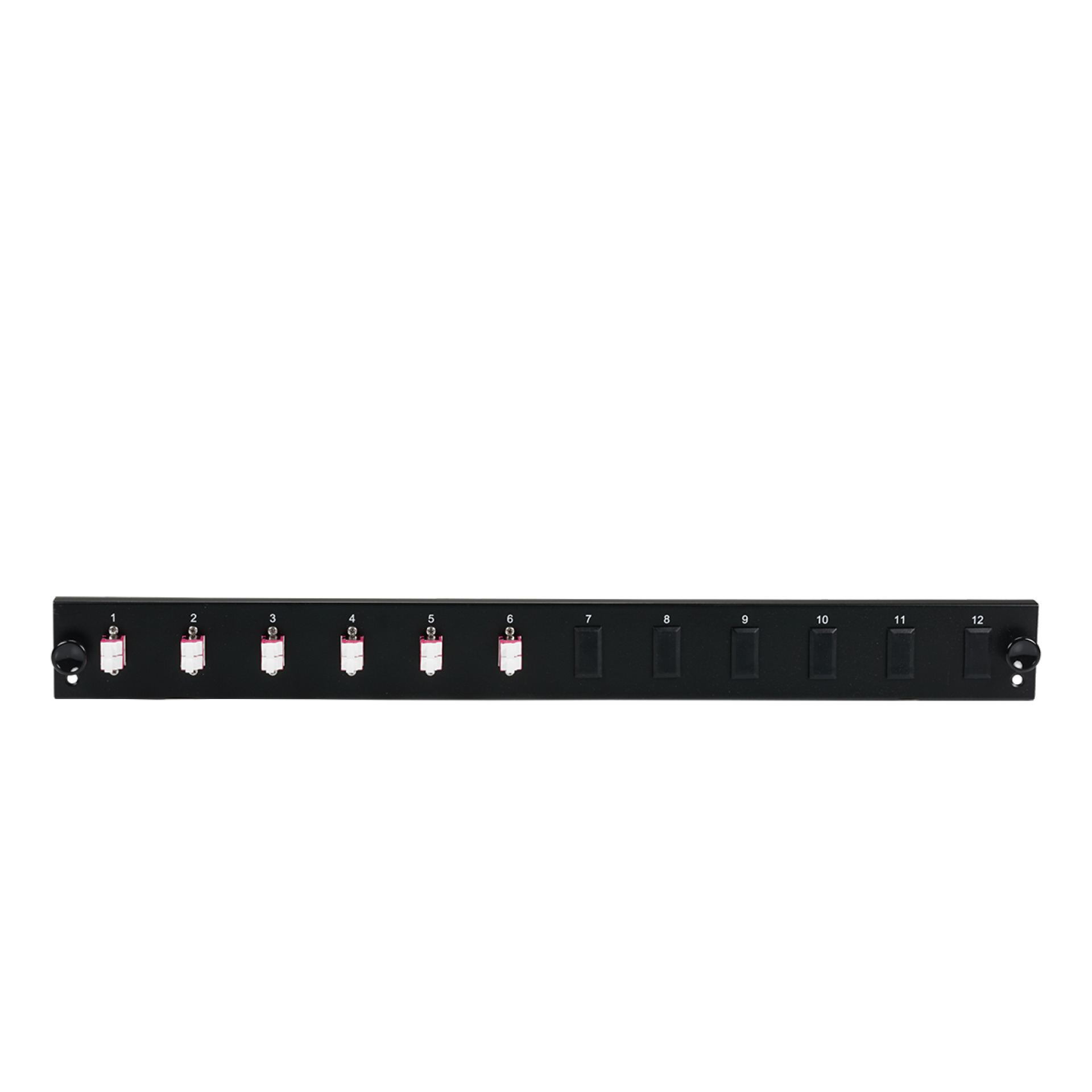

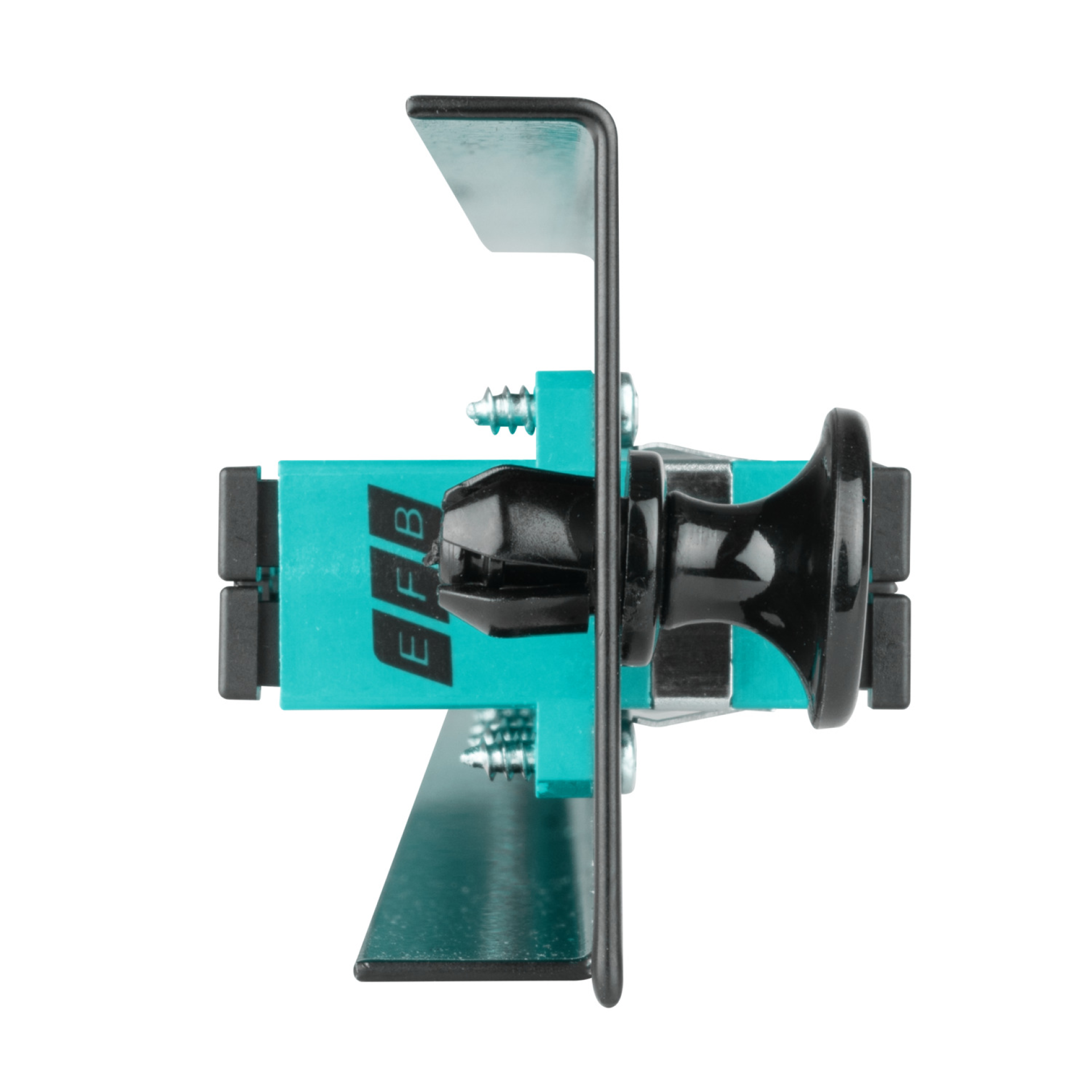

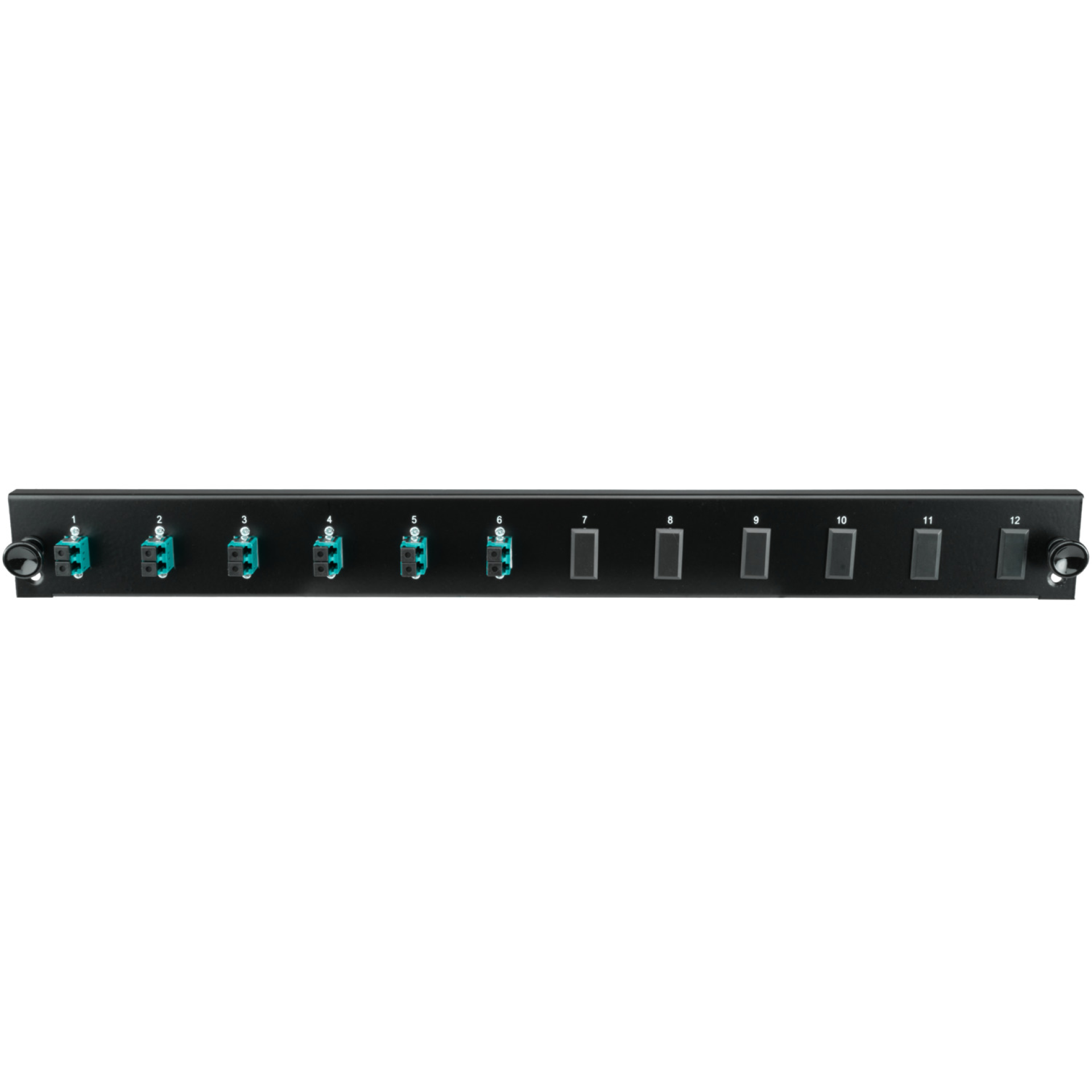

Equiped 12 Port Front Panel with 6x LC Duplex adapter OM4 vertical, black
Item number:
SB-FP-S-6SC-S-OM4
EAN no.:
4049759262464
Product information for Equiped 12 Port Front Panel with 6x LC Duplex adapter OM4 vertical, black
Front panel for 19" splice boxes equipped with LC duplex adapters in the categories OM3, OM4 and OS2.
Technical properties
| Depth: | 13 mm |
|---|---|
| Height: | 43.5 mm |
| Material: | Metall |
| Number of height units: | 1 HE |
| Type of plug-in connector system: | Glasfaser |
| Width: | 432 mm |
| With buses/couplings: | Ja |
Variants
| Item no. | Name | Connection type backside | Number of connector holes | Category | Model | Connection type front side | Suitable for adapter | Color | Assembly | RAL number | Note | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-FP-6SC-S-OM4 | Equiped 12 Port Front Panel with 6x LC Duplex adapter OM4 vertical, grey | LC | 6 | OM4 | Equiped Front Panel | LC | SC Simplex/LC Duplex/E2000® | grey | Adapter | 7035 | holes vertical | |
| SB-FP-S-6SC-S-OM4 | Equiped 12 Port Front Panel with 6x LC Duplex adapter OM4 vertical, black | LC | 6 | OM4 | Equiped Front Panel | LC | SC Simplex/LC Duplex/E2000® | schwarz | Adapter | 9005 | holes vertical |
