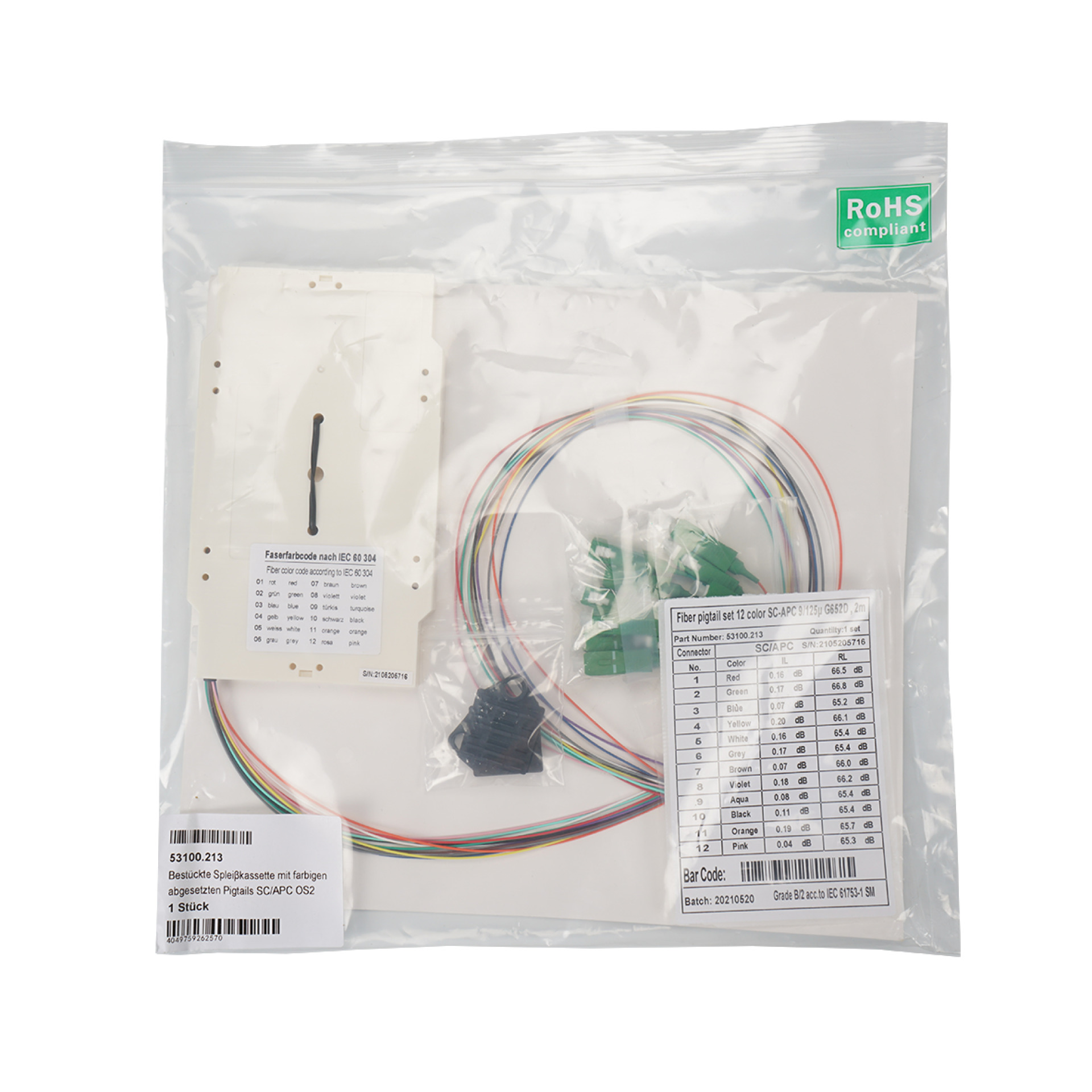

Equipped splice cassette with coloured stripped pigtails SC/APC OS2
Equipped splice cassette with coloured stripped pigtails SC/APC OS2
Item number:
53100.213
EAN no.:
4049759262570
Product information for Equipped splice cassette with coloured stripped pigtails SC/APC OS2
Equipped splice cassette with pigtails in the categories OM3, OM4, OM5, OS2 and OS2/APC. These are available in LC and SC mating faces. The pigtails are stripped, inserted into the splice cassette and have a length of 80cm outside the cassette in order to be able to implement the cable routing in the splice box correspondingly easily. The pigtails used are colour-coded according to VDE-0888 with a solid-coloured coating and 12-coloured jacket. The measurement protocols of the individual fibers are enclosed in the packaging unit. In addition, the crimp splice holder (12 splices) is pre-assembled in the splice cassette, the shrink splice protector (2x à 6 splices) is enclosed in the packaging unit.
Technical properties
| Anti-kink sleeve: | Put-on |
|---|---|
| Cable Conform to Standard: | IEC60793-2 |
| Colour Code: | VDE-0888 |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Jacket Material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Type: | Conductor pigtail |
Variants
| Item no. | Name | Colour | Category | APC version | Type of connector | Faserart | Einfügedämpfung 1310nm | Qualitätsklasse Singlemode | Steckerfarbe | |
|---|---|---|---|---|---|---|---|---|---|---|
| 53100.211 | Equipped splice cassette with coloured stripped pigtails SC OS2 | 12-colours | OS2 acc. to ITU-T G.652.D | False | SC | Singlemode 9/125 | < 0,3 dB | B/2 nach IEC 61753-1 | blau | |
| 53100.213 | Equipped splice cassette with coloured stripped pigtails SC/APC OS2 | 12-colours | OS2 acc. to ITU-T G.652.D | True | SC/APC | Singlemode 9/125 | < 0,3 dB | B/2 nach IEC 61753-1 | grün |
