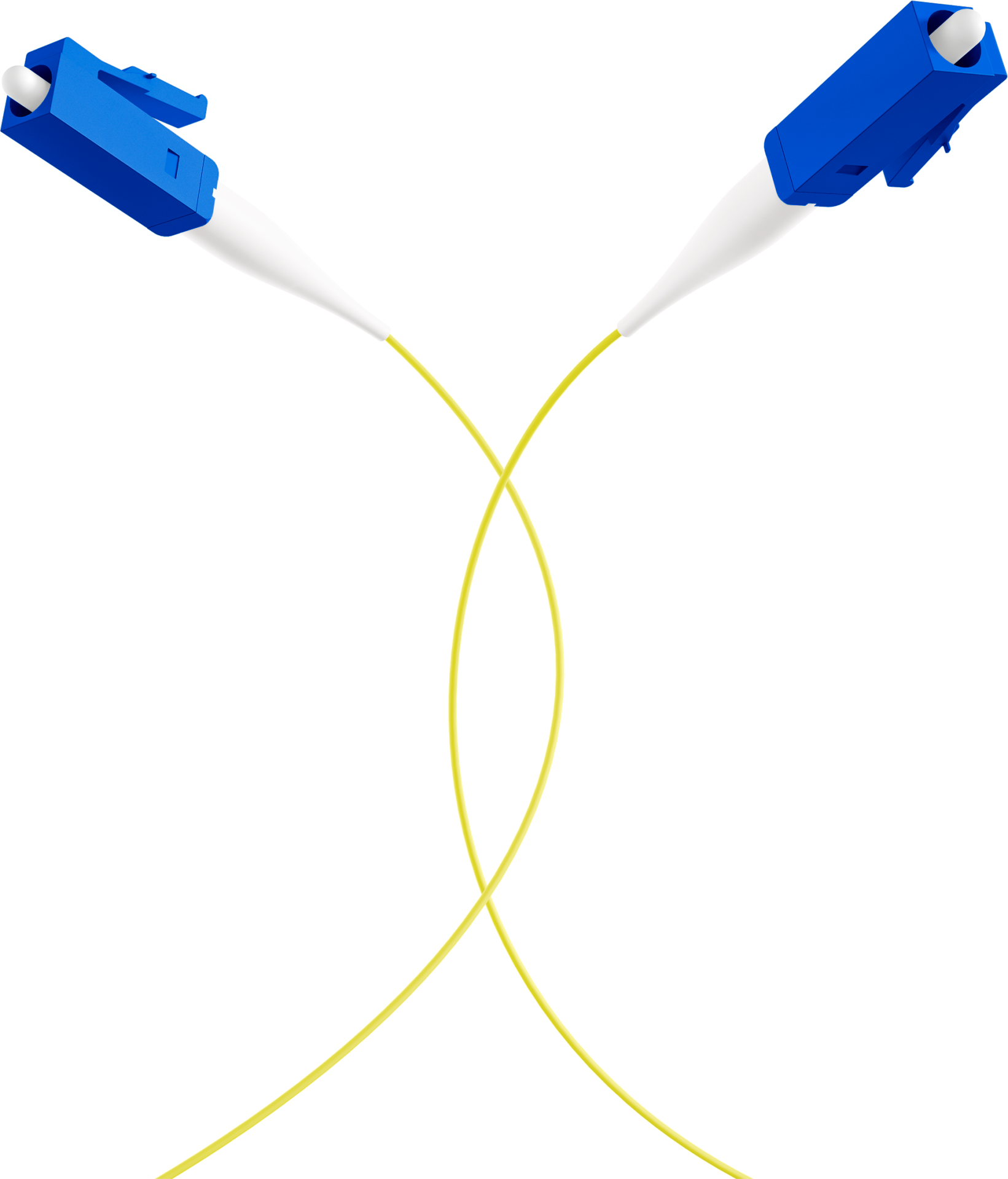

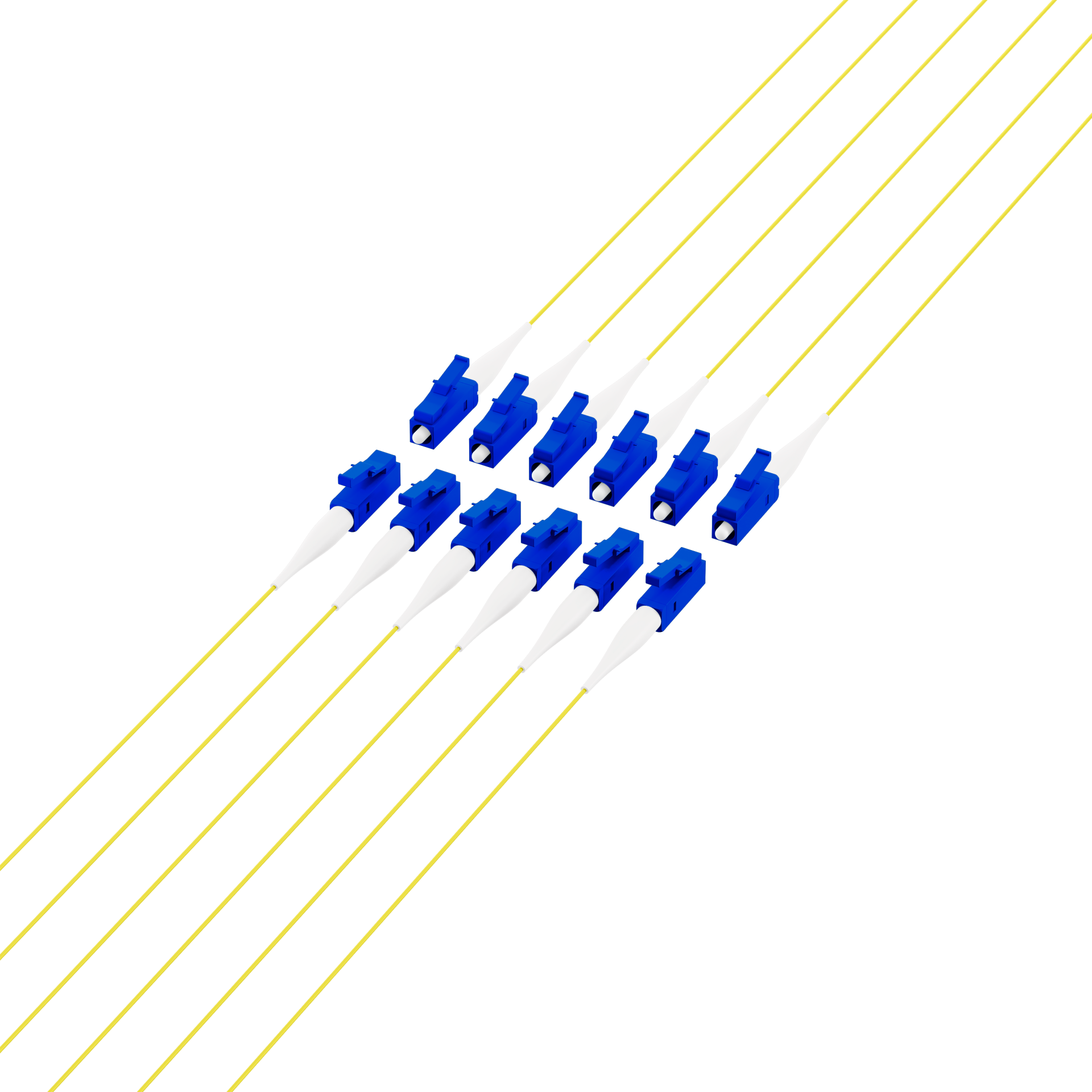

Fiber Pigtail LC OS2 G652D-Yellow - 1 piece
Fiber Pigtail LC OS2 G652D-Yellow 2m - 1 piece
Item number:
O0480.2
EAN no.:
4049759025151
Product information for Fiber Pigtail LC OS2 G652D-Yellow 2m - 1 piece
The LC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Technical properties
| APC version: | False |
|---|---|
| Anti-kink sleeve: | Put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour: | yellow |
| Connector Colour: | blue |
| Connector Conform to Standard: | IEC61754-20 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket Material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Type: | Conductor pigtail |
| Type of connector: | LC |
