IDC Plug Connectors, pitch 2.54

Prices only visible for logged in users

IDC Plug Connector 10pole ,pitch 2.54
Item number: 20410.1
EAN no.: 4049759066178
Piece

Product information for IDC Plug Connector 10pole ,pitch 2.54

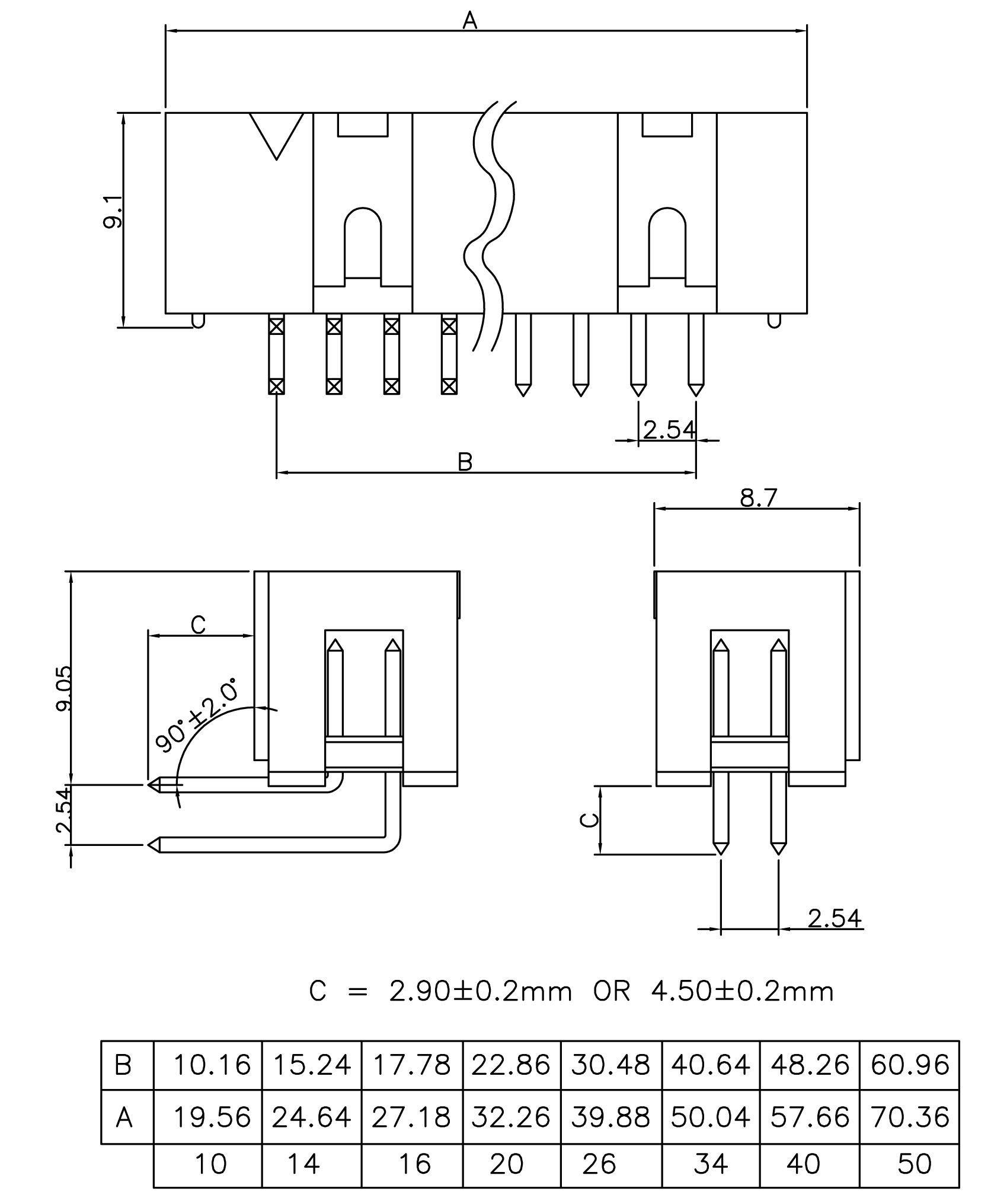

2-rowed IDC plug connector with pitch 2.54 and straight

Variants

Item no. Name Number of plug-in contacts Type Anzahl der Steckkontaktreihen
20410.1 IDC Plug Connector 10pole ,pitch 2.54 10 E-WH 10pol. 2
20414.1 IDC Plug Connector 14pole ,pitch 2.54 14 E-WH 14pol. 2
20416.1 IDC Plug Connector 16pole ,pitch 2.54 16 E-WH 16pol. 2
20420.1 IDC Plug Connector 20pole ,pitch 2.54 20 E-WH 20pol. 2
20426.1 IDC Plug Connector 26pole ,pitch 2.54 26 E-WH 26pol. 2
20434.1 IDC Plug Connector 34pole ,pitch 2.54 34 E-WH 34pol. 2
20440.1 IDC Plug Connector 40pole ,pitch 2.54 40 E-WH 40pol. 2

used with

IDC Connector 10pole ,grey ,pitch 2.54 E-WP
