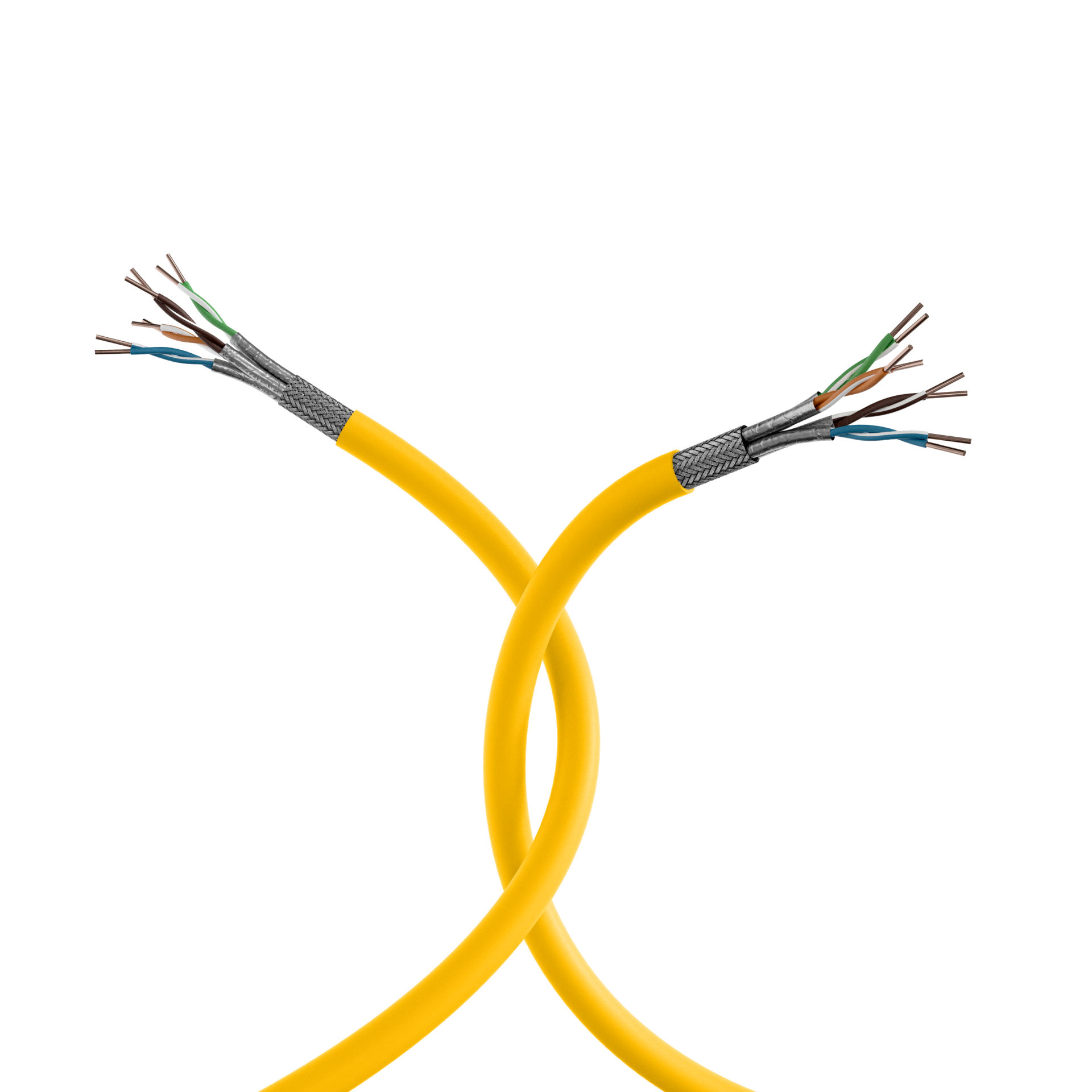

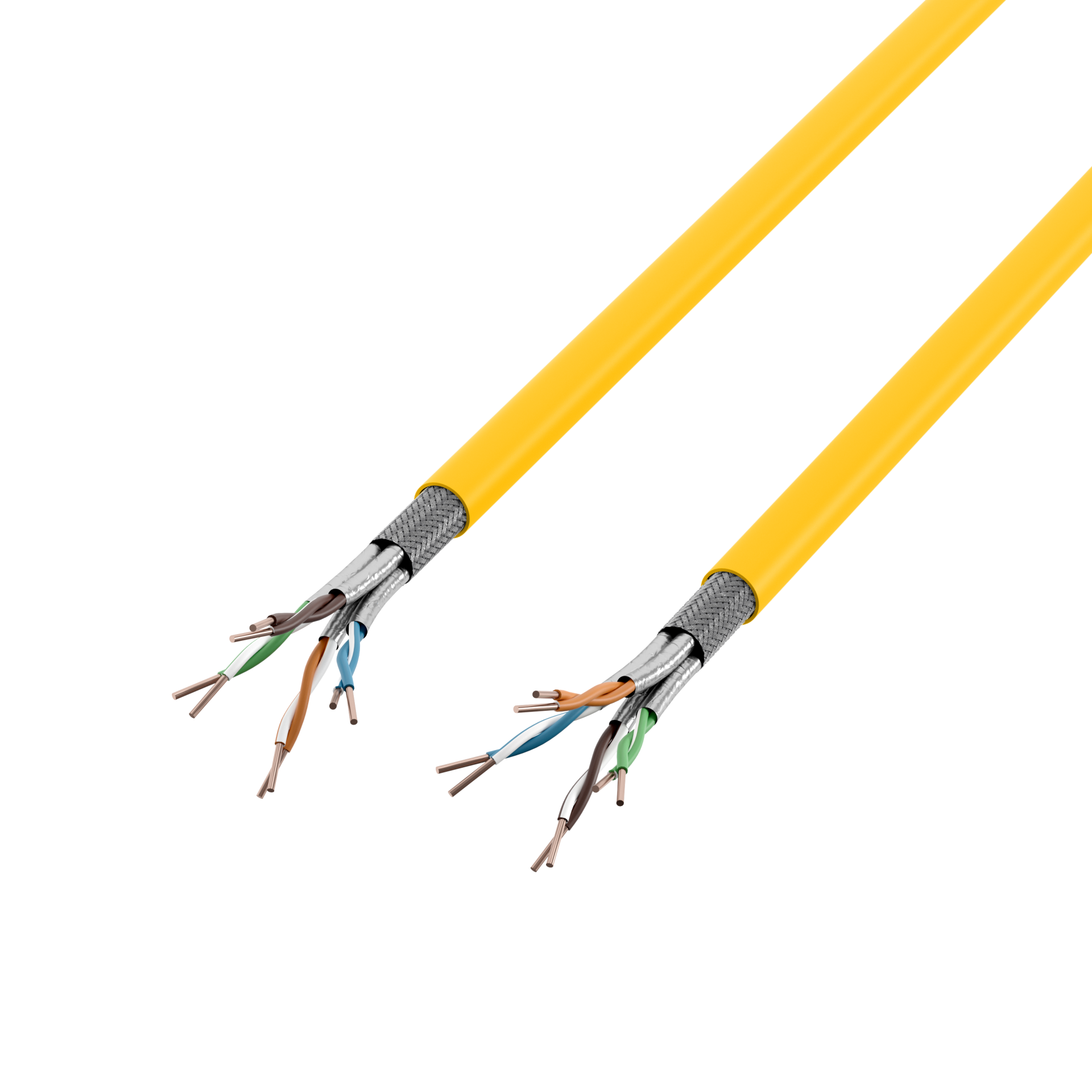

INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021
Item number:
999833.100-CPR
EAN no.:
4049759328627
Product information for INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021
The variation group INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P describes a halogen-free data cable Cat.7A S/FTP in yellow for high-performance network cabling. The LSZH sheathed design supports stable data connections up to 1250 MHz and is therefore designed for modern installations with high bandwidth.
• 1250 MHz Cat.7A bandwidth – Supports transmission standards from IEEE 802.3 10Mbit to 25Gbit and creates reserves for high-performance networks.
• S/FTP construction with foil + braid – Reduces interference and supports stable signal quality in demanding cabling.
• LSZH jacket in yellow according to RAL 1021 with Euroclass Dca – Is halogen-free according to EN 60754-1/2 and complements the installation with a contemporary choice of materials.
The cable is designed as a simplex and uses 22/1 conductors with 8 wires. The dynamic bending radius of 40 mm facilitates installation. The shielding made of foil + braid supports decoupling from external influences and the structure is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The version without reinforcement is aimed at installation in structured network environments.
Technical details
• Brand: INFRALAN
• Category: Cat.7A
• Transmission standards: IEEE 802.3 10Mbit to 25Gbit
• Max. frequency: 1250 MHz
• Cable construction: S/FTP
• PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
• AWG cross-section/number of wires: 22/1
• Number of cores: 8
• Type: simplex
• Sheath material: LSZH
• Sheath colour: Yellow
• RAL colour: RAL 1021
• Armour: without
• Bend radius (dynamic): 40 mm
• Directive/Regulation: RoHS 2011/65/UE
• Euroclass: Dca
• Halogen-free: according to EN 60754-1/2
• Shield over stranding: foil + braid
• 1250 MHz Cat.7A bandwidth – Supports transmission standards from IEEE 802.3 10Mbit to 25Gbit and creates reserves for high-performance networks.
• S/FTP construction with foil + braid – Reduces interference and supports stable signal quality in demanding cabling.
• LSZH jacket in yellow according to RAL 1021 with Euroclass Dca – Is halogen-free according to EN 60754-1/2 and complements the installation with a contemporary choice of materials.
The cable is designed as a simplex and uses 22/1 conductors with 8 wires. The dynamic bending radius of 40 mm facilitates installation. The shielding made of foil + braid supports decoupling from external influences and the structure is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The version without reinforcement is aimed at installation in structured network environments.
Technical details
• Brand: INFRALAN
• Category: Cat.7A
• Transmission standards: IEEE 802.3 10Mbit to 25Gbit
• Max. frequency: 1250 MHz
• Cable construction: S/FTP
• PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
• AWG cross-section/number of wires: 22/1
• Number of cores: 8
• Type: simplex
• Sheath material: LSZH
• Sheath colour: Yellow
• RAL colour: RAL 1021
• Armour: without
• Bend radius (dynamic): 40 mm
• Directive/Regulation: RoHS 2011/65/UE
• Euroclass: Dca
• Halogen-free: according to EN 60754-1/2
• Shield over stranding: foil + braid
| AWG-size: | 22/1 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 1250, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | EFB Cat.7A S/FTP 1250 AWG22 Dca |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7A |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Diameter conductor: | 0.62 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Loop resistance: | 140 Ohm/km |
| Low smoke: | acc. to EN 61034 |
| Material outer sheath: | LSZH |
| Max. Freuqency: | MHz MHz |
| NVP value: | 74 % |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -15 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Braiding |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 25Gbit |
| UV resistant: | Nein |
Technical properties
| AWG-size: | 22/1 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 1250, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | EFB Cat.7A S/FTP 1250 AWG22 Dca |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7A |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Diameter conductor: | 0.62 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Loop resistance: | 140 Ohm/km |
| Low smoke: | acc. to EN 61034 |
| Material outer sheath: | LSZH |
| Max. Freuqency: | MHz MHz |
| NVP value: | 74 % |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -15 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Braiding |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 25Gbit |
| UV resistant: | Nein |
Variants
| Item no. | Name | Length | Type | Number of cores | Colour outer sheath | RAL colour | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 999833.1-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 1.00 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km | |
| 999833.100-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 100.0 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km | |
| 999833.500-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 500.0 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km |
Product information for INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021
The variation group INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P describes a halogen-free data cable Cat.7A S/FTP in yellow for high-performance network cabling. The LSZH sheathed design supports stable data connections up to 1250 MHz and is therefore designed for modern installations with high bandwidth.
• 1250 MHz Cat.7A bandwidth – Supports transmission standards from IEEE 802.3 10Mbit to 25Gbit and creates reserves for high-performance networks.
• S/FTP construction with foil + braid – Reduces interference and supports stable signal quality in demanding cabling.
• LSZH jacket in yellow according to RAL 1021 with Euroclass Dca – Is halogen-free according to EN 60754-1/2 and complements the installation with a contemporary choice of materials.
The cable is designed as a simplex and uses 22/1 conductors with 8 wires. The dynamic bending radius of 40 mm facilitates installation. The shielding made of foil + braid supports decoupling from external influences and the structure is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The version without reinforcement is aimed at installation in structured network environments.
Technical details
• Brand: INFRALAN
• Category: Cat.7A
• Transmission standards: IEEE 802.3 10Mbit to 25Gbit
• Max. frequency: 1250 MHz
• Cable construction: S/FTP
• PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
• AWG cross-section/number of wires: 22/1
• Number of cores: 8
• Type: simplex
• Sheath material: LSZH
• Sheath colour: Yellow
• RAL colour: RAL 1021
• Armour: without
• Bend radius (dynamic): 40 mm
• Directive/Regulation: RoHS 2011/65/UE
• Euroclass: Dca
• Halogen-free: according to EN 60754-1/2
• Shield over stranding: foil + braid
• 1250 MHz Cat.7A bandwidth – Supports transmission standards from IEEE 802.3 10Mbit to 25Gbit and creates reserves for high-performance networks.
• S/FTP construction with foil + braid – Reduces interference and supports stable signal quality in demanding cabling.
• LSZH jacket in yellow according to RAL 1021 with Euroclass Dca – Is halogen-free according to EN 60754-1/2 and complements the installation with a contemporary choice of materials.
The cable is designed as a simplex and uses 22/1 conductors with 8 wires. The dynamic bending radius of 40 mm facilitates installation. The shielding made of foil + braid supports decoupling from external influences and the structure is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The version without reinforcement is aimed at installation in structured network environments.
Technical details
• Brand: INFRALAN
• Category: Cat.7A
• Transmission standards: IEEE 802.3 10Mbit to 25Gbit
• Max. frequency: 1250 MHz
• Cable construction: S/FTP
• PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
• AWG cross-section/number of wires: 22/1
• Number of cores: 8
• Type: simplex
• Sheath material: LSZH
• Sheath colour: Yellow
• RAL colour: RAL 1021
• Armour: without
• Bend radius (dynamic): 40 mm
• Directive/Regulation: RoHS 2011/65/UE
• Euroclass: Dca
• Halogen-free: according to EN 60754-1/2
• Shield over stranding: foil + braid
| AWG-size: | 22/1 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 1250, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | EFB Cat.7A S/FTP 1250 AWG22 Dca |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7A |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Diameter conductor: | 0.62 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Loop resistance: | 140 Ohm/km |
| Low smoke: | acc. to EN 61034 |
| Material outer sheath: | LSZH |
| Max. Freuqency: | MHz MHz |
| NVP value: | 74 % |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -15 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Braiding |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 25Gbit |
| UV resistant: | Nein |
| AWG-size: | 22/1 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: | EN 50288-4-1 1250, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | EFB Cat.7A S/FTP 1250 AWG22 Dca |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7A |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Diameter conductor: | 0.62 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Loop resistance: | 140 Ohm/km |
| Low smoke: | acc. to EN 61034 |
| Material outer sheath: | LSZH |
| Max. Freuqency: | MHz MHz |
| NVP value: | 74 % |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -15 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Braiding |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 25Gbit |
| UV resistant: | Nein |
Variants
| Item no. | Name | Length | Type | Number of cores | Colour outer sheath | RAL colour | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 999833.1-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 1.00 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km | |
| 999833.100-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 100.0 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km | |
| 999833.500-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 500.0 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km |
