INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P
INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021
Item number:
999833.500-CPR
EAN no.:
4049759320669
Product information for INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021

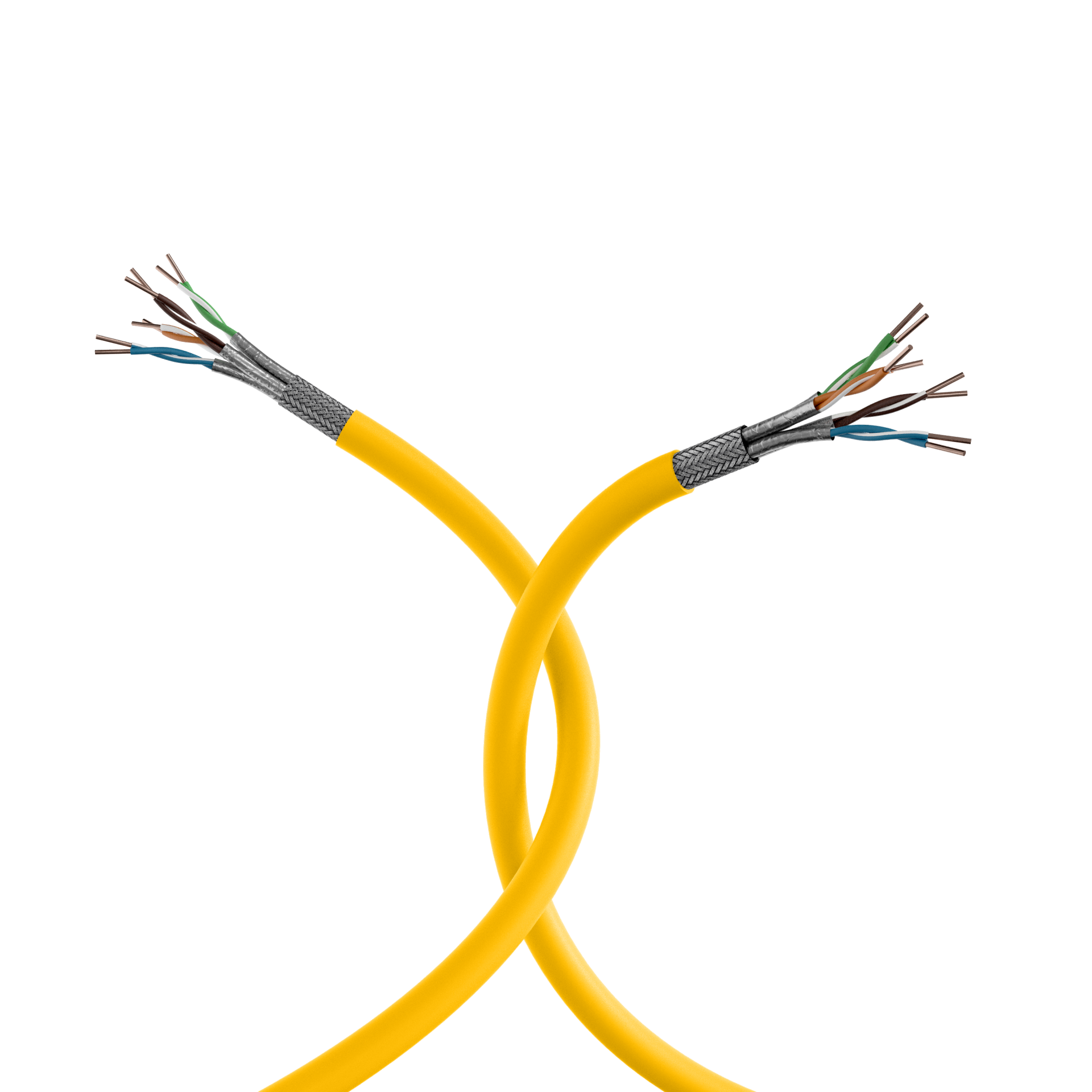

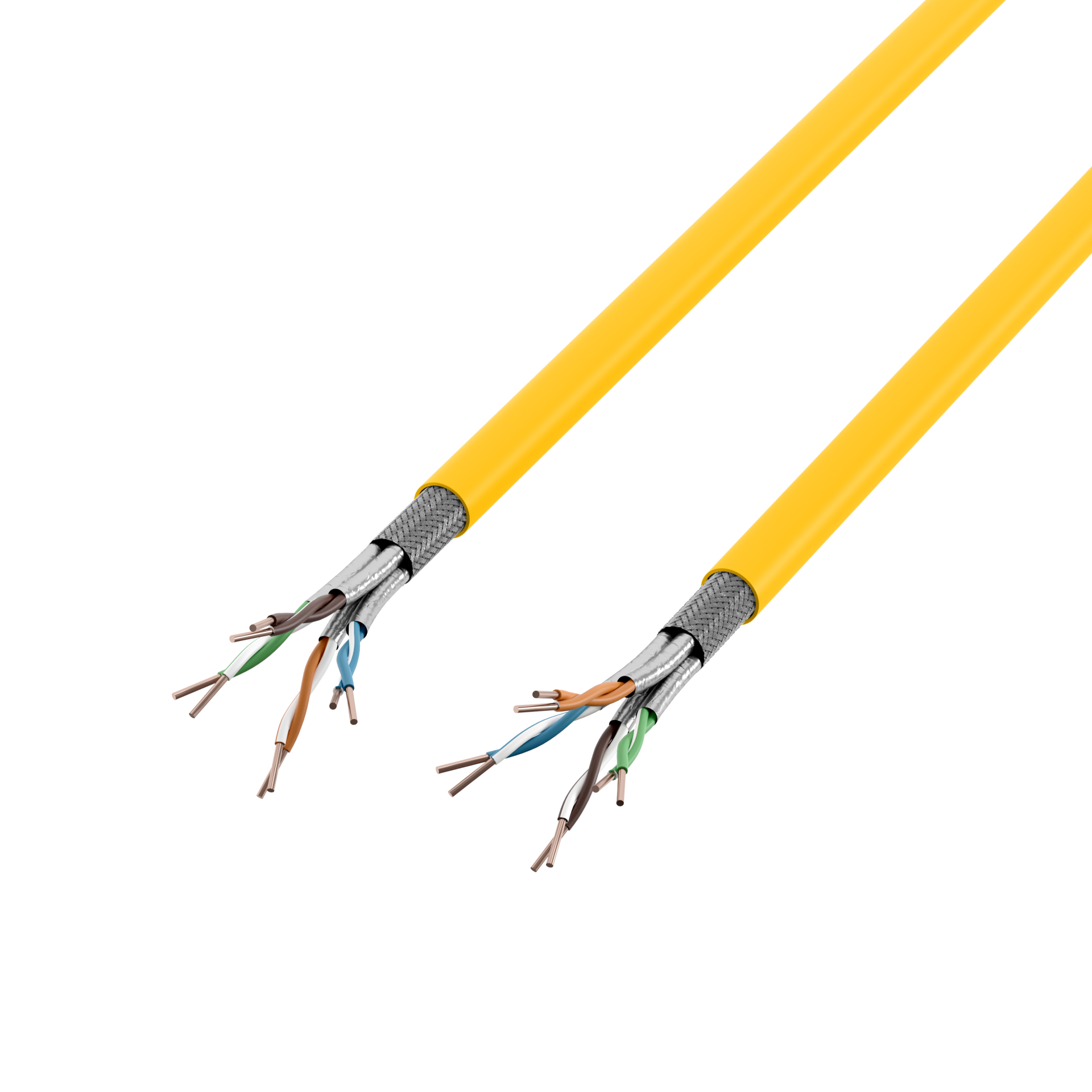

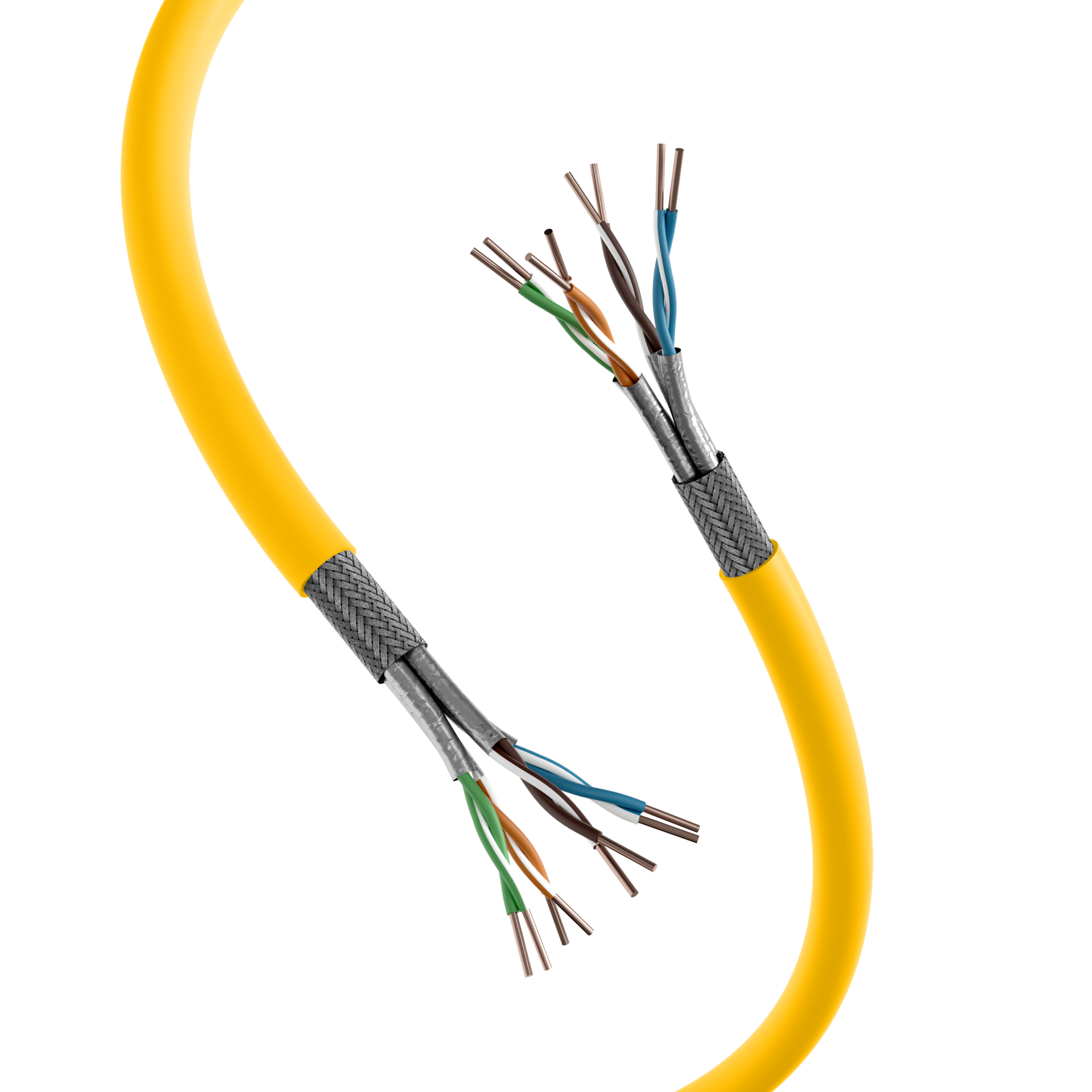

The INFRALAN® installation cable 999833.x-CPR is constructed for transmissions up to 1250 MHz and exceeds with the electrical transmission properties and requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). With this cable transmission rates up to 10 GBit according to IEEE 802.3 are possible.

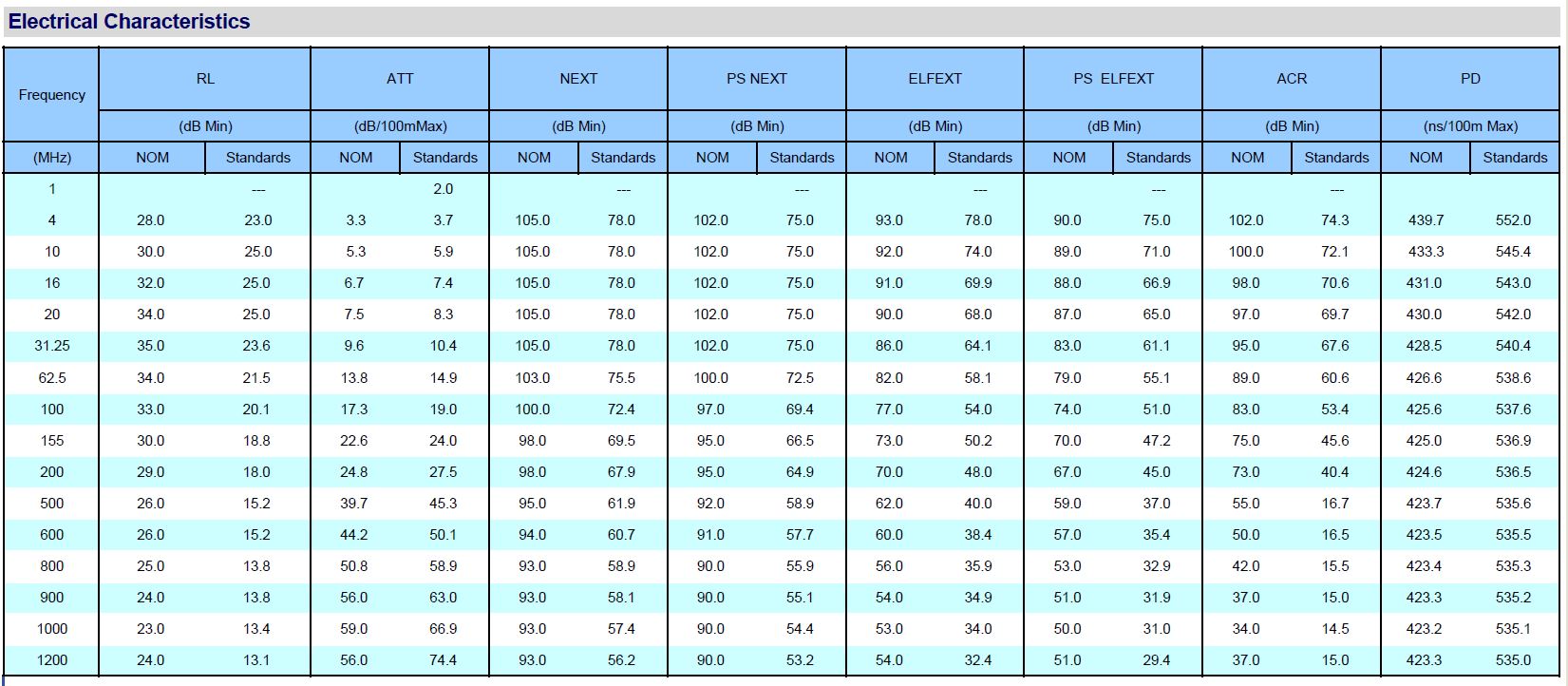

Technical properties
| AWG-size: | 22/1 |
|---|---|
| Armour: | none |
| Bending radius (dynamic): | 40 mm |
| Cable: |
EN 50288-4-1 1250 IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | EFB Cat.7A S/FTP 1250 AWG23 Dca |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Capacity to earth: | 43 pF/km |
| Category: | 7A |
| Characteristic impedance: | 100 ± 5 Ohm |
| Colour outher sheath: | yellow |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 80 dB |
| Coupling attenuation Type: | Type 1 |
| Delay skew: | 25 ns/100m |
| Diameter conductor: | 0.62 mm |
| Dielectric strength DC: | 1 kV/1 min |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | Dca |
| Flame retardant: | acc. to EN 60332-1 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | LSZH |
| Loop resistance: | 140 Ohm/km |
| Low smoke: | acc. to EN 61034 |
| Max. frequency: | MHz MHz |
| NVP value: | 74 % |
| Operating temperature, fix: | -15 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | Braiding |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit bis 25Gbit |
| UV resistant: | no |
Variants
| Item no. | Name | Length | Type | Number of cores | Colour outer sheath | RAL colour | Copper weight | Weight | Max. tractive force | Outer diameter approx. | Fire load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 999833.1-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 1.00 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km | |
| 999833.500-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 500.0 m | simplex | 8 | yellow | RAL 1021 | 27.4 kg/km | 64 kg/km | 110 N | 8 mm | 640 MJ/km | |
| 999833.100-CPR | INFRALAN® Cat.7A 1250 AWG22 S/FTP 4P, CPR Dca 25Gbit/s ready yellow RAL1021 | 100.0 m | simplex | 8 | yellow | 1021 | - | 64 kg/km | 110 N | 8 mm | - |
Safety instructions
Do not use the device if the cable or plug is damaged. This device may only be used in dry environments. Avoid faulty electrical connections. Only use the device within the specified voltage range.
