INFRALAN® Keystone, Cat.6A / Class EA
INFRALAN® RJ45 Keystone, Cat.6A / ClassEA, Component, PU 12
Item number:
IKS-6A-KOP-12
EAN no.:
4049759189518
Product information for INFRALAN® RJ45 Keystone, Cat.6A / ClassEA, Component, PU 12
The INFRALAN IKS-6A-KOP-12 Keystone Module offers the combination of very good transmission characteristics and simple tool-free assembly.
The module's high processing quality has been proven millions of times over, a secure Cat. 6A component of the cabling system for applications up to 10 Gigabit Ethernet.
Special tools are not required, the installation is easy and handy.

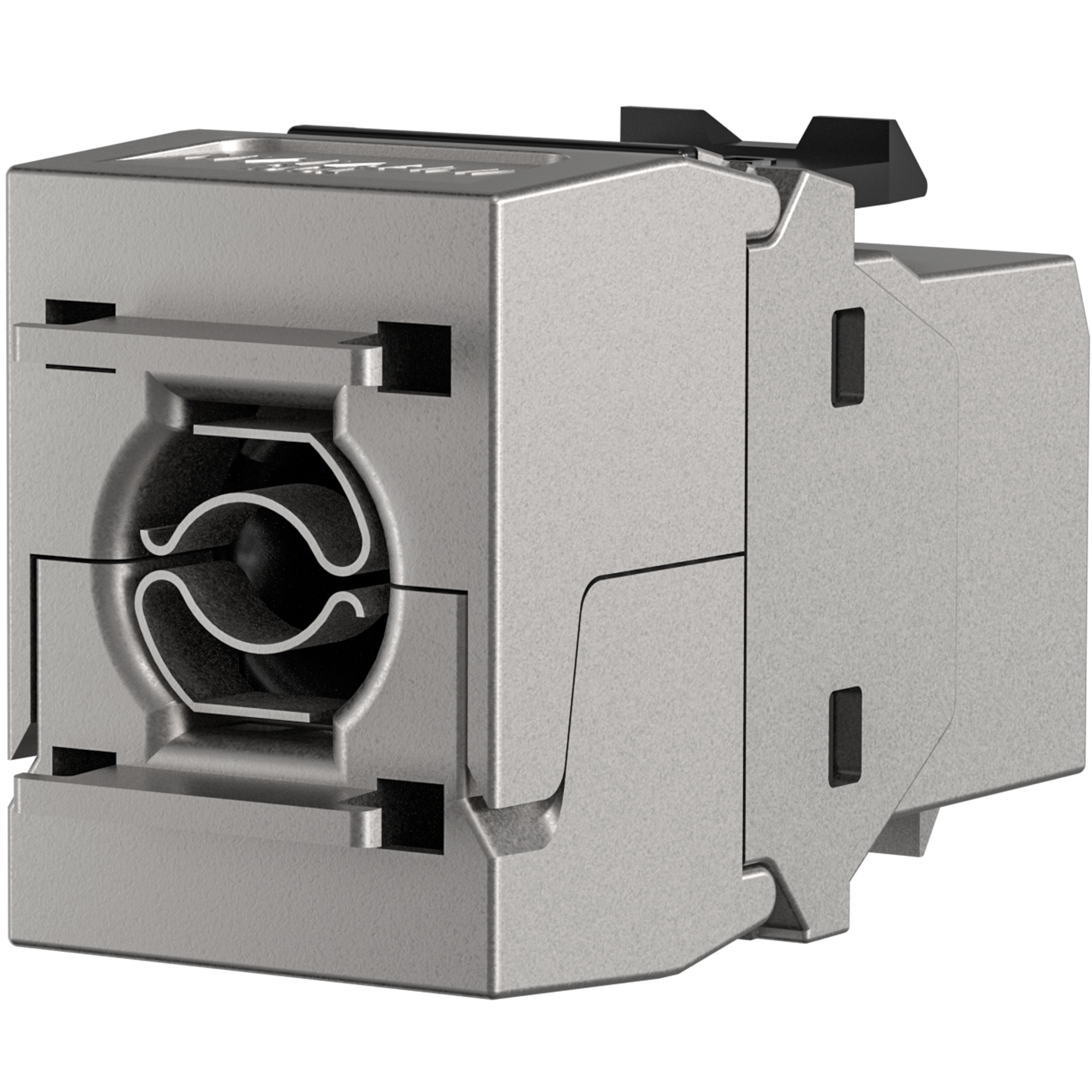

Fully shielded zinc die-cast Keystone housing with separate dust protection cap
Cat. 6A component certification according to ANSI/TIA-568-C. 2 and ISO/IEC 11801 and IEC 60607-7-51

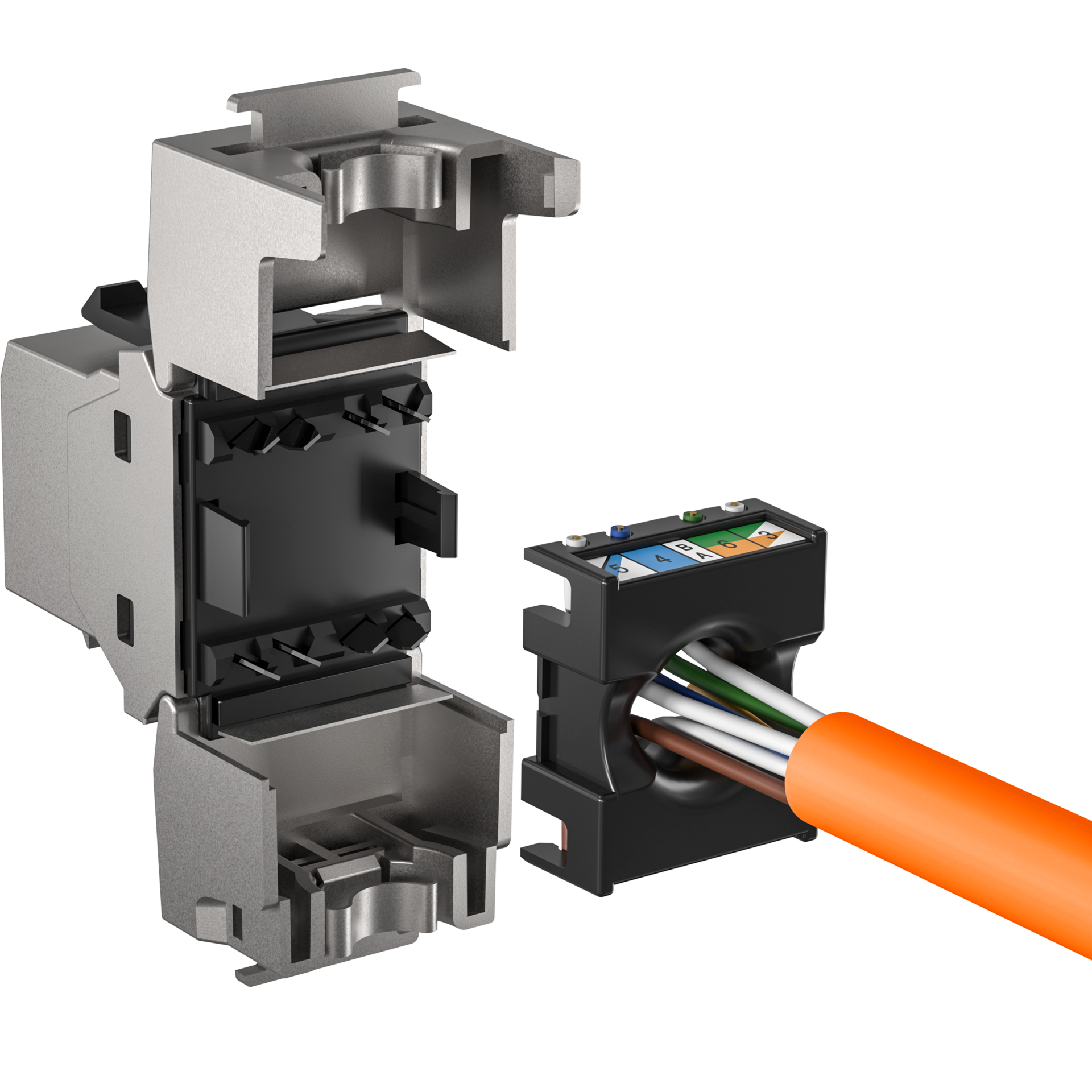

Compact wire pre-sorting unit for AWG24/1... AWG22/1
Pair management according to TIA/EIA 568 A/B color codes
PoE and PoE Plus according to IEEE802.3af/at/bt
Suitable for distribution panel and support rings with keystone cut-out, exclusive
UAE
Strain relief by cable ties

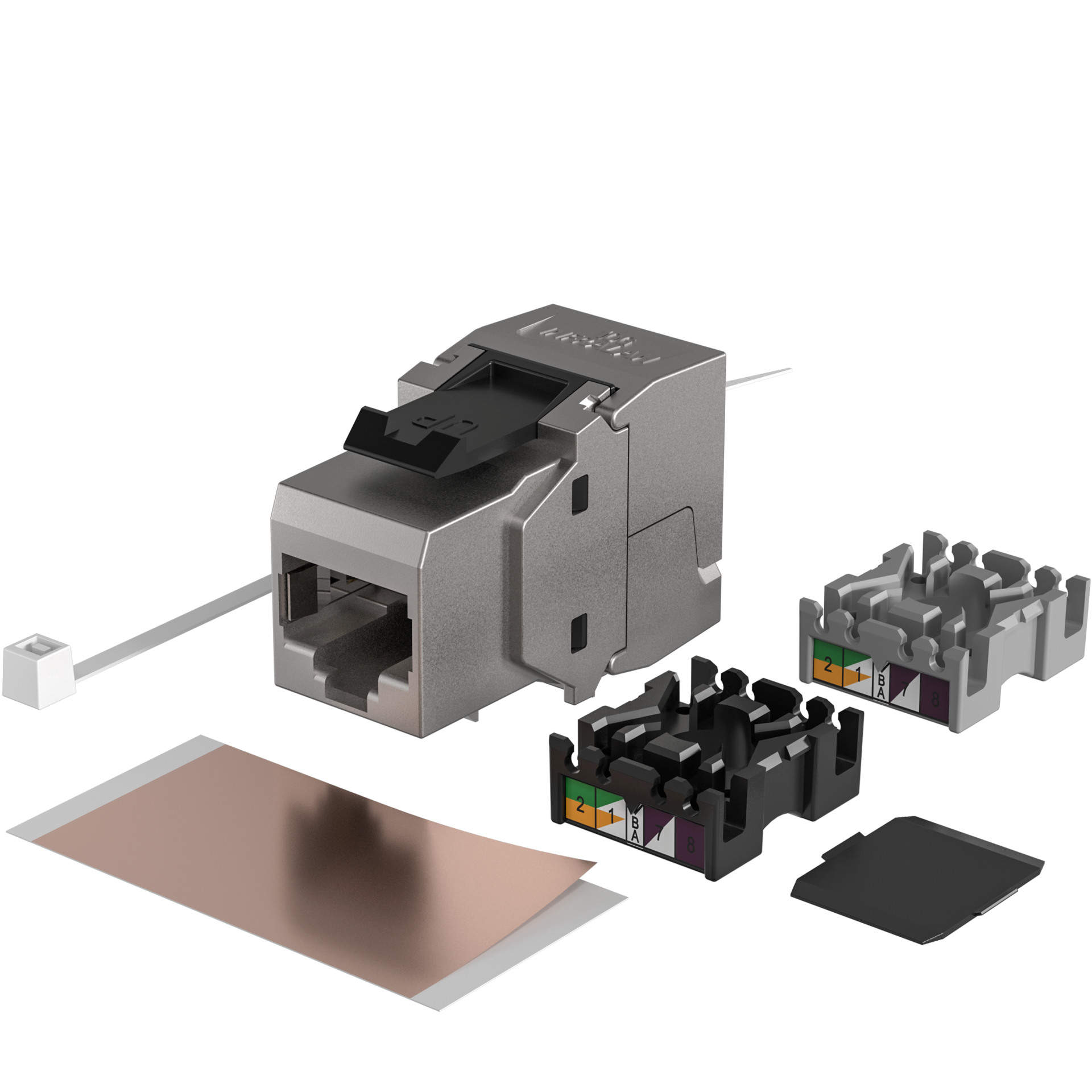

Scope of delivery:
1 x RJ45 keystone, Cable coder,1 x copper foil, 1 x cable tie, dust cover, mounting instruction
The module's high processing quality has been proven millions of times over, a secure Cat. 6A component of the cabling system for applications up to 10 Gigabit Ethernet.
Special tools are not required, the installation is easy and handy.
Fully shielded zinc die-cast Keystone housing with separate dust protection cap
Cat. 6A component certification according to ANSI/TIA-568-C. 2 and ISO/IEC 11801 and IEC 60607-7-51
Compact wire pre-sorting unit for AWG24/1... AWG22/1
Pair management according to TIA/EIA 568 A/B color codes
PoE and PoE Plus according to IEEE802.3af/at/bt
Suitable for distribution panel and support rings with keystone cut-out, exclusive
UAE
Strain relief by cable ties
Scope of delivery:
1 x RJ45 keystone, Cable coder,1 x copper foil, 1 x cable tie, dust cover, mounting instruction
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.0 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| EMV konform nach: | EN 50082-1, EN 55022 |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Technical properties
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.0 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| EMV konform nach: | EN 50082-1, EN 55022 |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
Product information for INFRALAN® RJ45 Keystone, Cat.6A / ClassEA, Component, PU 12
The INFRALAN IKS-6A-KOP-12 Keystone Module offers the combination of very good transmission characteristics and simple tool-free assembly.
The module's high processing quality has been proven millions of times over, a secure Cat. 6A component of the cabling system for applications up to 10 Gigabit Ethernet.
Special tools are not required, the installation is easy and handy.
Fully shielded zinc die-cast Keystone housing with separate dust protection cap
Cat. 6A component certification according to ANSI/TIA-568-C. 2 and ISO/IEC 11801 and IEC 60607-7-51
Compact wire pre-sorting unit for AWG24/1... AWG22/1
Pair management according to TIA/EIA 568 A/B color codes
PoE and PoE Plus according to IEEE802.3af/at/bt
Suitable for distribution panel and support rings with keystone cut-out, exclusive
UAE
Strain relief by cable ties
Scope of delivery:
1 x RJ45 keystone, Cable coder,1 x copper foil, 1 x cable tie, dust cover, mounting instruction
The module's high processing quality has been proven millions of times over, a secure Cat. 6A component of the cabling system for applications up to 10 Gigabit Ethernet.
Special tools are not required, the installation is easy and handy.
Fully shielded zinc die-cast Keystone housing with separate dust protection cap
Cat. 6A component certification according to ANSI/TIA-568-C. 2 and ISO/IEC 11801 and IEC 60607-7-51
Compact wire pre-sorting unit for AWG24/1... AWG22/1
Pair management according to TIA/EIA 568 A/B color codes
PoE and PoE Plus according to IEEE802.3af/at/bt
Suitable for distribution panel and support rings with keystone cut-out, exclusive
UAE
Strain relief by cable ties
Scope of delivery:
1 x RJ45 keystone, Cable coder,1 x copper foil, 1 x cable tie, dust cover, mounting instruction
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.0 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| EMV konform nach: | EN 50082-1, EN 55022 |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
| 4PPOE certified: | True |
|---|---|
| 360° shield contact: | True |
| AWG-range: | 24 – 22 |
| Cable diameter: | 8.0 mm |
| Casing material: | Zinc die cast |
| Category: | 6A (TIA) |
| Complaint to UL94: | V-0 |
| Connection type: | Insulation displacement connector |
| Contact Resistance: | ≤ 20 mΩ |
| Contact coating: | 50 µ" |
| Current capacity: | 2 A |
| Dielectric Withstanding Voltage: | 1000 V AC 60Hz |
| Dust cover: | True |
| EMV konform nach: | EN 50082-1, EN 55022 |
| For UAE suitable: | False |
| Insertion force: | ≤ 30 N |
| Insulation Resistance: | ≥ 500 MΩ |
| Mating cycles: | ≥ 750 Mating cycles |
| Model: | jack |
| Operating Temperature: | -10 – 60 °C |
| Screened: | True |
| Shield contact and strain relief separate: | False |
| Special tool necessary: | False |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | True |
| Type of connector: | RJ45 8(8) |
| Type of locking: | Latching mechanism |
