INFRALAN® Distribution Panel 19", 1U

Prices only visible for logged in users

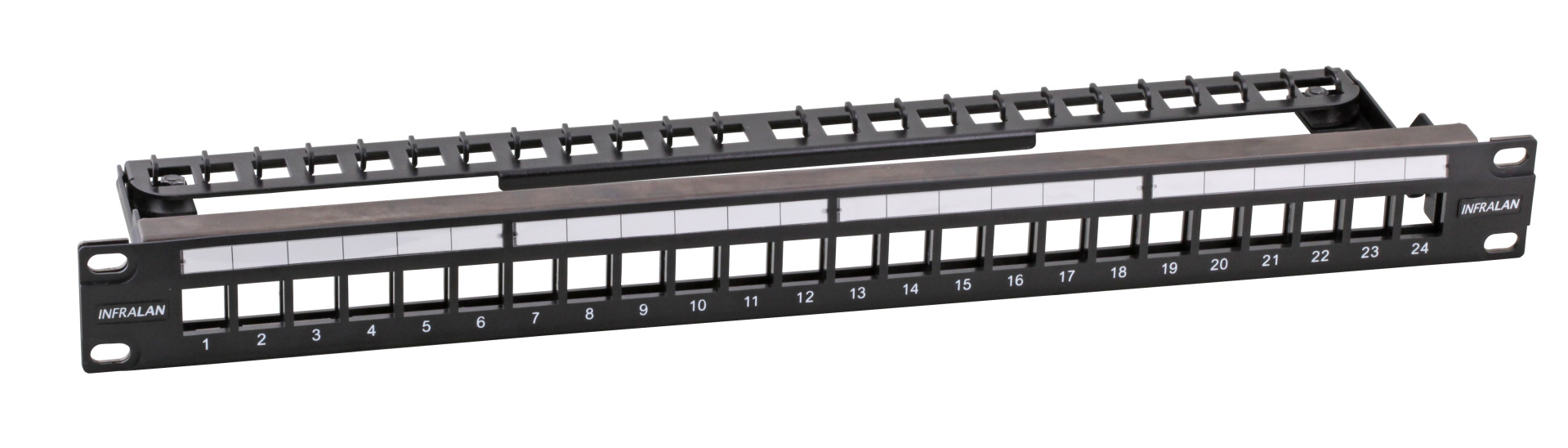

INFRALAN® Distribution Panel 19" 24-Port, 1U, for Keystone Modul, RAL7035
Item number: IVF-24-GR
EAN no.: 4049759189563
Piece

Product information for INFRALAN® Distribution Panel 19" 24-Port, 1U, for Keystone Modul, RAL7035

For holding of modules in keystone format
Inclusive cable management
Labeling fields with transparent cover
Strain relief via cable tie
Delivery without modules

Technical properties

Colour: metal colour
Depth: 125.0 mm
EMC-version: False
Height: 44.45 mm
Material: Metal
Number of height units: 1 U
Type of plug-in connector system: Keystone
Width: 482.6 mm
With buses/couplings: False

Variants

Item no. Name Number of connector holes Suitable for adapter Colour Bestückung RAL Nummer
IVF-24-GR INFRALAN® Distribution Panel 19" 24-Port, 1U, for Keystone Modul, RAL7035 24 Keystone grey Ohne 7035
IVF-24-SW INFRALAN® Distribution Panel 19" 24-Port, 1U, for Keystone Modul, RAL9005 24 Keystone black Ohne 9005

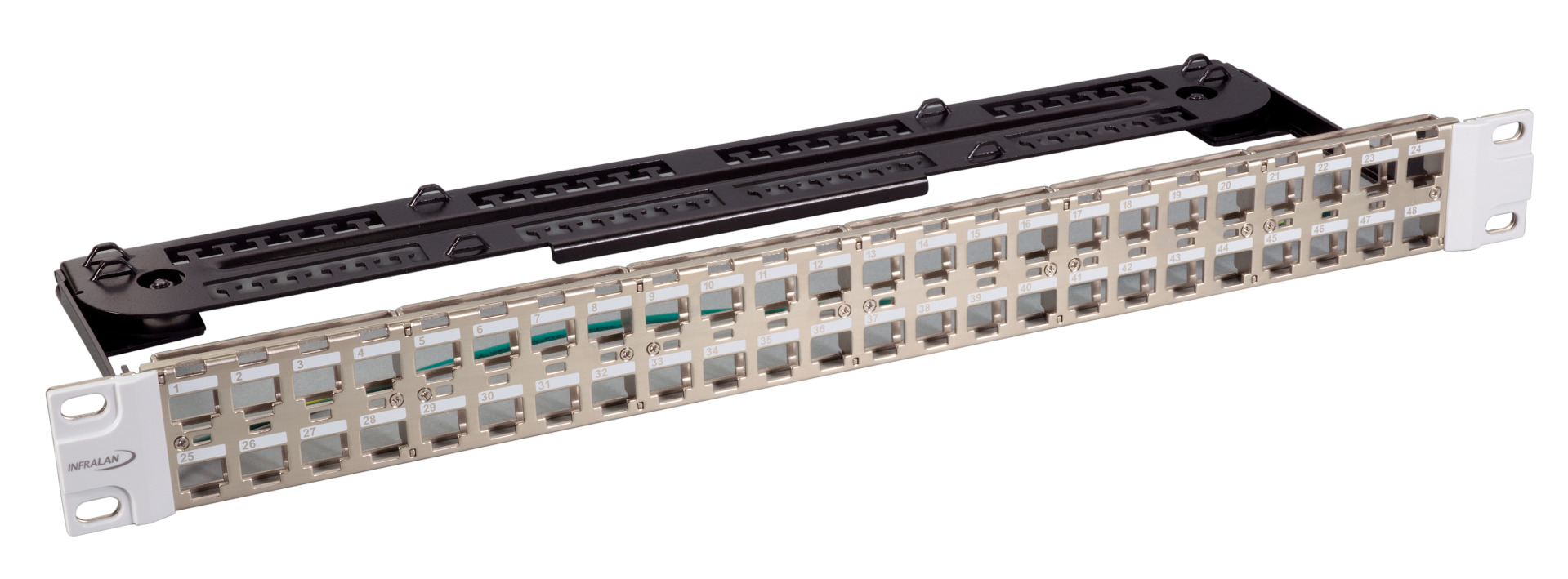

IVF-48-SI INFRALAN® Distribution Panel 19“ 48-Port, 1U, for Slimline Module, metal Colour 48 Keystone metallic Ohne -
