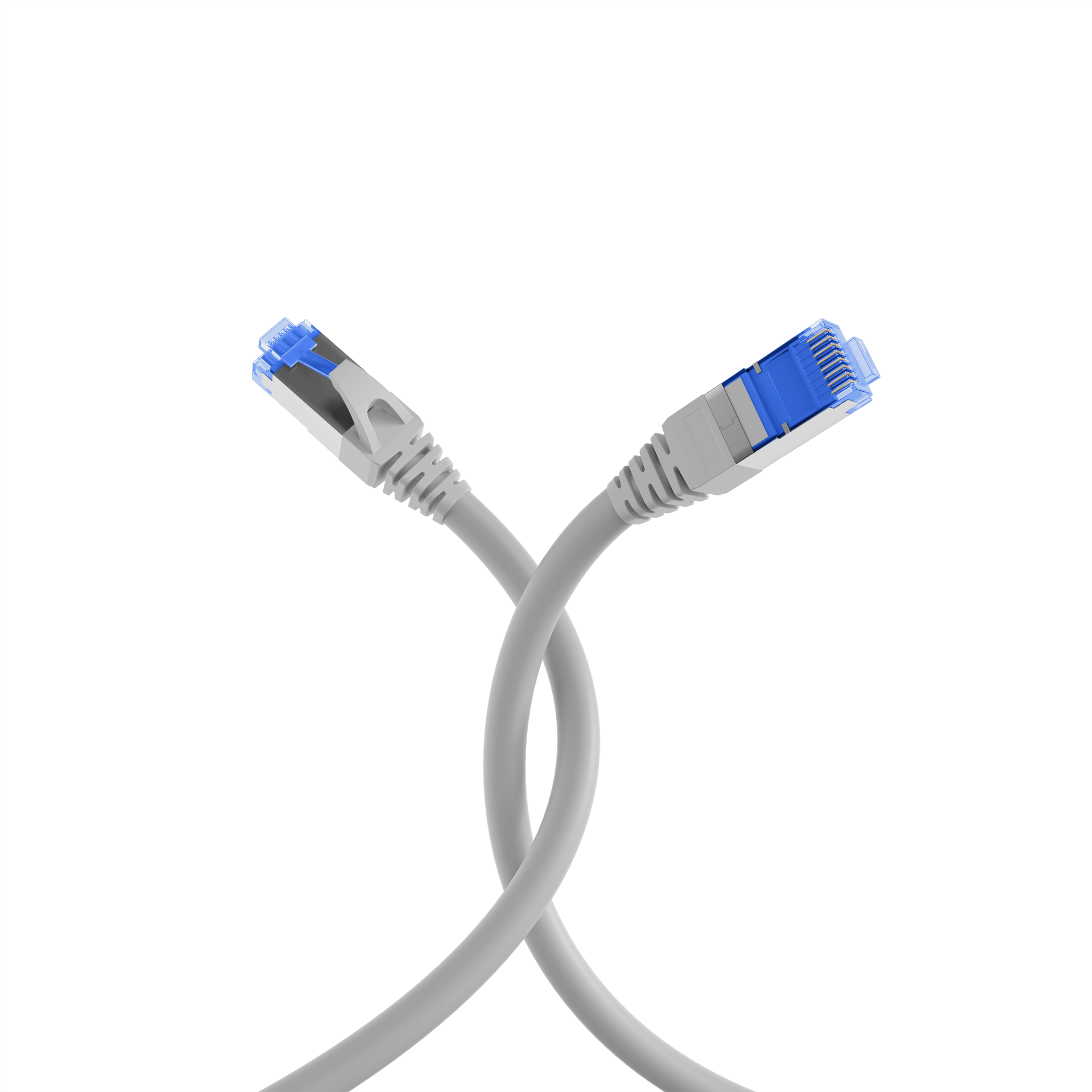

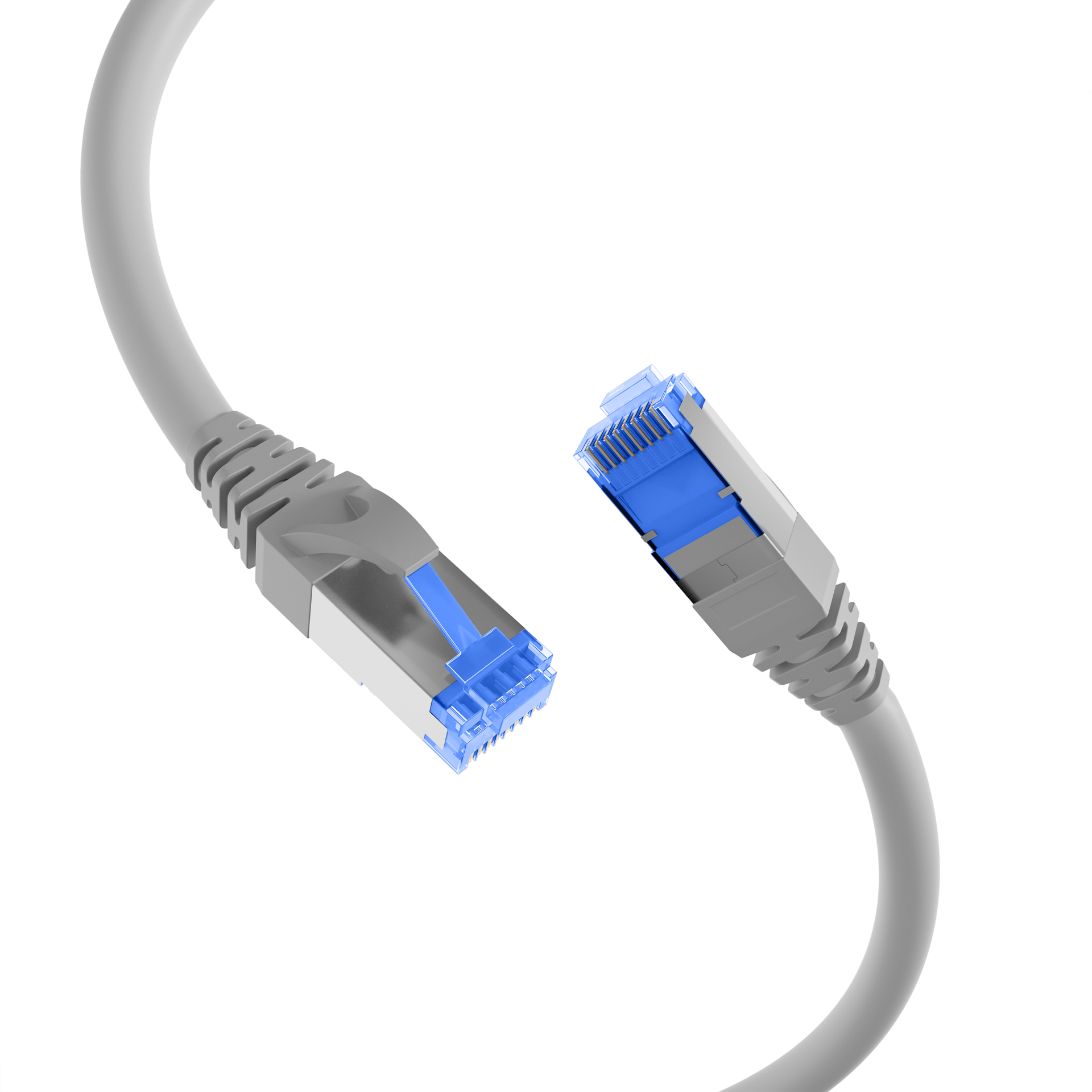

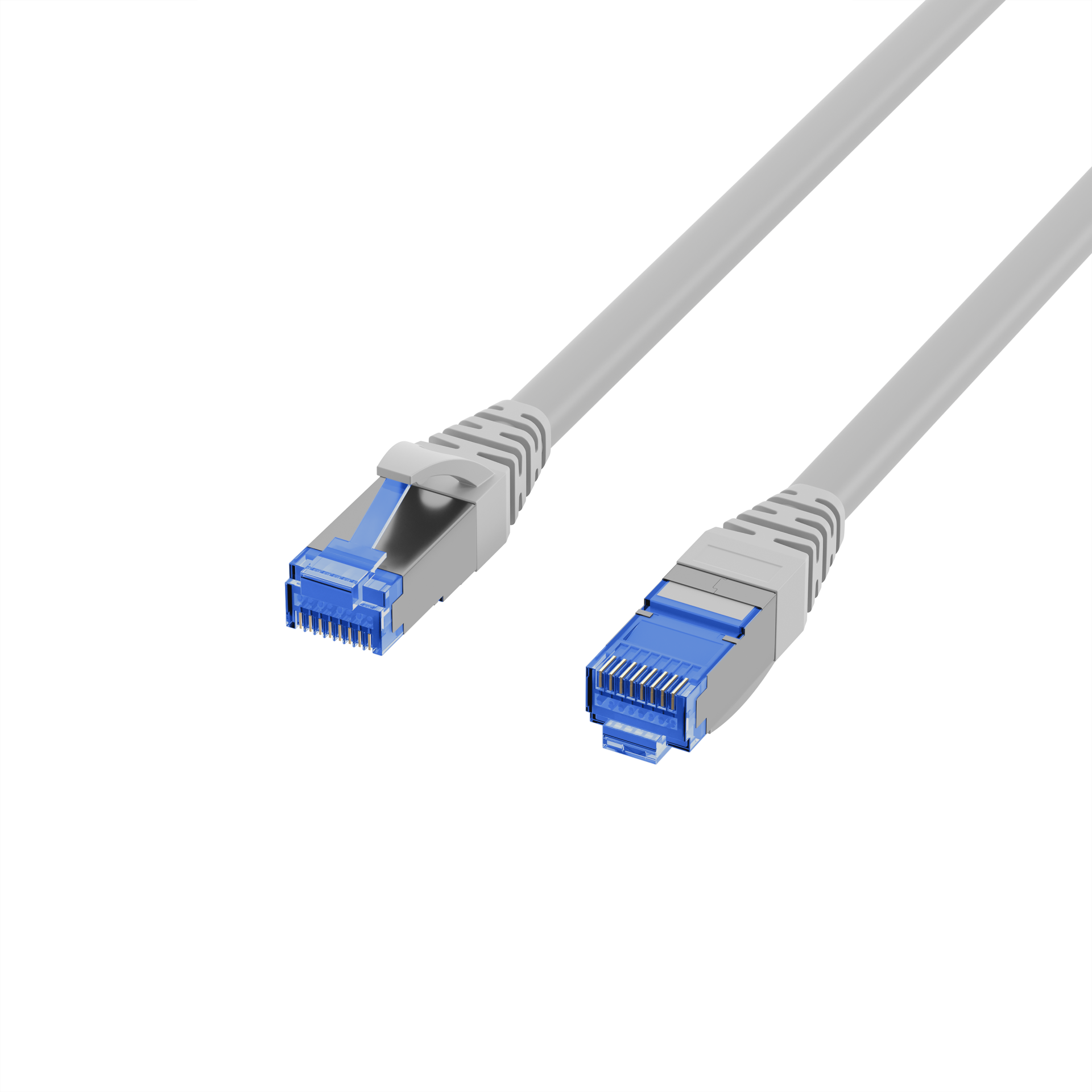

INFRALAN® Patch cord Cat.6A TPE, moulded grommet, grey
INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 3m, grey
Item number:
IPK-6A-U-TPE-GR-0300
EAN no.:
4049759188733
Product information for INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 3m, grey
The INFRALAN Premium patch cable contains several unique features:
Transmission quality: the Premium patch cable is component certified and is used in the following applications
measured after assembly in a 4 Connector Channel Link Class EA.
100% testing: every single patch cord is measured and marked with a serial number for unique coding and traceability.
Measurement protocol: an extract of the Class EA measurement is contained in the package, the complete archived measurement can be viewed at any time.
Superflex: the LSZH outer jacket consists of a special plastic compound and ensures extreme flexibility.
Special features
Certification: Cat.6A components certified according to ANSI/TIA-568-C.2,
Class EA 4-Connector Link certificate by GHMT
Jacket material: Extremely flexible TPE jacket (superflex)
Cross section: 4 x 2 x AWG26/7
Cable diameter: 6.0mm
Type of grommet: moulded bend relief, slim version
Temperature range: -20°C - +60°C
Serial number: Label on cable
Measuring protocol: 100% testing, 100% 4C Channel Link Test
General specifications
Category: Cat.6A
Transmission: 10Gbit
Bandwidth: 500MHz
Assignment: According to TIA/EIA 568B
Conductor material: Copper
Connector: 2x Cat.6A RJ45 shielded, IEC-60603-7-51
Contacts: Gold plated
Latch protection: available
Cable structure: S/FTP
Raw cable: Cat.7
Flame retardance: IEC60332-1
Halogen free: IEC60754-2
Low smoke: IEC61034
Transmission quality: the Premium patch cable is component certified and is used in the following applications
measured after assembly in a 4 Connector Channel Link Class EA.
100% testing: every single patch cord is measured and marked with a serial number for unique coding and traceability.
Measurement protocol: an extract of the Class EA measurement is contained in the package, the complete archived measurement can be viewed at any time.
Superflex: the LSZH outer jacket consists of a special plastic compound and ensures extreme flexibility.
Special features
Certification: Cat.6A components certified according to ANSI/TIA-568-C.2,
Class EA 4-Connector Link certificate by GHMT
Jacket material: Extremely flexible TPE jacket (superflex)
Cross section: 4 x 2 x AWG26/7
Cable diameter: 6.0mm
Type of grommet: moulded bend relief, slim version
Temperature range: -20°C - +60°C
Serial number: Label on cable
Measuring protocol: 100% testing, 100% 4C Channel Link Test
General specifications
Category: Cat.6A
Transmission: 10Gbit
Bandwidth: 500MHz
Assignment: According to TIA/EIA 568B
Conductor material: Copper
Connector: 2x Cat.6A RJ45 shielded, IEC-60603-7-51
Contacts: Gold plated
Latch protection: available
Cable structure: S/FTP
Raw cable: Cat.7
Flame retardance: IEC60332-1
Halogen free: IEC60754-2
Low smoke: IEC61034
Technical properties
| AWG-size: | 26 |
|---|---|
| Allocation: | acc. TIA/EIA 568B |
| Anti-kink sleeve: | moulded-on |
| Area of application: | Industrial Ethernet |
| Area of application: | Structured cabling |
| Area of application: | Data center |
| Cable construction: | 4x2 |
| Cable shape: | rund |
| Cable type: | S/FTP |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | grey |
| Colour outer sheath: | grey |
| Conductive shield: | 360° shield contact |
| Conductor Material: | Copper |
| Connector type: | RJ45 standard |
| Contacts: | Gold plated |
| Fire retardant version: | acc. IEC60332-1 |
| Halogen free: | acc. IEC60754-2 |
| Harmonised Standard: | EN 50575 |
| Jacket material: | LSZH |
| Locking lever: | True |
| Low smoke: | acc. IEC61034 |
| Mating cycles: | ≥750 |
| Model: | shielded |
| Oil resistant: | no |
| Operating Temperature: | 0 – 60 °C |
| Outer diameter of the cable: | 6.0 mm |
| Ozone resistance: | No |
| Pin assignment: | 1:1 |
| Printing: | Cat.6A PREMIUM Patchcord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet*** |
| Resistant to chemicals: | False |
| Suitable for degree of protection (IP): | IP20 |
| Tape width: | 500MHz |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
| UL approbated: | False |
| UV resistant: | no |
Variants
| Item no. | Name | Length | |
|---|---|---|---|
| IPK-6A-U-TPE-GR-0025 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 0,25m, grey | 0.25 m | |
| IPK-6A-U-TPE-GR-0050 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 0,50m, grey | 0.5 m | |
| IPK-6A-U-TPE-GR-0100 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 1m, grey | 1.0 m | |
| IPK-6A-U-TPE-GR-0150 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 1,5m, grey | 1.5 m | |
| IPK-6A-U-TPE-GR-0200 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 2m, grey | 2.0 m | |
| IPK-6A-U-TPE-GR-0300 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 3m, grey | 3.0 m | |
| IPK-6A-U-TPE-GR-0500 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 5m, grey | 5.0 m | |
| IPK-6A-U-TPE-GR-0750 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 7,5m, grey | 7.5 m | |
| IPK-6A-U-TPE-GR-1000 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 10m, grey | 10.0 m | |
| IPK-6A-U-TPE-GR-1500 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 15m, grey | 15.0 m | |
| IPK-6A-U-TPE-GR-2000 | INFRALAN® RJ45 patch cord S/FTP, Cat.6A, TPE superflex, 20m, grey | 20.0 m |
Manufacturer information
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
