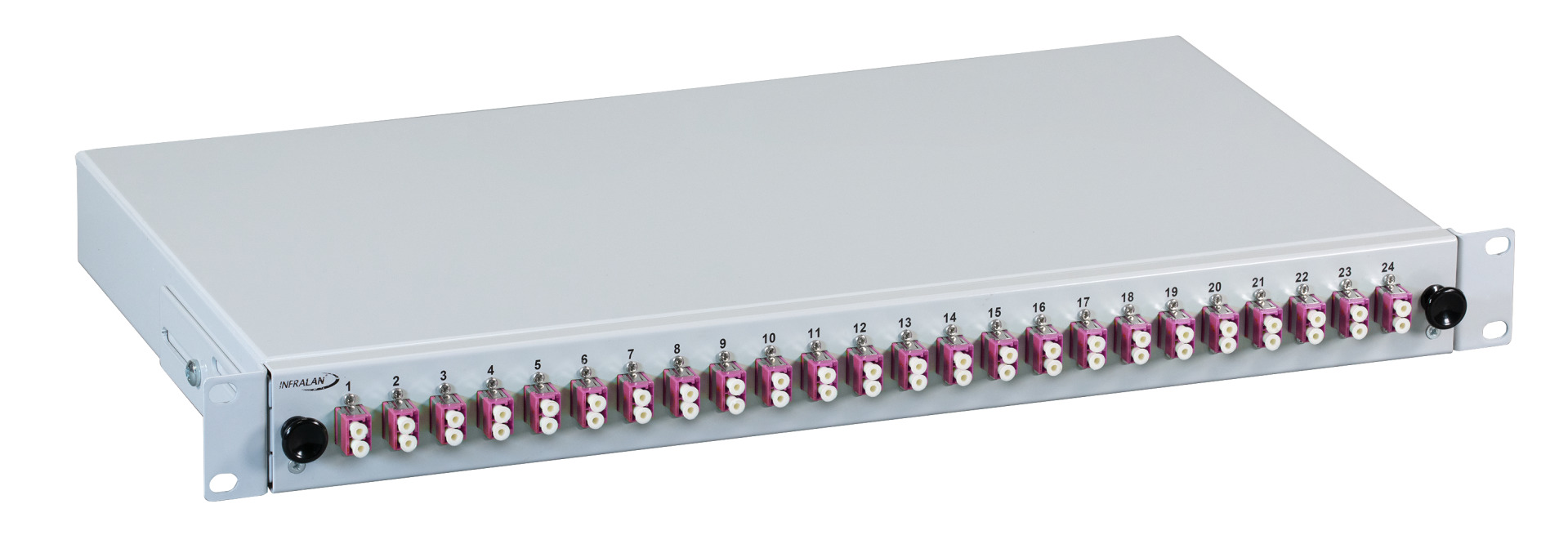

INFRALAN® Splice box sliding version LC OM4
Prices only visible for logged in users
INFRALAN® Splicebox sliding version LC, 48 stripped pigtails/ 24 adapter, OM4
Item number:
ISB-LCDU-24-4-GR-ABA
EAN no.:
4049759196745
Product information for INFRALAN® Splicebox sliding version LC, 48 stripped pigtails/ 24 adapter, OM4

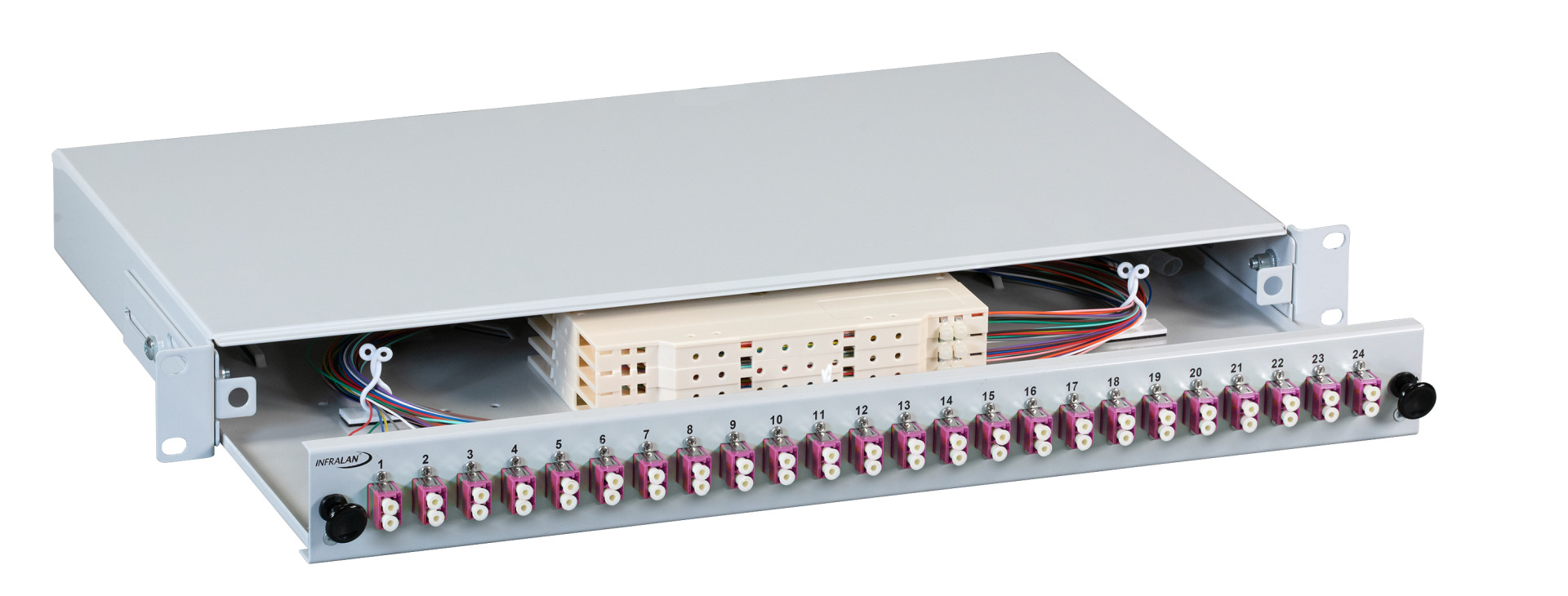

Completely equipped INFRALAN® splice box with adapter and through-dyed pigtails
The LC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of LC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket
All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
The LC Pigtails are stripped off and inserted into the splice cassette
Measurement protocols of LC Pigtails are stored in the box
Metal housing depth adjustable (45mm) via 19" mounting bracket
All versions of the splice box are supplied with 24 coupling openings and fitted with blind inserts if the number of used ports is reduced.
Rear cable entry with 2x M20 openings on each side. The M20 openings can also be made laterally by replacing the opening plate with an angle plate (SB-A-GR-WINKEL). In addition, there is a central cable entry for 20x Simplex cables (up to 4.3mm).
incl. 1 x PG16
6 x self-adhesive fiber guides
Technical properties
| Adapter material: | Plastic adapter |
|---|---|
| Adapters: | LC |
| Depth: | 244.0 mm |
| Fibre class: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Height: | 44.5 mm |
| Mounting method: | 482.6 mm (19 inch) mounting |
| Number of height units: | 1 U |
| Pigtails prepared: | stripped |
| Sliding: | sliding version |
| Width: | 483.0 mm |
| With front plate: | True |
| With housing: | True |
| With pigtails: | True |
Variants
| Item no. | Name | Type of connector external | Colour | With number of couplings/adapters | Pigtail | RAL-Nummer | Steckverbindertyp innen | Kupplungsfarbe | |
|---|---|---|---|---|---|---|---|---|---|
| ISB-LCDU-06-4-SW-ABA | INFRALAN® Splicebox sliding version LC, 12 stripped pigtails/ 6 adapter, OM4 | LC-Duplex | black | 6 | 12 x LC | 9005 | LC-Duplex | violett | |
| ISB-LCDU-12-4-SW-ABA | INFRALAN® Splicebox sliding version LC, 24 stripped pigtails/ 12 adapter, OM4 | LC-Duplex | black | 12 | 24 x LC | 9005 | LC-Duplex | violett | |
| ISB-LCDU-24-4-SW-ABA | INFRALAN® Splicebox sliding version LC, 48 stripped pigtails/ 24 adapter, OM4 | LC-Duplex | black | 24 | 48 x LC | 9005 | LC-Duplex | violett | |
| ISB-LCDU-06-4-GR-ABA | INFRALAN® Splicebox sliding version LC, 12 stripped pigtails/ 6 adapter, OM4 | LC-Duplex | grey | 6 | 12 x LC | 7035 | LC-Duplex | violett | |
| ISB-LCDU-12-4-GR-ABA | INFRALAN® Splicebox sliding version LC, 24 stripped pigtails/ 12 adapter, OM4 | LC-Duplex | grey | 12 | 24 x LC | 7035 | LC-Duplex | violett | |
| ISB-LCDU-24-4-GR-ABA | INFRALAN® Splicebox sliding version LC, 48 stripped pigtails/ 24 adapter, OM4 | LC-Duplex | grey | 24 | 48 x LC | 7035 | LC-Duplex | violett |
