Cable Glands, M20 Standard
Prices only visible for logged in users

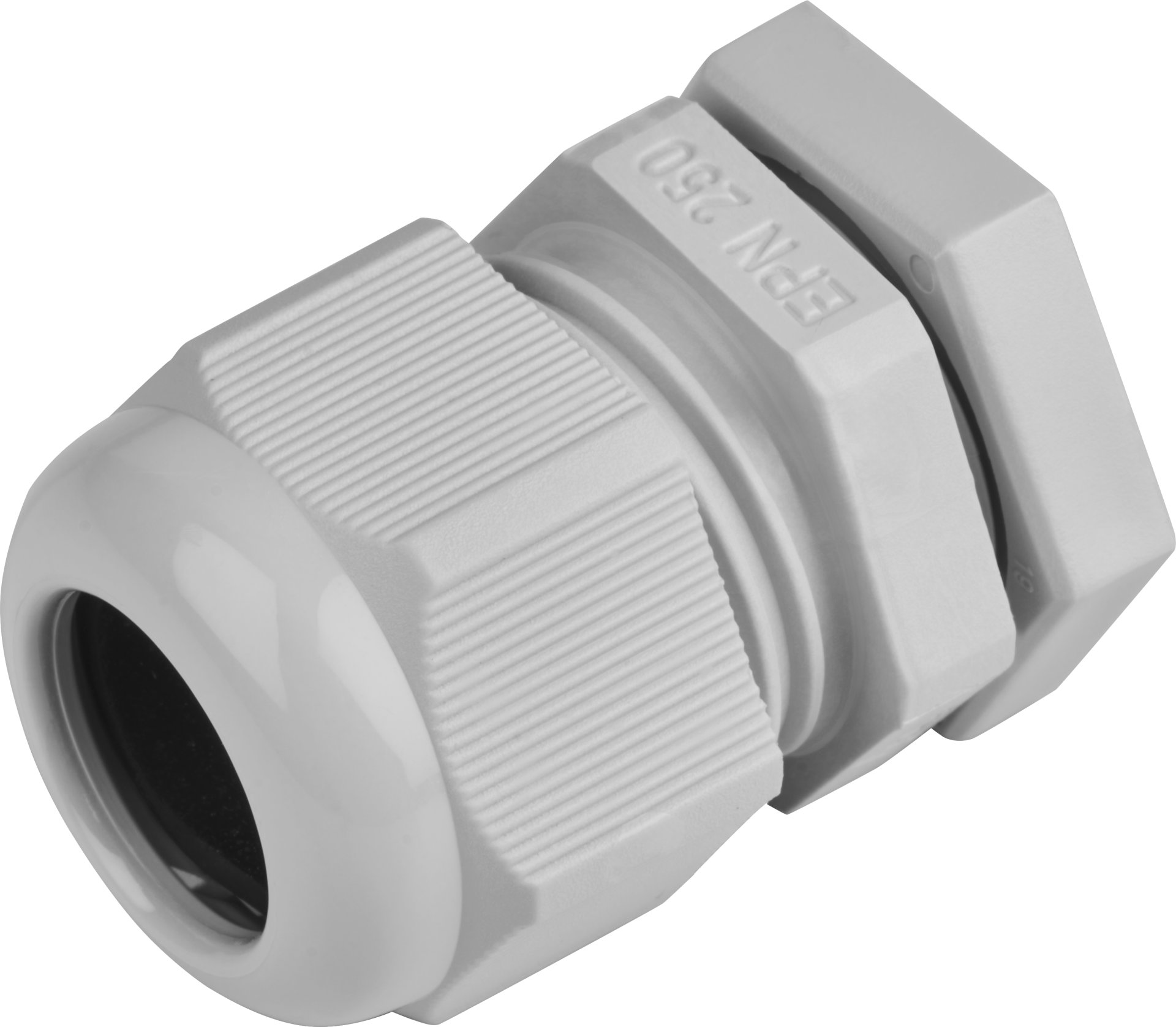

M20 Cable Glands grey, RAL7035
Item number:
53012.1
EAN no.:
4049759067397
Product information for M20 Cable Glands grey, RAL7035
Seperable cable gland + nut M20, 17 mm inner diameter
Technical properties
| Colour: | light grey |
|---|---|
| Degree of protection: | - |
| Flat cable coupling: | False |
| For Ex-Zone dust: | - |
| For Ex-zone gas: | - |
| Hexagon angular dimension: | - mm |
| Material: | Plastic |
| Material quality: | Polyamide |
| Model: | Straight |
| Nominal thread size inch/gas pipe thread: | - |
| Nominal thread size metric/PG: | 25 |
| Operating temperature: | 3 – °C |
| Pitch thread: | - mm |
| Separable screw gland: | True |
| Suitable for cable diameter: | 17 – mm |
| Surface protection: | other |
| Thread length: | - mm |
| Thread type: | Metric |
| Type of sealing: | sealing ring |
| With locknut: | True |
| With strain relief: | True |
| Wrench width: | 28 mm |
