MegaLine D1-20S/U PURsuperflex
Prices only visible for logged in users
MegaLine D1-20S/U PURsuperflex,4x2xAWG26/19, suitable for drag chain, RAL 1021
Item number:
99526MC.1
EAN no.:
4058942877675
Product information for MegaLine D1-20S/U PURsuperflex,4x2xAWG26/19, suitable for drag chain, RAL 1021
The MegaLine® D1-20 S/U PUR superflex is an electrically and mechanically high-quality 200 MHz patch cable also suitable for drag chain. Especially for application of class D.

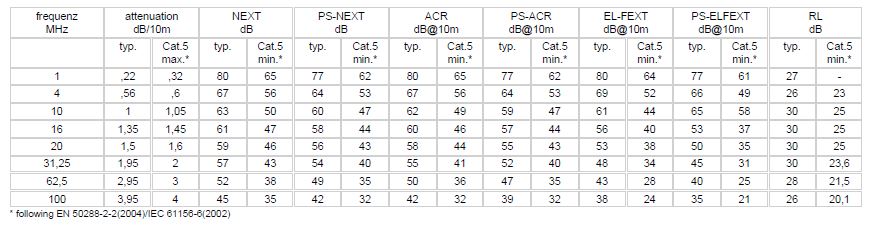

Technical properties
| AWG-size: | 26/19 |
|---|---|
| Bending radius (dynamic): | 40 mm |
| Bending radius (static): | 20 mm |
| Cable Construction: | S/UTP |
| Cable type: | Kerpen MegaLine D1-20 S/U PUR superflex |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 5E |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 2 = stranded |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | Polytetrafluoroethylene (PTFE) |
| Coupling attenuation: | 75 dB |
| Delay skew: | 15 ns/100m |
| Flame retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | False |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | 5000 MOhm/km |
| Jacket Material: | Polyurethane (PUR) |
| Loop resistance: | 260 Ohm/km |
| Low smoke (according to EN 61034-2): | False |
| Max. Freuqency: | 200 MHz |
| NVP value: | 68 % |
| Permitted cable outer temperature after assembling without vibration: | -40 – 85 °C |
| Permitted cable outer temperature during assembling/handling: | 0 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | foil + braid |
| Screen over stranding element: | without |
| Separation class acc. EN50174-2: | C |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 10MHz: | 25 mOhm/m |
| UV resistance: | no |
