Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 0,5HE
Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 0,5U, RAL9005 black
Item number:
37738SW.12
EAN no.:
4049759186623
Product information for Mini-Patchpanel STP 12xRJ45 Cat.6A, 10“ 0,5U, RAL9005 black

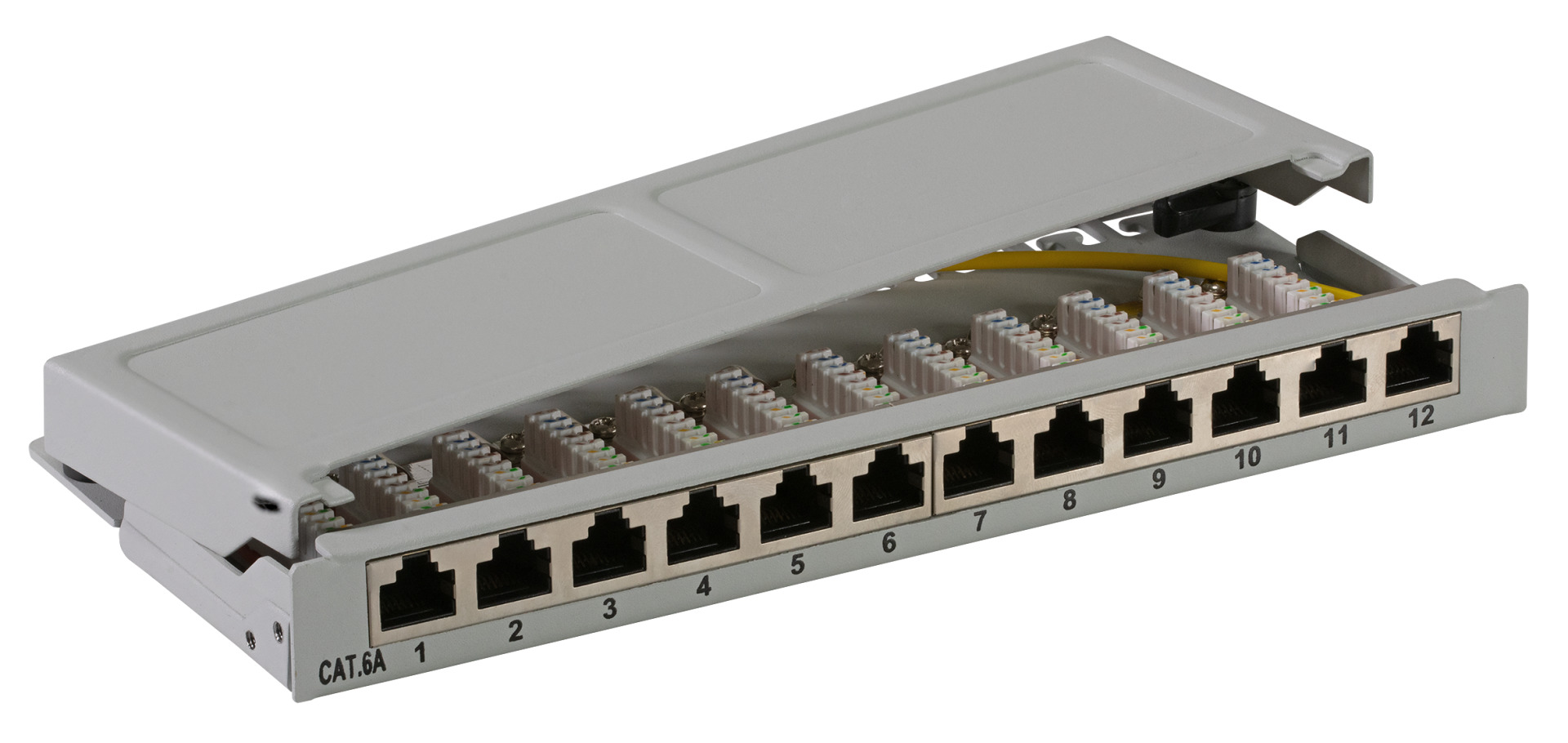

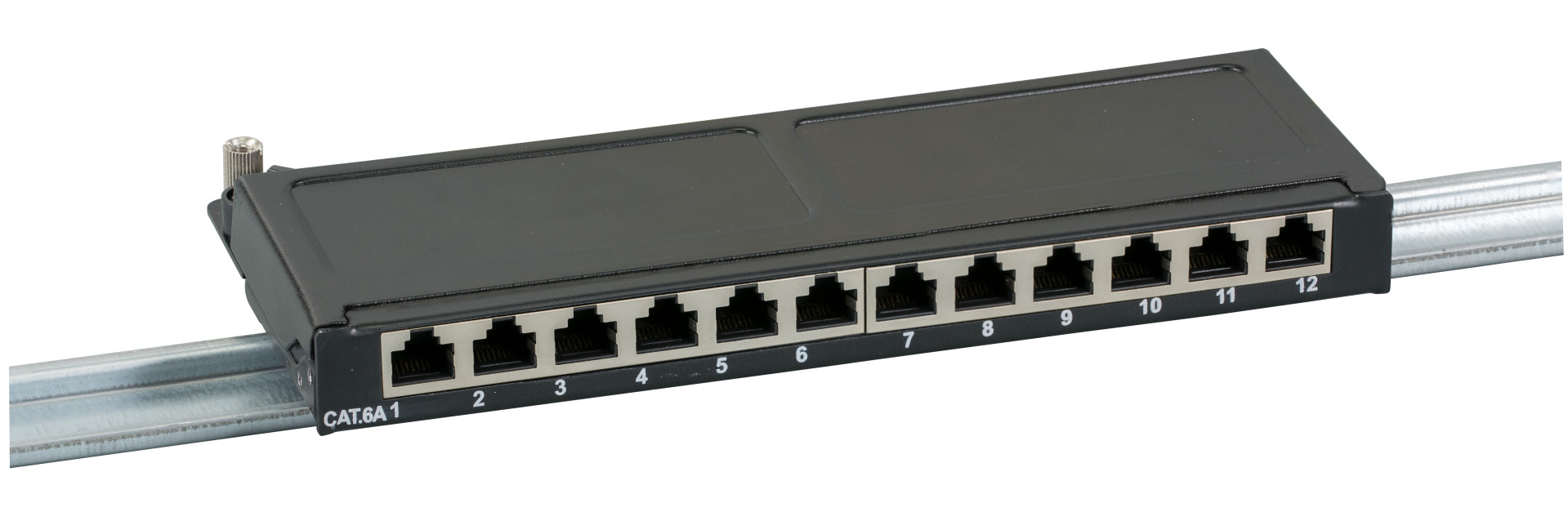

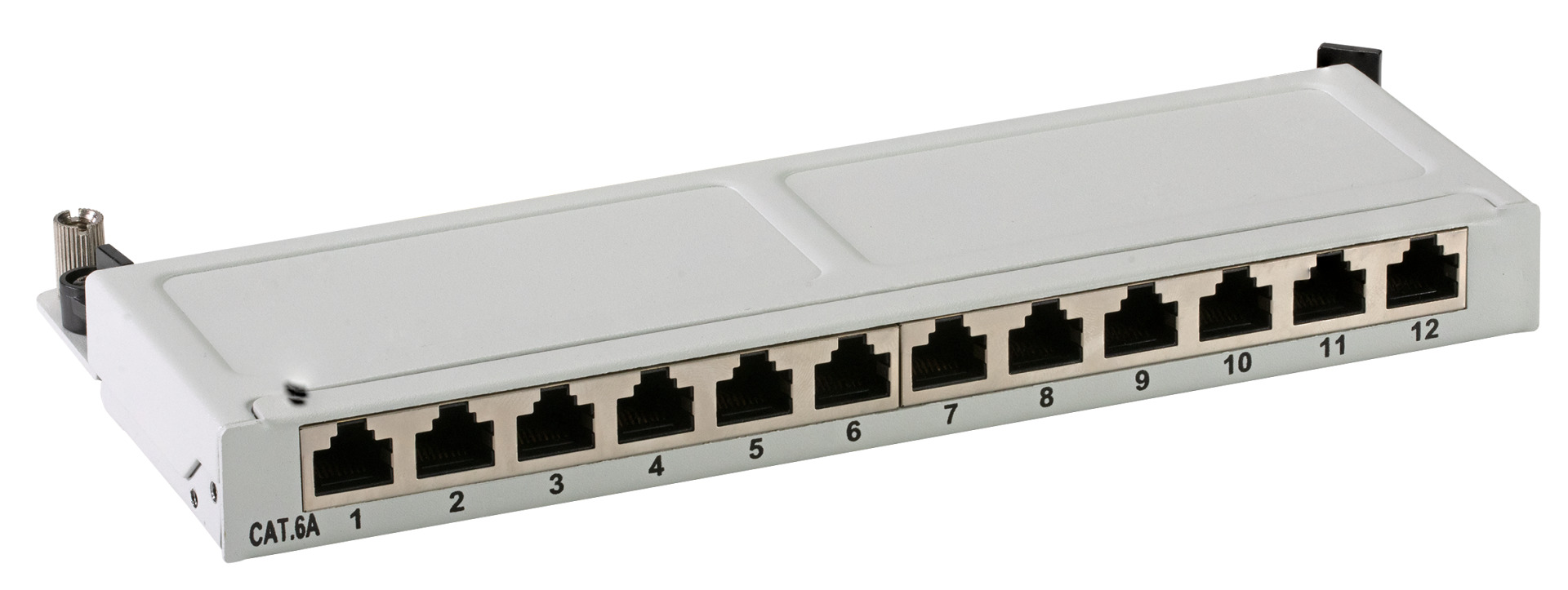

The high quality of the shielded Cat.6A RJ45 mini patch panel ensures excellent performance for 10 Gigabit Ethernet applications. The 10" patch panel offers a high port density with 12 ports at 0.5 U. In addition, the mini patch panel is characterized by its versatile mounting options. It is suitable for installation in a 10 "plane, for attachment to the wall or in conjunction with the DIN rail clamp set (Part No. H83030.1) for DIN rail mounting.
10 "mounting / wall mounting or DIN rail mounting possible, 1U
12 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal
Scope of delivery:
12 cable ties, assembly instructions
4 screws (M6x16mm) and nut
10 "mounting / wall mounting or DIN rail mounting possible, 1U
12 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal
Scope of delivery:
12 cable ties, assembly instructions
4 screws (M6x16mm) and nut
Technical properties
| Bandwidth: | 500 MHz |
|---|---|
| Category: | 6A (TIA) |
| Colour Code: | acc. TIA/EIA 568A/B |
| Complaint to UL94: | V-0 |
| Connection type: | LSA |
| Contact Resistance: | 100 mΩ |
| Cross section: | AWG 24 - AWG 22 |
| Current Rating: | 1.5 A |

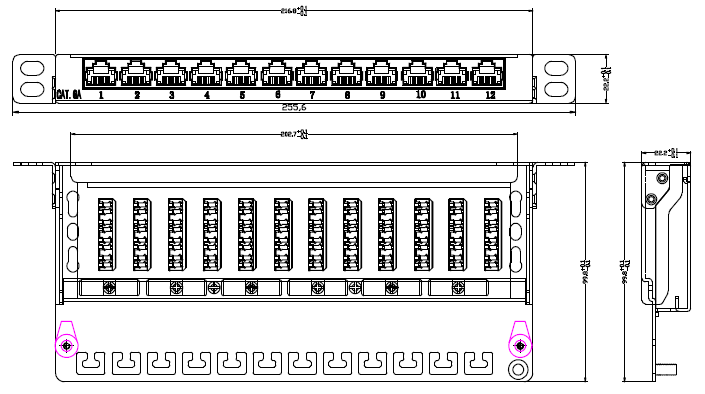

| Depth: | 108.0 mm |
| Dielectric Withstanding Voltage: | 750 V AC 60Hz |
| Durability LSA contacts: | 200 |
| Electrical strength: | 125 V AC RMS |
| Height: | 22.0 mm |
| Housing material LSA-terminal: | PC |
| Housing material Panel: | Steel, 1.5 mm |
| Housing material of RJ45 jacks: | PBT |
| Insertion force: | 50 N |
| Insulation Resistance: | 1000 MΩ |
| Material LSA contacts: | Phosphor bronze, tinned |
| Mating cycles RJ45 jack: | 750 |
| Mounting method: | Other |
| Number of height units: | 0.5 U |
| POE Standard: |
POE POE+ |
| Suitable for number of connectors: | 12 |
| Temperature Range (Operation): | -10 – 60 °C |
| Temperature Range (Storage): | -40 – 70 °C |
| Transmission: | 10 Gbit |
| Type of connector: | RJ45 8(8) |
| Width: | 254.6 mm |
| screened: | True |
