Cable gland PG-16
Prices only visible for logged in users

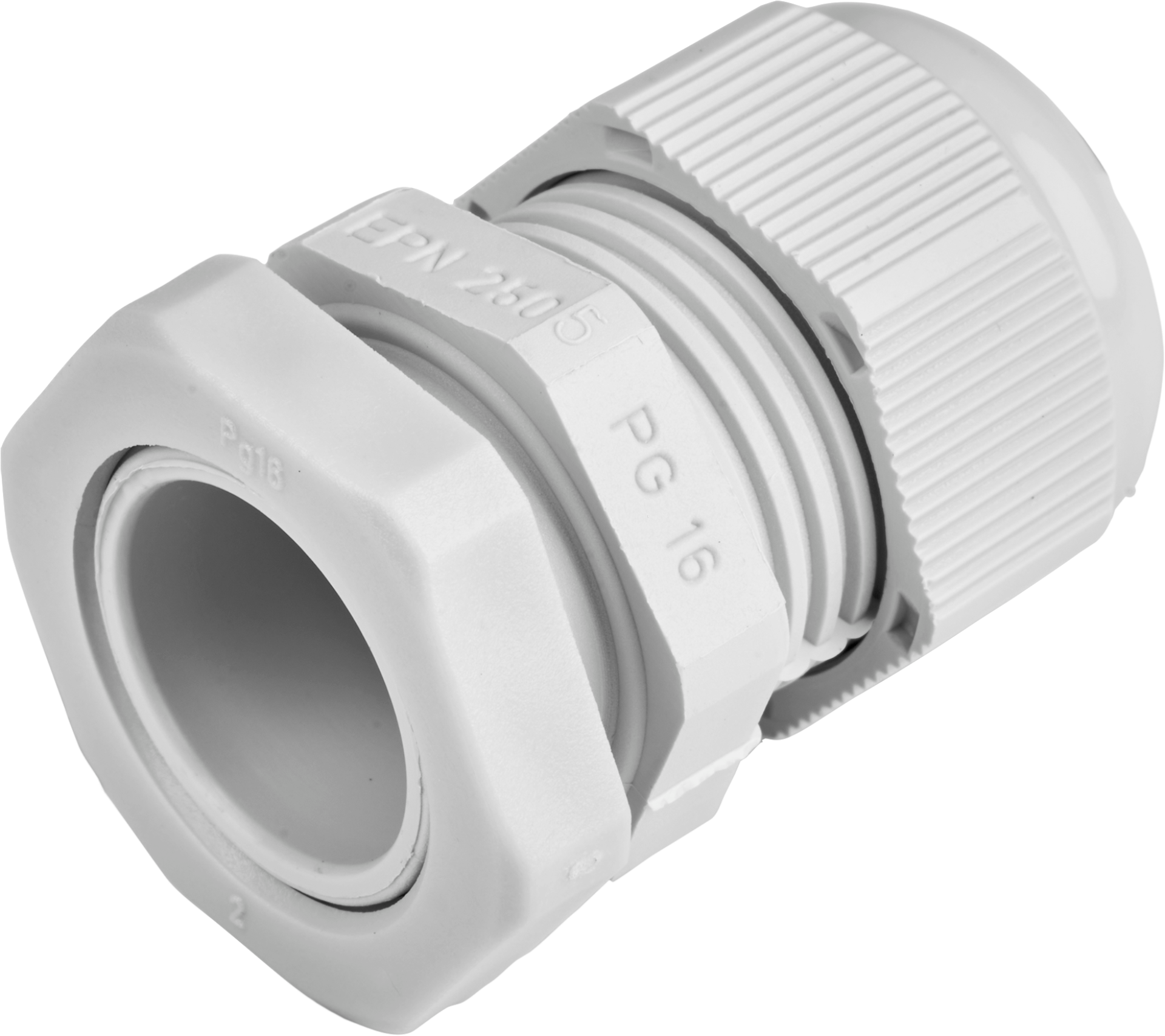

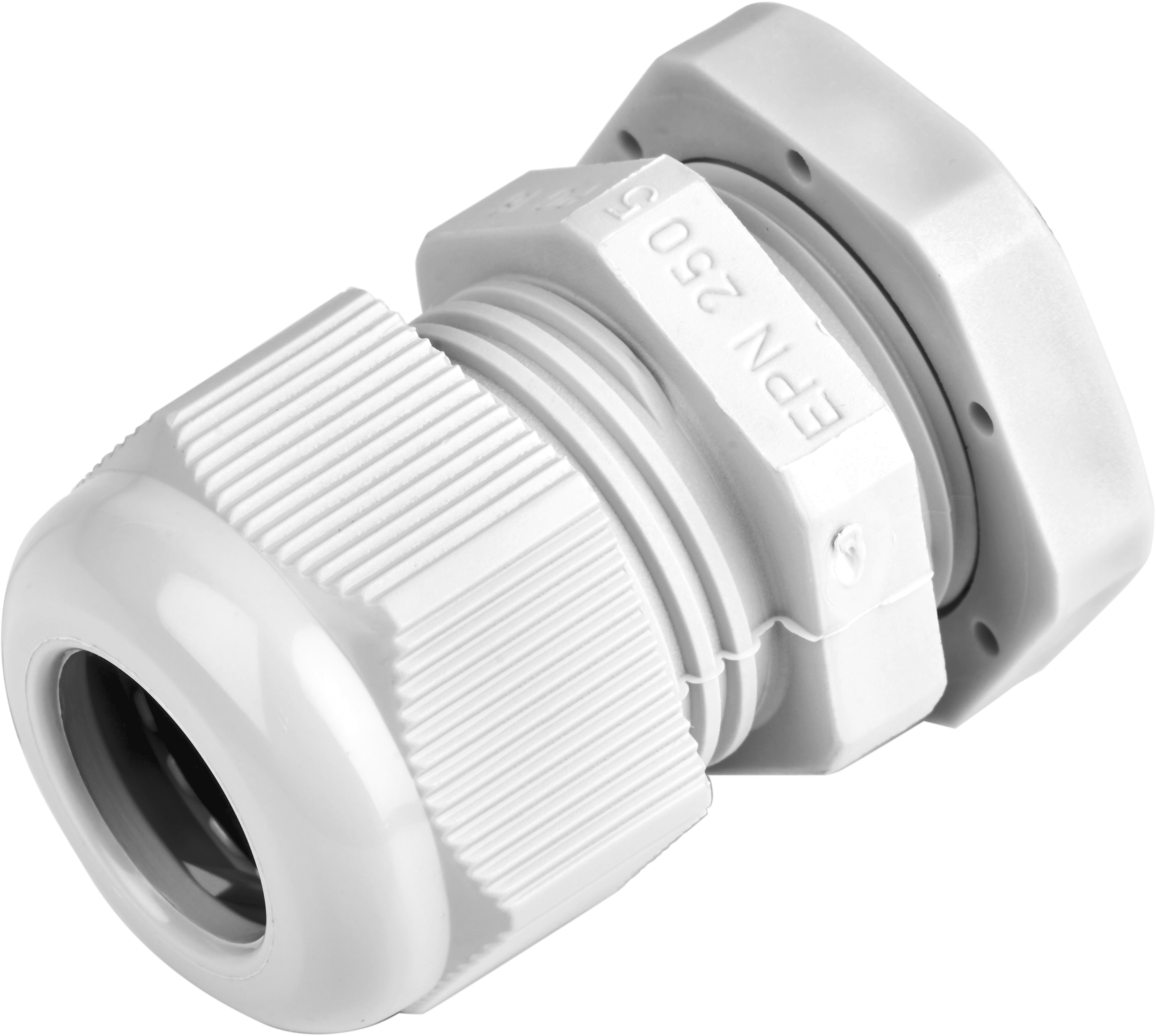

PG16 Cable Glands conical grey, RAL7035
Item number:
53010.5
EAN no.:
4049759067380
Product information for PG16 Cable Glands conical grey, RAL7035
Cable gland PG16 inclusive locknut
Technical properties
| Bend radius protection/trumpet flare: | False |
|---|---|
| Colour: | light grey |
| Degree of protection: | IP54 |
| Flat cable coupling: | False |
| For Ex-Zone dust: | - |
| For Ex-zone gas: | - |
| Glass-fibre reinforced: | False |
| Halogen free: | True |
| Hexagon angular dimension: | - mm |
| Material: | Plastic |
| Material quality: | Polyamide |
| Model: | Straight |
| Multi seal area: | True |
| Nominal thread size inch/gas pipe thread: | - |
| Nominal thread size metric/PG: | 16 |
| Operating temperature: | 3 – °C |
| Pitch thread: | - mm |
| Separable screw gland: | False |
| Shock resistant: | True |
| Suitable for cable diameter: | 14 – mm |
| Surface protection: | other |
| Thread length: | - mm |
| Thread type: | PG |
| Type of sealing: | sealing ring |
| With locknut: | True |
| With strain relief: | False |
| Wrench width: | - mm |
