RJ45 Patchkabel Cat.6A S/FTP VOIP kurze Tülle schwarz

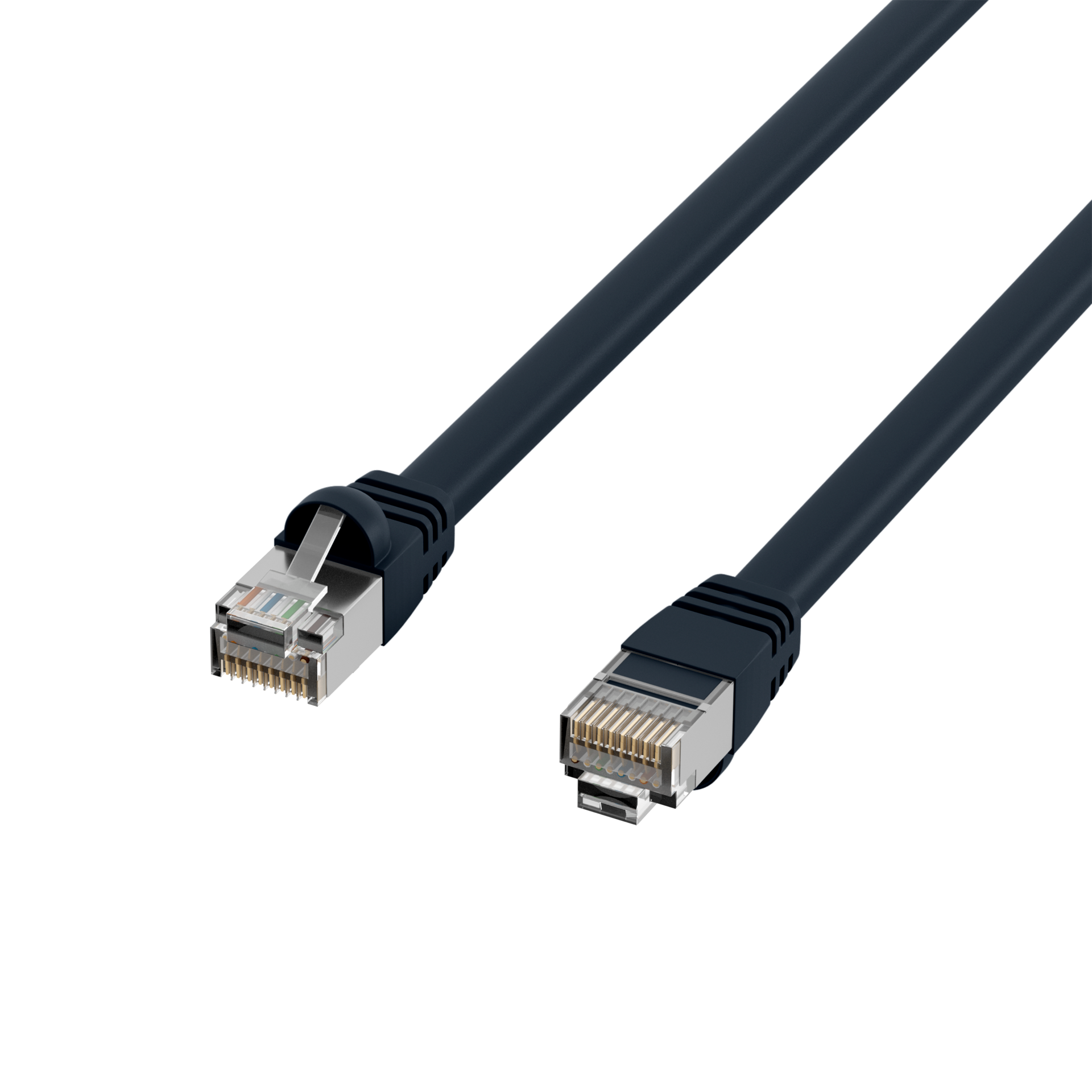

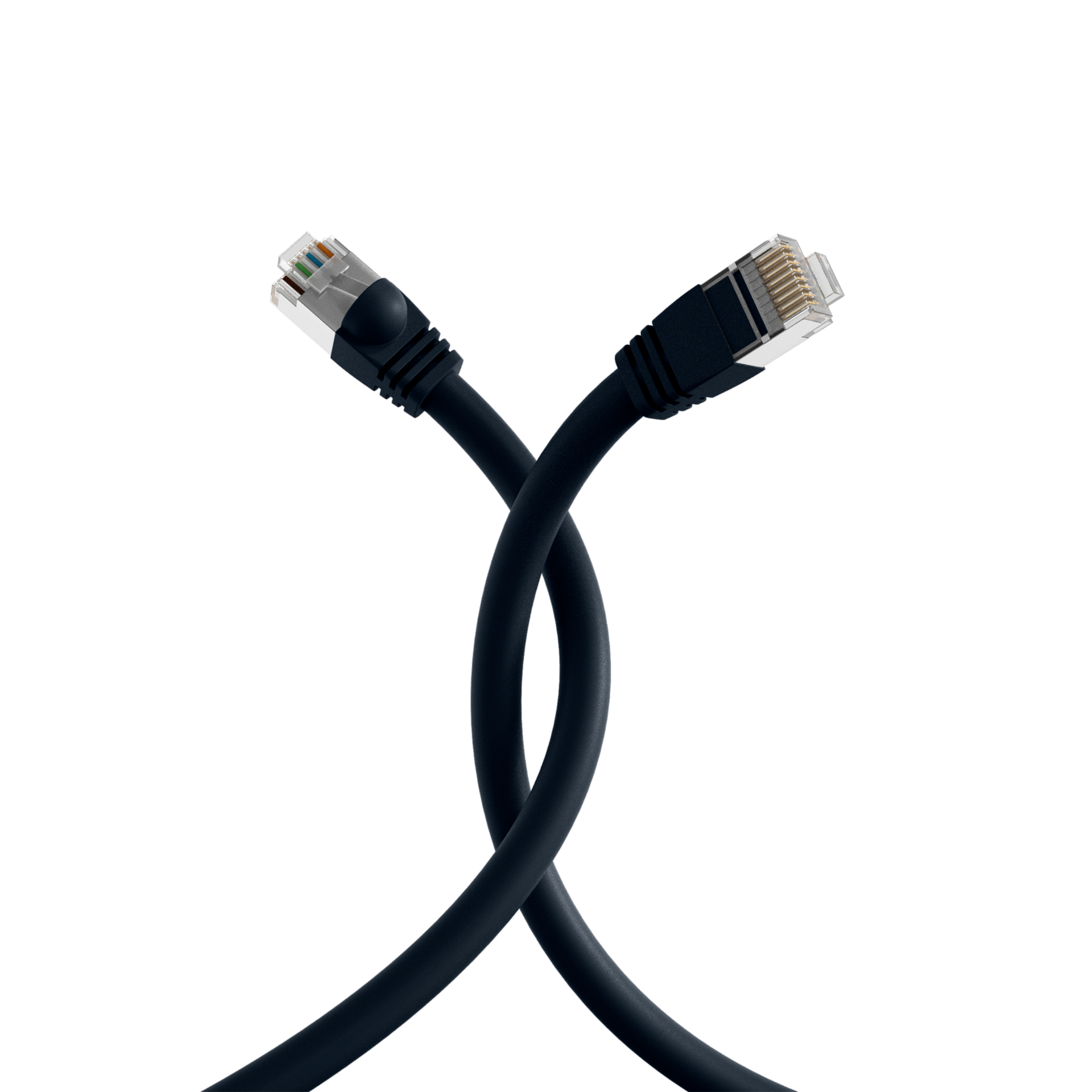

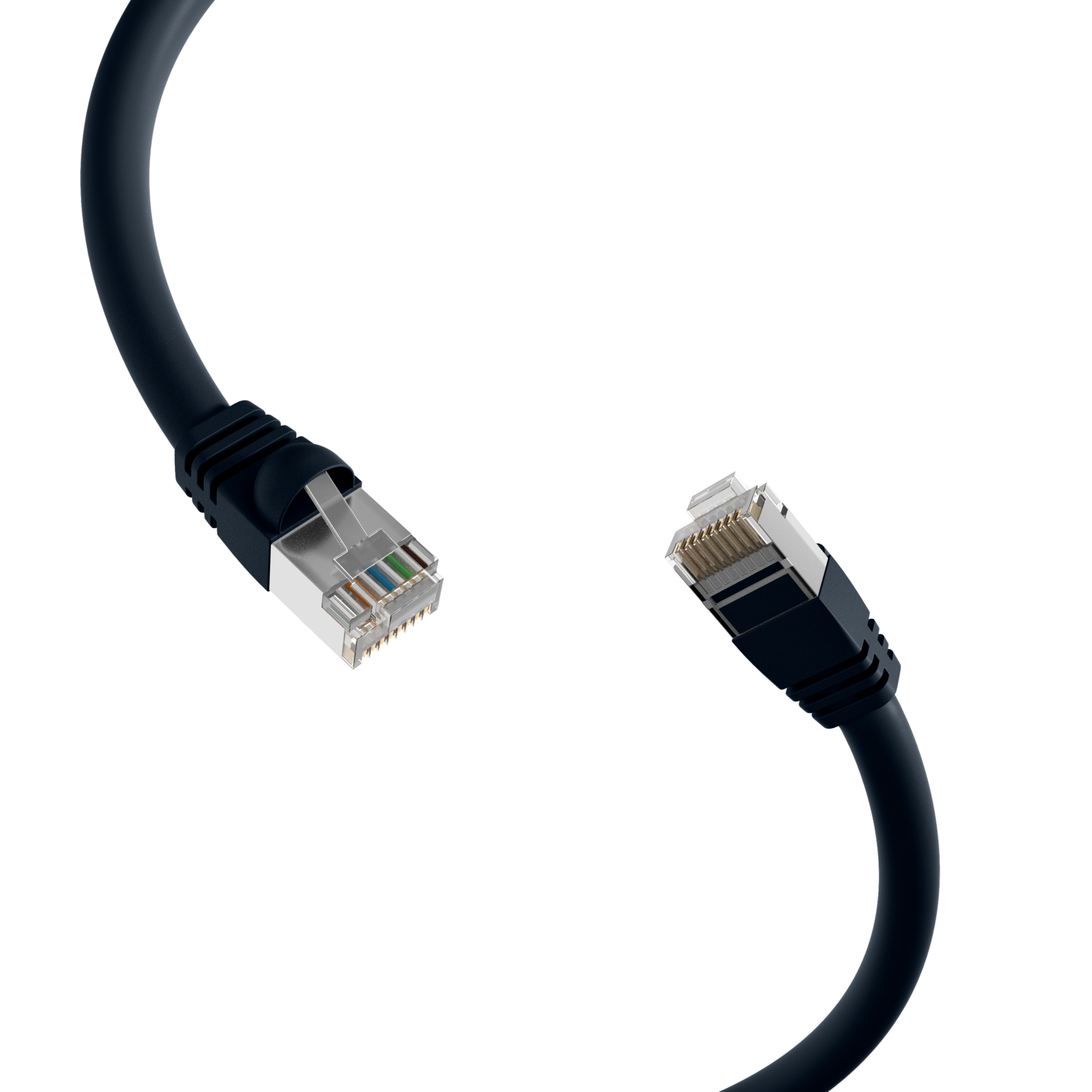

RJ45 Patch cable S/FTP, Cat.6A, VOIP, short boot, 2m, black
Item number:
K2464.2
EAN no.:
4049759111687
Product information for RJ45 Patch cable S/FTP, Cat.6A, VOIP, short boot, 2m, black
RJ45 patch cable S/FTP Cat.6A VOIP short sleeve
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The cable also offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The RJ45 plugs are assigned according to TIA/EIA 568B and are 1:1.
The bandwidth is up to 100 MHz.
The Cat.6A (TIA) patch cable has gold-plated contacts and enables 2.5Gbit Ethernet as a transmission standard.
Technical product features
• Cat.6A (TIA)
• S/FTP cable with AWG26
• Fire protection: flame retardant
• Plug connection: RJ45 to RJ45
• With locking lever protection
• Has gold-plated contacts
The cable also offers the option of power supply via PoE+ according to IEEE802.3at and PoE according to IEEE802.3af.
The RJ45 plugs are assigned according to TIA/EIA 568B and are 1:1.
The bandwidth is up to 100 MHz.
Technical properties
| (Halogenfree): | False |
|---|---|
| AWG-size: | 26 |
| Anti-kink sleeve: | plugged in |
| Cable construction: | 4x2 |
| Cable type: | S/FTP |
| Cabling Standard: |
ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Category: | 6A (TIA) |
| Colour anti-kink sleeve: | black |
| Colour outer sheath: | black |
| Fire retardant version: | True |
| Length imprint: | False |
| Locking lever: | True |
| NVP value: | - % |
| Oil resistant (acc. EN 60811-2-1): | False |
| POE class: | none |
| Pin assignment: | 1:1 |
| Test voltage: | 1000 (V DC, 1min) core/core und core/screen |
| Type of connector connection 1: | RJ45 8(8) |
| Type of connector connection 2: | RJ45 8(8) |
