RJ45 Stewart Connector STP, SS39200-012 Cat.6
Prices only visible for logged in users
RJ45 Stewart Connector STP, SS39200-012 Cat.6, without anti-kink sleeve
Item number:
37563.T
EAN no.:
4049759028664
Product information for RJ45 Stewart Connector STP, SS39200-012 Cat.6, without anti-kink sleeve
Up to 250 MHz (Cat.6)
For stranded wires (AWG 24/7, AWG 26/7,
AWG 27/7)
Shielded version
Core insulation about 0.9 - 1.0 mm
Cable diameter max. 6.3 mm
The set consists of RJ plug, and guide plate

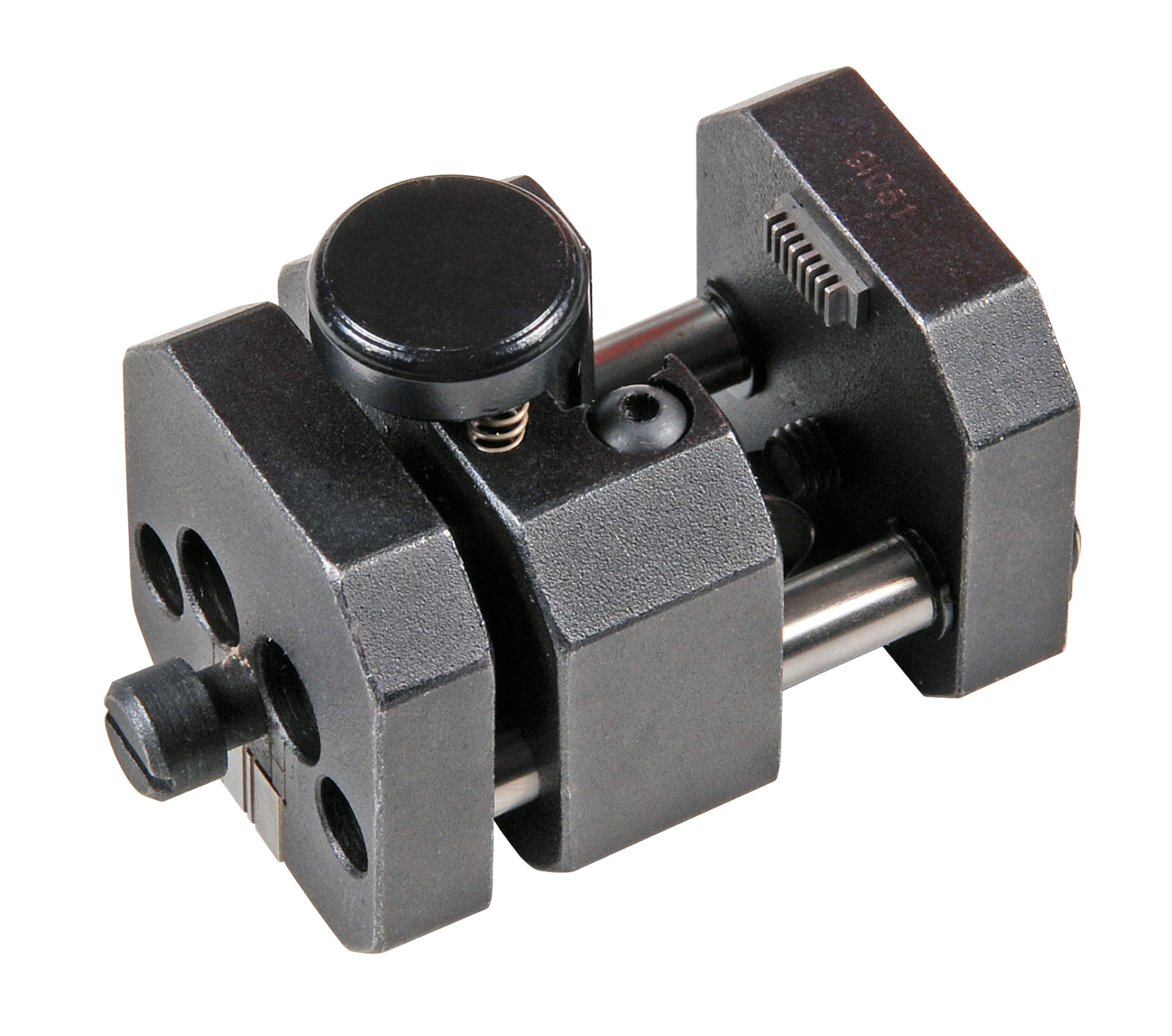

Suitable crimping tool DCW1002 + DCW1002.2
Anti-kink sleeve not included
For stranded wires (AWG 24/7, AWG 26/7,
AWG 27/7)
Shielded version
Core insulation about 0.9 - 1.0 mm
Cable diameter max. 6.3 mm
The set consists of RJ plug, and guide plate
Suitable crimping tool DCW1002 + DCW1002.2
Anti-kink sleeve not included
Technical properties
| AWG-range: | 24 – 27 |
|---|---|
| AWG-range for litz wire conductor: | 24 – 27 |
| Category: | 6 |
| Connection type: | crimp |
| Model: | plug |
| Special tool necessary: | True |
| Suitable for flat cable: | False |
| Suitable for litz wire conductor: | True |
| Suitable for round cable: | True |
| Suitable for solid core: | False |
| Type of connector: | RJ45 8(8) |
| screened: | True |
